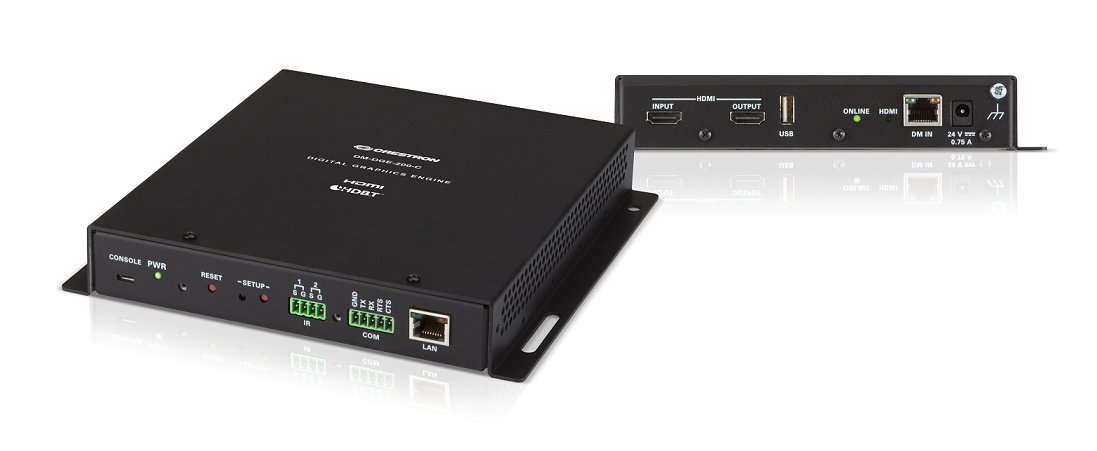

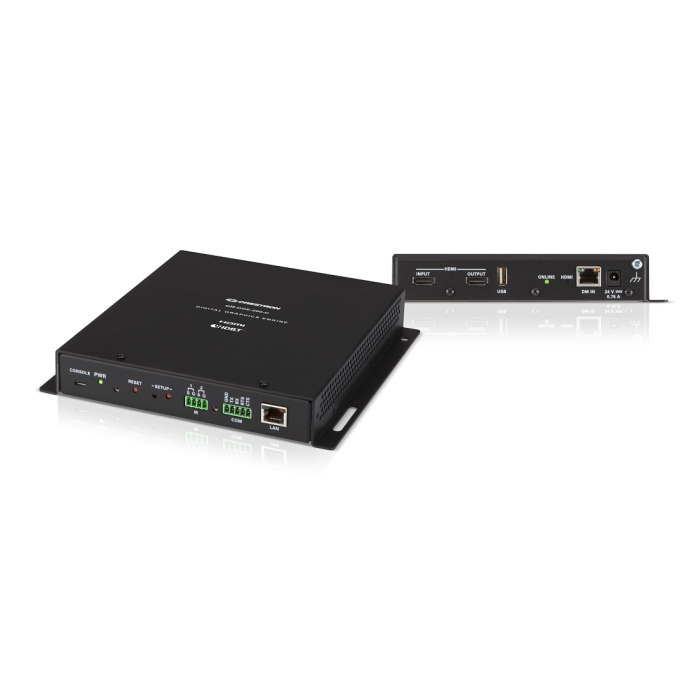

CRESTRON DM-DGE-200-C Digital Graphics Engine

CRESTRON DM-DGE-200-C Digital Graphics Engine

Connectors:

CONSOLE (USB) (1) USB Micro A connector, female; USB computer console port; Type A to Micro A USB

IR 1–2 (1) 4-pin 3.5 mm detachable terminal block; Comprises (2)

IR/serial ports1 ;

IR output to 1.1 MHz; 1-way serial TTL/RS-232 (0–5V) up to 19200 baud

COM (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port1 ; Up to 115.2k baud, hardware and software handshaking support

LAN (1) 8-pin RJ-45 connector, female; 100BASE-TX Ethernet port

HDMI INPUT (1) HDMI Type A connector, female; HDMI digital video/audio input9 ;

DVI and dual-mode DisplayPort signal compatible11 HDMI OUTPUT (1) HDMI Type A connector, female;

HDMI digital video/audio output9 ;

DVI compatible11 USB (1)

USB Type A connector, female; USB 2.0 host port for connecting a USB

HID compliant touch screen, mouse, or keyboard

DM IN (1) 8-pin RJ-45 connector, female;

DM 8G+ input3,5,8,9 , PoDM PSE (Power over DM Power Sourcing Equipment) port 24VDC 0.75A (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2420RU

G (1) 6-32 screw; Chassis ground lug

Communications:  Ethernet 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SNMP, IPv4 or IPv6, Active Directory® authentication, HTTPS web browser setup, XiO Cloud® client, Crestron control system integration5 USB Host Supports TSD-2220 touch screen display and most third-party USB HID compliant peripherals USB Device For computer console (installer setup and firmware updates) RS-232 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking1 IR/Serial 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0–5V) up to 19200 baud1 DigitalMedia™ Technology DM 8G+, HDCP 2.2, EDID, Ethernet, PoDM (Power over DM®) sourcing HDMI, Input HDCP 1.4, EDID, CEC2 HDMI, Output HDCP 2.2, EDID, CEC2

Pointing Device Support:

Compatible with the TSD-2220 touch screen display and most third-party USB HID compliant touch screens, mice, and keyboards

Streaming Decoder:

Video Formats H.264 (MPEG-4 part 10 AVC), MJPEG Audio Formats AAC stereo Bitrates Up to 25 Mbps4 Resolutions Up to 1080p60

BRAK ZASILACZA, OKABLOWANIA
