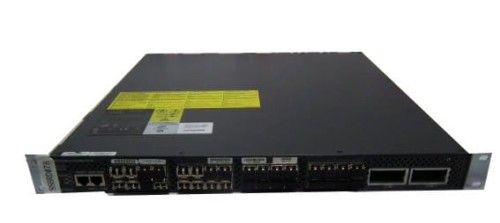

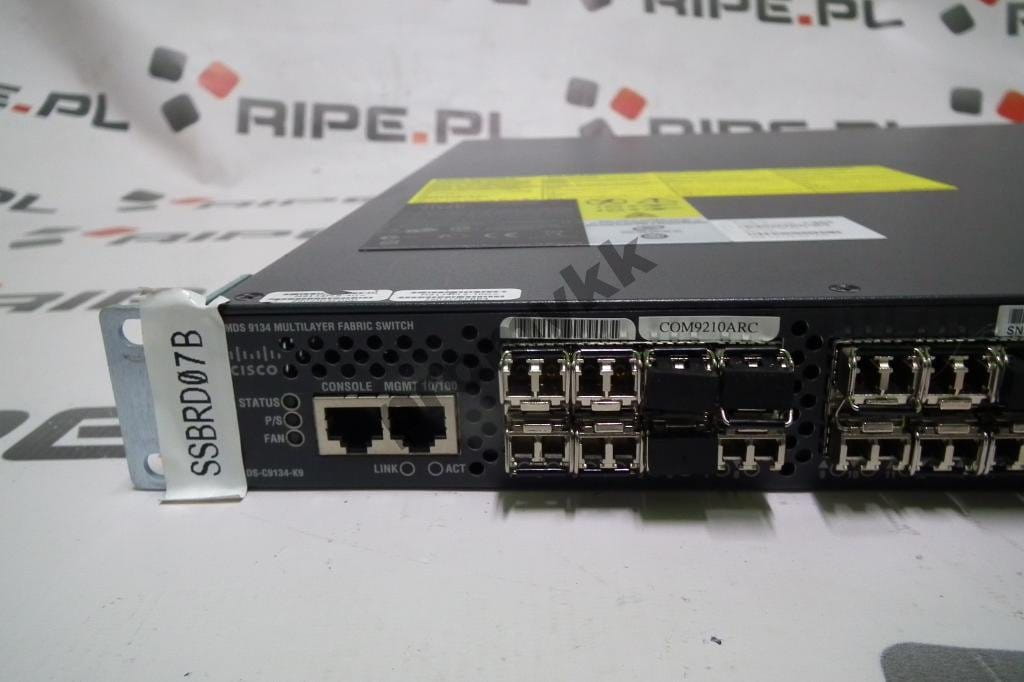

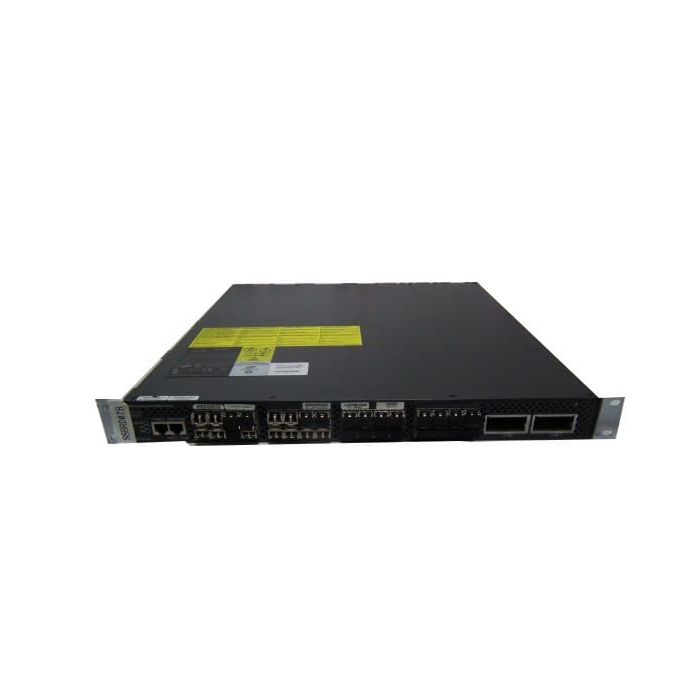

Cisco MDS 9134 Multilayer Fabric 32x 4 Gbit 2x10GB

SWITCH FC 32 PORTY FC 4GB, wszystkie porty aktywne

moduły sfp w komplecie

Na innych aukcjach dostępne moduły 10GB do tych switchy

Cisco MDS 9134 oferuje do 32 portów FC 4GB

SPECYFIKACJA

Specifications

    Minimum Software Requirements

    ● Cisco MDS 9000 SAN-OS Software Release 3.2(1)

    Performance and Port Configurations

    ● Port speed: 4-, 2-, and 1-Gbps autosensing with 4 Gbps of dedicated bandwidth per port and 10 Gbps of dedicated bandwidth for 10-Gbps ports

    ● Buffer credits: Up to 64 for a group of 4 ports, with a default of 16 buffer credits per port for the 4-Gbps ports and 64 buffer credits per 10-Gbps port

    ● Ports per chassis: Up to 32 4-Gbps ports and 2 10-Gbps ports

    - Base configuration with 24 ports

    - Additional ports in 8-port increment with the port activation license for 4-Gbps ports

    - Two 10-Gbps ports with the 10-Gbps port license

    ● PortChannel: Up to 16 ports in a PortChannel

    Security

    ● VSANs

    ● Zoning

    - Hardware-enforced zoning

    - Logical-unit-number (LUN) zoning and read-only zones

    ● FC-SP for host-to-switch and switch-to-switch authentication

    ● Port security

    ● Management access

    - SSHv2

    - SNMPv3

    - IP ACLs

    Compatibility

    ● Fibre Channel protocols

    - FC-PH, Revision 4.3 (ANSI/INCITS 230-1994)

    - FC-PH, Amendment 1 (ANSI/INCITS 230-1994/AM1 1996)

    - FC-PH, Amendment 2 (ANSI/INCITS 230-1994/AM2-1999)

    - FC-PH-2, Revision 7.4 (ANSI/INCITS 297-1997)

    - FC-PH-3, Revision 9.4 (ANSI/INCITS 303-1998)

    - FC-PI, Revision 13 (ANSI/INCITS 352-2002)

    - FC-PI-2, Revision 10 (ANSI/INCITS 404-2006)

    - FC-FS, Revision 1.9 (ANSI/INCITS 373-2003)

    - FC-FS-2, Revision 0.91

    - FC-LS, Revision 1.2

    - FC-AL, Revision 4.5 (ANSI/INCITS 272-1996)

    - FC-AL-2, Revision 7.0 (ANSI/INCITS 332-1999)

    - FC-AL-2, Amendment 1 (ANSI/INCITS 332-1999/AM1-2003)

    - FC-AL-2, Amendment 2 (ANSI/INCITS 332-1999/AM2-2006)

    - FC-SW-2, Revision 5.3 (ANSI/INCITS 355-2001)

    - FC-SW-3, Revision 6.6 (ANSI/INCITS 384-2004)

    - FC-SW-4, Revision 7.5 (ANSI/INCITS 418-2006)

    - FC-GS-3, Revision 7.01 (ANSI/INCITS 348-2001)

    - FC-GS-4, Revision 7.91 (ANSI/INCITS 387-2004)

    - FC-GS-5, Revision 8.2

    - FC-BB, Revision 4.7 (ANSI/INCITS 342-2001)

    - FC-BB-2, Revision 6.0 (ANSI/INCITS 372-2003)

    - FC-BB-3, Revision 6.8 (ANSI/INCITS 414-2006)

    - FCP, Revision 12 (ANSI/INCITS 269-1996)

    - FCP-2, Revision 8 (ANSI/INCITS 350-2003)

    - FCP-3, Revision 4 (ANSI/INCITS 416-2006)

    - FC-SB-2, Revision 2.1 (ANSI/INCITS 349-2001)

    - FC-SB-3, Revision 1.6 (ANSI/INCITS 374-2003)

    - FC-VI, Revision 1.84 (ANSI/INCITS 357-2002)

    - FC-FLA, Revision 2.7 (INCITS TR-20-1998)

    - FC-PLDA, Revision 2.1 (INCITS TR-19-1998)

    - FC-Tape, Revision 1.17 (INCITS TR-24-1999)

    - FC-MI, Revision 1.92 (INCITS TR-30-2002)

    - FC-MI-2, Revision 2.6 (INCITS TR-39-2005)

    - FC-SP, Revision 1.6

    - FC-DA, Revision 3.1 (INCITS TR-36-2004)

    - FAIS Revision 0.7

    ● Extensive IETF-standards-based TCP/IP, SNMPv3, and Remote Monitoring (RMON) MIBs

    ● Class of service: Classes 2, 3, and F

    ● Fibre Channel standard port types: E, F, and FL

    ● Fibre Channel enhanced port types: SD, and TE

    Fabric Services

    ● Name server

    ● Registered state change notification (RSCN)

    ● Login services

    ● Broadcast

    ● In-order delivery

    ● Name-server zoning

    Advanced Services

    ● N-port ID virtualization

    ● VSANs

    ● PortChannels

    ● FICON protocol integration

    Diagnostics and Troubleshooting Tools

    ● POST diagnostics

    ● Online diagnostics

    ● Internal loopbacks

    ● SPAN

    ● Fibre Channel Traceroute

    ● Fibre Channel Ping

    ● Fibre Channel Debug

    ● Cisco Fabric Analyzer

    ● Syslog

    ● Port-level statistics

    Management

    ● Access methods

    - Out-of-band 10/100 Ethernet port

    - EIA/TIA-232 serial console port

    - In-band Fibre Channel over IP (FCIP)

    ● Access protocols

    - CLI

    - SNMP

    - SMI-S

    ● Security

    - RBAC using RADIUS or TACACS+ authentication, authorization, and accounting (AAA) functions

    - VSAN-based roles

    - SSHv2

    - SNMPv3

    ● Management applications

    - Cisco MDS 9000 family CLI

    - Quick Configuration Wizard

    - Cisco Fabric Manager and Device Manager

    - Cisco Fabric Manager Server (optional; requires Cisco Fabric Manager Server license)

    Availability

    ● Nondisruptive software upgrades

    ● Stateful process restart

    ● Per-VSAN fabric services

    ● Redundant, hot-swappable power supply and redundant, hot-swappable power supply and fan trays

    ● Hot-swappable SFP optics

    ● PortChannels aggregating up to 16 ports

    ● Online diagnostics

    Serviceability

    ● Configuration file management

    ● Call Home

    ● Port beaconing

    ● System LEDs

    ● SNMP traps for alerts

    Environmental

    ● Ambient operating temperature is 32 to 104°F (0 to 40°C)

    ● Ambient nonoperating temperature is -40 to 158°F (-40 to 70°C)

    ● Physical dimensions (H x W x D) of 1RU: 1.76 x 17.16 x 18.89 in. (4.47 x 4LFF9 x 47.98 cm)

    ● Weight of switch with dual power supplies: 20 lb (44 kg)

    Power and Cooling

    ● Power supplies (300W AC) (maximum of two per switch)

    - AC Input: 100 to 240 VAC nominal (+/-10% for full range)

    - Frequency: 50 to 60 Hz nominal (+/-3 Hz for full range)

    - Power consumption: 99 W maximum with 0.99A at 100 VAC and 0.45A at 220 VAC

    ● Airflow: Front to rear
