HP Procurve 2512 J4812A 12x10/100 +MODUŁ J4853A

SWITCH

HP Procurve 2512 J4812A

Moduł: J4853A - 100FX SC transceiver



12 portów RJ-45 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-T)
2 x open transceiver slots
1 RS-232C DB-9 console port


DANE:
6 MB Packet buffer size
26 MB RAM/ROM capacity
2 MB Flash capacity

Protocols
    SNMPv1/v2c
    RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
    XRMON
    RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
    RFC 3376 IGMPv1/v2/v3
    RFC 1492 TACACS+
    RFC 1493 Bridge MIB
    RFC 3164 Syslog
    RFC 2613 SMON

Standars
IEEE 802.3x Flow Control
IEEE 802.1D Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol
IEEE 802.1X Network Login
IEEE 802.1Q GVRP
IEEE 802.1w Rapid Convergence Spanning Tree
IEEE 802.1Q VLANs
IEEE 802.1p Priority

UCHWYTY MONTAŻOWE

BRAK OKABLOWANIA

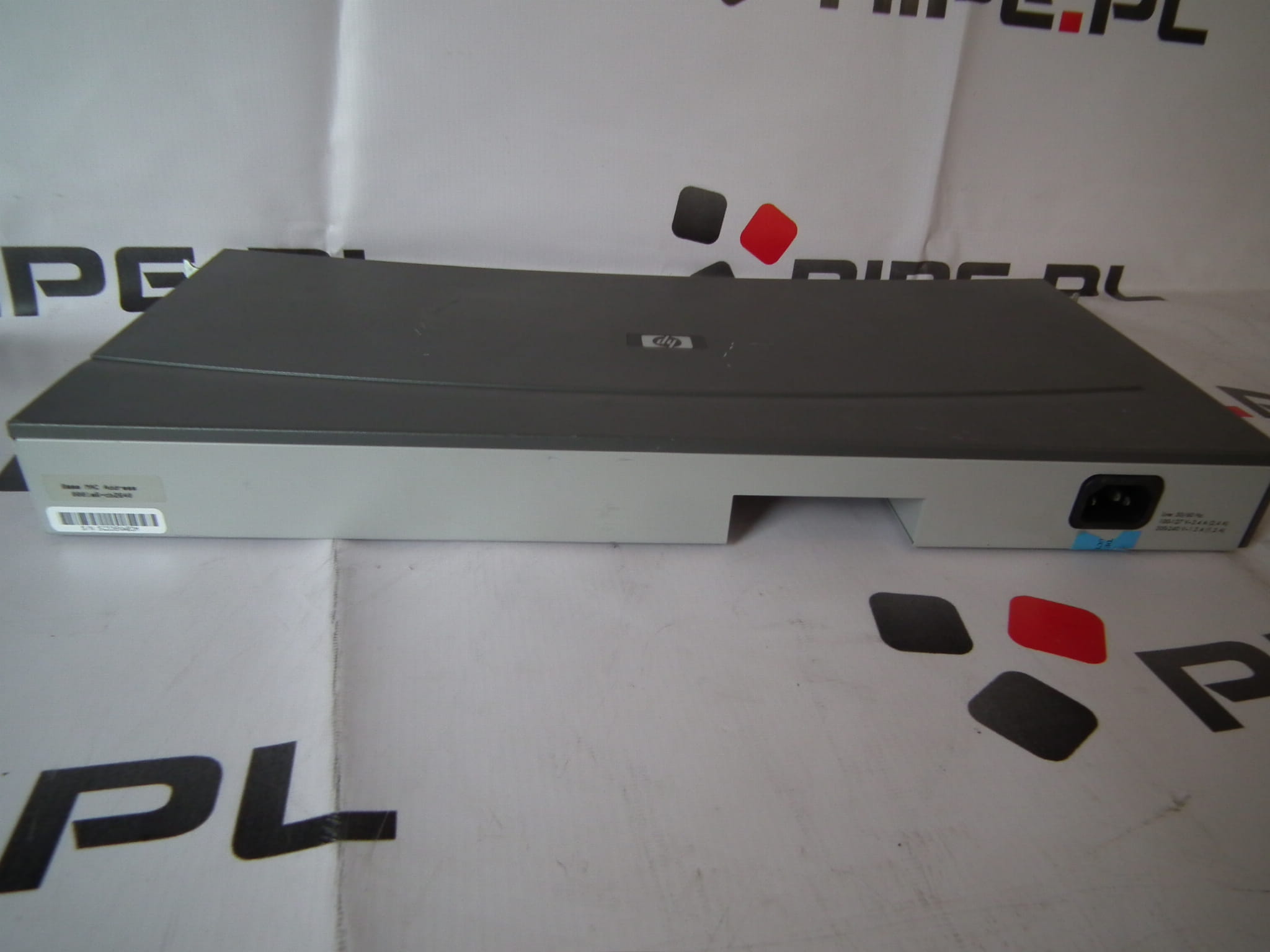

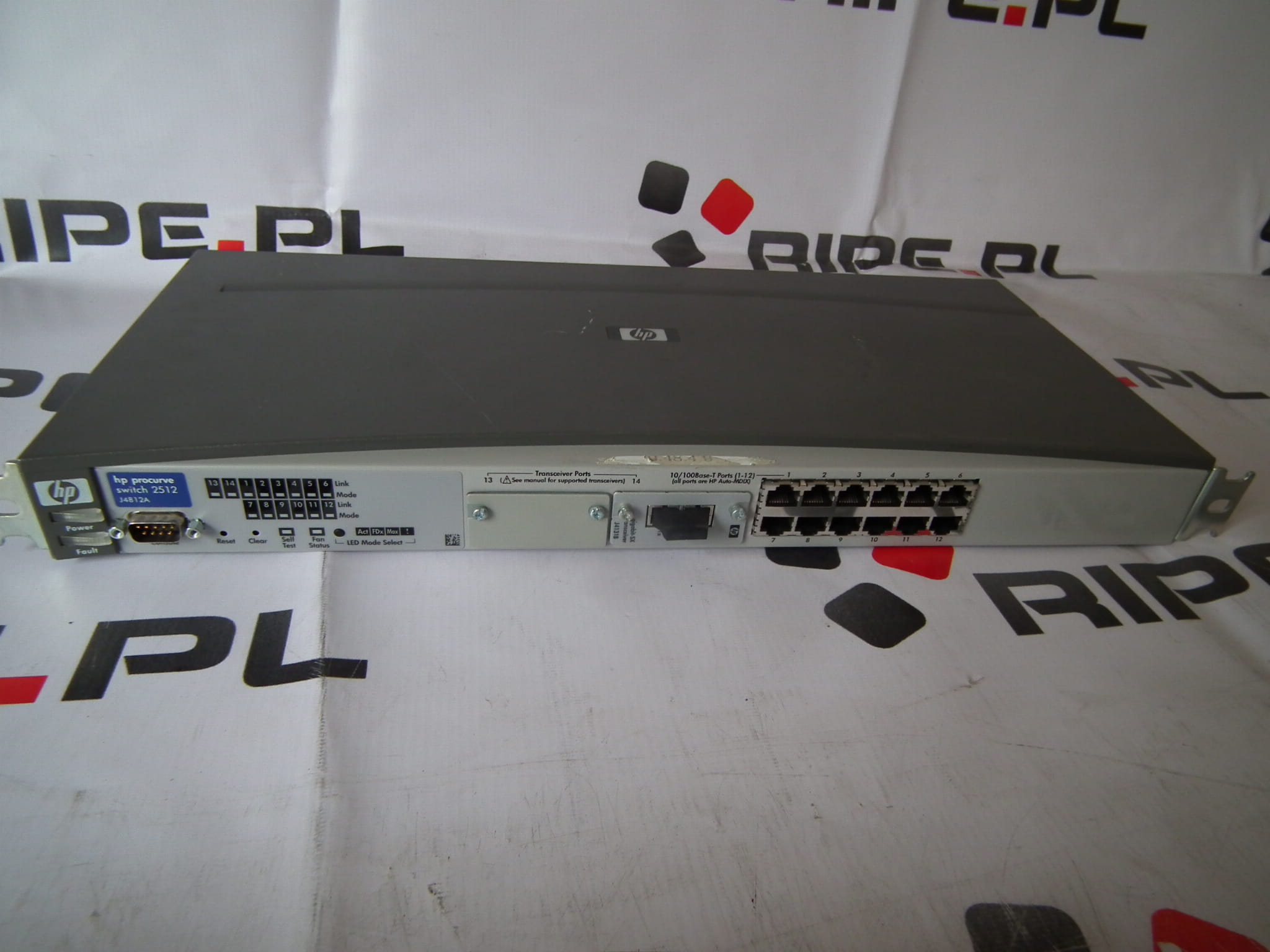

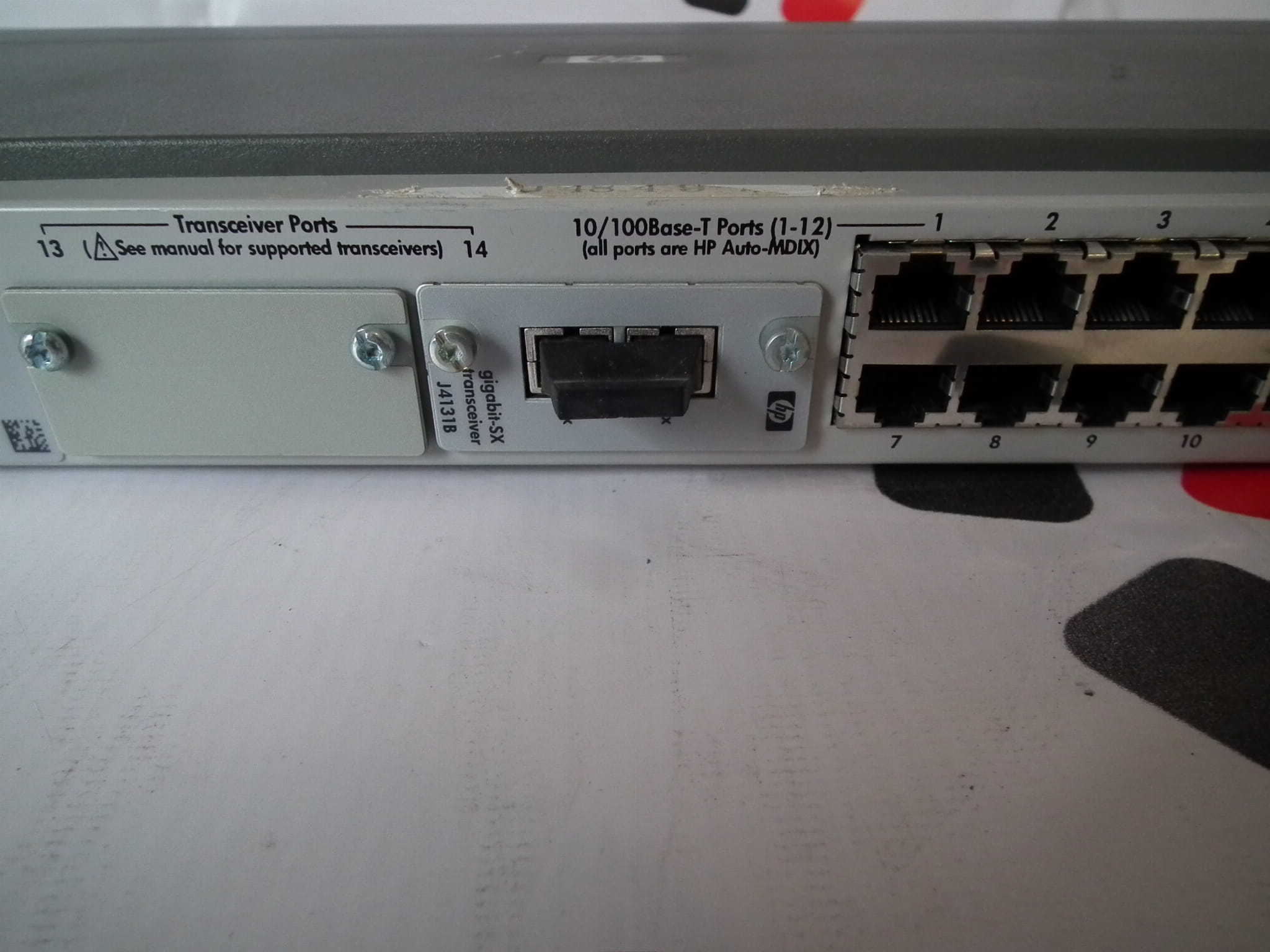

zdjęcie poglądowe
