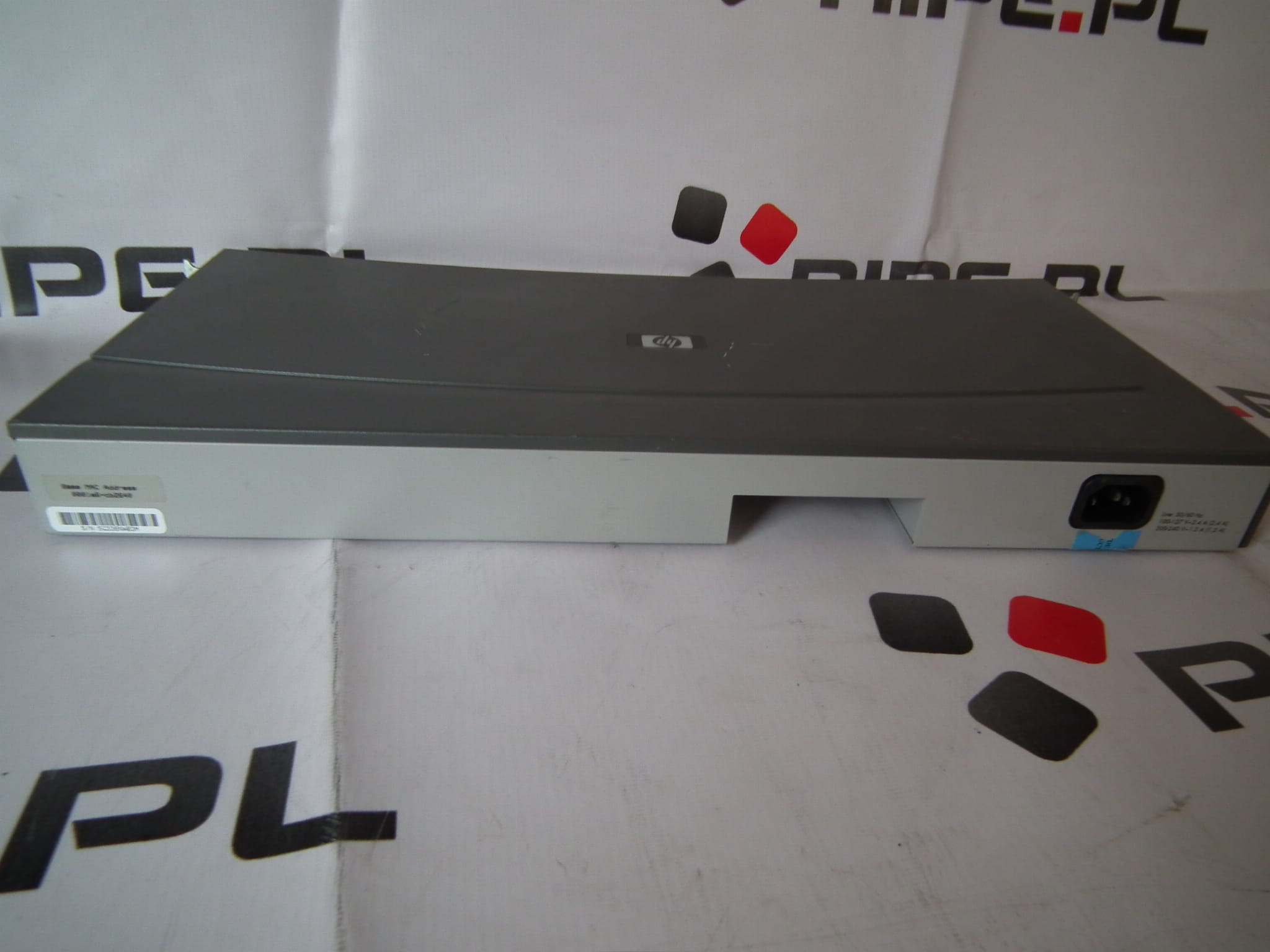

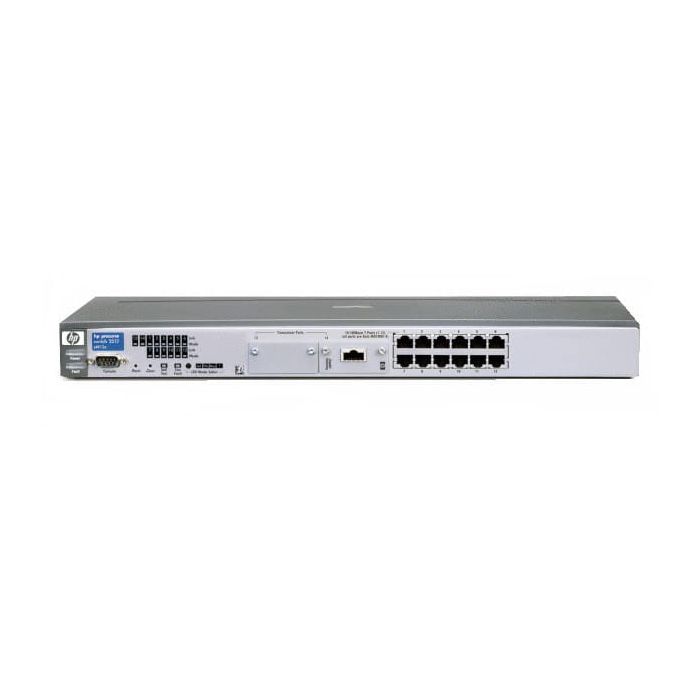

HP Procurve 2512 J4812A +MODUL J4131B

SWITCH

• HP Procurve 2512 J4812A
• 12 portów RJ-45 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-T)
• 2 x open transceiver slots
• 1 RS-232C DB-9 console port
• DANE:
• 6 MB Packet buffer size
• 26 MB RAM/ROM capacity
• 2 MB Flash capacity
• Protocols
• SNMPv1/v2c
• XRMON
• RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
• RFC 3376 IGMPv1/v2/v3
• RFC 1492 TACACS+
• RFC 1493 Bridge MIB
• RFC 3164 Syslog
• RFC 2613 SMON
• Standars
• IEEE 802.3x Flow Control
• IEEE 802.1D Spanning Tree
• IEEE 802.3ad Link Aggregation Control Protocol
• IEEE 802.1X Network Login
• IEEE 802.1Q GVRP
• IEEE 802.1w Rapid Convergence Spanning Tree
• IEEE 802.1Q VLANs
• IEEE 802.1p Priority
• UCHWYTY MONTAŻOWE
• Moduł: J4131B gigabit-SX transceiver
• RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)

Czego nie zawiera zestaw

• Brak okablowania
