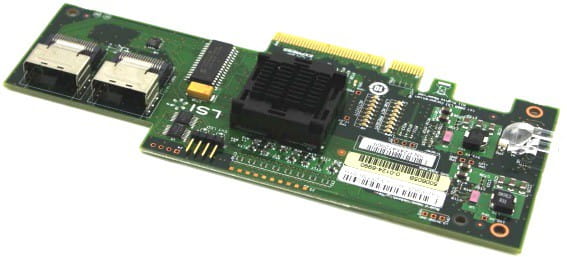

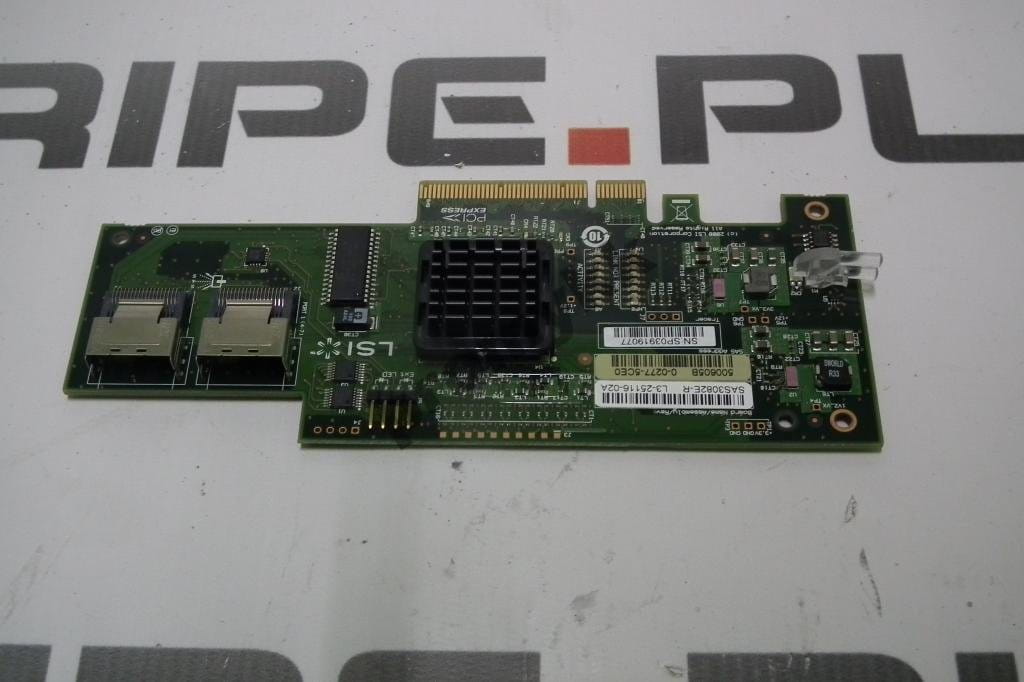

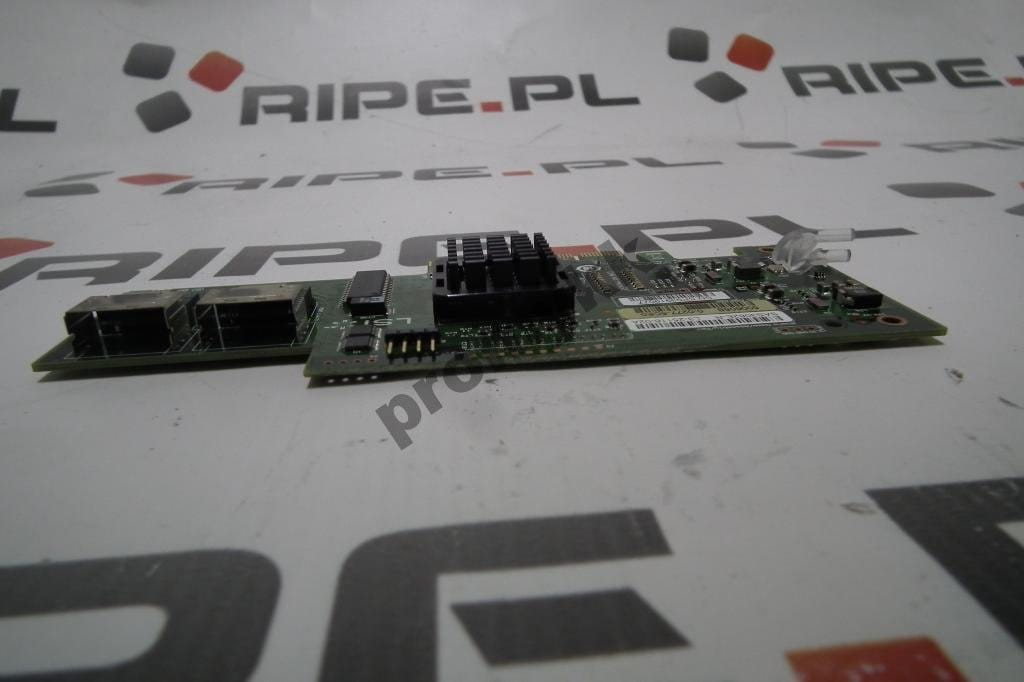

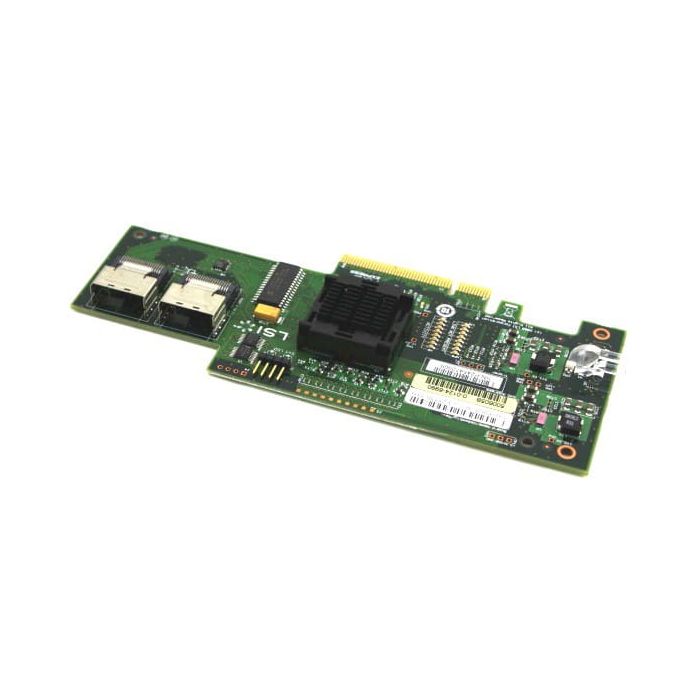

IBM LSI 44E8690 ServeRAID BR10I SAS SATA RAID

Kontroler SAS RAID BR10i

L3-25116-01H

FRU: 44E8690

IBM PN: 49Y4849

IBM PN: 43V6921

IBM / LSI Controller Serverraid Br10i SAS RAID 8-Ports SAS SATA SSD 300Mbps PCI-E
FRU SAS3082E SAS3082E-R 44E8690 44E8689 LSISAS1068E

Description: The ServeRAID-BR10i controller PCI Express interface is compliant with the PCI Express Specification, revision 1.0a. The controller uses either a standard PCI or low-profile PCI bracket type. The controller SAS interface is compatible with the ANSI Serial Attached SCSI 1.0 specification and the Serial ATA 1.0a specification. The functionality of the ServeRAID-BR10i controller comes from the LSI1068E controller chip. The LSI1068E chip integrates eight high-performance SAS/SATA PHYs. The design of the controller makes it easy to add SAS interfaces to any computer, workstation, or server with a PCI Express bus. The controller provides a 2 Mb x 8-bit flash ROM for storing the BIOS and firmware. The controller provides up to 32 Kb x 8-bit NVSRAM for storing the nonvolatile RAID information when a system failure occurs. The controller provides a 128 Kb x 36-bit pipelined burst static random access memory (PBSRAM) device for storing SAS address port information, which enables connection to more than 128 devices.

• Storage Controller

• Controller interface type Serial ATA-300 / SAS
• Data Transfer Rate 300 MBps
• Storage Controller / Supported Device Type Disk array (RAID)
• RAID level RAID 0, RAID 1, RAID 1E
• Processor LSI

• General

• Device Type Storage controller (RAID) - Plug-in card - Low profile
• Interface Type PCI Express
• Width 6.6 in
• Depth 0.6 in
• Height 2.7 in
• Weight 3.2 oz

• Expansion / Connectivity

• Expansion Bays None
• Expansion Slot(s) None
• Interfaces 2 x Storage ( Internal )
• Connections None
• Compatible Bays None
• Compatible Slots 1 x PCI Express

• Miscellaneous

• Compliant Standards UL, TUV, VDE,
