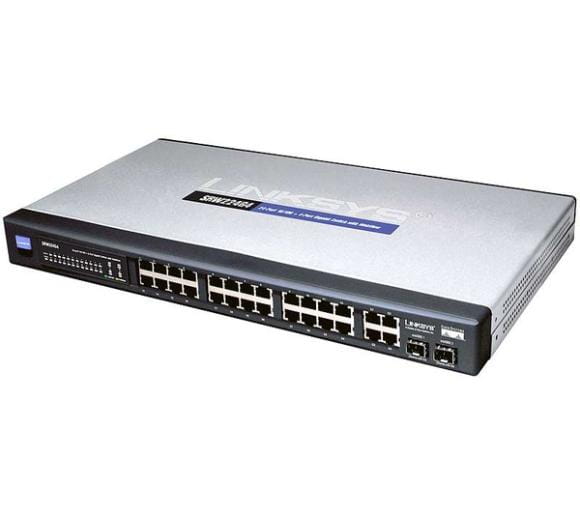

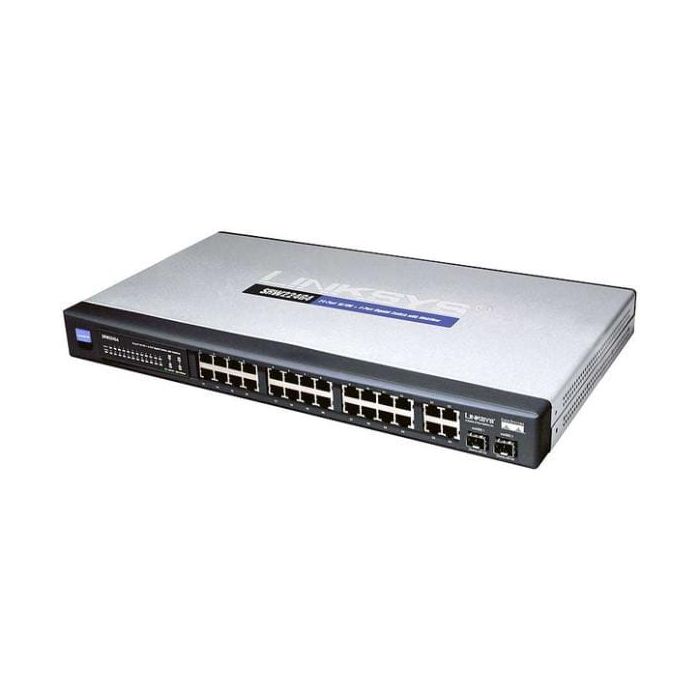

Linksys 24 X 10/100 PORT SRW224G4P

Linksys SRW224G4P 24 X 10/100 PORT

• + 4-port Gigabit Switch
• +2 x SFP (mini-GBIC)
• Podstawowe cechy:
• Power adapter - external Power Over Ethernet (PoE): n/a
• + uchwyty montażowe
• wymiary 440 x 357 x 44.45 mm.

Specyfikacja

Gniazda sieciowe

24x 10/100, 2x Combo (RJ-45/SFP)

Przeznaczenie

Rack 19

Jumbo Frame Support

10 KB

Routing Protocol

Static IPv4 routing

Minimum Storage Temperature

-4 F

Depth

10.1 inches

MTBF

282,775 hour(s)

Cables Included

1x Serial Cable

Capacity

4K Active VLANs

Height

1.5 inches

Maximum Operating Temperature

104 F

MAC Address Table Size

16k entries

Localization

Chinese (simplified), English, German, French, Italian, Spanish, Japanese

Width

17.3 inches

Enclosure Type

Desktop, rack-mountable - 1U

Maxiumum Storage Temperature

158 F

Ports

24 x 10/100 + 2 x combo Gigabit SFP + 2 x 10/100/1000

Device Type

Switch - 24 ports - L3 - managed

Humidity Operating Range

10-90% (non-condensing)

Weight

6.8 lbs

Minimum Operating Temperature

32 F

Interfaces

24 x 10Base-T/100Base-TX - RJ-45; 1 x console - 9 pin D-Sub (DB-9) - management; 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45; 2 x SFP (mini-GBIC)

Humidity Storage Range

10-90% (non-condensing)

Flash Memory

16 MB

Voltage Required

AC 120/230 V ( 50/60 Hz )

Performance

Switching capacity: 12.8 Gbps;

Forwarding performance (64-byte packet size)

9.52 Mpps Power Device:

Status Indicators

Link activity, port transmission speed, system

Ram

128 MB

Authentication Method

Secure Shell (SSH), RADIUS, TACACS+

Czego nie zawiera zestaw

• Brak okablowania
