PDU Monitorowana listwa zasilająca Raritan PX3-1703-V2 3P 36 x C13 czerwony
towar niedostępny
dodaj do przechowalni
Opis

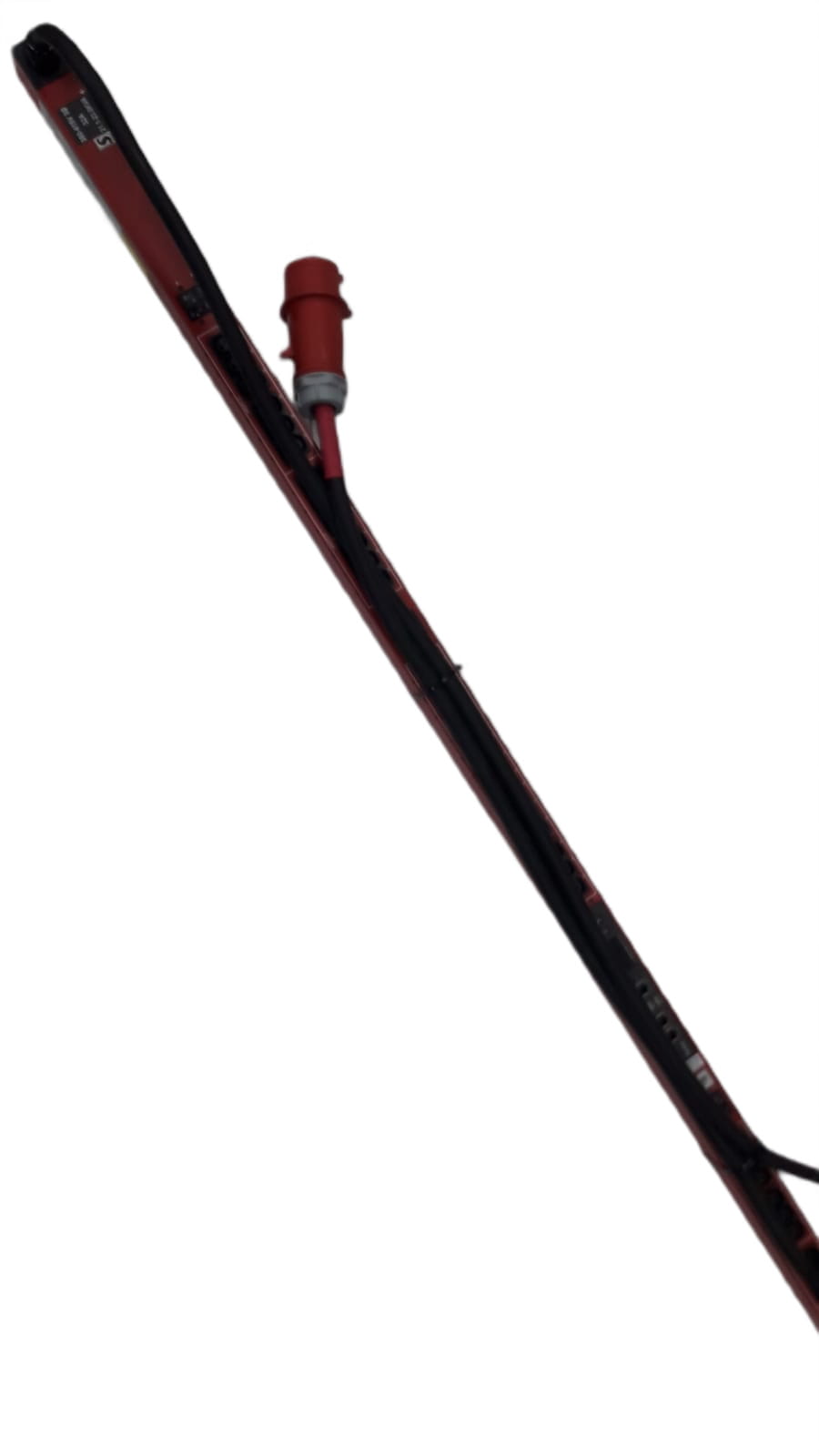

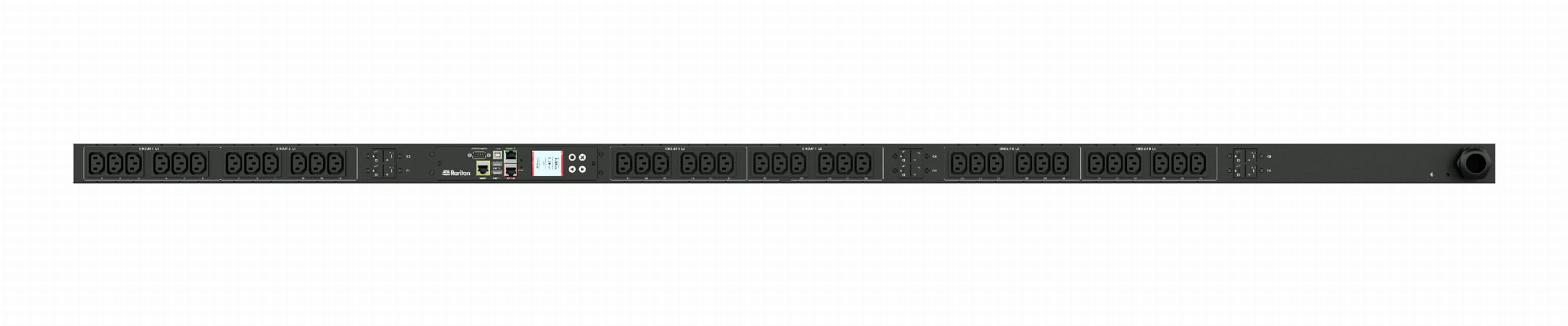

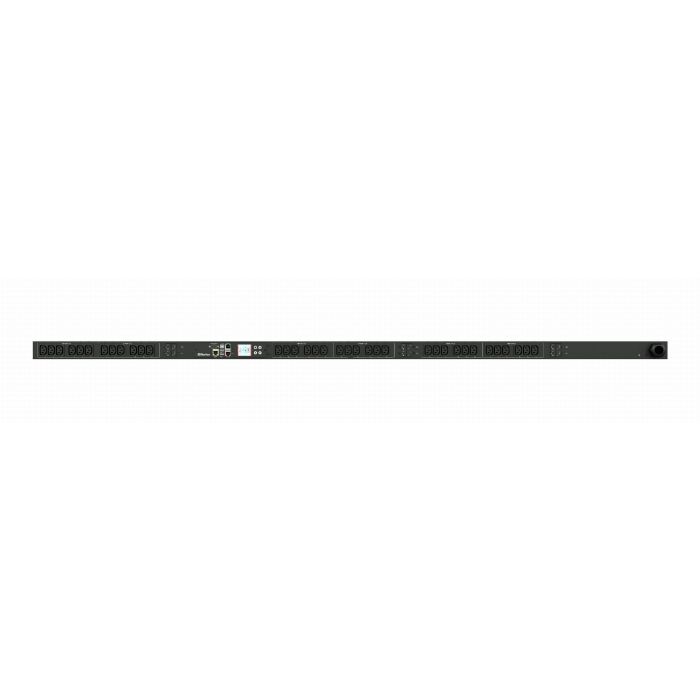

PDU Monitorowana listwa zasilająca Raritan PX3-1703-V2
kolor: czerwony
Power Configuration
400V, 3-Phase Wye (L-N), 22.2kVA, 32A
Features:
Energy Metering:Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy:ISO/IEC 62053-21 1%
Remote Outlet Switching:No
Metering per input line:Yes
Metering per Branch Circuit Breaker:No
Environmental Sensor Ready:Yes
Compatible Sensors:Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading:Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.

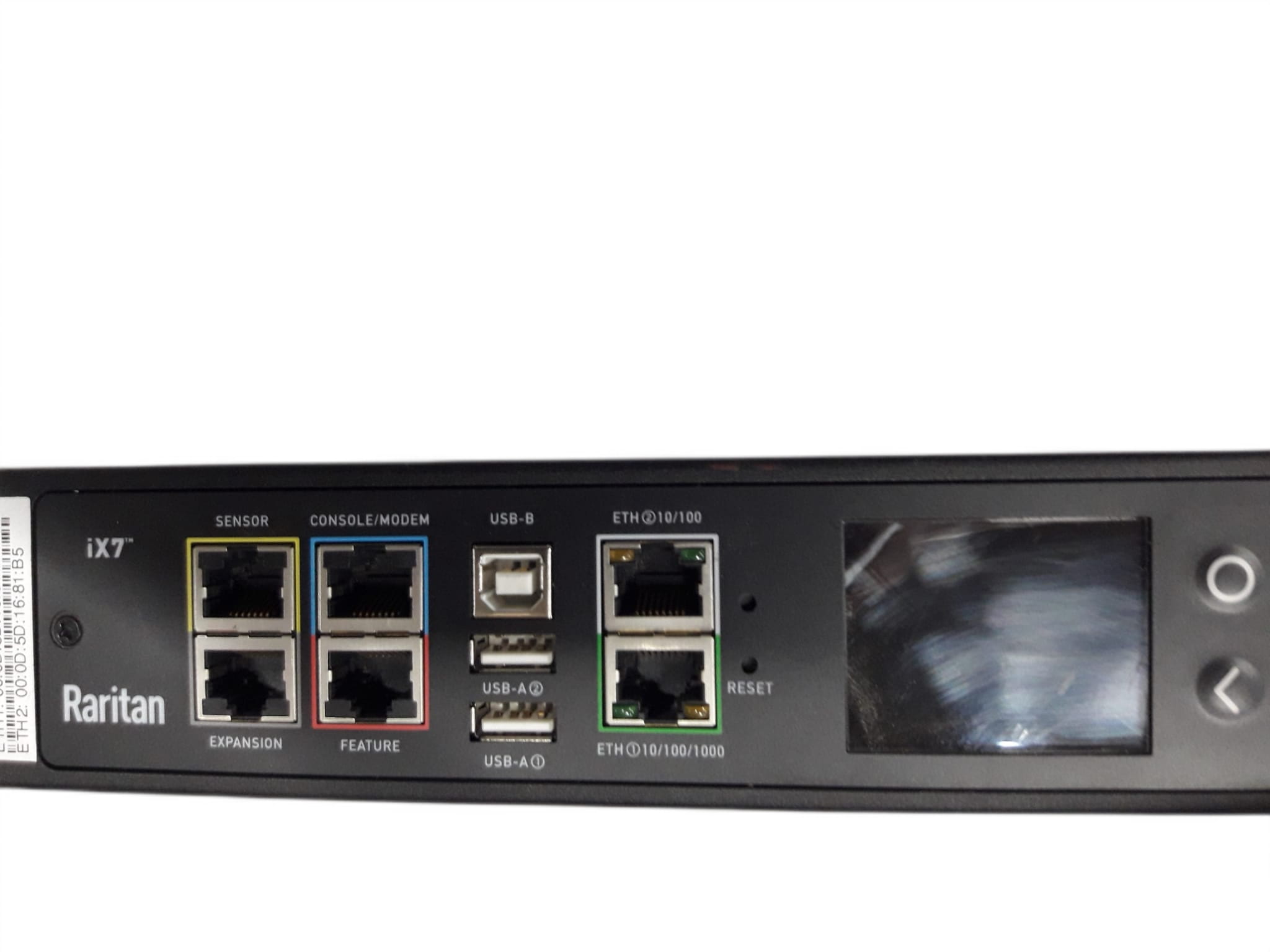

Networking: Primary (10/100/1000 Base T) Ethernet with secondary redundant (10/100/1000 Base T) Ethernet in 0U, (10/100 Base T) Ethernet in 1U/2U/3U. Optional Wi-Fi (802.11ac/a/b/g/n).

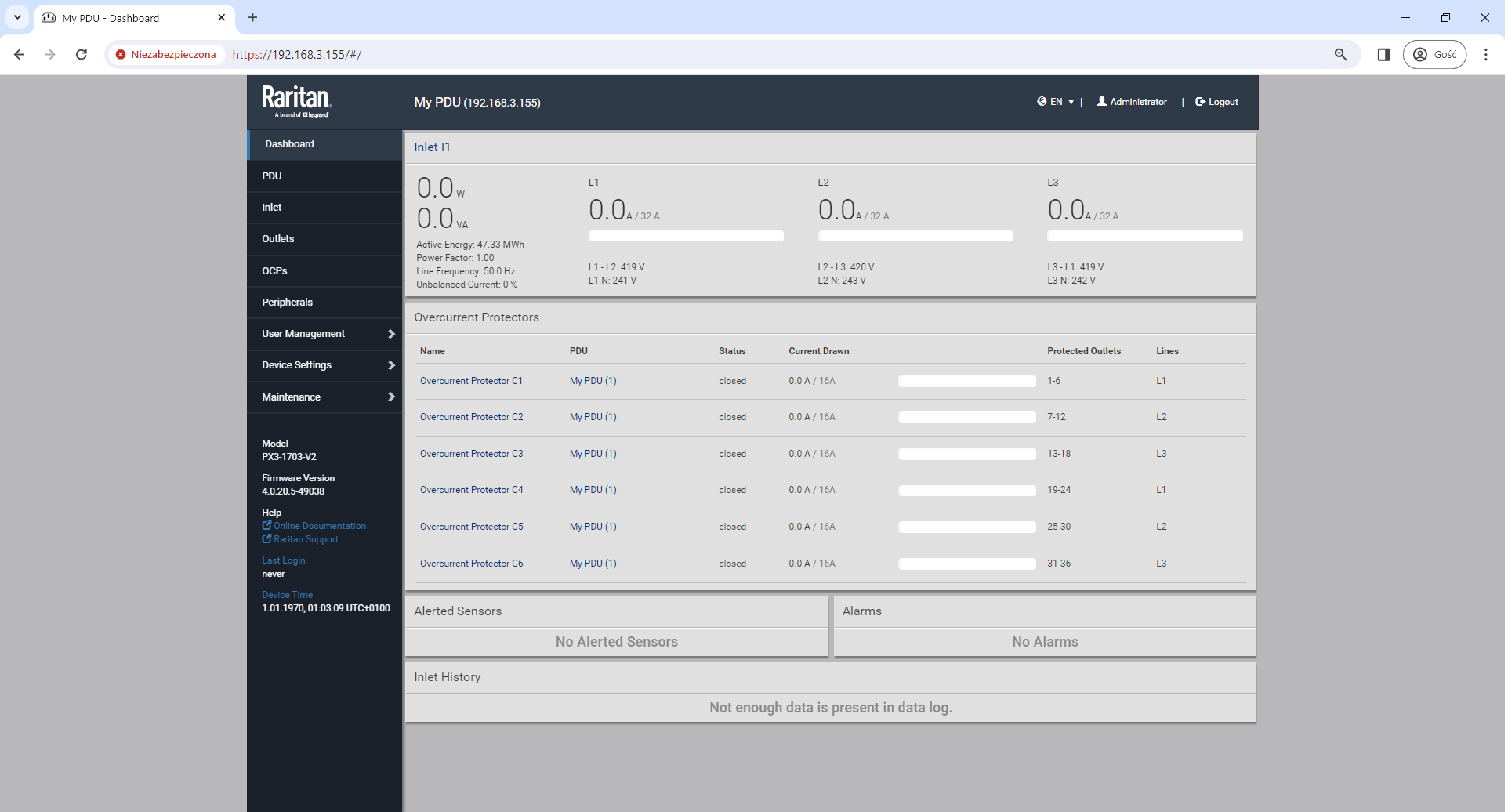

Onboard Display:Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Specifications:
Input:

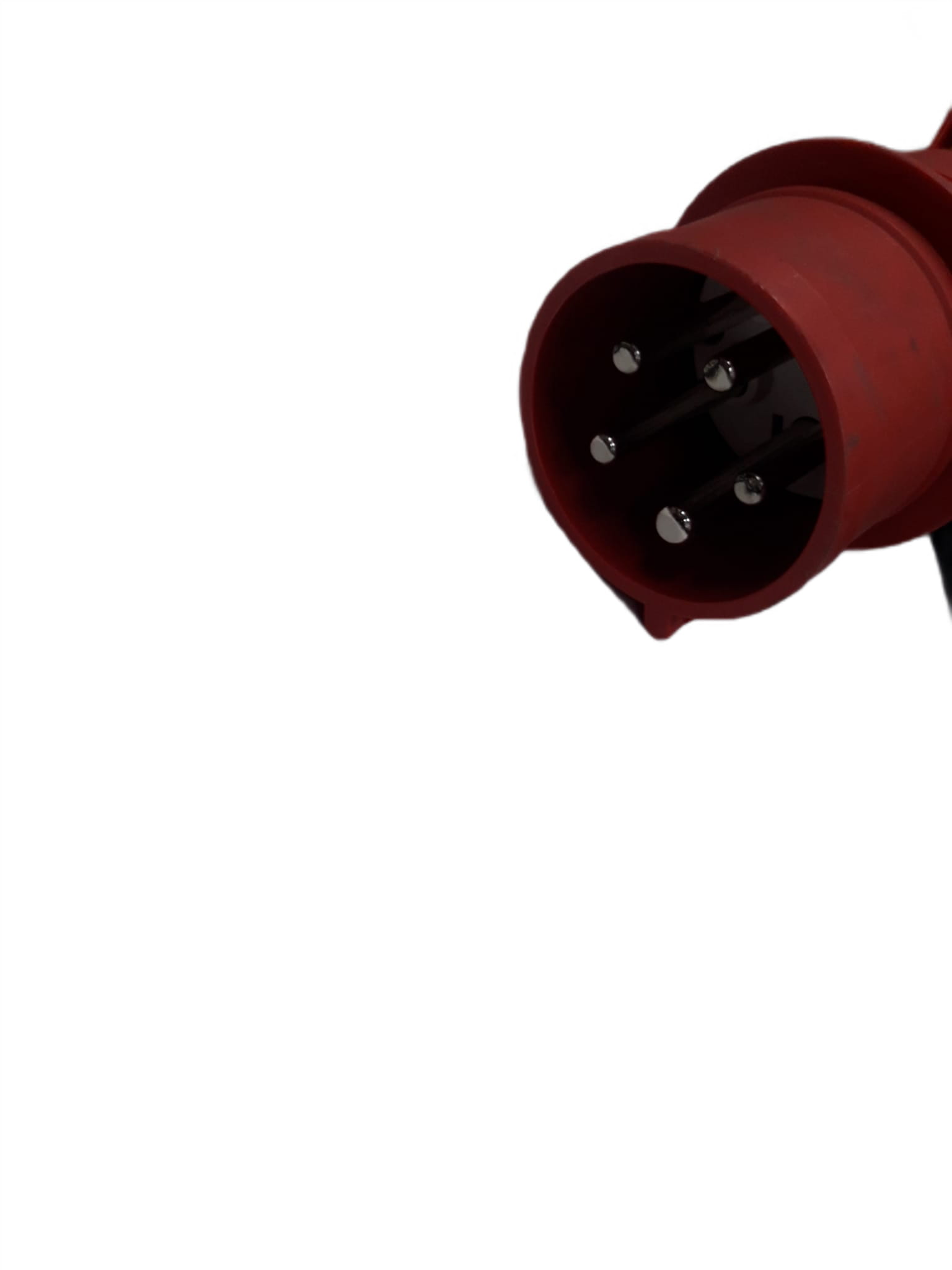

Input Plug:400V Wye 32A IEC 60309 3P+N+PE 6Hr
Nominal Voltage:400V
Maximum Input Current:32A
Rated Input Current:32A
Power Capacity: 22.2kVA
Cord Length:3m
Output:
Nominal Voltage:240V

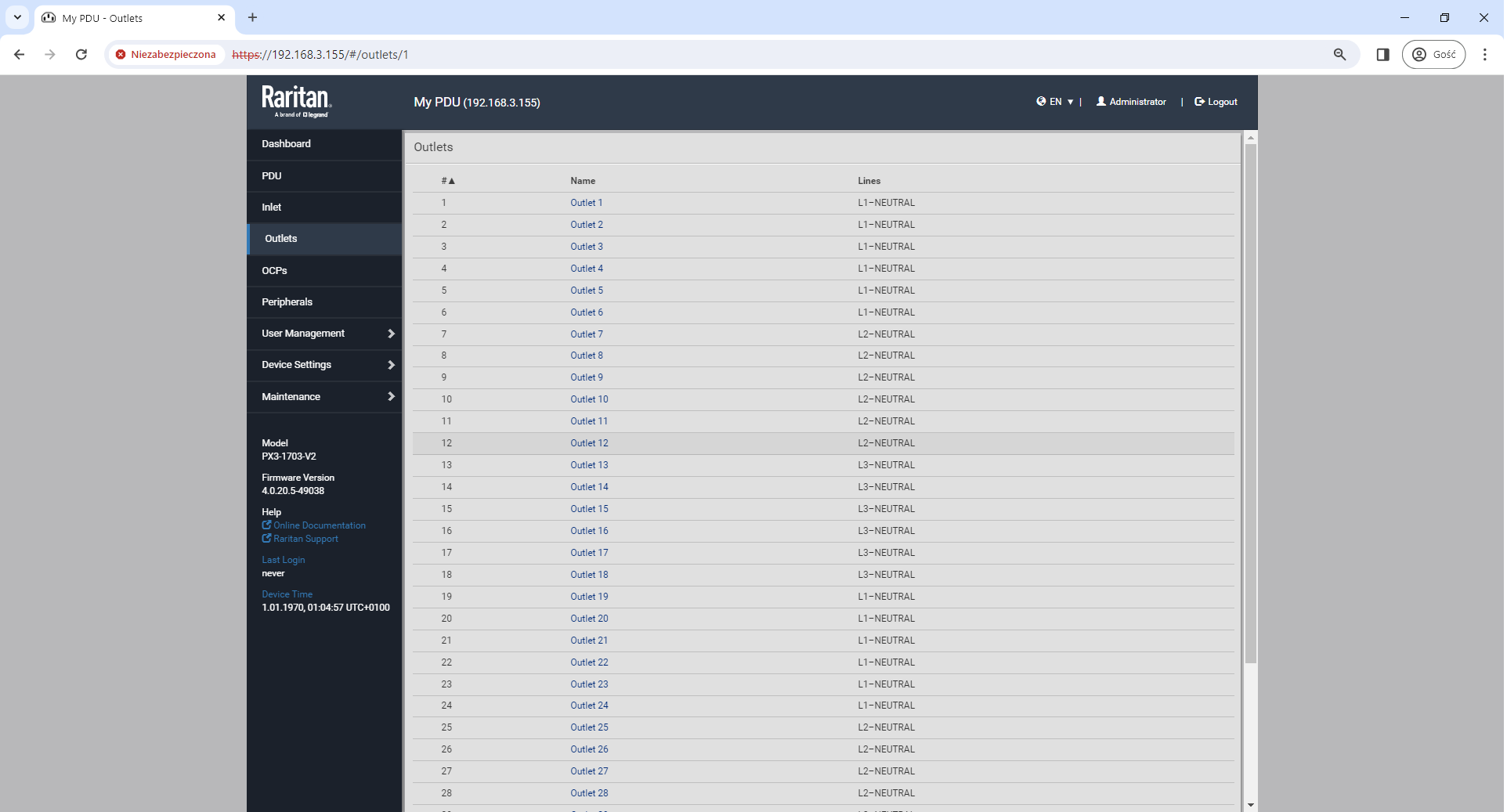

Receptacles (Output Connections):(36) C13
Overload Protection: N/A
Physical dimensions (WxDxH)TBD
Unit Weight:13kg
Mounting:0U
Dane techniczne
| stan | używany |
| Model | PX3-1703-V2 |
