switch HUAWEI LS-S5328C-EI 24x10/100/1000 4xSFP
Dostępność:
duża ilość
Wysyłka w:
24 godziny
Cena brutto:
zawiera 23% VAT, bez kosztów dostawy
157.99
Cena netto:
128,45 zł
bez 23% VAT i kosztów dostawy
towar niedostępny
dodaj do przechowalni
Opis

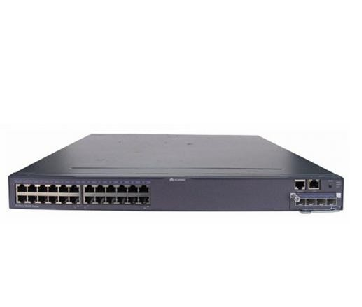

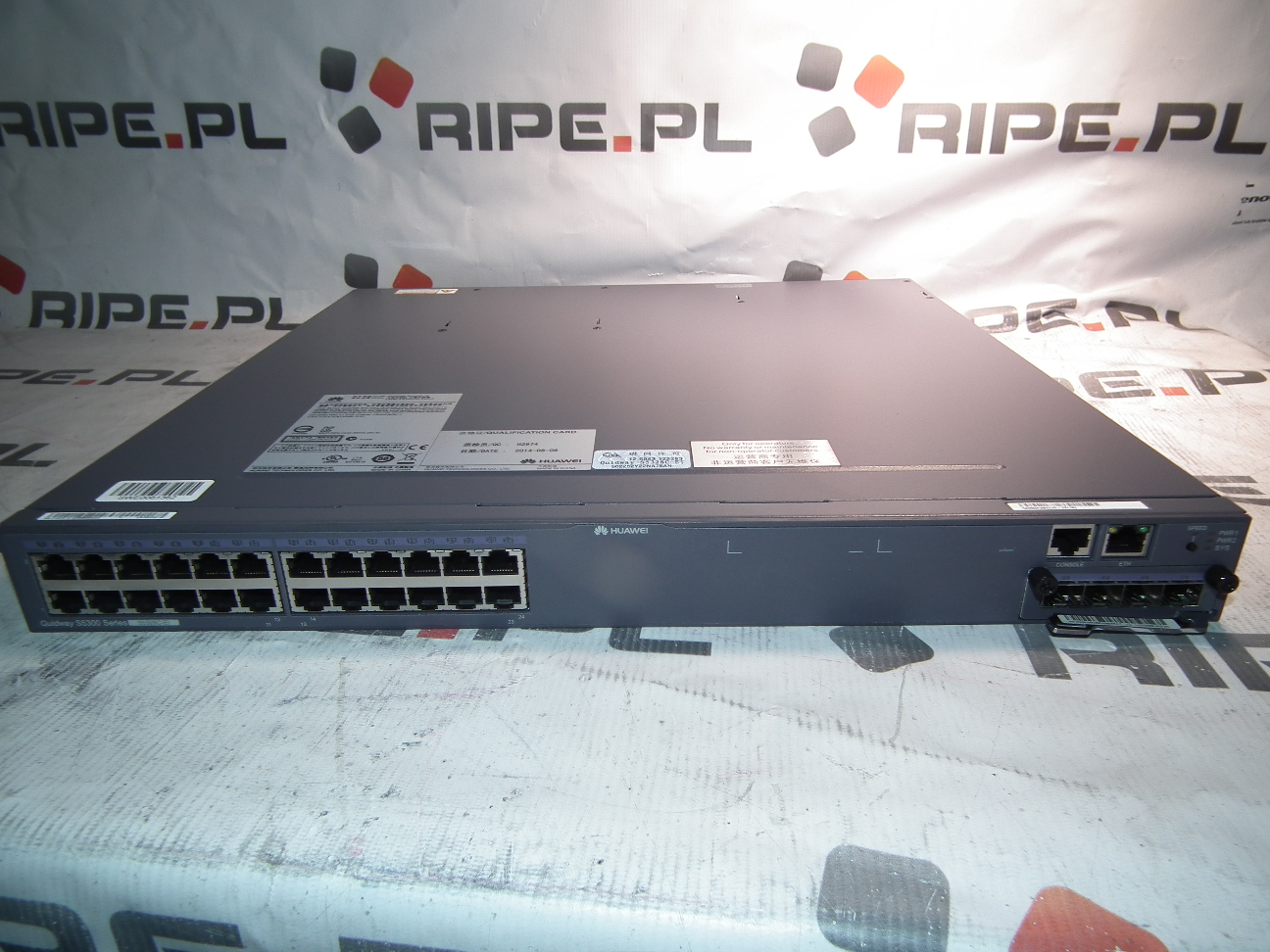

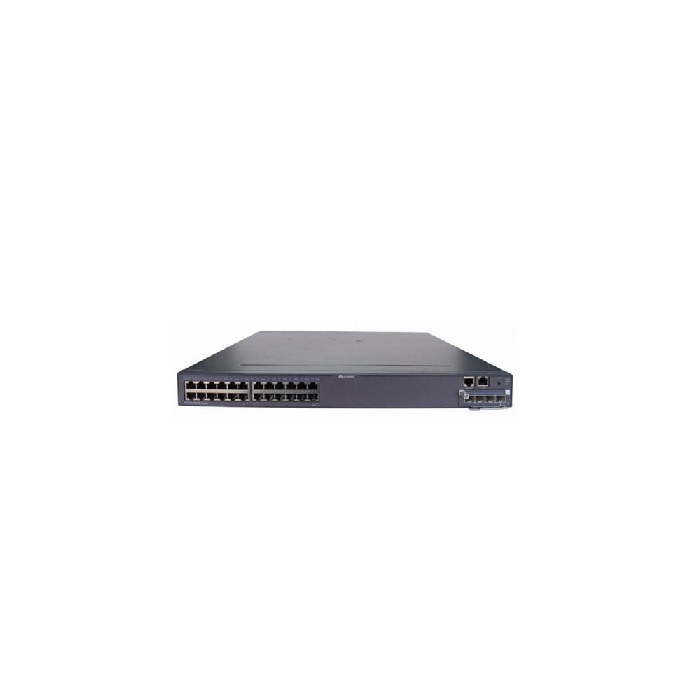

switch HUAWEI QUIDWAY S5300 Series
24*10/100 /1000 Base-TX (porty RJ45)
Layer 3 Ethernet Switch
model: LS-S5328C-EI
moduł: 4xSFP 1000 (brak wkładek w komplecie)
1x PSU
brak uchwytów/okablowania - dostępne na innych aukcjach
Zarządzanie - konsola/telnet
Dane/ Opis producenta
Quidway S5300 series gigabit switches are new generation Ethernet gigabit switches that meet the requirements for high-bandwidth access and Ethernet multi serviceconvergence, providing powerful Ethernet functions for operators and enterprise customers. Based on the new generation high-performance hardware and Huawei Versatile Routing Platform (VRP), the S5300 features large capacity and gigabit interfaces of high density, provides 10G uplinks, meeting the requirements for the 1G and 10G uplink devices of high density. The S5300 can meet the requirements of multiple scenarios such as service convergence on campus networks and Intranets, the access to the IDC at a rate of 1000 Mbit/s, and the access to computers at a rate of 1000 Mbit/s on Intranets.
LS-S5328C-SI Specification and Datasheet
| Fixed port | twenty-four 10/100/1000Base-T ports |
| Extended slot | The S5300C provides two extended slots. One supports subcards and the other supports stacking cards. |
| Forwarding performance | 66Mpps |
| switching capacity | 128 Gbit/s |
| MAC address table | LI/SI: 16 K; EI/HI: 32 K Supports learning and aging of MAC addresses. Supports static, dynamic, and blackhole MAC address entries. Supports packet filtering based on source MAC addresses. |
| VLAN features | Supports IGMP snooping, IGMP fast leave, multicast VLAN, IGMP proxy, controllable multicast, and port- based multicast traffic statistics. |
| IPv4 routing | Supports static routing, RIP v1, RIP v2, ECMP, and URP |
| IPv6 routing | Supports RIPng, manual tunnels, 6-to-4 tunnels, and ISTAP tunnels. |
| IPv6 features | Supports Neighbor Discovery (ND). Supports PMTU. Supports IPv6 Ping, IPv6 Tracert, and IPv6 Telnet. Supports 6-to-4 tunnels, ISATAP tunnels, and manually configured tunnels. Supports ACLs based on the source IPv6 address, destination IPv6 address, Layer-4 port, or protocol type. Supports MLD v1/v2 snooping. |
| Multicast | Supports IGMP snooping, IGMP fast leave, multicast VLAN, IGMP proxy, controllable multicast, and port-based multicast traffic statistics. |
| QoS/ACL | Supports rate limit on packets sent and received by a port. Supports packet redirection. Supports port-based traffic policing and two-rate three-color CAR. Supports eight queues on each port. Supports multiple queue scheduling algorithms including WRR, DRR, SP, WRR+SP, and DRR+SP. Supports WRED (supported by the S5306 and the S5300HI). Supports re-marking of the 802.1p priority and DSCP priority. Supports packet filtering based on Layer 2 to Layer 4 information, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol, and VLAN ID. Supports queue-based rate limit and traffic shaping on ports. |
| Reliability | Supports STP, RSTP, and MSTP. Supports BPDU protection, root protection, and loopback protection. Supports the RRPP ring topology and RRPP multi-instance. Supports the Smart Link tree topology and Smart Link multi-instance to implement millisecond-level protective switchover. Supports SEP. EI/HI series support BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM. Supports E-Trunk. |
| Security | Supports hierarchical user management and password protection. Supports DoS attack defense, ARP attack defense, and ICMP attack defense. Supports binding of the IP address, MAC address, port number, and VLAN ID. Supports port isolation, port security, and sticky MAC. Supports blackhole MAC addresses. Supports limit on the number of MAC addresses to be learned. Supports IEEE 802.1X authentication and the limit on the maximum number of users on a port. Supports multiple authentication methods including AAA, RADIUS, HWTACACS, and NAC. Supports SSH v2. Supports CPU protection. Supports blacklisting and whitelisting. |
| OAM | Software implementation |
| Management and maintenance | Supports intelligent stacking (The S5300HI and the S5306 do not support this function). Supports MAC Forced Forwarding (MFF). Supports Virtual Cable Test (VCT). Supports Ethernet OAM (IEEE 802.3ah and 802.1ag). Supports local port mirroring, Remote Switched Port Analyzer (RSPAN), and packet forwarding on an observing port. Supports remote configuration and maintenance by using Telnet. Supports SNMP v1/v2/v3. Supports RMON. Supports HGMP. Supports system logs and multi-level alarms. Supports Dying gasp power-off alarm (the S5306 only). Supports GVRP. Supports MUX VLAN. Supports the Hypertext Transfer Protocol Secure (HTTPS). Supports 802.3az EEE (the S5300HI and the S5306 only). |
| Operating environment | Operating temperature: 0°C to 50°C (long term); -5°C to 55°C (short term); relative humidity: 10% to 90% (non-condensing) |
| Input voltage | AC:Rated voltage: 100 V to 240 V, 50/60 Hz Maximum voltage: 90 V to 264 V, 50/60 Hz DC: Rated voltage range: –48 V to –60 V Maximum voltage: –36 V to –72 V Note: Models supporting PoE do not use DC power supplies. |
| Dimensions: width x depth x height | 442 mm x 420 mm x 43.6 mm |
| Power consumption | < 56 W |
Dane techniczne
| stan | nowy |
