DL120 G9
QuickSpecs HPE ProLiant DL120 Generation9 (Gen9) Overview
HPE ProLiant DL120 Generation9 (Gen9)
The HPE ProLiant DL120 Gen9, an enterprise class design packed in a dense 1U/1-socket form factor, powered by an Intel® Xeon® E5-2600 v3/v4 series processor. Offering a combination of performance, redundancy, expandability as compared to the traditional 1P servers making the DL120 Gen9 ideal for the growing needs of virtualization and general purpose workloads.

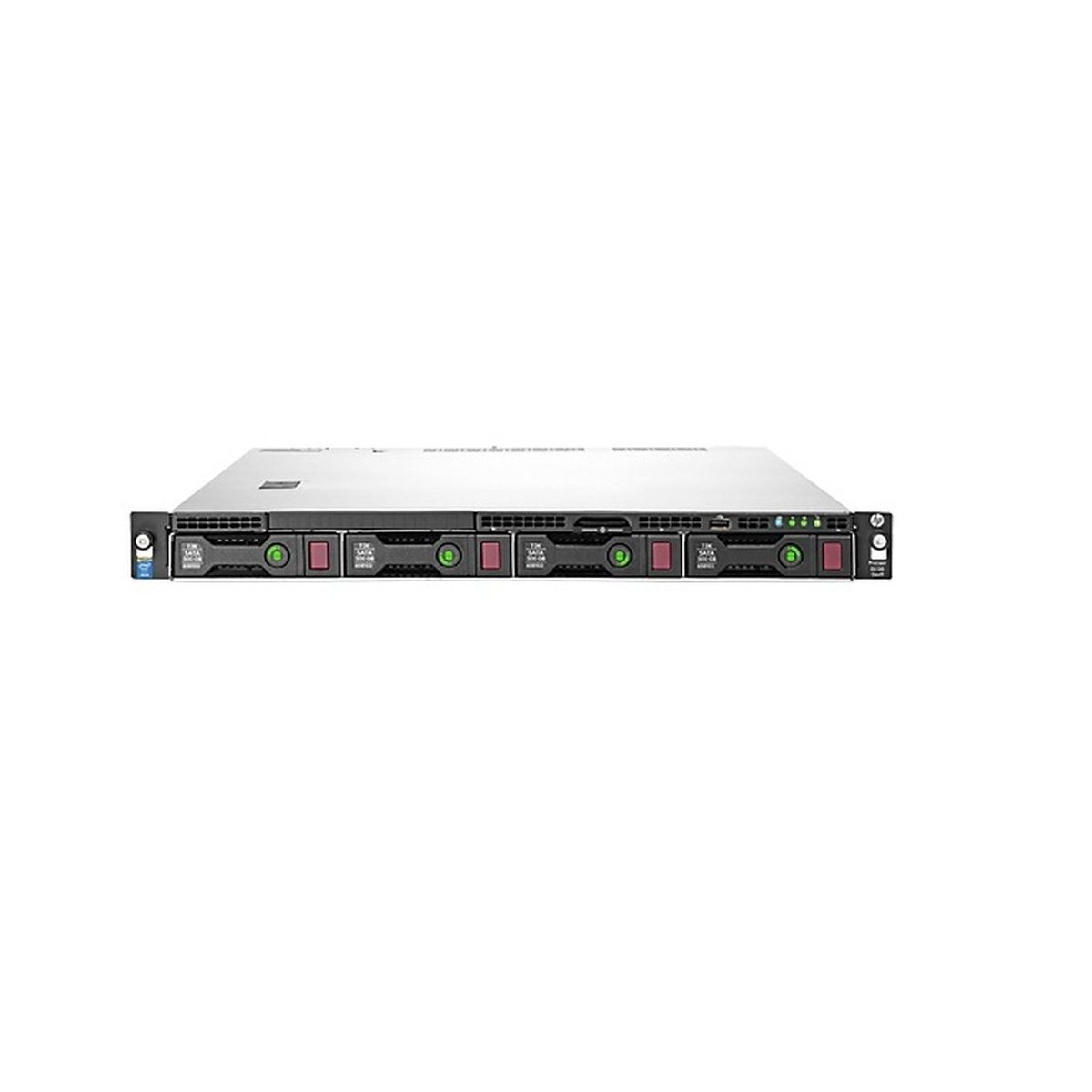

Front View
1. Access Panel 2. Serial label pull tab
3. USB 2.0 connector 4. UID LED
5. Health LED 6. NIC status LED
7. Power On/Standby button and system power LED 8. 4LFF drive
Page 1
Overview
Rear View
1. Slot 3 PCIe3 x8 (8, 4, 1) 2. Slot 2 PCIe3 x8 (8, 4, 1)
NOTE: Slot 3 supports PCIe x16 (16, 8, 4, 1) if the 4. Non-hot-plug power supply GPU riser cage is installed. 6. Power supply power connection
3. Slot 1 PCIe3 x16 (16, 8, 4, 1) 8. UID LED
5. Power supply power LED 10. USB 3.0 connectors
7. Embedded 2x1GbE network adapter
9. Video connector
Page 2
Overview
Internal View
1. Hot swappable fans (up to 5) 2. HPE Smart Storage Battery connector
3. Internal USB 3.0 4. SATA connector
5. Mini-SAS connectors 6. Power supply bay
7. Primary PCIe riser board connector 8. Embedded 2x1GbE network adapter
9. System Battery 10. Storage backup power connector for PCIe slots 1-2
11. Secondary PCIe riser slot 12. MicroSD slot
13. Storage backup power connector for PCIe slot 3 14. Processor heat sink (processor with HPE Smart Socket placed below heat sink)
15. DDR4 DIMM slots (up to 8)
What's New
-
Introducing new 14c 2.6GHz, E5-2690v4 processor support on DL120 Gen9
-
Support for ClearOS – an easy to use OS with an application marketplace
NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.
|
Model |
CPU frequency |
Cores
|
L3 Cache |
Power |
QPI |
DDR4 Hz |
|
E5-2699v3 |
2.3GHz |
18 |
45MB |
145W |
9.6GT/s |
2133 |
|
E5-2698v3 |
2.3GHz |
16 |
40MB |
135W |
9.6GT/s |
2133 |
|
E5-2695v3 |
2.3GHz |
14 |
35MB |
120W |
9.6GT/s |
2133 |
|
E5-2660v3 |
2.6GHz |
10 |
25MB |
105W |
9.6GT/s |
2133 |
|
E5-2650v3 |
2.3GHz |
10 |
25MB |
105W |
9.6GT/s |
2133 |
|
E5-2650Lv3 |
1.8GHz |
12 |
30MB |
65W |
9.6GT/s |
2133 |
|
E5-2640v3 |
2.6GHz |
8 |
20MB |
90W |
8.0GT/s |
1866 |
|
E5-2630v3 |
2.4GHz |
8 |
20MB |
85W |
8.0GT/s |
1866 |
|
E5-2630Lv3 |
1.8GHz |
8 |
20MB |
55W |
8.0GT/s |
1866 |
|
E5-2623v3 |
3.0GHz |
4 |
10MB |
105W |
8.0GT/s |
1866 |
|
E5-2620v3 |
2.4GHz |
6 |
15MB |
85W |
8.0GT/s |
1866 |
|
E5-2609v3 |
1.9GHz |
6 |
15MB |
85W |
6.4GT/s |
1600 |
|
E5-2603v3 |
1.6GHz |
6 |
15MB |
85W |
6.4GT/s |
1600 |
|
E5-1650v3 |
3.5GHz |
6 |
15MB |
140W |
0.0GT/s |
2133 |
|
E5-1620v3 |
3.5GHz |
4 |
10MB |
140W |
0.0GT/s |
2133 |
|
E5-2699v4 |
2.2GHz |
22 |
55MB |
145W |
9.6GT/s |
2400 |
|
E5-2698v4 |
2.2GHz |
20 |
50MB |
135W |
9.6GT/s |
2400 |
|
E5-2695v4 |
2.1GHz |
18 |
45MB |
120W |
9.6GT/s |
2400 |
|
E5-2690v4 |
2.6GHz |
14 |
35MB |
135W |
9.6GT/s |
2400 |
|
E5-2660v4 |
2.0GHz |
14 |
35MB |
105W |
9.6GT/s |
2400 |
|
E5-2650v4 |
2.2GHz |
12 |
30MB |
105W |
9.6GT/s |
2400 |
|
E5-2650Lv4 |
1.7GHz |
14 |
35MB |
65W |
9.6GT/s |
2400 |
|
E5-2640v4 |
2.4GHz |
10 |
25MB |
90W |
8.0GT/s |
2133 |
|
E5-2630v4 |
2.2GHz |
10 |
25MB |
85W |
8.0GT/s |
2133 |
|
E5-2630Lv4 |
1.8GHz |
10 |
25MB |
55W |
8.0GT/s |
2133 |
|
E5-2623v4 |
2.6GHz |
4 |
10MB |
85W |
8.0GT/s |
2133 |
|
E5-2620v4 |
2.1GHz |
8 |
20MB |
85W |
8.0GT/s |
2133 |
|
E5-2609v4 |
1.7GHz |
8 |
20MB |
85W |
6.4GT/s |
1866 |
|
E5-2603v4 |
1.7GHz |
6 |
15MB |
85W |
6.4GT/s |
1866 |
|
E5-1650v4 |
3.6GHz |
6 |
15MB |
140W |
0.0GT/s |
2400 |
|
E5-1620v4 |
3.5GHz |
4 |
10MB |
140W |
0.0GT/s |
2400 |
Processor
One of the following depending on model
Chipset Intel® C610 Series Chipset
One of the following Intel® E5-2600v3 Processor Family depending on model Intel® E5-2600v4 Processor Family
NOTE: For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/
Page 4
On System HPE iLO (Firmware HPE iLO4 2.0 or later) 2GB NAND Management Chipset NOTE: Read and learn more in the iLO QuickSpecs.
|
Memory One of the following depending on model |
Type: HPE SmartMemory DDR4 Registered (RDIMM) or Load Reduced (LRDIMM) DIMM Slots Available 8 (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs per channel) |
||
|
|
Maximum Capacity (LRDIMM) |
256GB |
(8 x 32GB RDIMM @2133MHz) |
|
|
Maximum Capacity (RDIMM) |
256GB |
(8 x 32GB LRDIMM @2400MHz) |
|
Memory Protection One of the following depending on model |
Advanced ECC Online Spare |
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip. Memory online spare mode detects a rank that is degrading and switches operation to the spare rank. |
|
Network Controller HPE Ethernet 1Gb 2-port Adapter
The HPE ProLiant DL120 Gen9 server offers the customer a dual-port NIC standard with the option to upgrade with a variety of networking options.
|
Expansion Slots CPU PCIe riser slots |
Expansion Technology Bus Connector Form Factor Slots # Width Width 1 PCIe 3.0 x16 x16 Low profile NOTE: Bus Width data indicates the number of physical electrical lanes running to the co |
Notes
nnector. |
|||||
|
FlexibleLOM riser slots (Option 1) |
Expansion Slots # |
Technology |
Bus Width |
Connector Width |
Form Factor |
Notes |
|
|
|
2 |
PCIe 3.0 |
x8 |
x8 |
Low profile |
||
|
|
3 |
Flexible LOM |
x8 |
x8 |
FlexibleLOM |
can only be used for FlexibleLOMs |
|
|
CPU riser PCIe slots (Option 2) |
Expansion Slots # 2 |
Technology PCIe 3.0 |
Bus Width x8 |
Connector Width x8 |
Form Factor Low profile |
Notes
|
|
|
|
3 |
PCIe 3.0 |
x8 |
x8 |
Full-height, halflength slot |
||
|
GPU riser (Option 3) |
Expansion Slots # |
Technology |
Bus Width |
Connector Width |
Form Factor |
Notes |
|
|
|
3 |
PCIe 3.0 |
x16 |
x16 |
Full-height, fulllength slot |
GPU |
|
|
Storage Controller One of the following depending on model |
Entry Models Base Models NOTE: B140i pr NOTE: |
HPE Dynamic Smart Array B140i Controller HPE H240 FIO Smart Host Bus Adapter ovides support for up to 8 SATA drives and supports RAID 0, 1, 1 H240 provides support for up to 8 SAS/SATA drives and supports RAID 0, 1, 1+0 |
+0 & 5. & 5. |
||||
Internal Storage Optical Drive
Devices Hard Drives
One of the following Hard Drive Bays depending on model
Optional: DVD-ROM, DVD-RW
None ship standard
8 SFF drive bays total with Optical Bay
4 LFF drive bays total with Optical Bay
NOTE: HPE ProLiant DL120 Gen9 server offers both SFF and LFF versions in CTO. The Optical Drive bay is available with both models.
NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF Gen9 Hard Drive Blank Kit or P/N 666986-B21: HPE LFF Gen9 Hard Drive Blank Kit. These part numbers for single HDD blanks below are also provided should the customer require replacement HDD blanks for their server.
|
Maximum Internal Storage One of the following depending on model |
Hot Plug SFF SAS Hot Plug SFF SATA Hot Plug LFF SAS |
CAPACITY 16.0TB 16.0TB 40.0TB |
CONFIGURATION 8x2TB 8x2TB 40x10TB |
|
|
Hot Plug LFF SATA |
40TB |
4x10TB |
|
|
Hot Plug SFF SAS SSD |
30.72TB |
8x3.84TB |
|
|
Hot Plug SFF SATA SSD |
30.72TB |
8x3.84TB |
|
|
Hot Plug LFF SATA SSD |
15.36TB |
4x3.84TB |
|
Power Supply One of the following depending on model |
HPE 550W FIO Power Supply HPE 900W Redundant Power Supply Looking for high-efficiency power solutions at an entry-level price for your ProLiant Gen9 Essential Server? HPE Entry-Level Power Supplies offer an optimized set of features with options for both redundant and non-redundant power configurations.
The HPE 550W FIO Power Supply offers Silver-certified 80 Plus power efficiency (up to 89%) with an optimized set of features for non-redundant power configurations.
The HPE 900W AC 240VDC Power Input Module with Power Backplane can be configured to support power redundancy in ProLiant servers that offer only a single power supply bay, providing additional protection against power loss. With an 80 Plus Gold power efficiency rating (up to 92%), this power option helps to reduce operating expenses while protecting against trapped power capacity in the data center. Hot-plug AC power input modules allow for better serviceability with fast and easy deployment and replacement. |
||
|
System Fans One of the following depending on model |
Non-redundant Redundant 1P model 3 fans 5 fans NOTE: Redundant fan option kit (P/N: 765513-B21) can be bought separately if redundancy is required with configurations. NOTE: Fan redundancy is not supported for processors exceeding 105W. |
||
Interfaces Video 1 (Vaux Support)
USB 4 USB ports (standard)
Front: 1xUSB 2.0 std
Rear: 2xUSB 3.0
Internal: 1x USB 3.0
Micro SD Slot 1 Micro SD
NOTE: The SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card
into the SD slot while the server is powered.
|
Operating Systems and Virtualization Software Support for ProLiant Servers |
Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) NOTE: ClearOS allows you to build a fully functional server that is just right for you at no upfront cost. It is available via CTO preload, Intelligent Provisioning or via download. For more information on ClearOS, please visit http://www.hpe.com/servers/clearos. NOTE: For more information on the Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hpe.com/info/ossupport and our driver download page. |
|
Upgradeability One of the following depending on model |
FlexibleLOM slot for 1GbE or 10GbE or QDR/FDR InfiniBand Networking Options Up to 8 SFF Hard Drive Bays; or 4 LFF Hard Drive Bays Up to 8 DIMM slots Redundant Power Supply Optical Drive Bay (8 SFF/4 LFF) |
|
Industry Standard Compliance |
ACPI 2.0b Compliant PCIe 3.0 Compliant PXE Support WOL Support Microsoft® Logo certifications USB 3.0 Support ASHRAE A3 NOTE: Refer to technical specifications section for more details. |
|
Graphics |
Integrated Matrox G200eH2 video standard • 1280 x 1024 (32 bpp) • 1920 x 1200 (16 bpp) |
HPE Server Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability
UEFI/Legacy ROM and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode.
NOTE: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:
-
Secure Boot
-
Operating system specific functionality
-
Support for > 2.2 TB (using GPT) boot drives
-
USB 3.0 Stack
-
Embedded UEFI Shell
-
Mass Configuration Deployment Tool using RESTful API for iLO 4
-
PXE boot support for IPv6 networks
-
Boot support for option cards that only support a UEFI option ROM
-
Network Stack configurations
NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.
NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen9 Server.
|
Form Factor One of the following depending on model |
1U Rack form factor 8SFF and 4LFF version: 1.69" (4.29cm) Height x 17.11" (43.46cm) Width x 23.9" (60.7cm) Length |
|
|
Embedded Management |
HPE Integrated Lights-Out (HPE iLO)
|
Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at http://www.hpe.com/info/ilo. |
|
|
UEFI |
Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hpe.com/servers/uefi. |
|
|
RESTful API |
RESTful API for iLO 4 is Redfish 1.0 conformance for simplified server management such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi. |
|
|
Intelligent Provisioning |
Hassle free server and OS provisioning for 1 or few servers with Intelligent Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning. |
|
|
Embedded Remote Support |
The Hewlett Packard Enterprise embedded remote support, when used with Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to Hewlett Packard Enterprise or a Hewlett Packard Enterprise Authorized Partner for automated phone home support. Learn more at http://www.hpe.com/info/insightonline/explore. |
|
Server utilities |
Smart Update
|
Optimize firmware and driver updates with Smart Update solutions including Smart Update Manager (SUM) and Service Pack for ProLiant (SPP). Learn more at http://www.hpe.com/servers/smartupdatemanager. |
|
|
HPE Systems Insight Manager (HPE SIM)
|
HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers, and also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/servers/hpsim. |
|
|
Scripting Tool Kit and Windows PowerShell
|
Provision 1 to many servers using your own scripts to discover and deploy them with Scripting Tool Kit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/proliant/stk or http://www.hpe.com/servers/powershell. |
|
|
RESTful Interface Tool |
RESTful Interface tool is a scripting tool to provision using RESTful API for iLO 4 to discover and deploy servers at scale. Learn more at |
http://www.hpe.com/info/resttool.
HPE iLO Mobile Enables the ability to access, deploy, and manage your server anytime from anywhere Application from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.
HPE Insight HPE Insight Online, available at no additional cost as part of your Hewlett Packard Online Enterprise warranty or contractual support agreement with Hewlett Packard Enterprise, is a personalized dashboard for simplified tracking of IT operations and support information from anywhere, anytime. Learn more at http://www.hpe.com/info/insightonline/explore.
Security Power-on password
Serial interface control
Administrator's password
TPM 2.0
UEFI
Warranty This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity.
Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge.
Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.
Optional Features
|
Embedded Management |
iLO Essentials |
HPE iLO Essentials is the preferred license for small and medium business that offers full remote server management capabilities for small and medium business via the Integrated Remote Console (IRC), virtual media, and e-mail based alerts. Learn more about HPE iLO Essentials at http://www.hpe.com/servers/iLO/essentials. |
|
|
||
|
|
iLO Scale-Out |
HPE iLO Scale-Out is the preferred license built for web hosting, cloud service providers, and high performance computing data centers, managing massive scale out environments for the DL 100 and 10 series servers, not available for ML servers. This license offers sophisticated scripting tools that provides remote access through Text Console via SSH, Dynamic power capping, Email-based Alerting and proactive notifications. For more information, visit http://www.hpe.com/servers/iLO/scale-out. |
|
|
||
|
|
iLO Advanced |
HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. Learn more about HPE iLO |
Advanced at http://www.hpe.com/servers/iloadvanced.
|
Server Management |
HPE Insight HPE Insight Control, lets you deploy, migrate, monitor, remote control, and optimize your Control IT infrastructure through a single, simple management console. For more information, see http://www.hpe.com/info/insightcontrol. |
|
Rack and Power Infrastructure |
HPE Rack and Power Infrastructure products and services create highly efficient and intelligent solutions for existing or new IT data centers. HPE Rack and Power infrastructure solutions – rack infrastructure, power protection and management, performance optimized data centers (PODs) – are the foundation you are looking for to help secure your long-term IT success. These products are designed to help you react to changes in the industry. They deliver efficient, easy-to-use capabilities to manage, monitor, deploy and provision infrastructure from entry to enterprise. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access. Learn more at HPE Rack and Power Infrastructure. |
|
High Performance Clusters |
HPE Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPEC Server. A Cluster Platform Configurator simplifies ordering. https://www.hpe.com/us/en/solutions/hpc-high-performance-computing/hpc-software.html. |
|
HPC Interconnects |
NOTE: High Performance Computing (HPC) interconnect technologies are available for this server under the HPE Cluster Platform product portfolio. These high-speed interconnects are fully supported by Hewlett Packard Enterprise when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the following URL to configure HPEC Clusters with InfiniBand Interconnects: https://www.hpe.com/info/hpc/solutions. |
Storage Software Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than Hewlett Packard Enterprise storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities. Storage software that gets the job done:
• Data Protection and Recovery Software
Optional Features
Whether you're a large enterprise or a smaller business, Hewlett Packard Enterprise data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.
•Data Archive and Migration Software
Hewlett Packard Enterprise storage software enables you to comply with data retention and retrieval requirements, improve application performance, and reduce costs by efficiently migrating infrequently accessed or less valuable data to lower cost storage.
•Storage Resource Management Software (SRM)
Hewlett Packard Enterprise storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.
•Data Replication Software
Hewlett Packard Enterprise offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.
•Storage Device Management Software
Maximize your investment in Hewlett Packard Enterprise storage and networking with software that enables hardware-specific configuration, performance tuning and connectivity management.
•HPE StoreVirtual VSA
With HPE StoreVirtual VSA you can use the power of virtualization to create a virtual array within your host server. Manage it as a single pool of shared storage capacity, and scale it to match your evolving needs. HPE ProLiant Gen9 servers include a 3-year limited license for HPE StoreVirtual VSA software with 1TB of capacity at no extra cost. Simply select to install HPE StoreVirtual VSA software during server setup within Intelligent Provisioning. More information, instructional videos, and free console management software are available at http://www.hpe.com/info/vsa1TB.
NOTE: For more information about Storage Software including QuickSpecs, please see: https://www.hpe.com/us/en/storage/software-defined.html.
ClearOS HPE and ClearCenter will help you lower the cost of building on-premise solutions without sacrificing security and ease of use. HPE ProLiant servers with ClearOS give you a simple, secure, and affordable operating system with an intuitive web based graphical user interface that provides a cloud-like experience on- premise, and an Application Marketplace with over 100 apps and growing. Whether you’re starting out or scaling, you decide what applications you need and pay as you grow.
One Config Simple SCE is a guided self-service tool to help sales and non-technical people provide customers with initial (SCE) configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in
your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. http://ocs.ext.hpe.com/.
Page
Service and Support
|
HPE Support Services |
HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. HPE Support Services enable you to choose the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement to the support for need for your IT and business. |
|
Connect your devices |
Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to Hewlett Packard Enterprise support. 1- IDC 2 – HP CSC reports 2014 - 2015 |
|
Recommended Support |
Standard: HPE Foundation Care 24x7, three-year Support Service HPE Foundation Care 24x7 gives you access to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues. This service includes need based Hardware onsite response within four hours. In addition, collaborative software support is included in this service that provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make Hewlett Packard Enterprise your first call to help resolve hardware or software problems. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en
Optimized: HPE Proactive Care* with 24x7 coverage, three year Support Service HPE Proactive Care gives customers an enhanced call experience. When your products are connected to Hewlett Packard Enterprise, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers. |
|
Parts and Materials |
Hewlett Packard Enterprise will provide Hewlett Packard Enterprise-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
Related ServicesHPE Server Hardware Installation
Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf
HPE Installation and Startup Service
Provides for the installation and startup of Hewlett Packard Enterprise technology including BladeSystems,
C-Class enclosure, HPE ProLiant c-Class and Integrity server blades, storage blades, SAN switch blades,
HPE Virtual Connect modules (Ethernet and Fibre Channel), Ethernet network interconnects, and
HPE ProLiant DL120 Generation9 (Gen9) Service and Support
InfiniBand, as well as the installation of one supported operating system type (Windows® or Linux).
HPE Technology Services Support Credits
Offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.
HPE Education Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book Services on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn
HPE Support Center The HPE Support Center is a personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers.
Learn more http://www.hpe.com/support/hpesc
The Hewlett Packard Enterprise Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HPE Insight Remote Support and HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Support Service or Hewlett Packard Enterprise contractual support agreement.
NOTE: *HPE Support Center Mobile App is subject to local availability.
For more information: http://www.hpe.com/services
Page
HPE ProLiant DL120 Generation9 (Gen9) Pre-configured Models
|
Entry Models |
||||
|
[SKU Number] |
830011-B21 |
833870-B21 |
777424-B21 |
777425-B21 |
|
Model Name |
HPE ProLiant DL120 Gen9 E5-2603v4 8GBR B140i 4LFF SATA 550W PS Entry Server |
HPE ProLiant DL120 Gen9 E5-2630v4 8GB-R H240 8SFF 550W PS Entry Server |
HP ProLiant DL120 Gen9 E5-2603v3 4GB- R B140i 4LFF 550W PS Entry Server |
HP ProLiant DL120 Gen9 E5-2630v3 8GB-R H240 8SFF 550W PS Entry Server |
|
Processor
|
Intel® Xeon® E52603v4 |
Intel® Xeon® E52630v4 |
Intel® Xeon® E52603v3 |
Intel® Xeon® E5-2630v3 |
|
Number of Processors |
One |
|||
|
Memory
|
8GB (1x8GB Registered DIMMs, 2400 MHz) |
4GB (1x4GB Registered DIMMs, 2133 MHz) |
8GB (1x8GB Registered DIMMs, 2133 MHz) |
|
|
Network Controller |
HPE Embedded Dual Port 361i Adapter Network Interface |
|||
|
Storage Controller |
HPE Dynamic Smart Array B140i |
HPE H240 Smart Host Bus Adapter |
HPE Dynamic Smart Array B140i |
HPE H240 Smart Host Bus Adapter |
|
Hard Drive |
None ship standard |
|||
|
Internal Storage
|
4 LFF HDD Bays |
8 SFF HDD Bays |
4 LFF HDD Bays |
8 SFF HDD Bays |
|
Optical Drive Bay |
1; (Optional: DVD-ROM, DVD-RW) |
|||
|
PCI-Express Slots |
1 PCIe LP standard/up to 3 PCIe slots (optional) |
|||
|
Power Supply |
(1) HPE 550W FIO Power Supply |
|||
|
Fans |
3 hot swap fans, non-redundant |
|||
|
Management |
iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials (optional), iLO Scale-out (optional only for DL), iLO Advanced (optional) |
|||
|
Form Factor |
Rack (1U), HPE Easy Install Rails |
|||
|
Warranty |
Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. |
|||
|
Country Code Key |
xx1 = B21 |
Worldwide |
|
|
xx1 = 291 |
Japan |
|
|
xx1 = AA1 |
PRC |
HPE ProLiant DL120 Generation9 (Gen9)
This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
-
Factory Integrated Models must start with a CTO Server.
-
FIO indicates that this option is only available as a factory installable option.
-
All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.
-
Some options may not be integrated at the factory. Contact your local sales representative for additional information.
Step 1: Base Configuration (choose one of the following configurable models)
|
[Chassis] |
HPE ProLiant DL120 Gen9 8SFF Configure-to-order Server |
HPE ProLiant DL120 Gen9 4LFF Configure-to-order Server |
HPE ProLiant DL120 Gen9 Non-hot Plug 4LFF Configureto-order Server |
|
SKU Number |
777426-B21 |
777427-B21 |
777428-B21 |
|
Processor |
1 |
1 |
1 |
|
DIMM Slots |
8 DIMM slots for RDIMM, LRDIMM DDR4 Memory |
||
|
Storage Controller |
HPE Dynamic Smart Array B140i |
||
|
PCIe |
1 PCIe LP standard/up to 3 PCIe slots (optional) |
||
|
Drive Cage |
8SFF Hot Plug 4LFF Hot Plug 4LFF Non Hot Plug |
||
|
Network Controller |
HPE Embedded Dual Port 361i Adapter Network Interface |
||
|
Fans |
3 hot swap fans, non-redundant |
||
|
Management |
iLO Management (standard), Intelligent Provisioning (standard) |
||
|
USB |
1 front, 1 internal, 2 rear |
||
|
Ears |
HPE Thumbscrew Ears |
||
NOTE: HPE ProLiant DL120 Gen9 Non-hot plug chassis (P/N- 754525-B21) supports both 4LFF and 8LFF configurations. NOTE: Thumb screw ears are not supported on Hot Plug LFF Chassis.
Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
|
HPE Processors HPE Memory |
Select one or two processors from Core Options-Processor section below.
For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x v#, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, x = L for low power SKUs and v# (not yet designated) = version number. Select one or more memory from Core Options-Memory section below.
Page 15 |
Hewlett Packard Enterprise Gen9 systems. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9.
-
If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors all DIMM slots are available.
-
Depending on the memory configuration and processor model, the memory speed may run at 2400MHz, 2133MHz, 1866MHz or 1600MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://www.hpe.com/servers/ddr4memoryconfig.
HPE Power Supplies Select one or more power supplies from Core Options-Power Supplies section below.
-
Prior to selecting a power supply option, it is highly recommended that you review your server configuration in the HPE Power Advisor tool to determine the right size power supply for your server configuration. The HPE Power Advisor is located at:
http://www.hpe.com/info/hppoweradvisor.
-
By RPS Enablement Kit power options, mixing of power supplies in the same RPS enablement kit is not supported. All power supplies must be of the same input voltage, output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message and/or experience operational issues with your server.
Step 3: Choose Additional Factory Integratable Options
HPE Unique Options Select one or more Unique options from Core Options section below.
-
This section may contain FIO options, please see the Unique options section below.
-
FIO indicates that this option is only available as a factory installable option.
HPE I/O Expansion Select one or more drives from Core Options-HPE Drives section below.
Options
-
This section may contain FIO options, please see HPE I/O Expansion Options section below.
-
FIO indicates that this option is only available as a factory installable option.
HPE Drives Select one or more drives from Core Options-HPE Drives section below.
-
The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
-
Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
-
The HPE ProLiant Gen9 Smart Storage solutions are equipped with re-designed Small Form Factor (SFF 2.5 in) and Large Form Factor (LFF 3.5 in) hot plug carriers for HPE Qualified Hard Drives and Solid State Drives. These new carriers provide status and activity indicators as well as caution indicators for "Do Not Remove."
HPE FlexibleLOM Select a FlexibleLOM from Core Options-Networking section below.
-
Only one FlexibleLOM can be added to the server. These options are upgradeable and can be changed from the original configuration after the server is shipped.
-
For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
-
Please see the QuickSpecs for Technical Specifications and additional information:
http://www.hpe.com/servers/ProLiantNICs.
Page 16
HPE Networking Select a standup NIC adapter from Core Options-Networking section below.
-
Please see the QuickSpecs for Technical Specifications and additional information:
http://www.hpe.com/servers/ProLiantNICs.
-
These options are upgradeable and can be changed from the original configuration after the server is shipped.
-
For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
HPE Storage Select one or more Storage options from Additional Options section below. Controllers
-
The embedded B140i controller will operate in UEFI only mode. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.
-
This section may contain FIO options, please see HPE Storage Controllers section below.
-
FIO indicates that this option is only available as a factory installable option.
HPE I/O Expansion Select one or more Riser Kit options from Core Options section below.
Options
-
This section may contain FIO options, please see HPE I/O Expansion Options section below.
-
FIO indicates that this option is only available as a factory installable option.
HPE Cooling Options Select one or more Fan Kits from Core Options section below.
-
This section may contain FIO options, please see HPE Cooling Options section below.
-
FIO indicates that this option is only available as a factory installable option.
HPE Rail Kits Select one type of rail kit from Additional Options section below.
-
Please take a moment to review the installation documentation that comes with the server to help you with the installation of your Gen9 server.
-
To assist in the installation of the server into the rack, an optional installation tool is available by contacting your local services representative (p/n 695539-001).
-
See Hewlett Packard Enterprise Rack Options in Additional Options section of this QuickSpecs for more rack kit choices.
CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.
NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.
|
HPE Unique Options |
HP DL60/120 Gen9 FlexibleLOM Riser Kit HPE DL60/80/120 Gen9 4LFF Cable FIO Kit |
|
|
|
HPE DL120 Gen9 8SFF Smart Array B140i Cable FIO Kit |
|
|
|
HPE Legacy FIO Mode Setting |
|
|
|
NOTE: UEFI is the default, this FIO part can be used for CTO to enable Legacy mode. |
|
|
|
HP AHCI-Enable FIO Setting |
|
|
|
NOTE: This needs to be selected when Advanced Host Controller Interface mode is |
required on B140i controller.
|
HPE Processors |
E5-2600v4 series Processors |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2603v4 (1.7GHz/6-core/15MB/85W) FIO Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2609v4 (1.7GHz/8-core/20MB/85W) FIO Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2630Lv4 (1.8GHz/10-core/25MB/55W) FIO Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2620v4 (2.1GHz/8-core/20MB/85W) FIO Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2623v4 (2.6GHz/4-core/10MB/85W) FIO Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2630v4 (2.2GHz/10-core/25MB/85W) FIO Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W) FIO Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2650Lv4 (1.7GHz/14-core/35MB/65W) FIO Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2650v4 (2.2GHz/12-core/30MB/105W) FIO Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2660v4 (2.0GHz/14-core/35MB/105W) FIO Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2690v4 (2.6GHz/14-core/35MB/135W) FIO Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2695v4 (2.1GHz/18-core/45MB/120W) FIO Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2698v4 (2.2GHz/20-core/50MB/135W) FIO Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-2699v4 (2.2GHz/22-core/55MB/145W) FIO Processor Kit |
|
|
|
E5-1600v4 series Processors |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-1620v4 (3.5GHz/4-core/10MB/140W) Processor Kit |
|
|
|
HPE DL120 Gen9 Intel® Xeon® E5-1650v4 (3.6GHZ/6-core/15MB/140W) Processor Kit |
Page 18
Memory Selection
To streamline the configuration process for HPE ProLiant Gen9 servers and to provide the best product availability, HPE recommends memory from the list located here: http://www.hpe.com/products/recommend.
|
Best product availability is limited to US, Canada, and Latin America at this time. |
|
|
|
HPE Memory |
Registered DIMMs (RDIMMs) for E5-2600v4 Series |
|
|
|
HP 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
|
|
|
HP 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
|
|
|
HPE 16GB (1x16GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
|
|
|
HP 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
|
|
|
HPE 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Standard Memory Kit |
|
|
|
Registered DIMMs (RDIMMs) for E5-2600v3 Series |
|
|
|
HP 4GB (1x4GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit |
|
|
|
HPE 4GB (1x4GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Registered Standard Memory Kit |
|
|
|
HP 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit |
|
|
|
HP 8GB (1x8GB) Dual Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit |
|
|
|
HPE 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Standard Memory Kit |
|
|
|
HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit |
|
|
|
HP 32GB (1x32GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit |
|
|
|
Load Reduced DIMMs (LRDIMMs) for E5-2600v4 Series |
|
|
|
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit |
|
|
|
Load Reduced DIMMs (LRDIMMs) for E5-2600v3 Series |
|
|
|
HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit |
|
|
|
HP 32GB (1x32GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit |
|
HPE Optical Drives HPE 9.5mm SATA DVD-ROM JackBlack Gen9 Optical Drive 726536-B21 HPE 9.5mm SATA DVD-RW JackBlack G9 Optical Drive 726537-B21
|
HPE Drives |
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives |
|
|
|
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
|
|
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
|
|
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD |
|
|
|
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD |
|
|
|
HPE 450GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD |
|
|
|
HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
|
|
HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
|
|
|
HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD |
|
|
|
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
|
|
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in ) SC 3yr Wty HDD |
-
HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD
HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD
HPE 900GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD
HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD
HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e HDD
HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HPE 300GB SAS 12G Enterprise 15K LFF (3.5in) SCC 3yr Wty HDD
HPE 450GB SAS 12G Enterprise 15K LFF (3.5in) SCC 3yr Wty HDD
HPE 600GB SAS 12G Enterprise 15K LFF (3.5in) SC 3yr Wty HDD
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HPE 1TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD
HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD
HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD
HPE 3TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD
HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD
HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD
HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD
HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD
HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD
HPE 10TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD
HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD
HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD
HPE 3TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD
HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD
HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD
HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD
HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD
HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD
|
HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD HPE 10TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD 6G SATA Hot Plug SFF (2.5-inch) SC 512e Drives HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD SSD Selection To streamline the configuration process for HPE ProLiant Gen9 servers and to provide the best product availability, HPE recommends SSDs from the list located here: http://www.hpe.com/products/recommend. Best product availability is limited to US, Canada, and Latin America at this time. 12G SAS Hot Plug SFF (2.5-inch) Mixed Use SC Solid State Drives HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
|
HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
|
HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
|
HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
|
HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
|
HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
|
12G SAS Hot Plug LFF (3.5-inch) Mixed Use SC Solid State Drives |
|
|
HPE 800GB SAS 12G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD |
|
|
12G SAS Hot Plug SFF (2.5-inch) SC Midline 512e Drives |
|
|
HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e HDD |
|
|
HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD |
|
|
HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD |
|
|
12G SAS Hot Plug LFF (3.5-inch) SC 512e Performance Drives |
|
|
HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD |
|
|
HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD |
|
|
12G SAS Hot Plug SFF (2.5-inch) SC Read Intensive Solid State Drives |
|
|
HPE 480GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
|
HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
|
HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
-
HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 7.68TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
12G SAS Hot Plug SFF (2.5-inch) SC Write Intensive Solid State Drives
HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 1.6TB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
6G SATA Hot Plug SFF (2.5-inch) Write Intensive Solid State Drives
HPE 400GB SATA 6G WI SFF SC DS SSD
HPE 800GB SATA 6G WI SFF SC DS SSD
HPE 1.6TB SATA 6G WI SFF SC DS SSD
6G SATA Hot Plug SFF (2.5-inch) Mixed Use Solid State Drives
HPE 240GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 240GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 1.6TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD
HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
6G SATA Hot Plug LFF (3.5-inch) Write Intensive Solid State Drives
HPE 400GB SATA 6G WI LFF SCC DS SSD
HPE 800GB SATA 6G WI LFF SCC DS SSD
HPE 1.6TB SATA 6G WI LFF SCC DS SSD
6G SATA Hot Plug LFF (3.5-inch) Mixed Use Solid State Drives
HPE 480GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD
HPE 480GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD
HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD
HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD
HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD
HPE 1.6TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD
HPE 1.92TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD
HPE 1.92TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD
6G SATA Hot Plug SFF (2.5-inch) SC Read Intensive Solid State Drives
-
HPE 150GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 240GB SATA 6G RI SFF SC DS SSD
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 480GB SATA 6G RI SFF SC DS SSD
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 960GB SATA 6G RI SFF SC DS SSD
HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD
HPE 1.6TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 1.92TB SATA 6G RI SFF SC DS SSD
HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
HPE 3.84TB SATA 6G RI SFF SC DS SSD
6G SATA Hot Plug LFF (3.5-inch) SC Read Intensive Solid State Drives
HPE 480GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD
HPE 480GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD
HPE 960GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD
HPE 1.6TB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD
HPE 1.92TB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD
Read Intensive - 6G SATA - M.2 - Solid State Drives
HPE 150GB SATA 6G Read Intensive M.2 2280 3yr Wty Digitally Signed Firmware SSD
M.2 SSD
HPE Universal SATA HHHL 3yr Wty M.2 Kit 878783-B21 HP DL60/120 Gen9 M.2 Cable Kit 805283-B21
NOTE: M.2 drives go in PCIe slot and use B140i SATA controller.
NOTE: 805283-B21 cable kit is a mandatory option required to support M.2 SSDs.
Hard Drive Blank Kits
HPE Large Form Factor Hard Drive Blank Kit 666986-B21
HPE Small Form Factor Hard Drive Blank Kit 666987-B21
|
HPE Networking |
1 Gigabit Ethernet adapters HPE Ethernet 1Gb 4-port 331T Adapter |
|
|
|
HPE Ethernet 1Gb 2-port 332T Adapter |
|
|
|
HPE Ethernet 1Gb 2-port 361T Adapter |
|
|
|
HPE Ethernet 1Gb 4-port 366T Adapter |
|
|
|
10 Gigabit Ethernet adapters HPE Ethernet 10Gb 2-port 530SFP Adapter |
|
|
|
HPE Ethernet 10Gb 2-port 530T Adapter |
|
|
|
HPE Ethernet 10Gb 2-port 546SFP+ Adapter |
|
|
|
HPE Ethernet 10Gb 2-port 546FLR-SFP+ Adapter |
|
|
|
HPE Ethernet 10Gb 2-port 560SFP+ Adapter |
|
|
|
HPE Ethernet 10Gb 2-port 561T Adapter |
|
|
|
HPE Ethernet 10Gb 2-port 562SFP+ Adapter |
|
|
|
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter. NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. See cables/options below. 25 Gigabit Ethernet adapters HPE Ethernet 4x25Gb 1-port 620QSFP28 Adapter |
|
|
|
FlexibleLOM Adapters HPE Ethernet 1Gb 4-port 331FLR Adapter |
|
|
|
HPE Ethernet 1Gb 4-port 366FLR Adapter |
|
|
|
HPE FlexFabric 10Gb 2-port 533FLR-T Adapter |
|
|
|
HPE FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter |
|
|
|
HPE FlexFabric 10Gb 4-port 536FLR-T Adapter |
|
|
|
HPE Ethernet 10Gb 2-port 560FLR-SFP+ Adapter |
|
|
|
HPE Ethernet 10Gb 2-port 561FLR-T Adapter |
|
|
|
HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter NOTE: FlexibleLOM riser kit (P/N: 765509-B21) is required when any FlexibleLOM is selected. NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hpe.com/servers/ProLiantNICs. |
|
|
HPE InfiniBand |
HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+QSFP Adapter NOTE: Please see the HPE InfiniBand Options for HP ProLiant and Integrity Servers QuickSpecs for additional information. |
HPE I/O Expansion HP DL60/120 Gen9 CPU1 Riser Kit 765508-B21
Options HP DL60/120 Gen9 FlexibleLOM Riser Kit 765509-B21 HP DL60/120 Gen9 Full Height Half Length PCIe Riser Kit 765510-B21
HP DL120 Gen9 GPU Enablement Kit 779611-B21
|
HPE Power Supplies |
HPE Entry-Level Power Supplies HPE 550W Standard FIO Power Supply Kit |
|
|
|
NOTE: This is a Factory Installed Option (FIO) only. NOTE: Supports Silver-level efficiency (89%) with a standard C14 inlet connector. No support for HPE Power Discovery Services. Only compatible with select HPE ProLiant Gen9 Essential servers. |
|
|
|
HPE 900W Standard AC 240VDC Power Input Module FIO Kit |
|
|
|
NOTE: This is a Factory Installed Option (FIO) only. NOTE: RPS Backplane is mandatory to be chosen with this power input module. |
|
|
|
HPE 900W Standard AC 240VDC RPS Power Backplane FIO Kit |
|
|
|
NOTE: This is a Factory Installed Option (FIO) only. NOTE: This RPS backplane is mandatory to be chosen along with 900W RPS input module. |
|
|
|
HPE 900W Standard AC 240VDC Power Input Module |
775595-B21 |
|
|
NOTE: This part number can only be bought standalone and is for field integration only. NOTE: RPS Backplane is mandatorily needed with this power input module. |
|
|
|
HPE 900W Standard AC 240VDC RPS Power Backplane |
|
|
|
NOTE: This part number can only be bought standalone and is for field integration only. NOTE: This RPS backplane is mandatorily needed with 900W RPS input module. |
|
|
|
HPE 900W Standard AC 240VDC Redundant Power Supply Kit |
|
|
|
NOTE: This Redundant Power supply kit includes 2 power supply input module and 1 backplane kit. NOTE: This part number is both factory installed option and filed integrable option. NOTE: This Power supply supports both 100-240V AC and 240V DC. NOTE: Supports Gold-level efficiency (92%) with a standard C14 inlet connector. No support for HPE Power Discovery Services. Only compatible with select HPE ProLiant Gen9 Essential servers. NOTE: HPE 900W Gold (Redundant) AC 240VDC Power Input Module (775595-B21/ 828734-B21) must be used with Power Backplane (814835-B21 / 828735-B21). NOTE: Each Redundant Power Supply Backplane can support up to two (2) power input modules. NOTE: Redundant AC Power Input Modules do not share power. Redundant AC Power Input Module #1 is the primary AC Power Input Module. Redundant AC Power Input Module #2 is the backup AC Power Input Module. NOTE: Mixing of power supplies in the same server is not supported. All power supplies must be of the same input voltage, output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message and/or experience operational issues with your server. NOTE: Prior to selecting a power supply option, it is highly recommended that you review your server configuration in the HPE Power Advisor tool to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: |
http://www.hpe.com/info/hppoweradvisor.
HPE Cooling HP DL60/120 Gen9 Redundant Fan Kit 765513-B21 Options NOTE: Includes two fans and is required to move from non-redundant to redundant configurations.
NOTE: Fan redundancy is not supported for processors exceeding 105W.
NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.
|
HPE Insight Software |
HPE Insight Control HPE Insight Control including 1yr 24x7 Technical Support and Updates 1-server LTU |
|
|
|
HPE Insight Control including 1yr 24x7 TSU E-LTU |
|
|
|
HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO LTU |
|
|
|
HPE Insight Control Upgrade from iLO Advanced including 1yr 24x7 Support E-LTU |
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24x7 HPE Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HPE Insight Control Media Kit can be ordered separately, or can be downloaded at: https://www.hpe.com/info/insightmanagement.
NOTE: For additional license options please see the HPE Insight Control QuickSpecs.
Embedded HPE iLO Advanced
Management HPE iLO Advanced including 1yr 24x7 Technical Support and Updates 1-server LTU 512485-B21
-
HPE iLO Advanced including 3yr 24x7 Tech Support and Updates 1-server LTU
HPE iLO Advanced including 1yr 24x7 Technical Support and Updates E-LTU
HPE iLO Advanced including 3yr 24x7 Technical Support and Updates E-LTU
HPE iLO Essentials
HPE iLO Essentials including 3yr 24x7 Tech Support and Updates 1-server LTU
HPE iLO Essentials including 1yr 24x7 Tech Support and Updates 1-server LTU
HPE iLO Essentials including 3yr 24x7 Technical Support and Updates E-LTU
HPE iLO Essentials including 1yr 24x7 Technical Support and Updates E-LTU
HPE iLO Scale-out
HPE iLO Scale-Out 3yr 24x7 Tech Support and Updates Flexible Quantity LTU
HPE iLO Scale-Out including 3yr 24x7 Tech Support and Updates Tracking LTU
HPE iLO Scale-Out 1yr 24x7 Tech Support and Updates Flexible Quantity LTU
HPE iLO Scale-Out including 1yr 24x7 Tech Support and Updates Flex Qty E-LTU BD778AAE
HPE iLO Scale-Out including 1yr 24x7 Tech Support and Updates Tracking LTU BD779A
|
HPE Converged Infrastructure Management Software |
HPE OneView Advanced (with HPE iLO Advanced) HPE OneView including 3yr 24x7 Support Physical 1-server LTU HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1server LTU HPE OneView Physical Media Kit LTU HPE OneView Advanced (without HPE iLO Advanced) HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU |
P8B25A P8B26AAE |
|
|
Page 27 |
HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU P8B31A NOTE: Full licenses of HPE OneView Advanced also provide the right-to-use HPE Insight Control without additional charge.
NOTE: Server provisioning (via 'HPE Insight Control server provisioning') is licensed as part of HPE OneView Advanced and provides multi-server OS and driver provisioning. Media kit #BD883A can be ordered for a physical copy of this software (USB flash drive). NOTE: Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded at: http://www.hpe.com/info/hpeoneview. NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
|
HPE Security |
HPE DL120 Gen9 Thumbscrew Ear FIO Kit |
|
|
|
HPE Trusted Platform Module 2.0 Kit |
|
|
|
NOTE: HPE Trusted Platform Module 2.0 Option works with Gen9 servers with UEFI Mode not Legacy Mode. It is not compatible with HPE ProLiant Gen8 servers or earlier generation variants. NOTE: HPE Gen9 servers purchased earlier may need the latest firmware update to be compatible with the TPM 2.0 Option. NOTE: HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module. |
|
|
|
HPE Trusted Platform Module Option |
|
|
|
NOTE: The HPE Trusted Platform Module Option (488069-B21) is the TPM 1.2 version. Compatible server platforms include Gen8 and Gen9 servers. NOTE: HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module. |
|
|
|
HPE DL120 Gen9 Quick Release Ear FIO Kit |
|
|
|
HPE 1U Security Bezel Kit |
|
|
|
NOTE: Quick Release Ear option kit (P/N 787194-B21) is required for installing security bezel. |
|
HPE Storage Controllers |
SAS Controllers HPE Smart Array Controllers |
|
|
|
HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller |
|
|
|
HPE Smart Array P440/2GB FBWC 12Gb 1-port Int SAS Controller |
|
|
|
NOTE: Includes the HPE Smart Storage Battery. |
|
|
|
HPE Smart Array P441/4GB FBWC 12Gb 2-ports Ext SAS Controller |
|
|
|
HP Smart Array P440/4GB FBWC 12Gb 1-port Int FIO SAS Controller |
|
|
|
NOTE: Includes the HPE Smart Storage Battery. |
|
|
|
HPE Smart Host Bus Adapters |
|
|
|
HPE H240 12Gb 2-ports Int Smart Host Bus Adapter |
|
|
|
HP H240 12Gb 2-ports Int FIO Smart Host Bus Adapter |
|
|
|
HPE H241 12Gb 2-ports Ext Smart Host Bus Adapter |
|
|
|
HPE Cable Options |
|
|
|
HPE DL60/80/120 Gen9 4LFF Cable FIO Kit |
|
|
|
HP DL60/120 Gen9 4LFF Smart Array P440 SAS Cable Kit |
|
|
|
HP DL60/120 Gen9 4LFF Smart HBA H240 SAS Cable Kit |
|
|
|
HPE DL120 Gen9 8SFF Smart Array B140i Cable FIO Kit |
|
|
|
HP DL120 Gen9 8SFF Smart Array P440 SAS Cable Kit |
|
|
|
HP DL120 Gen9 8SFF Smart HBA H240 SAS Cable Kit |
|
|
|
NOTE: One of the above cables is required to be selected depending on the combination of chassis and storage controller. Cable option kit descriptions include the right chassis and storage controllers names. NOTE: FIO indicates that this option is only available as a factory installable option. Please select FIO option if you want the option to be factory installed. NOTE: NHP server chassis (Mod-x) includes SATA cables required to connect drives to embedded B140i SATA controller. |
|
|
|
Optional Software |
|
|
|
HPE Smart Array SR SmartCache (Single Key/Single Server) LTU |
|
|
|
HPE Smart Array SR SmartCache (Single Key/Multiple Servers) LTU |
|
|
|
HPE Smart Array SR SmartCache (Single Key/Multiple Servers) E-LTU |
|
|
|
NOTE: HPE SmartCache is supported when one of the supported Smart Array Controllers is installed in the server. |
|
|
|
HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU |
Q2F26AAE |
|
|
Optional Upgrades |
|
|
|
HP 96W Smart Storage Battery with 145mm Cable for DL/ML/SL Servers |
|
|
|
NOTE: This option is mandatorily required with HPE Smart Array controllers. One server can accommodate only 1 Smart Storage Battery that would suffice the requirement of all HPE Smart Array controllers. |
HPE Tape Backup NOTE: For the complete range of tape drives, autoloaders, libraries and media see: http://www.hpe.com/storage/storeever. For hardware and software compatibility of HPE tape backup products http://www.hpe.com/storage/BURAcompatibility.
NOTE: For Internal drives to be connected to DL servers please make sure that you order rack mount kit as well.
-
Tape Drives
SAS Rack-Mount Tape Solutions
HPE StoreEver LTO-7 Ultrium 15000 Internal Tape Drive
HPE StoreEver LTO-7 Ultrium 15000 External Tape Drive
HPE StoreEver MSL LTO-7 Ultrium 15000 SAS Drive Upgrade Kit
HPE StoreEver MSL LTO-7 Ultrium 15000 FC Drive Upgrade Kit
HPE StoreEver LTO-6 Ultrium 6250 Tape Drive in a 1U Rack Mount Kit
HPE StoreEver LTO-6 Ultrium 6250 External Tape Drive
HPE StoreEver MSL LTO-6 Ultrium 6250 SAS Drive Upgrade Kit
HPE StoreEver MSL LTO-6 Ultrium 6250 Fibre Channel Drive Upgrade Kit
HPE StoreEver LTO-5 Ultrium 3000 SAS Tape Drive in a 1U Rack Mount Kit
HPE StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive
HPE StoreEver MSL LTO-5 Ultrium 3000 SAS Drive Upgrade Kit
HPE StoreEver LTO-4 Ultrium 1760 SAS (1) in a 1U Rack Mount Kit
HPE StoreEver LTO-4 Ultrium 1760 SAS External Tape Drive
HPE StoreEver 1U SAS Rack Mount Kit
HPE DAT Autoloader
HPE StoreEver 1/8 G2 LTO-7 Ultrium 15000 SAS Tape Autoloader
HPE StoreEver 1/8 G2 LTO-7 Ultrium 15000 FC Tape Autoloader
HPE StoreEver 1/8 G2 LTO-6 Ultrium 6250 Fibre Channel Tape Autoloader
HPE StoreEver 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader
HPE MSL2024 Tape Library
HPE StoreEver MSL2024 0-drive Tape Library
HPE MSL4048 Tape Library
HPE StoreEver MSL4048 0-drive Tape Library
HPE StoreEver MSL6480
HPE StoreEver MSL6480 Scaleable Expansion Module
HPE StoreEver MSL6480 Scalable Base Module
NOTE: Please see the HPE StoreEver MSL6480 Tape Library QuickSpecs for Technical
Specifications and additional information).
|
HPE Disk Backup |
HPE RDX Removable Disk Backup System |
|
|
|
HPE RDX 4TB USB 3.0 Internal Disk Backup System |
|
|
|
HPE RDX 4TB USB 3.0 External Disk Backup System |
|
|
|
HPE RDX 3TB USB 3.0 Internal Disk Backup System |
|
|
|
HPE RDX+ 3TB USB 3.0 External Disk Backup System |
|
|
|
HPE RDX 2TB USB3.0 External Disk Backup System |
|
|
|
HP RDX+ 1TB External Backup System |
|
|
|
HP RDX+ 500GB External Backup System |
|
|
|
HPE RDX+ External Docking System |
|
|
|
HPE D3700 Enclosure |
|
|
|
HPE D3600 Enclosure |
|
|
|
HPE StoreOnce Backup systems |
|
|
|
HPE StoreOnce 5100 48TB System |
|
|
|
HPE StoreOnce 3540 24TB System |
|
|
|
HPE StoreOnce 3520 12TB System |
|
|
|
HPE StoreOnce 3100 8TB System |
|
|
|
NOTE: For the complete range of RDX drives and media see: |
https://www.hpe.com/us/en/product-catalog/storage/disk-based-backupsystems.html. For hardware and software compatibility of HPE disk backup products see: http://www.hpe.com/storage/spock.
NOTE: Please see the HPE RDX Removable Disk Backup System QuickSpecs for additional part numbers, Technical Specifications, and additional information
|
HPE Storage Options |
Emulex Fibre Channel HBAs HPE 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter |
|
|
|
HPE 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter |
|
|
|
HPE StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter |
|
|
|
HPE StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter |
|
|
|
QLogic Fibre Channel HBAs |
|
|
|
HPE 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter |
|
|
|
HPE 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter |
|
|
|
HPE StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter |
|
|
|
HPE StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter |
Converged Network Adapter
HPE StoreFabric CN1200E 10Gb Converged Network Adapter E7Y06A
HPE StoreFabric CN1100R Dual Port Converged Network Adapter QW990A
HPE StoreFabric CN1200E 10GBASE-T Dual Port Converged Network Adapter N3U51A
HPE StoreFabric CN1100R 10GBASE-T Dual Port Converged Network Adapter N3U52A
|
HPE Data Center Racks |
HPE Advanced Series Racks HPE 42U 600mm x 1075mm Advanced Pallet Rack |
|
|
|
HPE 42U 600mm x 1075mm Advanced Shock Rack |
|
|
|
HPE 42U 600mm x 1200mm Advanced Pallet Rack |
|
|
|
HPE 42U 600mm x 1200mm Advanced Shock Rack |
|
|
|
HPE 36U 600mm x 1075mm Advanced Pallet Rack |
|
|
|
HPE 36U 600mm x 1075mm Advanced Shock Rack |
|
|
|
HPE 14U 600mm x 1075mm Advanced Shock Rack |
|
|
|
HPE 22U 600mm x 1075mm Advanced Pallet Rack |
|
|
|
HPE 22U 600mm x 1075mm Advanced Shock Rack |
|
|
|
HPE 48U 600mm x 1075mm Advanced Pallet Rack |
|
|
|
HPE 48U 600mm x 1075mm Advanced Shock Rack |
NOTE: Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications.
-
HPE Enterprise Series Racks
HPE 42U 600mm x 1075mm Enterprise Pallet Rack
HP 42U 600mm x 1075mm Enterprise Shock Rack
HP 42U 600mm x 1200mm Enterprise Pallet Rack
HP 42U 600mm x 1200mm Enterprise Shock Rack
HP 47U 600mm x 1075mm Enterprise Pallet Rack
HP 47U 600mm x 1075mm Enterprise Shock Rack
HP 47U 600mm x 1200mm Enterprise Pallet Rack
HP 47U 600mm x 1200mm Enterprise Shock Rack
HP 42U 800mm x 1075mm Enterprise Pallet Rack
HP 42U 800mm x 1075mm Enterprise Shock Rack
NOTE: Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications.
CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.
|
HPE Power Distribution Units (PDUs) |
HPE Basic Power Distribution Units (PDU) HPE 800VA - 277V Input / 230V Output NA Rack Mount Transformer NOTE: Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on additional options and product specifications. |
|
|
|
HPE Metered Power Distribution Units (PDU) |
|
|
|
HPE Metered 2.8kVA/L5-30P 24A/120V Outlets (12) 5-20R/Horizontal NA/JP PDU |
|
|
|
HPE Metered 3.6kVA/60320 C20 Detachable 16A/230V Outlets (12) C13/Horizontal WW PDU |
|
|
|
HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (12) C13/Horizontal NA/JP PDU |
-
HPE Metered 3.6kVA/60320 C20 Detachable 16A/230V Outlets (16) C13/Vertical WW PDU
HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (12) C13/Vertical NA/JP PDU
HPE Metered 7.3kVA/60309 3-wire 32A/230V Outlets (12) C13/Vertical INTL PDU
HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU
HPE Metered 7.3kVA/60309 32A 3-wire/230V Outlets (20) C13 (4) C19/Vertical INTL PDU
HPE Metered 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13 (3) C19/Vertical NA/JP PDU
HPE Metered 3Ph 8.6kVA/L21-30P 24A/120-208V Outlets (18) C13 (3) C19 (3) 520R/Vertical NA/JP PDU
HPE Metered 3Ph 11kVA/60309 5-wire 16A/230V Outlets (18) C13 (3) C19/Vertical INTL PDU
HPE Metered 8.3kVA/CS8265C 40A/208V Outlets (30) C13 (3) C19/Vertical NA PDU
HPE Metered 7.3kVA/60309 32A 3-wire/230V Outlet (32) C13 (4) C19/Vertical INTL PDU
HPE Metered 3Ph 11kVA/60309 5-wire 16A/230V Outlets (30) C13 (3) C19/Vertical INTL PDU
HPE Metered 3Ph 14.4kVA/CS8365C 40A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU
HPE Metered 3Ph 16.6kVA/60309 32A-30A 5-wire 24A/230V Outlets (30) C13 (3) C19/Vertical NA/JP PDU
HPE Metered 3Ph 16.6kVA/60309 32A-30A 5-wire 24A/230V Outlets (12) C13 (12) C19/Vertical NA/JP PDU
HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (24) C13 (3) C19/Vertical NA/JP PDU
HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU
HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU
HPE Metered 3Ph 19.9kVA/L22-30P 24A/277V Outlets (30) RF-203P-HP/Vertical NA PDU
HPE Metered 3Ph 22kVA/60309 5-wire 32A/230V Outlet (30) C13 (3) C19/Vertical INTL PDU
HPE Metered 3Ph 22kVA/60309 5-wire 32A/230V Outlets (12) C13 (12) C19/Vertical INTL PDU
HPE Metered 3Ph 22kVA/60309 5-wire WT 32A/230V Outlets (12) C13 (12) C19/Vertical INTL PDU
HP Environmental Sensor for Remote Monitored and Managed PDUs
NOTE: Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on additional options and product specifications.
HPE Intelligent Power Distribution Unit (PDU)
HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU
HPE Intelligent Modular 8.3kVA/CS8265C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU
HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU
HPE Intelligent Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208V (6) C19/Horizontal NA/JP PDU
HPE Intelligent Modular 3Ph 17.3kVA/60309 30A 5-wire 24A/240V (6) C19/Horizontal NA/JP PDU
HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU
HPE Intelligent Modular 3Ph 11kVA/60309 5-wire 16A/230V Outlets (6) C19/Horizontal INTL PDU
HPE Intelligent Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU
HPE Intelligent Modular 3Ph 17.3kVA/IEC 60309 60A 4-wire 48A/208V (12) C19/Horizontal NA/JP PDU
HPE Intelligent Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (12) C19/Horizontal INTL PDU
HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (6) C19/Horizontal NA/JP PDU
HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (20) C13 (6) C19/Horizontal NA/JP PDU
HPE Intelligent Modular 3Ph 14.4kVA/CS8365C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU
HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU Kit
HPE 5xC13 Intelligent PDU Extension Bar G2 Kit
HPE 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar
NOTE: Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on additional options and product specifications.
HPE Metered and Switched Power Distribution Units (PDU)
HPE Metered Switched 2.8kVA/L5-30P 24A/120V Outlets (24) 5-20R /Vertical NA/JP PDU
HPE Metered Switched 3.6kVA/60320 C20 Detachable 16A/230V Outlets (7) C13 (1) C19/Vertical WW PDU
HPE Metered Switched 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU
HPE Metered Switched 7.3kVA/60309 3-wire 32A/230V Outlets (20) C13 (4) C19/Vertical INTL PDU
HPE Metered Switched 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13 (6) C19/Vertical NA/JP PDU
HPE Metered Switched 3Ph 8.6kVA/L21-30P 24A/208V Outlets (20)C13 (3)C19 (1)520R/Vertical NA/JP PDU
HPE Metered Switched 3Ph 11kVA/60309 5-wire 16A/230V Outlets (21) C13 (3) C19/Vertical INTL PDU
HPE Metered Switched 3Ph 14.4kVA/CS8365C 40A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU
HPE Metered Switched 3Ph 17.3kVA/60309 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU
NOTE: Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for information on additional options and product specifications.
NOTE: To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web
|
HPE Rack Mount Consoles, KVM Switches, and Keyboards |
HPE Location Discovery Services HPE Location Discovery Services LCD8500 Kit NOTE: Please see the HPE Location Discovery Services QuickSpecs for information on additional options and product specifications. |
|
HPE Rack Mount Consoles
HP LCD8500 1U US Rackmount Console Kit AF630A
HP LCD8500 1U UK Rackmount Console Kit AF631A
HP LCD8500 1U DE Rackmount Console Kit AF632A
HP LCD8500 1U FR Rackmount Console Kit AF633A
HP LCD8500 1U JP Rackmount Console Kit AF642A
HP LCD8500 1U RU Rackmount Console Kit AF643A
HP LCD8500 1U INTL Rackmount Console Kit AF644A
HP LCD8500 1U US TAA Rackmount Console Kit AF645A
HPE KVM Switches
HP 0x1x8 G3 KVM Console Switch AF651A
HP 0x2x16 G3 KVM Console Switch AF652A
HP TAA 0x2x16 G3 KVM Console Switch AF653A
HP USB Remote Access Key for G3 KVM Console Switches AF650A
HP KVM Console USB Interface Adapter AF628A
HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software AF618A
HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software AF619A
HP KVM Console USB 2.0 Virtual Media CAC Interface Adapter AF629A
HP 1x4 USB/PS2 KVM Console Switch AF611A
HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software AF620A
HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software AF621A
HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software AF622A NOTE: To learn more, please visit the HPE KVM Switches web page.
HPE USB Keyboard and Mouse
HPE USB US Keyboard/Mouse Kit 631341-B21
HPE USB UK Keyboard/Mouse Kit 631344-B21
HPE USB FR Keyboard/Mouse Kit 631346-B21
HPE USB ES Keyboard/Mouse Kit 631348-B21
HPE USB DE Keyboard/Mouse Kit 631358-B21
HPE USB JP Keyboard/Mouse Kit 631360-B21
HPE USB IT Keyboard/Mouse Kit 631362-B21
HPE USB CN Keyboard/Mouse Kit 631364-B21
HPE USB AE Keyboard/Mouse Kit 638212-B21
HPE USB RU Keyboard/Mouse Kit 638214-B21
HPE USB IN Keyboard/Mouse Kit 672097-D63
HPE USB AP/INTL Keyboard/Mouse Kit 672097-373
HPE USB INTL Keyboard/Mouse Kit 672097-B33
HPE USB PT Keyboard/Mouse Kit 672097-133
HPE USB TR Keyboard/Mouse Kit 672097-143
HPE USB CZ Keyboard/Mouse Kit 672097-223
-
HPE USB FI Keyboard/Mouse Kit
HPE USB SE Keyboard/Mouse Kit
HPE USB CH Keyboard/Mouse Kit
HPE USB KR Keyboard/Mouse Kit
Rail Kits
HP 1U Small Form Factor Easy Install Rail Kit
HPE 1U Cable Management Arm for Easy Install Rail Kit
HP 1U Short Friction Rail Kit
HPE Other Options
HPE Rack LED Light Kit
HP Kit LCD 1.83m Latch Display Port Cable
HP ConvergedSystem Door Branding Kit
HP ConvergedSystem Rack Light Kit
HP ConvergedSystem Rack Side Panel 1075mm Kit
|
HPE Uninterruptible Power Systems (UPS) |
HPE DirectFlow Three Phase UPS Power Unit (1U UPS) HPE R12000 DirectFlow - 1U Rackmount Uninterruptible Power System HPE R12000 DirectFlow - POD 1U Rackmount Uninterruptible Power System |
|
||
|
|
HPE RP12000/3 12000VA Three Phase INTL 6U Rackmount Uninterruptible Power System |
|
||
|
|
Input/Output Module Options for 1U UPS |
|
||
|
|
HPE 32A 400-415 Volt Three Phase INTL R12000 DirectFlow UPS IEC309 Input/Output Module |
|
||
|
|
HPE 30A 400-415 Volt Three Phase NA R10000 DirectFlow UPS IEC309 Input/Output Module |
|
||
|
|
HPE 32A 380 Volt Three Phase China R12000 DirectFlow UPS Unterminated Input/Output Module |
|
||
|
|
HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS L22-30 Input/Output Module |
|
||
|
|
HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module |
|
||
|
|
HPE 30A 400-415 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module |
|
||
|
|
HPE DirectFlow UPS Management Card |
|
||
|
|
Power Unit (2U UPS) |
|
||
|
|
HPE R18000 DirectFlow - 2U Rackmount Uninterruptible Power System |
|
||
|
|
Input/Output Module Options for 2U UPS |
|
||
|
|
HPE 32A 400-415 Volt Three Phase INTL R18000 DirectFlow UPS IEC309 Input/Output Module |
|
||
|
|
HPE 30A 380 Volt Three Phase China R18000 DirectFlow UPS Unterminated Input/Output Module |
|
||
|
|
HPE 30A 480 Volt Three Phase NA R18000 DirectFlow UPS IEC309 Input/Output Module |
|
||
|
|
HPE 30A 480 Volt Three Phase NA R18000 DirectFlow UPS IEC309 Input/Output Module |
|
||
|
|
HPE 30A 400 Volt Three Phase NA R18000 DirectFlow UPS IEC309 Input/Output Module |
|
||
|
|
HPE 30A 400-415V Three Phase NA R18000 DirectFlow UPS 1:1 IEC309 Input/Output Module |
|
||
|
|
NOTE: All Input/Output Modules support dual output outlets except the AF484A. |
|
||
|
|
Battery Pack Options |
|||
|
|
HPE DirectFlow UPS - 1U Rackmount Lithium-ion Battery Pack |
|||
|
|
HPE DirectFlow UPS - 3U Rackmount VRLA Battery Pack |
|||
|
|
HPE WW DirectFlow Secondary Battery Cable |
|||
|
|
NOTE: Please see the HPE DirectFlow Three Phase Uninterruptible Power System QuickSpecs for information on additional options and product specifications. |
|||
|
|
HPE Tower UPS |
|||
|
|
HPE T750 G4 UPS Models |
|||
|
|
HPE T750 G4 NA/JP Uninterruptible Power System |
|||
|
|
HPE T750 G4 INTL Uninterruptible Power System |
|||
|
|
HPE T1000 G4 UPS Models |
|||
|
|
HPE T1000 G4 NA/JP Uninterruptible Power System |
|||
|
|
HPE T1000 G4 INTL Uninterruptible Power System |
|||
|
|
HPE T1500 G4 UPS Models |
|||
|
|
HPE T1500 G4 NA/JP Uninterruptible Power System |
|||
|
|
HPE T1500 G4 INTL Uninterruptible Power System |
|||
|
|
HPE Rack/Tower UPS |
|||
|
|
HPE R/T2200 G4 UPS Models |
|||
|
|
HPE R/T2200 G4 NA/JP Uninterruptible Power System |
|||
|
|
HPE R/T3000 G4 UPS Models |
|||
|
|
HPE R/T3000 G4 Low Voltage NA/JP Uninterruptible Power System |
|||
|
|
HPE R/T3000 G4 High Voltage NA/JP Uninterruptible Power System |
|||
|
|
HPE R/T3000 G4 High Voltage INTL Uninterruptible Power System |
|||
|
|
R1500 G4 Models |
|||
|
|
HPE R1500 G4 NA Uninterruptible Power System |
|||
|
|
HPE R1500 G4 JP/TWN Uninterruptible Power System |
|||
|
|
HPE R1500 G4 INTL Uninterruptible Power System |
|||
|
|
R7000 Uninterruptible Power System (UPS) |
|||
|
|
HPE R7000 4U 50A High Voltage NA/JP Uninterruptible Power System |
|||
|
|
HPE R7000 4U IEC-32A High Voltage INTL Uninterruptible Power System |
|||
|
|
R5000 Uninterruptible Power System (UPS) |
|||
|
|
HPE R5000 3U L630 High Voltage NA/JP Uninterruptible Power System |
|||
|
|
HPE R5000 3U IEC309-32A High Voltage INTL Uninterruptible Power System |
|||
|
|
NOTE: Please see the HPE Line Interactive Single Phase UPS QuickSpecs for information on additional options and product specifications. |
|||
|
|
HPE UPS Options |
|||
|
|
HPE R/T2200 G4 Extended Runtime Module |
|||
|
|
HPE R/T3000 G4 Extended Runtime Module |
|||
|
|
HPE 2U Rack/Tower UPS Shipping Kit |
|||
|
|
NOTE: To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web |
|||
HPEUSB and SD HPE Enterprise Mainstream Flash Media Kits for Memory Cards
Options HPE 32GB microSD Mainstream Flash Media Kit 700139-B21
HPE Dual 8GB microSD Enterprise Midline USB Kit 741279-B21
HPE 8GB microSD Enterprise Mainstream Flash Media Kit 726116-B21
HPE 8GB USB Enterprise Mainstream Flash Media Drive Key Kit 737953-B21
|
HPE Support Services |
Foundation Care HPE 3 year Foundation Care 24x7 DL120 Gen9 Service |
|
|
|
HPE 3 year Foundation Care 24x7 wDMR DL120 Gen9 Service |
|
|
|
HPE 3 year Foundation Care 24x7 wCDMR DL120 Gen9 Service |
|
|
|
Proactive Care |
|
|
|
HPE 3 year Proactive Care 24x7 DL120 Gen9 Service |
|
|
|
HPE 3 year Proactive Care 24x7 with DMR DL120 Gen9 Service |
|
|
|
HPE 3 year Proactive Care 24x7 with CDMR DL120 Gen9 Service |
|
|
|
Installation & Start-up Services |
|
|
|
HPE Installation DL320e/DL120 Service |
|
|
|
HPE Startup DL320e/DL120 Service |
M emory Population guidelines
General Memory Population Rules and Guidelines:
. Place the DIMMs with the highest number of ranks in the white slot when mixing DIMMs of different ranks on the same channel.
. Do not mix RDIMMs or LRDIMMs.
. Quad rank RDIMMs are not supported in HPE ProLiant DL120 Gen9 servers.
. DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.
. The maximum memory speed is a function of the memory type, memory configuration, and processor model.
. The maximum memory capacity is a function of the memory type and number of installed processors.
. To realize the performance memory capabilities listed in this document, HPE SmartMemory is required.
Intel Gen9 Supported Memory Bandwidth for HPE ProLiant Gen9 Intel® Xeon® E5-2600v3 Series Processor Family
|
Memory Bandwidth and Capacity |
|||||||
|
[DIMM Type]
|
Registered DIMMs (RDIMMs) |
Load Reduced (LRDIMMs) |
|||||
|
HPE SKU P/N |
|||||||
|
DIMM Rank
|
Single Rank |
Single Rank |
Dual Rank |
Dual Rank |
Dual Rank |
Dual Rank |
Quad Rank |
|
DIMM Capacity
|
4GB |
8GB |
8GB |
16GB |
32GB |
16GB |
32GB |
|
Voltage |
Std Voltage 1.2V |
Std Voltage 1.2V |
Std Voltage 1.2V |
Std Voltage 1.2V |
Std Voltage 1.2V |
Std Voltage 1.2V |
Std Voltage 1.2V |
|
DRAM Depth [bit] |
512M |
1G |
512M |
1G |
1G |
2G |
2G |
|
DRAM Width [bit] |
x8 |
x4 |
x8 |
x4 |
x4 |
x4 |
x4 |
|
DRAM Density |
4Gb |
4Gb |
4Gb |
4Gb |
4Gb |
8Gb |
8Gb |
|
CAS Latency |
15-15-15 |
15-15-15 |
15-15-15 |
15-15-15 |
15-15-15 |
15-15-15 |
15-15-15 |
|
DIMM Native Speed (MT/s) |
2133 |
2133 |
2133 |
2133 |
2133 |
2133 |
2133 |
Page 38
|
SLOTS THAT CAN BE POPULATED |
|
|
|
|
|
|
|
|
8 slot servers
|
8 |
8 |
8 |
8 |
8 |
8 |
8 |
|
MAXIMUM CAPACITY (GB) |
|
|
|
|
|
|
|
|
32 |
64 |
64 |
128 |
256 |
128 |
256 |
|
|
POPULATED DIMM SPEED (MT/s) |
|
|
|
|
|
|
|
|
1 DIMM Per Channel |
2133
|
2133
|
2133
|
2133
|
2133
|
2133
|
2133
|
|
2 DIMM Per Channel |
2133
|
2133
|
2133
|
2133
|
2133
|
2133
|
2133
|
|
3 DIMM Per Channel |
n/a
|
n/a
|
n/a
|
n/a
|
n/a
|
n/a
|
n/a
|
NOTE: DL120 has 2 DIMMs per channel and hence 3 DIMMs per channel memory speeds are not applicable on DL120.
Intel Gen9 Supported Memory Bandwidth for HPE ProLiant Gen9 Intel® Xeon® E5-2600v4 Series Processor Family
|
Memory Bandwidth and Capacity |
|
||||
|
[DIMM Type]
|
Registered DIMMs (RDIMMs) |
Load Reduced (LRDIMMs) |
|||
|
HPE SKU P/N |
|||||
|
DIMM Rank
|
Single Rank |
Single Rank |
Dual Rank |
Dual Rank |
Dual Rank |
|
DIMM Capacity
|
8GB |
16GB |
16GB |
32GB |
32GB |
|
Voltage |
Std Voltage 1.2V |
Std Voltage 1.2V |
Std Voltage 1.2V |
Std Voltage 1.2V |
Std Voltage 1.2V |
|
DRAM Depth [bit] |
1G |
2G |
1G |
2G |
2G |
|
DRAM Width [bit] |
x8 |
x4 |
x4 |
x4 |
x4 |
|
DRAM Density |
8Gb |
8Gb |
4Gb |
8Gb |
8Gb |
|
CAS Latency |
17-17-17 |
17-17-17 |
17-17-17 |
17-17-17 |
17-17-17 |
|
DIMM Native Speed (MT/s) |
2400 |
2400 |
2400 |
2400 |
2400 |
|
SLOTS THAT CAN BE POPULATED |
|
||||
|
8 slot servers
|
8 |
8 |
8 |
8 |
8 |
|
MAXIMUM CAPACITY (GB) |
|
||||
|
64 |
128 |
128 |
256 |
256 |
|
|
POPULATED DIMM SPEED (MT/s) |
|
||||
|
1 DIMM Per Channel |
2400
|
2400
|
2400
|
2400
|
2400
|
|
2 DIMM Per Channel |
2133
|
2133
|
2133
|
2133
|
2400
|
|
3 DIMM Per Channel |
n/a
|
n/a
|
n/a
|
n/a
|
n/a
|
NOTE: DL120 has 2 DIMMs per channel and hence 3 DIMMs per channel memory speeds are not applicable on DL120.
DIMM slot and DIMM slot and configuration diagrams configuration Basic memory slot & population diagram diagram
• Population order; start with "A" first, "B" second, "C" third, etc.
-
CPU 1
Slot #
Population order
Chnl 2
3
B3
4
F4
CPU 1
Slot #
Population order
Chnl 4
5
H5
6
D6
CPU 1
Slot #
Population order
Chnl 3
7
G7
8
C8
|
Processor Models |
Supported Memory Speeds |
|
E5-2603v3, E5-2609v3 |
1600MT/s |
|
E5-2620v3, E5-2630v3, E5-2640v3, E5-2630Lv3, E5-2623v3 |
1866MT/s |
|
E5-2650v3, E5-2660v3, E5-2650Lv3, E5-2699v3, E5-2698v3, E5-2695v3, E5-1650v3, E5-1620v3 |
2133MT/s |
|
E5-2603v4, E5-2609v4 |
1866MT/s |
|
E5-2630Lv4, E5-2620v4, E5-2623v4, E5-2630v4, E5-2640v4 |
2133MT/s |
|
E5-2650Lv4, E5-2650v4, E5-2660v4, E5-2690v4, E5-2695v4, E5-2698v4, E5-2699v4, E5-1620v4, E5-1650v4 |
2400MT/s |
Memory Speed by Processor Model
|
Pre Configured Models |
Standard Memory |
Maximum Memory Plus Optional Memory |
Standard Memory Replaced with Optional Memory |
|
E5-2630v4, E5-2630v3, E5-2603v4 |
8GB (1x8GB) |
232GB (7x32GB, 1x8GB) |
256GB (8x32GB) |
|
E5-2603v3 |
4GB (1x4GB) |
228GB (7x32GB, 1x4GB) |
256GB (8x32GB) |
Standard and Maximum Memory Capacity (Preconfigured Models)
DDR4 memory options part number decoder
NOTE: Capacity references are rounded to the common gigabyte (GB) values.
-
2GB = 2,048MB
-
4GB = 4,096MB
-
8GB = 8,192MB
-
16GB = 16,384MB
-
32GB = 32,768MB
-
64GB = 65,536MB
HPE ProLiant DL120 Generation9 (Gen9) Storage
1 -8 8 x SFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays
8-bay LFF hot-plug drive model
1 -4 4 x LFF SATA/SAS/SSD Hot Pluggable Hard Drives Bays
Page 42
|
System Unit |
Dimensions (H x W x D) |
8 SFF - 1.69 x 17.11 x 23.90 inches (4.29 x 43.46 x 60.76 cm) 4 LFF - 1.69 x 17.11 x 23.90 inches (4.29 x 43.46 x 60.76 cm) |
|
|
Weight (approximate) |
Maximum: 37.44 Ib (17kg) (all hard drives, power supplies, and processors |
|
|
Minimum: (one hard drive, power supply, and processor installed) |
|
Input Requirements |
Rated Line Voltage Rated Input Current Rated Input Frequency Rated Input Power |
|
BTU Rating |
Maximum |
installed)
19.82 lb (9kg)
100 to 240 VAC
For 550W Power Supply:
6.7 A (at 100 VAC)
3.3 A (at 100 VAC)
47 to 63 Hz
For 550 W Power Supply:
< 670 W (at 100 VAC)
< 660 W (at 200 VAC)
|
Power Specifications Power Supply Output System Inlet Temperature |
2201 BTU/hr (at 100 VAC) 2153 BTU/hr (at 200 VAC) To review typical system power ratings use the Power Advisor which is available via the online tool located at URL: http://www.hpe.com/info/hppoweradvisor - Click on the system of interest. Example: DL120 Gen9- Follow the instructions of the next screens. |
|
|
Rated Steady-State Power Maximum Peak Power Standard Operating Support Extended Ambient Operating Support |
For 550 W Power Supply: 550 W (at 100 VAC) 550 W (at 200 VAC) For 550 W Power Supply: 550 W (at 100 VAC) 550 W (at 200 VAC) 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed. System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F). For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3048 m (10,000 ft). The approved hardware |
|
|
|
Page 43 |
|
For 550 W Power Supply:
configurations for this system are listed at the URL:
http://www.hpe.com/servers/ashrae
System performance may be reduced if operating in the extended ambient operating range or with a fan fault.
NOTE: Supports A3 and A4 extended ambience.
-
Non-operating -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
Operating Minimum to be the higher (more moisture) of -
12°C (10.4°F) dew point or 8% relative humidity. Maximum to be the lower (less moisture) of 24°C (75.2°F) dew point or 90% relative humidity.
(non-condensing)
Non-operating 5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, noncondensing.
Altitude
Operating 3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
LWAd Entry 4.9 B
Base 5.4 B
LpAm Entry 33.0 dBA
Base 35.0 dBA
Operating
LWAd Entry 5.7 B
Base 5.8 B
LpAm Entry 38.0 dBA
Base 39.0 dBA
Emissions Classification (EMC)
FCC Rating Class A
Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47, Pt
15; ICES-003; CNS13438; GB9254; K22;K24; EN
61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
HPE Dynamic Smart Number of PCI links Four
|
Array B140i Controller |
PCI link rate Storage protocol support |
4Gb/s SATA |
|
|
SAS/SATA peak data transfer rate |
6Gb/s |
|
|
Number of SAS/SATA links |
10 links |
|
|
SAS/SATA connectivity |
2x4 connectors; 2x1 connectors |
|
|
Expander support |
No |
|
|
Drives supported (max) |
Up to 10 Internal Drives |
|
|
RAID support |
0, 1, 10, 5 SATA |
|
|
Software management |
HPE SSA, SMH, SIM |
|
|
Warranty |
Server warranty |
|
|
HPE Secure Encryption license |
Not Supported |
|
|
HPE SmartCache License |
Not Supported |
|
|
HPE Smart Storage Administrator |
Supported |
|
HPE Embedded Dual Network Interface |
10Base-T/100Base-TX/1000Base-TX IEEE 802.3 10Base-T IEEE 802.3ab 1000Base-T IEEE 802.3u 100Base-TX IEEE 1588, IEEE 802.1AS IEEE 802.3az - Energy Efficient Ethernet (EEE) |
|
|
Port 361i Adapter |
Compatibility |
|
|
|
Data Transfer Method |
PCI Express v 2.0, 5.0 GT/s, two lanes (x2) |
|
|
Controller |
Intel I350 Powerville |
|
|
Network Transfer Rate |
10Base-T (Half-Duplex) 10 Mb/s per port, 40 Mb/s combined 10Base-T (Full-Duplex) 20 Mb/s per port, 80 Mb/s combined 100Base-TX (Half- 100 Mb/s per port, 400 Mb/s combined Duplex) 100Base-TX (Full-Duplex) 200 Mb/s per port, 800 Mb/s combined 1000Base-TX (Half and 1000 Mb/s per port, 4000 Mb/s combined Full-Duplex) |
|
|
Connector |
Two RJ-45 |
|
|
Cable Support |
10 Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m) 10/100/1000 Base-TX Category 5 or higher UTP; up to 328 ft (100 m) |
Environment- End-of-life Management and Hewlett Packard Enterprise offers end-of-life product return, trade-in, and friendly Products Recycling recycling programs, in many geographic areas, for our products. Products and Approach returned to Hewlett Packard Enterprise will be recycled, recovered or
disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
|
Date |
Version History |
Action |
Description of Change |
|
2-Oct-2017 |
From Version 26 to 27 |
Changed |
Configuration Information – Factory Integrated Models section was revised. |
|
25-Sep-2017 |
From Version 25 to 26 |
Added |
New SSD offering was added. Added new Storage options. |
|
Changed |
Core Options and Additional Options were revised. |
||
|
Removed |
Obsolete SKUs were removed from the QuickSpecs. |
||
|
7-Aug-2017 |
From Version 24 to 25 |
Added |
Added new Solid State Drives to the HPE Drives section. |
|
11-Jul-2017 |
From Version 23 to 24 |
Changed |
Operating Systems and Virtualization Software Support for ProLiant Servers section was revised. |
|
5-Jun-2017 |
From Version 22 to 23 |
Added |
Added new Solid State Drives offering to the HPE Drives section. |
|
8-May-2017 |
From Version 21 to 22 |
Added |
Added support for ClearOs. |
|
Changed |
Operating Systems and Virtualization Software Support for ProLiant Servers, HPE Processors, HPE Drives were revised. |
||
|
Removed |
Obsolete SKUs were removed from the QuickSpecs. |
||
|
27-Mar-2017 |
From Version 20 to 21 |
Added |
Added new Hard Drives. |
|
17-Feb-2017 |
From Version 19 to 20 |
Changed |
HPE Memory section under Core Options was revised. |
|
13-Feb-2017 |
From Version 18 to 19 |
Added |
Added new HDD and SSD offering to the HPE Drives section. |
|
28-Nov-2016
|
From Version 17 to 18
|
Added |
Added new Hard Drives offering. |
|
Changed |
Maximum Internal Storage was revised. |
||
|
Removed |
Obsolete SKUs were removed from the QuickSpecs. |
||
|
28-Oct-2016 |
From Version 16 to 17 |
Removed |
Obsolete Hard Drives were removed from the QuickSpecs. |
|
26-Sep-2016
|
From Version 15 to 16
|
Added |
Added new LFF 10TB SATA hard drives offering. |
|
Changed |
Maximum Internal Storage section was revised. |
||
|
Removed |
Obsolete SKUs were removed from the QuickSpecs. |
||
|
19-Aug-2016 |
From Version 14 to 15 |
Changed |
Smart Buy Models section was updated for the NA version only. |
|
6-Jun-2016
|
From Version 13 to 14
|
Added |
Added new HPE Memory, new HPE Drives offering, and new HPE Disk Backup options. |
|
Changed |
HPE Processors, Upgradeability, and HPE Memory sections were revised. |
||
|
8-Apr-2016 |
From Version 12 to 13 |
Changed |
HPE Processors section was revised. |
|
31-Mar-2016
|
From Version 11 to 12
|
Added |
Added new HPE DDR4 2400 MHz Memory modules, Intel Xeon E5-2600v4 processor support, new HPE Trusted Platform Module (TPM) 2.0, new 900W AC/ 240VDC power supply, new HDD offering. |
|
Changed |
Maximum Internal Storage, Power Supply, Upgradeability, Embedded Management, Service and Support, Pre-configured Models, HPE Security, and Memory sections were revised. |
||
|
Removed |
Obsolete SKUs were removed from the QuickSpecs. |
Page 47
|
16-Feb-2016
|
From Version 10 to 11
|
Added |
New HDD offering was added to HPE Drives. |
|
Changed |
HPE Power Supplies, HPE Disk Backup, HPE Data Center Racks, and HPE Power Distribution Units (PDUs) were revised. |
||
|
Removed |
Obsolete SKUs were removed from the QuickSpecs. |
||
|
1-Dec-2015
|
From Version 9 to 10
|
Added |
New HDD offering was added to HPE Drives.
New options were added to HPE Security, HPE Tape Backup, HPE Rack Mount Consoles, and KVM Switches, and Keyboards. |
|
Changed |
On System Management Chipset, Maximum Internal Storage, Embedded Management, and Server utilities were revised.
Product images were updated. |
||
|
Removed |
Obsolete SKUs were removed from the QuickSpecs. |
||
|
23-Oct-2015 |
From Version 8 to 9 |
Changed |
System Fans, HP Cooling Options, and HP Security were revised. |
|
28-Sep-2015
|
From Version 7 to 8
|
Added |
Added new 6Gb SATA Solid State Drives.
Added new HPE OneView management software. |
|
Removed |
Obsolete SKUs were removed from the QuickSpecs. |
||
|
17-Aug-2015
|
From Version 6 to 7
|
Added |
New Solid State Drives offering was added to Core Options. |
|
Changed |
Maximum Internal Storage was revised. |
||
|
Removed |
Obsolete SKUs were removed from the QuickSpecs. |
||
|
1-Jun-2015
|
From Version 5 to 6
|
Added |
New Hard Drives were added to Core Options.
New options added to HPE Power Supplies.
HPE OneView LTUs added to HPE Converged Infrastructure Management Software.
New RDX+ external backup options were added. |
|
Changed |
Pre-configured Models section was revised. |
||
|
Removed |
Obsolete SKUs were removed from the QuickSpecs. |
||
|
24-Apr-2015 |
From Version 4 to 5 |
Added |
Added 813534-B21 and 813535-B21 to HPE Power Supplies. |
|
16-Apr-2015 |
From Version 3 to 4 |
Changed |
PCIe slots was changed to “1 PCIe LP standard / up to 3 PCIe slots (optional)” for Entry models and CTO models. |
|
30-Mar-2015
|
From Version 2 to 3
|
Added |
Added HPE Storage Options to Additional Options.
Added new Hard Drives to Core Options.
Added Optional Software to HPE Storage Controllers. |
|
Changed |
HPE Processors, HPE Memory, HPE Hard Drives, HPE Networking, and HPE USB and SD Options were revised. |
||
|
9-Feb-2015 |
From Version 1 to 2 |
Added |
Added HPE Insight Software section and Network controller sections. |
Page 48
© Copyright 2017 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.
Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less
|
|
Added new HPE Drives, HPE Disk Backup, and new G4 UPS models. |
||
|
Changed |
HPE Memory, HPE Drives, HPE Tape Backup, HPE Rack Mount Consoles, KVM Switches, and Keyboards, and HPE Uninterruptible Power Systems (UPS) sections were revised. |
c04447806 - 15087 - Worldwide - V27 - 2-October-2017
Page 49
