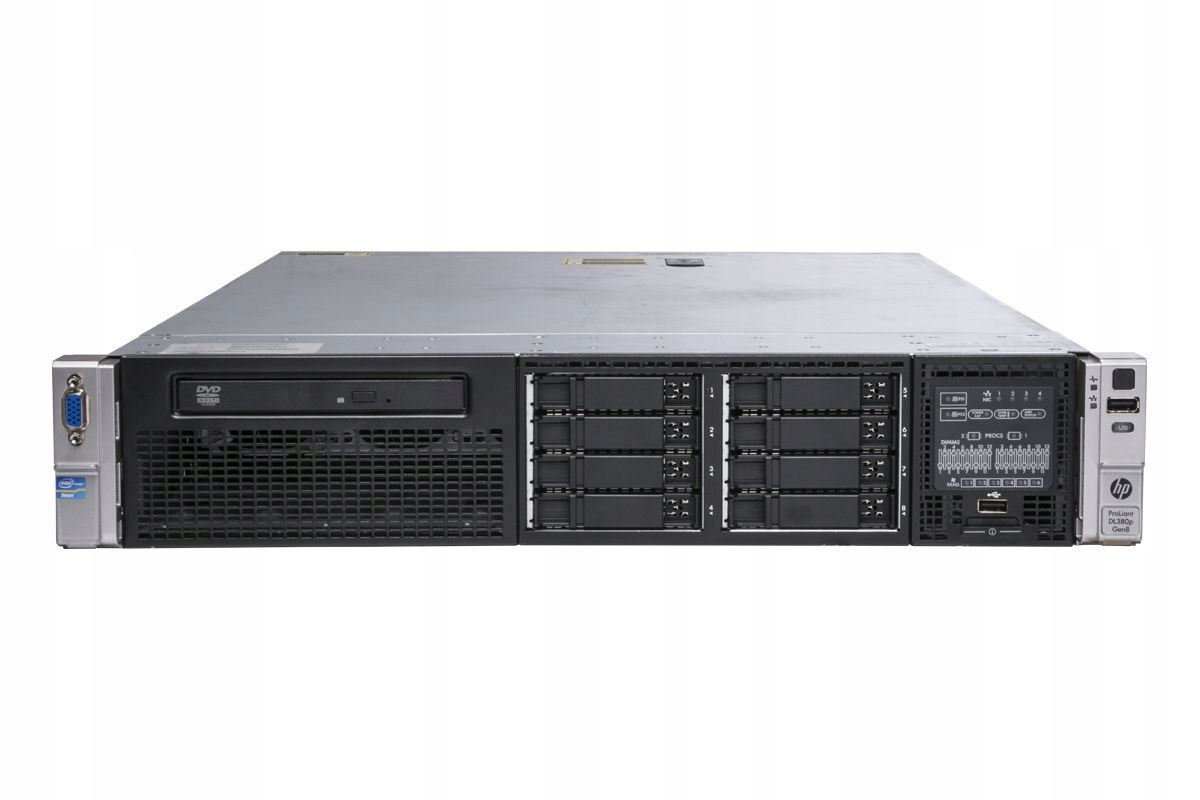

DL380p G8
HP/DL380p G8
Opis
Seria HP ProLiant DL380p Gen8 ustanawia standardy dla następnych generacji dwugniazdowych serwerów stelażowych w obudowach 2U. Wysoka jakość oraz łatwość serwisowania zapewnione już na etapie projektowania, niezrównana wydajność, rozszerzona elastyczność konfiguracyjna oraz konstrukcja opracowana z myślą o potrzebach klientów sprawiają, że serwery DL380p Gen8 są idealnym rozwiązaniem dla współczesnych centrów przetwarzania danych o dynamicznie zmieniających się wymaganiach dotyczących mocy obliczeniowych.
Specyfikacja
| obudowa | Stelażowa, do montażu w szafie przemysłowej RACK 2U |
| procesory | max dwa 8-; 6- ; 4-; 2-u rdzeniowe procesory Intel Xeon serii E5-26xx |
| pamięć cache procesora | Do 20MB L3 |
| pamięć RAM | do 768GB pamięci w 24 slotach DIMM |
| dyski twarde | do 16 szt. dysków 2.5" hot-plug SAS/SATA lub 8 szt. dysków 3.5" hot-plug SAS/SATA |
| kontrolery RAID | HP Smart Array P420i (RAID 0/1/10), opcjonalnie: P420i (RAID 0/1/10/5/50/6/60, cache: 1 Gb/2 Gb, podtrzymywanie flashowe); |
| Slot na napęd optyczny | Jeden osobny slot dla napędu optycznego |
| Klatka na napęd taśmowy | brak |
| karty sieciowe | Zintegrowana 331FLR Adapter 1Gb 4-port , opcjonalnie: 530FLR-SFP+ 10Gb 2-port Adapter |
| sloty PCI | Do 6 slotów PCI: 6x PCIe (2* x16x16, 3* x8x8, 1* x4,x8) |
| porty USB | 2x USB 2.0 z przodu, 4x USB 2.0 z tyłu, 1x USB 2.0 wewnątrz |
| porty VGA | 1x DB-15 video(VGA) |
| porty szeregowe | 1xDB-9 szeregowe (serial) |
| porty zarządzania | 1x RJ-45 do zarządzania serwerem, |
| zasilacze | Do dwóch zasilaczy 1200 W/750 W/460 W Hot Plug (w zależności od modelu) |
| komponenty Hot Swap | Dyski twarde, opcjonalnie PSU, wentylatory |
| wymiary | Wysokość: 87,3 mm, szerokość: 445,5 mm, głębokość: 749,3mm |
| waga | 18,59 kg minimalna - 27,66 kg maksymalna (w zależności od opcji) |
Standardowe Modele
| Entry Models | ||
| HP ProLiant DL380p Gen8 E5-2609 1P 4GB-R P420i SFF 460W PS Entry Server | Processor(s) | (1) Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/6.4GT-s QPI/80W) Processor |
| 642121-xx1 | Cache Memory | 10MB (1x10MB) Level 3 cache |
| Memory | 4GB (1x4GB) PC3L-10600R (DDR3-1333) Registered DIMMS | |
| Network Controller | HP Ethernet 1Gb 4-port 331FLR Adapter | |
| Storage Controller | HP Smart Array P420i/ZM (RAID 0/1/1+0) | |
| Hard Drive | None ship standard | |
| Internal Storage | Standard: 8 SFF SAS/SATA HDD Bays | |
| Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays | ||
| Optical Drive Bay | Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive) | |
| PCI-Express Slots | 3 PCIe slots (+3 PCI slots available with upgrade option) | |
| Power Supply | (1) HP 460W Common Slot Gold Hot Plug Power Supply (92% Efficient) | |
| Fans | (4) (N+1 redundancy standard) | |
| Management | HP iLO Management Engine (standard) | |
| Optional: HP Insight Control | ||
| Form Factor | Rack (2U), HP Friction Rail Kit | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. | |
| Base Models | ||
| Six-Core Models | Processor(s) | (1) Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Processor |
| HP ProLiant DL380p Gen8 E5-2640 1P 16GB-R P420i SFF 460W PS Base Server | (1) Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Processor | |
| 642107-xx1 | (1) Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Processor | |
| Cache Memory | 15MB (1x15MB) Level 3 cache | |
| HP ProLiant DL380p Gen8 E5-2630 1P 16GB-R P420i SFF 460W PS Base Server | Memory | 16GB (4x4GB) PC3L-10600R (DDR3-1333) Registered DIMMS |
| 642119-xx1 | ||
| Network Controller | HP Ethernet 1Gb 4-port 331FLR Adapter | |
| HP ProLiant DL380p Gen8 E5-2620 1P 16GB-R P420i SFF 460W PS Base Server | Storage Controller | HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0) |
| 642120-xx1 | Hard Drive | None ship standard |
| Internal Storage | Standard: 8 SFF SAS/SATA HDD Bays | |
| Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays | ||
| Optical Drive Bay | Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive) | |
| PCI-Express Slots | 3 PCIe slots (+3 PCI slots available with upgrade option) | |
| Power Supply | (1) HP 460W CS Platinum Plus Hot Plug Power Supply (94% Efficient) | |
| Fans | (4) (N+1 redundancy standard) | |
| Management | HP iLO Management Engine (standard) | |
| Optional: HP Insight Control | ||
| Form Factor | Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. | |
| High Performance Models | ||
| Eight-Core Models | Processor(s) | (2) Intel® Xeon® E5-2690 (2.90GHz/8-core/20MB/8GT-s QPI/135W, DDR3-1600, HT, Turbo2- 4/4/4/5/5/7/7/9) Processor |
| HP ProLiant DL380p Gen8 E5-2690 2P 32GB-R P420i SATA SFF 750W PS High Perf Server | (2) Intel® Xeon® E5-2665 (2.40GHz/8-core/20MB/8GT-s QPI/115W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7) Processor | |
| 662257-xx1 | (2) Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/8GT-s QPI/95W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8) Processor | |
| Cache Memory | 20MB (1x20MB) Level 3 cache | |
| HP ProLiant DL380p Gen8 E5-2665 2P 32GB-R P420i SFF 750W PS High Perf Server | Memory | 32GB (4x8GB) PC3-12800R (DDR3-1600) Registered DIMMS |
| 642105-xx1 | ||
| Network Controller | HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter (on E5-2690/E5-2665 Models) | |
| HP ProLiant DL380p Gen8 E5-2650 2P 32GB-R P420i SFF 750W PS High Perf Server | HP Ethernet 1Gb 4-port 331FLR Adapter (on E5-2650 Model) | |
| 642106-xx1 | Storage Controller | HP Smart Array P420i/2GB FBWC (RAID 0/1/1+0/5/5+0) |
| Hard Drive | None ship standard | |
| Internal Storage | Standard: 8 SFF SAS/SATA HDD Bays | |
| Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays | ||
| Optical Drive Bay | DVD-RW standard | |
| PCI-Express Slots | 6 PCIe slots (includes second riser slot upgrade option) | |
| Power Supply | (2) HP 750W CS Platinum Plus Hot Plug Power Supplies (94% Efficient) | |
| Fans | (6) (N+1 redundancy standard) | |
| Management | HP iLO Management Engine (standard) | |
| HP Insight Control Standard | ||
| Form Factor | Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. | |
| Energy Star - Base Models | ||
| Six-Core Model | Processor(s) | (2) Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) |
| HP ProLiant DL380p Gen8 E5-2630 2P 16GB-R P420i Hot Plug SFF 460W PS ES Server | Cache Memory | 15MB (1x15MB) Level 3 cache |
| 677278-xx1 | Memory | 16GB (4x4GB) PC3L-10600R (DDR3-1333) Registered DIMMS |
| Network Controller | HP Ethernet 1Gb 4-port 331FLR Adapter | |
| Storage Controller | HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0) | |
| Hard Drive | None ship standard | |
| Internal Storage | Standard: 8 SFF SAS/SATA HDD Bays | |
| Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays | ||
| Optical Drive Bay | Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive) | |
| PCI-Express Slots | 3 PCIe slots (+3 PCI slots available with upgrade option) | |
| Power Supply | (1) 460W HP CS Platinum Plus Hot Plug Power Supply (94% Efficient) | |
| Fans | (6) (N+1 redundancy standard) | |
| Management | HP iLO Management Engine (standard) | |
| Optional: HP Insight Control | ||
| Form Factor | Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. | |
Kompatybilne opcje
| HP Models | HP ProLiant DL380p Gen8 8 LFF Configure-to-order Server | 665553-B21 |
| Factory Integrated Model ships with: | ||
| 2 x HP Smart Socket Guides for fast processor installation. | ||
| 24 DIMM slots for RDIMM, LRDIMM and UDIMM Memory installation | ||
| 1 FlexibleLOM connector: (see Step2: HP FlexibleNIC section below for NIC choices to populate the embedded connector) | ||
| Smart Array P420i Controller w/ Zero Memory (ZM) | ||
| I/O slots - 3 Slots come standard: | ||
| Slot 1 - FL/FH x16 PCIe 3.0 (x16 connector) | ||
| Slot 2 - HL/FH x8 PCIe 3.0 (x8 connector) | ||
| Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector) | ||
| Additional Slots may be added via selections from the PCI Information and Options subsection | ||
| System Fans - 4 (2 additional fans included with second processor) | ||
| Drive Cage - 8-LFF (Optical media drive optional) | ||
| USB - 4 Rear, 2 Front, 1 Internal, 1 SD slot | ||
| On System Server Management Processor - (HP iLO 4) (embedded) | ||
| HP ProLiant DL380p Gen8 8 SFF Configure-to-order Server | 653200-B21 | |
| Factory Integrated Model ships with: | ||
| 1 FlexibleLOM connector: (see Step2: HP FlexibleLOM section below for NIC choices to populate the embedded connector) | ||
| Smart Array P420i Controller w/ Zero Memory (ZM) | ||
| I/O slots - 3 Slots come standard: | ||
| Slot 1 - FL/FH x16 PCIe 3.0 (x16 connector) | ||
| Slot 2 - HL/FH x8 PCIe 3.0 (x8 connector) | ||
| Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector) | ||
| Additional Slots may be added via selections from the PCI Information and Options subsection | ||
| System Fans - 4 (2 additional fans included with second processor) | ||
| Drive Cage - 8-SFF (Second SFF drive cage optional) | ||
| USB - 4 Rear, 2 Front, 1 Internal, 1 SD slot | ||
| On system Server Management - (HP iLO 4) (embedded) | ||
| HP Processors | Entry Processors | |
| HP DL380p Gen8 Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) FIO Processor Kit | 662252-L21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2603 (1.80GHz/4-core/10MB/80W) FIO Processor Kit | 662254-L21 | |
| Base Processors | ||
| HP DL380p Gen8 Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/95W) FIO Processor Kit | 662246-L21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/95W) FIO Processor Kit | 662248-L21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/95W) FIO Processor Kit | 662250-L21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/60W) FIO Processor Kit | 675092-L21 | |
| Performance Processors | ||
| HP DL380p Gen8 Intel® Xeon® E5-2690 (2.90GHz/8-core/20MB/135W) FIO Processor Kit | 662226-L21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2680 (2.70GHz/8-core/20MB/130W) FIO Processor Kit | 662228-L21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2670 (2.60GHz/8-core/20MB/115W) FIO Processor Kit | 662240-L21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2667 (2.90GHz/6-core/15MB/130W) FIO Processor Kit | 662214-L21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2665 (2.40GHz/8-core/20MB/115W) FIO Processor Kit | 666509-L21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2660 (2.20GHz/8-core/20MB/95W) FIO Processor Kit | 662242-L21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/95W) FIO Processor Kit | 662244-L21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2650L (1.80GHz/8-core/20MB/70W) FIO Processor Kit | 662256-L21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2643 (3.30GHz/4-core/10MB/130W) FIO Processor Kit | 662216-L21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/80W) FIO Processor Kit | 662224-L21 | |
| HP Memory | Registered DIMMs (RDIMMs) | |
| HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit | 647893-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit | 647897-B21 | |
| HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit | 647901-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit | 647895-B21 | |
| HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit | 647899-B21 | |
| HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit | 672631-B21 | |
| Unbuffered with ECC DIMMs (UDIMMs) | ||
| HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit | 647905-B21 | |
| HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit | 647907-B21 | |
| HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit | 647909-B21 | |
| Load Reduced DIMMs (LRDIMMs) | ||
| HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit | 647903-B21 | |
| HyperCloud DIMMs (HDIMM) | ||
| HP 16GB (1x16GB) Dual Rank x4 PC3-10600H (DDR3-1333) HyperCloud CAS-9 FIO Memory Kit | 678279-B21 | |
| HP Networking | FlexibleLOM Adapters | |
| HP Ethernet 1Gb 4-port 331FLR FIO Adapter | 684208-B21 | |
| HP Ethernet 10Gb 2-port 530FLR-SFP+ FIO Adapter | 684210-B21 | |
| HP FlexFabric 10Gb 2-port 554FLR-SFP+ FIO Adapter | 684213-B21 | |
| HP InfiniBand | HP InfiniBand FDR/EN 10/40Gb Dual Port 544FLR-QSFP Adapter | 649282-B21 |
| HP InfiniBand QDR/EN 10Gb Dual Port 544FLR-QSFP Adapter | 649283-B21 | |
| HP Power Supplies | HP Common Slot Platinum Plus Power Supply Kits | |
| HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit | 656362-B21 | |
| HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit | 656363-B21 | |
| HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit | 656364-B21 | |
| HP Common Slot Gold Power Supplies | ||
| HP 460W Common Slot Gold Hot Plug Power Supply Kit | 503296-B21 | |
| HP 750W Common Slot Gold Hot Plug Power Supply Kit | 512327-B21 | |
| HP Common Slot -48VDC Power Supplies | ||
| HP 750W Common Slot -48VDC Hot Plug Power Supply Kit | 636673-B21 | |
| HP Rack Kits | HP 2U Friction Gen8 Rail FIO Kit | 663476-B21 |
| HP 2U Large Form Factor Ball Bearing Gen8 Rail Kit | 663480-B21 | |
| HP 2U Small Form Factor Ball Bearing Gen8 Rail Kit | 663478-B21 | |
| HP Insight Software | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License | 582765-B21 |
| HP Insight Control for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License | TC203A | |
| HP Unique Options | HP 380/385 Gen8 8-SFF Cage/Bkpln Kit | 662883-B21 |
| HP DL380p/385p Gen8 3 Slot PCI-E Riser Kit | 653206-B21 | |
| HP DL380p Gen8 2 Slot 2x16 PCI-E Riser Kit | 653208-B21 | |
| HP 150W PCI-E Power Cable Kit | 669777-B21 | |
| HP Processors | Entry Processors | |
| HP DL380p Gen8 Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor Kit | 662252-B21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2603 (1.80GHz/4-core/10MB/80W) Processor Kit | 662254-B21 | |
| Base Processors | ||
| HP DL380p Gen8 Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/95W) Processor Kit | 662246-B21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/95W) Processor Kit | 662248-B21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/95W) Processor Kit | 662250-B21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/60W) Processor Kit | 675092-B21 | |
| Performance Processors | ||
| HP DL380p Gen8 Intel® Xeon® E5-2690 (2.90GHz/8-core/20MB/135W) Processor Kit | 662226-B21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2680 (2.70GHz/8-core/20MB/130W) Processor Kit | 662228-B21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2670 (2.60GHz/8-core/20MB/115W) Processor Kit | 662240-B21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2667 (2.90GHz/6-core/15MB/130W) Processor Kit | 662214-B21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2665 (2.40GHz/8-core/20MB/115W) Processor Kit | 666509-B21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2660 (2.20GHz/8-core/20MB/95W) Processor Kit | 662242-B21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/95W) Processor Kit | 662244-B21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2650L (1.80GHz/8-core/20MB/70W) Processor Kit | 662256-B21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2643 (3.30GHz/4-core/10MB/130W) Processor Kit | 662216-B21 | |
| HP DL380p Gen8 Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/80W) Processor Kit | 662224-B21 | |
| HP Memory | Registered DIMMs (RDIMMs) | |
| HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit | 647893-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit | 647897-B21 | |
| HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit | 647901-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit | 647895-B21 | |
| HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit | 647899-B21 | |
| HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit | 672631-B21 | |
| Unbuffered with ECC DIMMs (UDIMMs) | ||
| HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit | 647905-B21 | |
| HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit | 647907-B21 | |
| HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit | 647909-B21 | |
| Load Reduction DIMMs (LRDIMMs) | ||
| HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit | 647903-B21 | |
| HP Optical Drives | HP 12.7mm Slim SATA DVD ROM JackBlack Optical Drive | 652232-B21 |
| HP 12.7mm Slim SATA DVD RW JackBlack Optical Drive | 652235-B21 | |
| HP Hard Drives | SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives | |
| HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652589-B21 | |
| HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652583-B21 | |
| HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652572-B21 | |
| HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652564-B21 | |
| HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652611-B21 | |
| HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652605-B21 | |
| HP 72GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652597-B21 | |
| SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives | ||
| HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive | 652749-B21 | |
| HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive | 652745-B21 | |
| SAS Hot Plug SmartDrive LFF (3.5-inch) Enterprise Drives | ||
| HP 600GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652620-B21 | |
| HP 450GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652615-B21 | |
| SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives | ||
| HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 652766-B21 | |
| HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 652757-B21 | |
| HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 652753-B21 | |
| 6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives | ||
| HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive | 655710-B21 | |
| HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive | 655708-B21 | |
| 6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives | ||
| HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 628061-B21 | |
| HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 658079-B21 | |
| HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 657750-B21 | |
| HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 658071-B21 | |
| 6G SAS MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives | ||
| HP 800GB 6G SAS MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 653109-B21 | |
| HP 400GB 6G SAS MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 653105-B21 | |
| HP 200GB 6G SAS MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 658478-B21 | |
| 6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives | ||
| HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive | 653082-B21 | |
| HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive | 653078-B21 | |
| 3G SATA MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives | ||
| HP 400GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 653120-B21 | |
| HP 200GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 653118-B21 | |
| HP 100GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 653112-B21 | |
| 3G SATA MLC Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives | ||
| HP 400GB 3G SATA MLC LFF (3.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 653126-B21 | |
| HP 200GB 3G SATA MLC LFF (3.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 653124-B21 | |
| HP 100GB 3G SATA MLC LFF (3.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 653122-B21 | |
| Hard Drive Kits | ||
| HP SFF Gen8 Hard Drive Blank Kit | 666987-B21 | |
| HP LFF Gen8 Hard Drive Blank Kit | 666986-B21 | |
| HP 380/385 Gen8 8-SFF Cage/Bkpln Kit | 662883-B21 | |
| Hard Drive Cables | ||
| HP DL38x/DL360 Gen8 Embedded SATA Cable Kit | 664009-B21 | |
| HP Networking | Gigabit Ethernet adapters | |
| HP NC112T PCI Express Gigabit Server Adapter | 503746-B21 | |
| HP NC365T 4-port Ethernet Server Adapter | 593722-B21 | |
| HP Ethernet 1Gb 4-port 331T Adapter | 647594-B21 | |
| 10 Gigabit Ethernet Adapters | ||
| HP NC523SFP 10Gb 2-port Server Adapter | 593717-B21 | |
| HP NC552SFP 10Gb 2-port Ethernet Server Adapter | 614203-B21 | |
| FlexibleLOM Adapters | ||
| HP Ethernet 1Gb 4-port 331FLR Adapter | 629135-B21 | |
| HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter | 647581-B21 | |
| HP FlexFabric 10Gb 2-port 554FLR-SFP+ Adapter | 629142-B21 | |
| SFP+ | ||
| HP X132 10G SFP+ LC LR Transceiver | J9151A | |
| HP X132 10G SFP+ LC SR Transceiver | J9150A | |
| HP InfiniBand | QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA | 583211-B21 |
| HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA | 592520-B21 | |
| HP InfiniBand FDR/EN 10/40Gb Dual Port 544QSFP Adapter | 649281-B21 | |
| HP InfiniBand FDR/EN 10/40Gb Dual Port 544FLR-QSFP Adapter | 649282-B21 | |
| HP InfiniBand QDR/EN 10Gb Dual Port 544FLR-QSFP Adapter | 649283-B21 | |
| HP I/O Expansion Options | HP DL380p/385p Gen8 3 Slot PCI-E Riser Kit | 653206-B21 |
| HP DL380p Gen8 2 Slot 2x16 PCI-E Riser Kit | 653208-B21 | |
| HP Power Supplies | HP Common Slot Platinum Plus Power Supply Kits | |
| HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit | 656362-B21 | |
| HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit | 656363-B21 | |
| HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit | 656364-B21 | |
| HP Common Slot Gold Power Supplies | ||
| HP 460W Common Slot Gold Hot Plug Power Supply Kit | 503296-B21 | |
| HP 750W Common Slot Gold Hot Plug Power Supply Kit | 512327-B21 | |
| HP Common Slot -48VDC Power Supplies | ||
| HP 750W Common Slot -48VDC Hot Plug Power Supply Kit | 636673-B21 | |
| HP Insight Software | HP Insight Control | |
| HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License | T9074BAE | |
| HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License | 452148-B22 | |
| HP Insight Management Media Kit | 436222-B21 | |
| HP Insight Control Server Deployment | ||
| HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License | T9082AAE | |
| HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License | 452151-B21 | |
| HP Insight Control for Linux | ||
| HP Insight Control for Linux including 1yr 24x7 Support Electronic License | TC213AAE | |
| HP Insight Control for Linux including 1yr 24x7 Support Single Server License | TC209A | |
| HP Insight Control for Linux Media Kit | TC208A | |
| HP iLO Advanced License | HP Integrated Lights-Out (iLO) Advanced for ProLiant Remote Management | |
| HP iLO Advanced Pack Electronic License with 3yr 24x7 Tech Support and Updates | BD506AAE | |
| HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates | BD505A | |
| HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License | 512485-B21 | |
| High Performance Clusters | HP Cluster Management Utility | |
| HP Insight Cluster Management Utility 1yr 24x7 Flexible License | QL803B | |
| HP Insight Cluster Management Utility 3yr 24x7 Flexible License | BD476A | |
| HP Insight Cluster Management Utility Media | BD477A | |
| HP HPC Linux Value Pack | ||
| HP High Performance Computing Linux Value Pack 1 Processor Flexible License | TC293B | |
| HP High Performance Computing Linux Value Pack Media Kit | TC294A | |
| HP I/O Accelerator Options | Second Generation Accelerators | |
| HP 365GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers | 673642-B21 | |
| HP 785GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers | 673644-B21 | |
| HP 1205GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers | 673646-B21 | |
| HP 2410GB Multi Level Cell G2 PCIe ioDrive2 Duo for ProLiant Servers | 673648-B21 | |
| First Generation Accelerators | ||
| HP 160GB Single Level Cell PCIe ioDrive for ProLiant Servers | 600278-B21 | |
| HP 160GB Single Level Cell PCIe ioDrive for ProLiant Servers | 600278-B21 | |
| HP 320GB Multi Level Cell PCIe ioDrive for ProLiant Servers | 600279-B21 | |
| HP 320GB Single Level Cell PCIe ioDrive Duo for ProLiant Servers | 600281-B21 | |
| HP 640GB Multi Level Cell PCIe ioDrive Duo for ProLiant Servers | 600282-B21 | |
| HP 1.28TB Multi Level Cell PCIe ioDrive Duo for ProLiant Servers | 641027-B21 | |
| HP Security | HP Trusted Platform Module Option | 488069-B21 |
| HP 2U Security Bezel Kit | 666988-B21 | |
| HP Storage Controllers | SAS Controllers | |
| Smart Array P222 Controller | ||
| HP Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller | 631667-B21 | |
| Smart Array P420 Controller | ||
| HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller | 631670-B21 | |
| HP Smart Array P420/2GB FBWC 6Gb 2-ports Int SAS Controller | 631671-B21 | |
| Smart Array P421 Controller | ||
| HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller | 631673-B21 | |
| HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller | 631674-B21 | |
| Optional Upgrades | ||
| HP 1GB P-series Smart Array Flash Backed Write Cache | 631679-B21 | |
| HP 2GB P-series Smart Array Flash Backed Write Cache | 631681-B21 | |
| HP 512MB P-series Smart Array Flash Backed Write Cache | 661069-B21 | |
| HP Smart Array Advanced Pack 2.0 No Media 1 Server 1yr 24x7 Support Software | BC377A | |
| HP Smart Array Advanced Pack 2.0 No Media Electronic Lic 1yr 24x7 Support Software | BC390AAE | |
| HP Cable Options | ||
| HP Double Mini SAS Y 36in Cable Assembly | 662901-B21 | |
| HP Mini SAS Straight to Straight 37in Cable Assembly | 662897-B21 | |
| Host Bus Adapter | ||
| HP H221 Host Bus Adapter | 650931-B21 | |
| SCSI HBA | ||
| HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter | 412911-B21 | |
| HP Power Cords | HP C13 - SEV 1011 CH 250V 10Amp 1.83m Power Cord | AF565A |
| HP C13 - DK-2.5A DK 250V 10Amp 1.83m Power Cord | AF566A | |
| HP C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord | AF568A | |
| HP C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord | AF570A | |
| HP C13 - CEI-23-50 IT/CL 250V 10Amp 1.83m Power Cord | AF571A | |
| HP C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord | AF567A | |
| HP C13 - Nema 6-15P US 250V 15A JP 3.6m Power Cord | A0N33A | |
| HP C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord | AF556A | |
| HP Tape Backup | HP 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader | AK377A |
| HP Ultrium 920 SAS Internal Tape Drive | EH847A | |
| HP LTO-5 Ultrium 3000 SAS Tape Drive in 1U Rackmount | EJ014A | |
| HP MSL2024 1 LTO-4 Ultrium 1760 SAS Tape Library | AK378A | |
| HP MSL4048 2 LTO-4 Ultrium 1760 SAS Tape Library | AK380A | |
| HP Disk Backup | HP RDX External Disk Backup Systems | |
| HP RDX160 External Removable Disk Backup System | AJ766A | |
| HP RDX320 External Removable Disk Backup System | AJ768A | |
| HP RDX500 External Removable Disk Backup System | AJ935A | |
| HP RDX1000 External Removable Disk Backup System | BV849A | |
| HP RDX Removable Disk Backup Systems USB | ||
| HP RDX160 Internal Removable Disk Backup System | AJ765A | |
| HP RDX320 Internal Removable Disk Backup System | AJ767A | |
| HP RDX500 Internal Removable Disk Backup System | AJ934A | |
| HP RDX1000 Internal Removable Disk Backup System | BV847A | |
| HP Storage Options | Storage Fibre Channel HBA | |
| Brocade Fibre Channel HBAs | ||
| HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter | AP769A | |
| HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter | AP770A | |
| Emulex Fibre Channel HBAs | ||
| HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter | AJ762A | |
| HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter | AJ763A | |
| QLogic Fibre Channel HBAs | ||
| HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter | AK344A | |
| HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter | AJ764A | |
| Converged Network Adapter | ||
| HP CN1100E Dual Port Converged Network Adapter | BK835A | |
| HP CN1000Q Dual Port Converged Network Adapter | BS668A | |
| HP Disk Storage Systems | Modular Smart Arrays | |
| HP P2000 G3 10GbE iSCSI MSA Dual Controller LFF Array System | AW596A | |
| HP P2000 G3 10GbE iSCSI MSA Dual Controller SFF Array System | AW597A | |
| HP P2000 G3 iSCSI MSA Dual Controller LFF Array System | BK830A | |
| HP P2000 G3 iSCSI MSA Dual Controller SFF Array System | BK831A | |
| HP P2000 G3 MSA FC Dual Controller LFF Modular Smart Array System | AP845A | |
| HP P2000 G3 MSA FC Dual Controller SFF Modular Smart Array System | AP846A | |
| HP P2000 G3 MSA FC/iSCSI Dual Combo Controller LFF Array | AW567A | |
| HP P2000 G3 MSA FC/iSCSI Dual Combo Controller SFF Array | AW568A | |
| HP P2000 G3 SAS MSA Dual Controller LFF Array System | AW593A | |
| HP P2000 G3 SAS MSA Dual Controller SFF Array System | AW594A | |
| Disk Enclosures | ||
| HP D2000 Disk Enclosures | ||
| HP D2600 Disk Enclosure | AJ940A | |
| HP D2700 Disk Enclosure | AJ941A | |
| HP Uninterruptible Power Systems | HP Rack-mountable UPS | |
| HP R1500 G3 Uninterruptible Power Supply (UPS) | ||
| HP R1.5kVA G3 1U NA Uninterruptible Power System | AF469A | |
| HP R1.5kVA G3 1U JP/TW Uninterruptible Power System | AF470A | |
| HP R1.5kVA G3 1U INTL Uninterruptible Power System | AF471A | |
| HP R/T3000 G2 Uninterruptible Power System (UPS) | ||
| HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System | AF466A | |
| HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System | AF467A | |
| HP R/T3000 G2 2U Detachable Cord High Voltage INTL Uninterruptible Power System | AF468A | |
| R5000 Uninterruptible Power System (UPS) | ||
| HP R5KVA 3U IEC309-32A High Voltage INTL Uninterruptible Power System | AF461A | |
| HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System | AF460A | |
| R7000 Uninterruptible Power System (UPS) | ||
| HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System | AF462A | |
| HP R7KVA 4U IEC-32A High Voltage INTL Uninterruptible Power System | AF463A | |
| HP R5KVA and R7KVA 3U Extended Runtime Module | AF464A | |
| HP Power Distribution Units | Monitored PDUs | |
| HP Monitored Power Distribution Unit: Full Rack Version | ||
| HP 17.3kVA 24A Dual Three Phase NA/JP Monitored Power Distribution Unit | AF503A | |
| HP 8.6kVA 24A Single Input Three Phase NA/JP Monitored Power Distribution Unit | AF504A | |
| HP 16.6kVA 40A Dual Input Single Phase NA/JP Monitored Power Distribution Unit | AF505A | |
| HP 8.3kVA 40A Single Input Single Phase NA/JP Monitored Power Distribution Unit | AF506A | |
| HP 22.1kVA 16A Dual Input Three Phase INTL Monitored Power Distribution Unit | AF507A | |
| HP 11kVA 16A Single Input Three Phase INTL Monitored Power Distribution Unit | AF508A | |
| HP 14.7kVA 32A Dual Input Single Phase INTL Monitored Power Distribution Unit | AF509A | |
| HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit | AF510A | |
| HP Monitored Power Distribution Unit: Half Rack Version | ||
| HP 4.9kVA 24A Single Input Single Phase NA/JP Monitored Power Distribution Unit | AF914A | |
| HP 7.3kVA 32A Single Input Three Phase INTL Intelligent Modular Power Distribution Unit | AF536A | |
| HP 17.3kVA 48A Single Input Three Phase NA/JP Monitored Power Distribution Unit | AF916A | |
| HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit | AF915A | |
| HP 22kVA 32A Single Input Three Phase INTL Monitored Power Distribution Unit | AF917A | |
| Modular PDUs 1U/0U | ||
| HP 2.8kVA 24A Low Voltage NA/JP Modular Power Distribution Unit | 252663-D71 | |
| HP 3.6kVA 16A High Voltage INTL Modular Power Distribution Unit | 252663-B24 | |
| HP 4.9kVA 24A High Voltage NA/JP Modular Power Distribution Unit | 252663-D72 | |
| HP 8.3kVA 40A High Voltage INTL Modular Power Distribution Unit | 252663-B21 | |
| HP 8.3kVA 40A High Voltage NA/JP Modular Power Distribution Unit | 252663-D73 | |
| HP 8.3kVA 40A High Voltage NA/JP Core Modular Power Distribution Unit | 252663-D75 | |
| HP 4.9kVA 24A High Voltage NA/JP Core Modular Power Distribution Unit | 252663-D74 | |
| HP 7.3kVA 32A High Voltage INTL Modular Power Distribution Unit | 252663-B31 | |
| HP 9.2kVA 40A High Voltage INTL Modular Power Distribution Unit | 252663-B32 | |
| HP 9.2kVA 40A High Voltage INTL Core Modular Power Distribution Unit | 252663-B34 | |
| HP 7.3kVA 32A High Voltage INTL Core Modular Power Distribution Unit | 252663-B33 | |
| HP 22kVA 32A Three Phase INTL Core Modular Power Distribution Unit | AF518A | |
| HP Intelligent Power Distribution Units (iPDU) | iPDU Core Units | |
| HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit | AF520A | |
| HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit | AF521A | |
| HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit | AF522A | |
| HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit | AF533A | |
| HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit | AF523A | |
| HP 11.4kVA 16A 415V Three Phase L22-20 NA Core Intelligent Power Distribution Unit | AF900A | |
| HP 17.3kVA 24A 415V Three Phase L22-30 NA Core Intelligent Power Distribution Unit | AF902A | |
| HP 17.3kVA 24A 415V Three Phase IEC309 NA Core Intelligent Power Distribution Unit | AF901A | |
| HP 7.3kVA 32A Single Phase INTL Core Intelligent Modular Power Distribution Unit | AF525A | |
| HP 11kVA 16A Three Phase INTL Core Intelligent Modular Power Distribution Unit | AF526A | |
| HP 22kVA 32A Three Phase INTL Core Intelligent Modular Power Distribution Unit | AF527A | |
| HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit | AF535A | |
| HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit | AF537A | |
| HP 22kVA 32A 400V Three Phase 12 Outlet Core INTL Intelligent Power Distribution Unit | AF538A | |
| iPDU Kits with Standard Extension Bars | ||
| HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit | AF531A | |
| HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit | AF532A | |
| HP 7.3kVA 32A Single Phase INTL Intelligent Modular Power Distribution Kit | AF534A | |
| iPDU Extension Bars | ||
| HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar | AF528A | |
| HP Rack Options | HP USB Keyboard and Mouse | |
| HP USB BFR with PVC Free UK Keyboard/Mouse Kit | 631344-B21 | |
| HP USB BFR with PVC Free FR Keyboard/Mouse Kit | 631346-B21 | |
| HP USB BFR with PVC Free ES Keyboard/Mouse Kit | 631348-B21 | |
| HP USB BFR with PVC Free DE Keyboard/Mouse Kit | 631358-B21 | |
| HP USB BFR with PVC Free JP Keyboard/Mouse Kit | 631360-B21 | |
| HP USB BFR with PVC Free IT Keyboard/Mouse Kit | 631362-B21 | |
| HP USB BFR with PVC Free CN Keyboard/Mouse Kit | 631364-B21 | |
| HP USB BFR with PVC Free AE Keyboard/Mouse Kit | 638212-B21 | |
| HP USB BFR with PVC Free RU Keyboard/Mouse Kit | 638214-B21 | |
| HP USB BFR with PVC Free AP-Intl Keyboard/Mouse Kit | 672097-373 | |
| HP USB BFR with PVC Free Intl Keyboard/Mouse Kit | 672097-B33 | |
| HP USB BFR with PVC Free PT Keyboard/Mouse Kit | 672097-133 | |
| HP USB BFR with PVC Free TR Keyboard/Mouse Kit | 672097-143 | |
| HP USB BFR with PVC Free CZ Keyboard/Mouse Kit | 672097-223 | |
| HP USB BFR with PVC Free FI Keyboard/Mouse Kit | 672097-353 | |
| HP USB BFR with PVC Free SE Keyboard/Mouse Kit | 672097-103 | |
| HP USB BFR with PVC Free CH Keyboard/Mouse Kit | 672097-113 | |
| HP USB BFR with PVC Free KR Keyboard/Mouse Kit | 672097-KD3 | |
| HP USB BFR with PVC Free IN Keyboard/Mouse Kit | 672097-D63 | |
| HP Server Console Switches | ||
| HP Server Console 0x2x8 Port Analog Switch | AF616A | |
| HP Server Console 0x2x16 Port Analog Switch | AF617A | |
| HP Server Console Switch G2 with Virtual Media & CAC | ||
| HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software | AF618A | |
| HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software | AF619A | |
| HP IP Console Switch G2 with Virtual Media & CAC | ||
| HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software | AF620A | |
| HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software | AF621A | |
| HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software | AF622A | |
| Rail Kits | ||
| HP 2U Large Form Factor Ball Bearing Gen8 Rail Kit | 663480-B21 | |
| HP 2U Small Form Factor Ball Bearing Gen8 Rail Kit | 663478-B21 | |
| HP USB and SD options | HP USB 2-Button Optical Scroll Mouse | DC172B |
| HP USB 04 Standard Keyboard | DT528A#ABA | |
| HP 4GB Secure Digital High Capacity Flash Media Kit | 580387-B21 | |
| HP 2GB USB Flash Media Drive Key Kit | 608447-B21 | |
| HP Care Pack Services | HP 3 year 24x7 24 hour Call to Repair ProLiant DL38x(p) Hardware Support | UP717E |
| HP 3 year 4 hour 13x5 ProLiant DL38x(p) Hardware Support | U4544E | |
| HP 3 year 4 hour 24x7 ProLiant DL38x(p) Hardware Support | U4545E | |
| HP 3 year 6 hour 24x7 Call to Repair ProLiant DL38x(p) Hardware Support | U4546E | |
| HP 3 year Support Plus 24 Microsoft ProLiant DL38x(p) Service | U4557E | |
| HP 3 year Support Plus 24 SuSE ProLiant DL38x(p) Service | U6312E | |
| HP 4 year 24x7 24 hour Call to Repair ProLiant DL38x(p) Hardware Support | UP718E | |
| HP 4 year 4 hour 13x5 ProLiant DL38x(p) Hardware Support | U8101E | |
| HP 4 year 4 hour 24x7 ProLiant DL38x(p) Hardware Support | U8118E | |
| HP 5 year 4 hour 13x5 ProLiant DL38x(p) Hardware Support | U8067E | |
| HP 5 year 4 hour 24x7 ProLiant DL38x(p) Hardware Support | U8084E | |
| HP 4 year 6 hour 24x7 Call to Repair ProLiant DL38x(p) Hardware Support | U9738E | |
| HP 4 year Next business day ProLiant DL38x(p) Hardware Support | UA010E | |
| HP 5 year 6 hour 24x7 Call to Repair ProLiant DL38x(p) Hardware Support | U9737E | |
| HP 5 year Next business day ProLiant DL38x(p) Hardware Support | UA009E | |
| HP Install ProLiant DL38x(p) Service | U4554E | |
| HP Startup ProLiant DL38x(p) Service | U4555E | |
| HP 5 year 24x7 24 hour Call to Repair ProLiant DL38x(p) Hardware Support | UP719E | |
| HP Installation of ProLiant Add On/In Options Service | UH745E | |
| HP Installation and Startup for Insight Control Server Deployment - previously Rapid Deployment Pack | U5683E | |
| HP 3 year Next business day ProLiant DL38x(p) Proactive Care Service | U2Z44E | |
| HP 3 year 4 hour 24x7 ProLiant DL38x(p) Proactive Care Service | U2Z50E | |
| HP 3 year Next business day ProLiant DL38x(p) Collaborative Support | U1J24E | |
| HP 3 year 4 hour 24x7 ProLiant DL38x(p) Collaborative Support | U1J30E | |
| HP 3 year Next business day ProLiant DL38x(p) with Insight Control Proactive Care Service | U3N17E | |
| HP 3 year 4 hour 24x7 ProLiant DL38x(p) with Insight Control Proactive Care Service | U3N23E | |
| HP 3 year Support Plus 24 Insight Control ProLiant DL38x(p) Service | UM812E |
