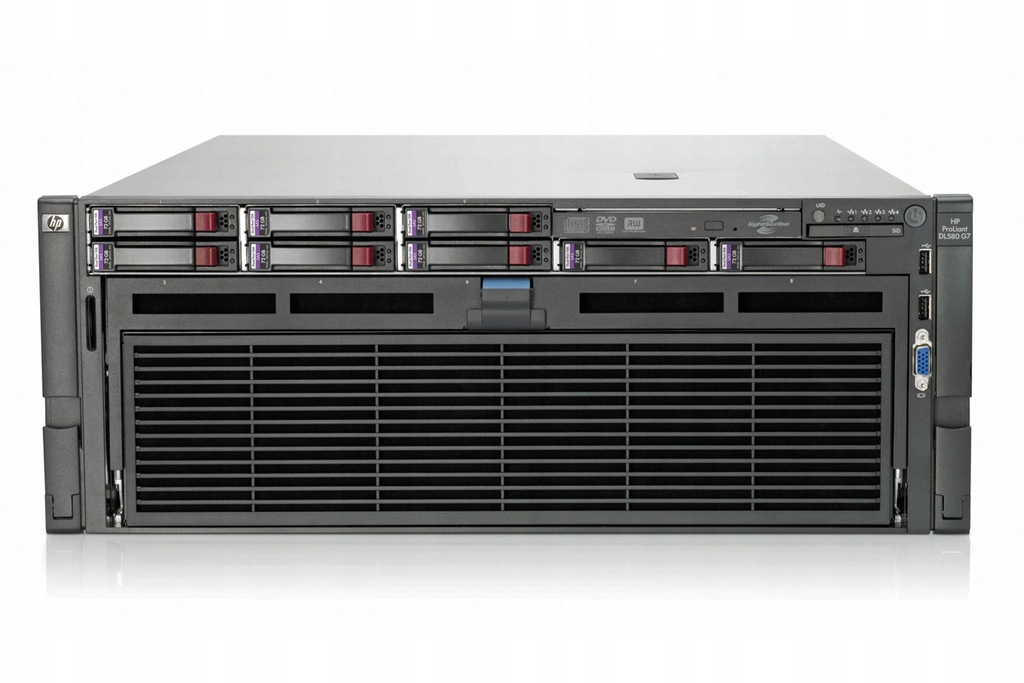

DL580 G7
HP/DL580 G7
Opis
Tradycyjne funkcje RAS (niezawodność, dostępność i obsługa serwisowa) o znaczeniu krytycznym są kojarzone z systemami RISC (uproszczony zestaw instrukcji komputera). HP zaprojektował system funkcji RAS, który wyznacza nowy standard w serwerach HP ProLiant DL580 G7. Serwer HP ProLiant DL580 G7 zapewnia najwyższą w swojej klasie wydajność, łatwość zarządzania i niezawodność dzięki najnowszym procesorom Intel. To doskonałe rozwiązanie dla klientów, którzy są gotowi do wdrożenia dużych baz danych, wymagających dużej mocy obliczeniowej, dużej pojemności pamięci oraz aplikacji intensywnie korzystających z systemu we-wy.
Specyfikacja
| obudowa | Stelażowa, do montażu w szafie przemysłowej RACK 4 U |
| procesory | max cztery 10; 8; 6 lub 4- o rdzeniowe procesory Intel Xeon serii E7-88xx, E7-48xx, X75xx, E75xx, L75xx |
| pamięć cache procesora | do 30MB L3 |
| pamięć RAM | do 2 TB pamięci w 64 slotach DIMM |
| dyski twarde | do 8 szt. dysków 2.5" hot-plug SAS/SATA |
| kontrolery RAID | HP Smart Array P410i RAID (RAID 0/1/10/5/50/6/60, cache: 512 Mb, opcjonalnie 1 Gb, podtrymywanie flashowe) |
| Slot na napęd optyczny | Jeden osobny slot dla napędu optycznego |
| Klatka na napęd taśmowy | brak |
| karty sieciowe | Zintegrowana NC375i Integrated Quad Port Gigabit Server Adapter |
| sloty PCI | Do 11 slotów PCI : (6* x8x16, 5* x4x8) |
| porty USB | 2x USB 2.0 z przodu, 2x USB 2.0 z tyłu, 2x USB 2.0 wewnątrz |
| porty VGA | 1x DB-15 video(VGA) |
| porty szeregowe | 1xDB-9 szeregowe (serial) |
| porty zarządzania | 1x RJ-45 do zarządzania serwerem, |
| zasilacze | Do czterech zasilaczy 1200 W Hot Plug (w zależności od modelu) |
| komponenty Hot Swap | Dyski twarde, PSU, wentylatory |
| wymiary | Wysokość: 176 mm, szerokość: 483 mm, głębokość: 700 mm |
| waga | 30 kg minimalna - 45,4 kg maksymalna (w zależności od opcji) |
Standardowe Modele
| High Performance Models | ||
| HP ProLiant DL580 G7 E7-4870 4P 128GB-R P410i/1G FBWC 4x1200W HE PS Server | Processor(s) | (4) Intel® Xeon® E7-4870 (2.40GHz/10-core/30MB/130W) Processors |
| 643063-xx1 | (4) Intel® Xeon® E7-4850 (2.00GHz/10-core/24MB/130W) Processors | |
| (4) Intel® Xeon® X7560 (2.26GHz/8-core/24MB/130W) Processors | ||
| HP ProLiant DL580 G7 E7-4850 4P 128GB-R P410i/1G FBWC 4x1200W HE PS Server | (4) Intel® Xeon® X7550 (2.0GHz/8-core/18MB/130W) Processors | |
| 643064-xx1 | (4) Intel® Xeon® E7540 (2.0GHz/6-core/18MB/105W) Processors | |
| Cache Memory | 30MB (1 x 30MB) Level 3 cache | |
| HP ProLiant DL580 G7 X7560 4P 64GB-R P410i/1GB FBWC 8 SFF 1200W RPS Perf IC Svr | 24MB (1 x 24MB) Level 3 cache | |
| 584084-xx1 | 18MB (1 x 18MB) Level 3 cache | |
| Memory | 128GB (16 x 8GB DIMMs) PC3-10600R DIMMs (DDR3) installed in (8) (E7) Memory Cartridges (E7-4870, E7-4850 Models) | |
| HP ProLiant DL580 G7 X7550 4P 64GB-R P410i/1GB FBWC 8 SFF 1200W RPS Perf IC Svr | 64GB (16 x 4GB DIMMs) PC3-10600R DIMMs (DDR3) installed in (8) memory boards (X7560, X7550 Models) | |
| 584085-xx1 | 32GB (8 x 4GB DIMMs) PC3-10600R DIMMs (DDR3) installed in (4) memory boards (E7540 Models) | |
| Network Controller | HP NC375i Integrated Quad Port Gigabit Server Adapter | |
| HP ProLiant DL580 G7 E7540 4P 32GB-R P410i/1GB FBWC 8 SFF 1200W RPS Perf IC Svr | Storage Controller | Embedded HP Smart Array P410i/1G FBWC Controller |
| 584086-xx1 | Hard Drives | None ship standard |
| Internal Storage | Up to 8.0TB of internal storage (SFF SAS) | |
| Optical Drive | HP Slim SATA DVD ROM Optical Drive | |
| Power Supply | (4) HP 1200W Common Slot Platinum Hot Plug Power Supply Kit (E7-4870, E7-4850 Models) | |
| (4) HP 1200W Common Slot Silver Hot Plug Power Supply Kit (X7560, X7550, E7540 Models) | ||
| Fans | Four Hot Plug redundant fans standard (3+1) | |
| Integrated Lights Out | Integrated Lights-Out 3 (iLO 3) ships standard | |
| Insight Control | HP Insight Control No Media single server license, including 1 year of 24x7 Technical Support and Updates | |
| Form Factor | Rack 4U | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response | |
| Base Models | ||
| HP ProLiant DL580 G7 E7-4830 2P 64GB-R P410i/512 FBWC 2x1200W HE PS Server | Processor(s) | (2) Intel® Xeon® E7-4830 (2.13GHz/8-core/24MB/105W) Processors |
| 643065-xx1 | (2) Intel® Xeon® E7-4807 (1.86GHz/6-core/18MB/95W) Processors | |
| (2) Intel® Xeon® E7530 (1.86GHz/6-core/12MB/105W) Processors | ||
| HP ProLiant DL580 G7 E7-4807 2P 64GB-R P410i/512 FBWC 2x1200W HE PS Server | (2) Intel® Xeon® E7520 (1.86GHz/4-core/18MB/95W) Processors | |
| 643066-xx1 | Cache Memory | 24MB (1 x 24MB) Level 3 cache |
| 18MB (1 x 18MB) Level 3 cache | ||
| HP ProLiant DL580 G7 E7530 2P 16GB-R P410i/512 FBWC 8 SFF 1200W RPS Base Server | 12MB (1 x 12MB) Level 3 cache | |
| 584087-xx1 | Memory | 64GB (8 x 8GB DIMMs) PC3-10600R DIMMs (DDR3) installed in (4) (E7) Memory Cartridges (E7-4830, E7-4807 Models) |
| 16GB (4 x 4GB DIMMs) PC3-10600R DIMMs (DDR3) installed in (2) memory boards (E7530, E7520 Models) | ||
| HP ProLiant DL580 G7 E7520 2P 16GB-R P410i/512 FBWC 8 SFF 1200W RPS Base Server | Network Controller | HP NC375i Integrated Quad Port Gigabit Server Adapter |
| 595241-xx1 | Storage Controller | Embedded HP Smart Array P410i/512 MB FBWC Controller |
| Hard Drives | None ship standard | |
| Internal Storage | Up to 8.0TB of internal storage (SFF SAS) | |
| Optical Drive | HP Slim SATA DVD ROM Optical Drive | |
| Power Supply | (2) HP 1200W Common Slot Platinum Hot Plug Power Supply Kit (E7-4830, E7-4807 Models) | |
| (2) HP 1200W Common Slot Silver Hot Plug Power Supply Kit (E7530, E7520 Models) | ||
| Fans | Four Hot Plug redundant fans standard (3+1) | |
| Integrated Lights Out | Integrated Lights-Out 3 (iLO 3) ships standard | |
| Form Factor | Rack 4U | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response | |
Kompatybilne opcje
| HP Models | HP ProLiant DL580 G7 (E7) Configure-to-order Server | 643086-B21 |
| Factory Integrated Models ship with: | ||
| HP NC375i Integrated Quad Port Gigabit Server Adapter | ||
| Four HP DL580G7/DL980 G7 (E7) Memory Cartridges | ||
| Five standard PCI-express slots | ||
| HP Smart Array P410i/ Zero Memory Controller | ||
| Four redundant hot-plug fans | ||
| SFF SAS/SATA/SSD drive cage | ||
| HP Integrated Lights-Out 3 (iLO 3) management processor: integrated on system board | ||
| Rack (4U), 7-inch | ||
| HP Processors | Ten-Core Processors | |
| HP DL580 G7 Intel® Xeon® E7-4870 (2.40GHz/10-core/30MB/130W) FIO 2-processor Kit | 643067-L21 | |
| HP DL580 G7 Intel® Xeon® E7-4860 (2.26GHz/10-core/24MB/130W) FIO 2-processor Kit | 643069-L21 | |
| HP DL580 G7 Intel® Xeon® E7-4850 (2.00GHz/10-core/24MB/130W) FIO 2-processor Kit | 643071-L21 | |
| HP DL580 G7 Intel® Xeon® E7-8867L (2.13GHz/10-core/30MB/105W) FIO 2-processor Kit | 643079-L21 | |
| Eight-Core Processors | ||
| HP DL580 G7 Intel® Xeon® E7-8837 (2.67GHz/8-core/24MB/130W) FIO 2-processor Kit | 643081-L21 | |
| HP DL580 G7 Intel® Xeon® E7-4830 (2.13GHz/8-core/24MB/105W) FIO 2-processor Kit | 643073-L21 | |
| HP DL580 G7 Intel® Xeon® E7-4820 (2.0GHz/8-core/18MB/105W) FIO 2-processor Kit | 643075-L21 | |
| Six-Core Processors | ||
| HP DL580 G7 Intel® Xeon® E7-4807 (1.86GHz/6-core/18MB/95W) FIO 2-processor Kit | 643077-L21 | |
| HP Memory | Registered DIMMs (RDIMMs) | |
| HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500656-B21 | |
| HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500658-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | 604504-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500662-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | 604506-B21 | |
| HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit | 500666-B21 | |
| HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit | 627812-B21 | |
| HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory Kit | 627814-B21 | |
| Memory Expansion Options | ||
| HP DL580G7/DL980G7 (E7) Memory Cartridge | 644172-B21 | |
| HP DL580G7/DL980G7 Memory Cartridge | 588141-B21 | |
| HP Power Supplies | HP 1200W Common Slot Silver Hot Plug Power Supply Kit | 500172-B21 |
| HP 1200W Common Slot Platinum Hot Plug Power Supply Kit | 578322-B21 | |
| HP Storage Controllers | Optional Upgrades | |
| HP 1GB Flash Backed Cache | 534562-B21 | |
| HP Insight Software | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License | 582765-B21 |
| HP Insight Control for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License | TC203A | |
| HP Unique Options | HP DL580 G7 PCI Express Kit | 588137-B21 |
| HP DL580 G7 PCI-X Combo Express Kit | 588139-B21 | |
| HP DL580G7/DL980G7 (E7) Memory Cartridge | 644172-B21 | |
| HP DL580G7/DL980G7 Memory Cartridge | 588141-B21 | |
| HP Processors | Ten-Core Processors | |
| HP DL580 G7 Intel® Xeon® E7-4870 (2.40GHz/10-core/30MB/130W) Processor Kit | 643067-B21 | |
| HP DL580 G7 Intel® Xeon® E7-4860 (2.26GHz/10-core/24MB/130W) Processor Kit | 643069-B21 | |
| HP DL580 G7 Intel® Xeon® E7-4850 (2.00GHz/10-core/24MB/130W) Processor Kit | 643071-B21 | |
| HP DL580 G7 Intel® Xeon® E7-8867L (2.13GHz/10-core/30MB/105W) Processor Kit | 643079-B21 | |
| Eight-Core Processors | ||
| HP DL580 G7 Intel® Xeon® E7-8837 (2.67GHz/8-core/24MB/130W) Processor Kit | 643081-B21 | |
| HP DL580 G7 Intel® Xeon® E7-4830 (2.13GHz/8-core/24MB/105W) Processor Kit | 643073-B21 | |
| HP DL580 G7 Intel® Xeon® E7-4820 (2.0GHz/8-core/18MB/105W) Processor Kit | 643075-B21 | |
| HP DL580 G7 Intel® Xeon® X7560 (2.26GHz/8-core/24MB/130W) Processor Kit | 588143-B21 | |
| HP DL580 G7 Intel® Xeon® X7550 (2.0GHz/8-core/18MB/130W) Processor Kit | 588145-B21 | |
| HP DL580 G7 Intel® Xeon® L7555 (1.86GHz/8-core/24MB/95W) Processor Kit | 588154-B21 | |
| Six-Core Processors | ||
| HP DL580 G7 Intel® Xeon® E7-4807 (1.86GHz/6-core/18MB/95W) Processor Kit | 643077-B21 | |
| HP DL580 G7 Intel® Xeon® E7540 (2.0GHz/6-core/18MB/105W) Processor Kit | 588150-B21 | |
| HP DL580 G7 Intel® Xeon® E7530 (1.86GHz/6-core/12MB/105W) Processor Kit | 588152-B21 | |
| HP DL580 G7 Intel® Xeon® X7542 (2.66GHz/6-core/18MB/130W) Processor Kit | 588156-B21 | |
| Quad-Core Processors | ||
| HP DL580 G7 Intel® Xeon® E7520 (1.86GHz/4-core/18MB/95W) Processor Kit | 595245-B21 | |
| HP Memory | Registered DIMMs (RDIMMs) | |
| HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500656-B21 | |
| HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500658-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | 604504-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500662-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | 604506-B21 | |
| HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit | 500666-B21 | |
| HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit | 627812-B21 | |
| HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory Kit | 627814-B21 | |
| Memory Expansion Options | ||
| HP DL580G7/DL980G7 (E7) Memory Cartridge | 644172-B21 | |
| HP DL580G7/DL980G7 Memory Cartridge | 588141-B21 | |
| HP Optical Drives | HP Slim 12.7mm SATA DVD-RW Optical Drive | 481043-B21 |
| HP Slim 12.7mm SATA DVD-ROM Optical Drive | 481041-B21 | |
| HP Hard Drives | SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives | |
| HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 619291-B21 | |
| HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 581286-B21 | |
| HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 581284-B21 | |
| HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 507127-B21 | |
| HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3 yr Warranty Hard Drive | 627117-B21 | |
| HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 512547-B21 | |
| HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 512545-B21 | |
| SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives | ||
| HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive | 605835-B21 | |
| HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive | 507610-B21 | |
| SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives | ||
| HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive | 625609-B21 | |
| HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive | 507750-B21 | |
| SATA Hot Plug 2.5" Enterprise Mainstream Solid State Drives | ||
| HP 400GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 636597-B21 | |
| HP 200GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 636595-B21 | |
| HP 100GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 636593-B21 | |
| 6G SAS Hot Plug Enterprise Performance Solid State Drives | ||
| HP 400GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State Drive | 632494-B21 | |
| HP 200GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State Drive | 632492-B21 | |
| 6G SAS Hot Plug Enterprise Mainstream Solid State Drives | ||
| HP 800GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 632506-B21 | |
| HP 400GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 632504-B21 | |
| HP 200GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 632502-B21 | |
| HP Networking | Gigabit Ethernet Adapters | |
| HP NC112T PCI Express Gigabit Server Adapter | 503746-B21 | |
| HP NC360T PCI-E Dual Port Gigabit Server Adapter | 412648-B21 | |
| HP NC364T PCI-E Quad Port Gigabit Server Adapter | 435508-B21 | |
| HP NC365T 4-port Ethernet Server Adapter | 593722-B21 | |
| HP NC373F PCI-E Multifunction 1000SX Gigabit Svr Adapter | 394793-B21 | |
| HP NC373T PCI-E Multifunction Gigabit Server Adapter | 394791-B21 | |
| HP NC375T PCI Express Quad Port Gigabit Server Adapter | 538696-B21 | |
| HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter | 458492-B21 | |
| 10 Gigabit Ethernet Adapters | ||
| HP NC522SFP Dual Port 10GbE Gigabit Server Adapter | 468332-B21 | |
| HP NC524SFP Dual Port 10GbE Module | 489892-B21 | |
| HP NC523SFP 10Gb 2-port Server Adapter | 593717-B21 | |
| HP NC550SFP Dual Port 10GbE Server Adapter | 581201-B21 | |
| HP NC552SFP 10Gb 2-port Ethernet Server Adapter | 614203-B21 | |
| HP 10 GbE PCI-e G2 Dual Port Network Interface Card | 516937-B21 | |
| HP InfiniBand | QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA | 583211-B21 |
| HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA | 592520-B21 | |
| HP InfiniBand 4X DDR ConnectX-2 PCIe G2 Dual Port HCA | 592521-B21 | |
| HP InfiniBand 4X DDR PCI-E 0 Memory Dual Port HCA | 483513-B21 | |
| HP I/O Expansion Options | HP DL580 G7 PCI Express Kit | 588137-B21 |
| HP DL580 G7 PCI-X Combo Express Kit | 588139-B21 | |
| HP Power Supplies | HP 1200W Common Slot Silver Hot Plug Power Supply Kit | 500172-B21 |
| HP 1200W Common Slot Platinum Hot Plug Power Supply Kit | 578322-B21 | |
| HP Insight Software | HP Insight Control | |
| HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License | T9074BAE | |
| HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Electronic License | TC278AAE | |
| HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License | 452148-B22 | |
| HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Tracking License | TC275A | |
| HP Insight Management Media Kit | 436222-B21 | |
| HP Insight Control for Linux | ||
| HP Insight Control for Linux w/1yr 24x7 Supp ML/DL/SL Bundle Electronic 1 Svr LTU | TC203AAE | |
| HP Insight Control for Linux including 1yr 24x7 Support Electronic License | TC213AAE | |
| HP Insight Control for Linux including 1yr 24x7 Support Single Server License | TC209A | |
| HP Insight Control for Linux Media Kit | TC208A | |
| HP Integrated Lights-Out Advanced | ||
| HP iLO Advanced Pack Electronic License with 3yr 24x7 Tech Support and Updates | BD506AAE | |
| HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates | BD505A | |
| HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License | TA850AAE | |
| HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License | 512485-B21 | |
| HP Insight Control server deployment | ||
| HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License | T9082AAE | |
| HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License | 452151-B21 | |
| High Performance Clusters | HP Cluster Management Utility | |
| HP Insight Cluster Management Utility 1yr 24x7 Flexible License | QL803B | |
| HP Insight Cluster Management Utility 3yr 24x7 Flexible License | BD476A | |
| HP Insight Cluster Management Utility Media | BD477A | |
| HP HPC Linux Value Pack | ||
| HP High Performance Computing Linux Value Pack 1 Processor Flexible License | TC293B | |
| HP High Performance Computing Linux Value Pack Media Kit | TC294A | |
| HP I/O Accelerator Options | Second Generation Accelerators | |
| HP 365GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers | 673642-B21 | |
| HP 785GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers | 673644-B21 | |
| HP 1205GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers | 673646-B21 | |
| HP 2410GB Multi Level Cell G2 PCIe ioDrive2 Duo for ProLiant Servers | 673648-B21 | |
| First Generation Accelerators | ||
| HP 160GB Single Level Cell PCIe ioDrive for ProLiant Servers | 600278-B21 | |
| HP 320GB Multi Level Cell PCIe ioDrive for ProLiant Servers | 600279-B21 | |
| HP 320GB Single Level Cell PCIe ioDrive Duo for ProLiant Servers | 600281-B21 | |
| HP 640GB Multi Level Cell PCIe ioDrive Duo for ProLiant Servers | 600282-B21 | |
| HP 1.28TB Multi Level Cell PCIe ioDrive Duo for ProLiant Servers | 641027-B21 | |
| HP Graphics Options | HP DL580/DL585/DL980 G7 Power Cable Kit | 631660-B21 |
| HP Security | HP Trusted Platform Module Option | 488069-B21 |
| HP Storage Controllers | SAS Controllers | |
| Smart Array P212 Controller | ||
| HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller | 462828-B21 | |
| HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller | 462834-B21 | |
| Smart Array P410 Controller | ||
| HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller | 462862-B21 | |
| HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller | 462864-B21 | |
| HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller | 578230-B21 | |
| HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller | 572532-B21 | |
| Smart Array P411 Controller | ||
| HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller | 462830-B21 | |
| HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller | 462832-B21 | |
| HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller | 572531-B21 | |
| HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller | 578229-B21 | |
| Smart Array P812 Controller | ||
| HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller | 487204-B21 | |
| Optional Upgrades | ||
| HP 512MB P-Series Battery Backed Write Cache Upgrade | 462967-B21 | |
| HP 1GB Flash Backed Cache | 534562-B21 | |
| HP 512MB Flash Backed Write Cache | 534916-B21 | |
| HP 256MB P-series Cache Upgrade | 462968-B21 | |
| HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License | 516471-B21 | |
| SAS HBA | ||
| HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter | 614988-B21 | |
| SCSI HBA | ||
| HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter | 412911-B21 | |
| HP Power Cords | HP C13 - SEV 1011 CH 250V 10Amp 1.83m Power Cord | AF565A |
| HP C13 - DK-2.5A DK 250V 10Amp 1.83m Power Cord | AF566A | |
| HP C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord | AF568A | |
| HP C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord | AF570A | |
| HP C13 - CEI-23-50 IT/CL 250V 10Amp 1.83m Power Cord | AF571A | |
| HP C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord | AF567A | |
| HP Tape Backup | HP DAT 320 USB in 1U Rack-mount Kit | AP835B |
| HP 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader | AK377A | |
| HP DAT 320 SAS Internal Tape Drive | AJ830A | |
| HP Ultrium 920 SAS Internal Tape Drive | EH847A | |
| HP LTO-4 Ultrium 1840 SAS External WW Drive | EH861A | |
| HP LTO-5 Ultrium 3280 SAS Internal Tape Drive | EH899A | |
| HP 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader | BL536A | |
| HP MSL2024 1 LTO-4 Ultrium 1760 SAS Tape Library | AK378A | |
| HP MSL4048 2 LTO-4 Ultrium 1760 SAS Tape Library | AK380A | |
| HP MSL4048 2 LTO-5 Ultrium 3000 SAS Tape Library | BL538A | |
| HP MSL8096 2 LTO-4 Ultrium 1760 SAS Tape Library | AK382A | |
| HP MSL8096 2 LTO-5 Ultrium 3000 SAS Tape Library | BL539A | |
| HP Disk Backup | HP D2D Backup Systems with Backup Data Deduplication | |
| HP D2D2504i Backup System | EJ002B | |
| HP D2D2504i Backup System | EJ002C | |
| HP D2D4112 Backup System | EH993B | |
| HP D2D4112 Backup System | EH993C | |
| HP RDX Removable Disk Backup Systems USB | ||
| HP RDX500 Internal Removable Disk Backup System | AJ934A | |
| HP RDX1000 Internal Removable Disk Backup System | BV847A | |
| HP Storage Options | Storage Fibre Channel HBA | |
| Brocade Fibre Channel HBAs | ||
| HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter | AP769A | |
| HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter | AP770A | |
| HP 41B 4Gb 1-port PCIe Fibre Channel Host Bus Adapter | AP767A | |
| HP 42B 4Gb 2-port PCIe Fibre Channel Host Bus Adapter | AP768A | |
| Emulex Fibre Channel HBAs | ||
| HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter | AJ762A | |
| HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter | AJ763A | |
| HP FC2142SR 4Gb 1-port PCIe Fibre Channel Host Bus Adapter | A8002A | |
| HP FC2242SR 4Gb 2-port PCIe Fibre Channel Host Bus Adapter | A8003A | |
| HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter | QR559A | |
| HP SN1000E 16Gb 1-port PCIe Fibre Channel Host Bus Adapter | QR558A | |
| QLogic Fibre Channel HBAs | ||
| HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter | AK344A | |
| HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter | AJ764A | |
| HP FC1142SR 4Gb 1-port PCIe Fibre Channel Host Bus Adapter | AE311A | |
| HP FC1242SR 4Gb 2-port PCIe Fibre Channel Host Bus Adapter | AE312A | |
| Converged Network Adapter | ||
| HP CN1100E Dual Port Converged Network Adapter | BK835A | |
| HP CN1000Q Dual Port Converged Network Adapter | BS668A | |
| HP CN1000E Dual Port Converged Network Adapter | AW520A | |
| HP Disk Storage Systems | MSA SAN Storage Arrays | |
| HP MSA70 Array | 418800-B21 | |
| Disk Enclosures | ||
| HP D2600 Disk Enclosure | AJ940A | |
| HP D2700 Disk Enclosure | AJ941A | |
| HP Uninterruptible Power Systems | HP Rack-mountable UPS | |
| HP R1500 G3 Uninterruptible Power Supply (UPS) | ||
| HP R1.5kVA G3 1U NA Uninterruptible Power System | AF469A | |
| HP R1.5kVA G3 1U JP/TW Uninterruptible Power System | AF470A | |
| HP R1.5kVA G3 1U INTL Uninterruptible Power System | AF471A | |
| HP R/T3000 G2 Uninterruptible Power System (UPS) | ||
| HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System | AF466A | |
| HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System | AF467A | |
| HP R/T3000 G2 2U Detachable Cord High Voltage INTL Uninterruptible Power System | AF468A | |
| HP Rack-Mountable R5500 UPS | ||
| HP R5500 6000VA INTL 3U Rackmount Uninterruptible Power System | AF416A | |
| HP R5500 5000kVA NA/JP 3U Rackmount Uninterruptible Power System | AF426A | |
| R5000 Uninterruptible Power System (UPS) | ||
| HP R5KVA 3U IEC309-32A High Voltage INTL Uninterruptible Power System | AF461A | |
| HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System | AF460A | |
| R7000 Uninterruptible Power System (UPS) | ||
| HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System | AF462A | |
| HP R7KVA 4U IEC-32A High Voltage INTL Uninterruptible Power System | AF463A | |
| HP Power Distribution Units | HP Monitored Power Distribution Unit: Half Rack Version | |
| HP 4.9kVA 24A Single Input Single Phase NA/JP Monitored Power Distribution Unit | AF914A | |
| HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit | AF915A | |
| HP Monitored Power Distribution Unit: Full Rack Version | ||
| HP 8.6kVA 24A Single Input Three Phase NA/JP Monitored Power Distribution Unit | AF504A | |
| HP 8.3kVA 40A Single Input Single Phase NA/JP Monitored Power Distribution Unit | AF506A | |
| HP 11kVA 16A Single Input Three Phase INTL Monitored Power Distribution Unit | AF508A | |
| HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit | AF510A | |
| Modular Power Distribution Units 1U/0U (Up to 32 outlets) | ||
| HP 4.9kVA 24A High Voltage NA/JP Modular Power Distribution Unit | 252663-D72 | |
| HP 8.3kVA 40A High Voltage NA/JP Modular Power Distribution Unit | 252663-D73 | |
| HP 7.3kVA 32A High Voltage INTL Modular Power Distribution Unit | 252663-B31 | |
| HP 3.6kVA 16A High Voltage INTL Modular Power Distribution Unit | 252663-B24 | |
| HP Intelligent Power Distribution Units (iPDU) | iPDU Core Units | |
| HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit | AF520A | |
| HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit | AF521A | |
| HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit | AF522A | |
| HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit | AF533A | |
| HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit | AF523A | |
| HP 7.3kVA 32A Single Phase INTL Core Intelligent Modular Power Distribution Unit | AF525A | |
| HP 11kVA 16A Three Phase INTL Core Intelligent Modular Power Distribution Unit | AF526A | |
| HP 22kVA 32A Three Phase INTL Core Intelligent Modular Power Distribution Unit | AF527A | |
| HP 11.4kVA 16A 415V Three Phase L22-20 NA Core Intelligent Power Distribution Unit | AF900A | |
| HP 17.3kVA 24A 415V Three Phase L22-30 NA Core Intelligent Power Distribution Unit | AF902A | |
| HP 17.3kVA 24A 415V Three Phase IEC309 NA Core Intelligent Power Distribution Unit | AF901A | |
| HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit | AF535A | |
| HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit | AF537A | |
| HP 22kVA 32A 400V Three Phase 12 Outlet Core INTL Intelligent Power Distribution Unit | AF538A | |
| HP Rack Series | HP Rack 10000 G2 Series (Carbon/Graphite Metallic) | |
| HP 10642 G2 Shock Universal Rack | AF002A | |
| HP 10642 G2 1200mm deep Shock Rack | AF092A | |
| HP 10647 G2 1200mm deep Shock Rack | AF094A | |
| HP Rack Options | HP USB Keyboard and Mouse | |
| HP USB BFR with PVC Free INDIA Keyboard/Mouse Kit | 672097-D63 | |
| HP USB BFR with PVC Free AP-INTL Keyboard/Mouse Kit | 672097-373 | |
| HP USB BFR with PVC Free INTL Keyboard/Mouse Kit | 672097-B33 | |
| HP USB BFR with PVC Free PORT Keyboard/Mouse Kit | 672097-133 | |
| HP USB BFR with PVC Free TURK Keyboard/Mouse Kit | 672097-143 | |
| HP USB BFR with PVC Free CZ Keyboard/Mouse Kit | 672097-223 | |
| HP USB BFR with PVC Free FIN Keyboard/Mouse Kit | 672097-353 | |
| HP USB BFR with PVC Free SWE Keyboard/Mouse Kit | 672097-103 | |
| HP USB BFR with PVC Free SWIS Keyboard/Mouse Kit | 672097-113 | |
| HP USB BFR with PVC Free KOR Keyboard/Mouse Kit | 672097-KD3 | |
| HP Server Console Switches | ||
| HP Server Console 0x2x8 Port Analog Switch | AF616A | |
| HP Server Console 0x2x16 Port Analog Switch | AF617A | |
| HP Server Console Switch G2 with Virtual Media & CAC | ||
| HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software | AF618A | |
| HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software | AF619A | |
| HP IP Console Switch G2 with Virtual Media & CAC | ||
| HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software | AF620A | |
| HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software | AF621A | |
| HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software | AF622A | |
| HP USB and SD Options | HP USB 04 Standard Keyboard | DT528A#ABA |
| HP 4GB Secure Digital High Capacity Flash Media Kit | 580387-B21 | |
| HP 2GB USB Flash Media Drive Key Kit | 608447-B21 | |
| HP Care Pack Services | Hardware Services On-site Service | |
| HP 3 year 4 hour 13x5 ProLiant DL58x Hardware Support | U4607E | |
| HP 3 year 4 hour 24x7 ProLiant D58x Hardware Support | U4608E | |
| 6-Hour Call to Repair, On-site Service 7-Day x 24-Hour Coverage, 3 Years (U.S. Part Number) | ||
| HP 3 year 6 hour 24x7 Call to Repair ProLiant DL58x Hardware Support | U4609E | |
| Installation & Start-up Services | ||
| HP Install ProLiant DL58x Service | U4617E | |
| HP Startup ProLiant DL58x Service | U4618E | |
| HP Installation and Startup for Insight Control Server Deployment - previously Rapid Deployment Pack | U5683E | |
| Support Plus 24 | ||
| HP 3 year Support Plus 24 Microsoft ProLiant DL58x Service | U4620E | |
| HP 3 year Support Plus 24 SuSE ProLiant DL58x Service | U6316E |
