ML350 G6
HP/ML350 G6
Opis

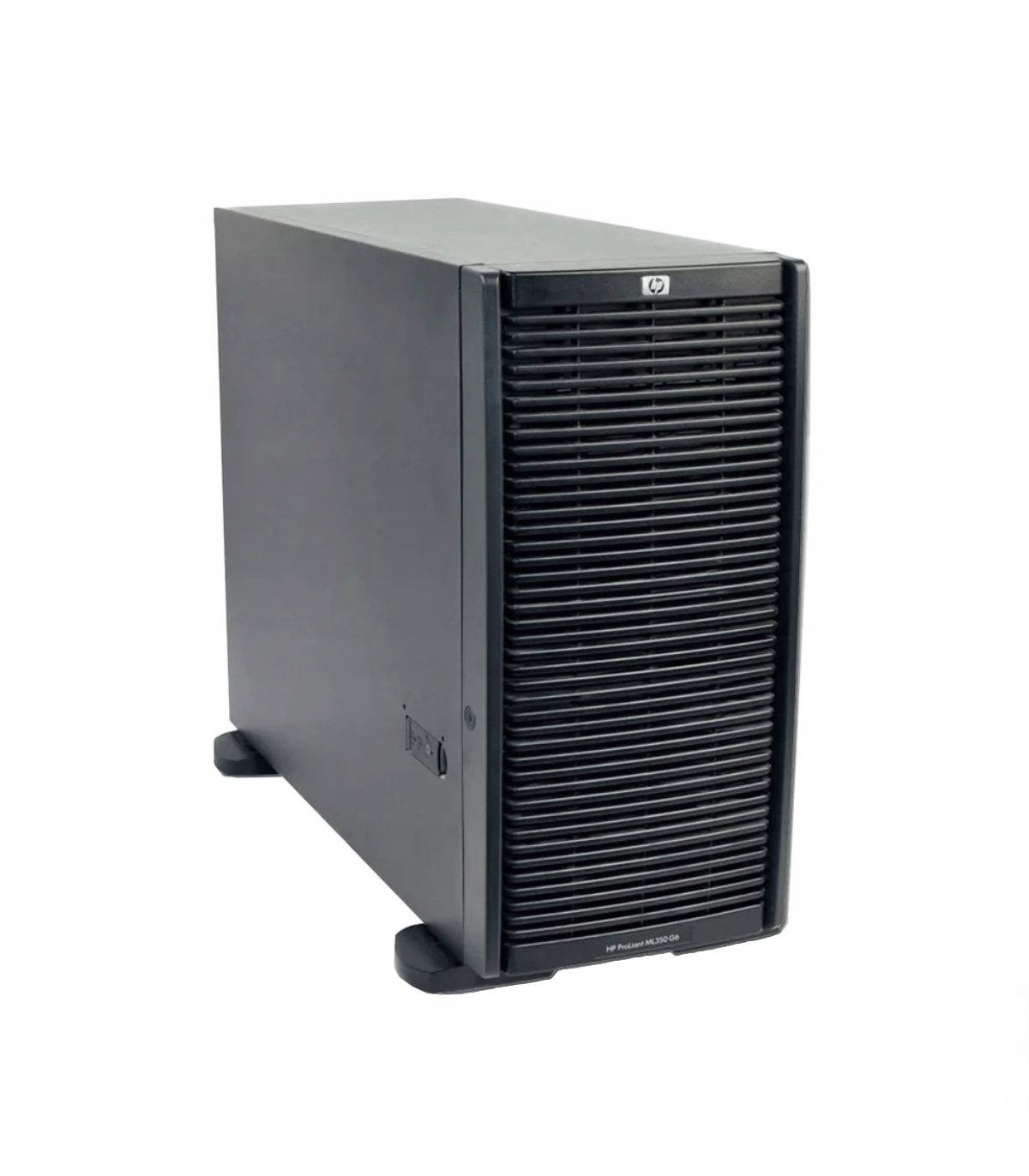

HP ProLiant ML350 G6 to dwuprocesorowy serwer wieżowy o znakomitym wskaźniku cena/wydajność, który charakteryzuje się wyjątkową wydajnością, łatwością rozbudowy i dostępnością. Jest to serwer nowej generacji o większej pojemności pamięci i większych możliwościach zainstalowania dodatkowych dysków. Łączy w sobie zalety najnowszych procesorów Intel® Xeon® z technologią QPI, najlepsze w tej klasie funkcje zwiększające dostępność oraz wyjątkową elastyczność. Jest to system doskonały dla rozwijających się firm, szczególnie skutecznie zaspokaja potrzeby oddziałów terenowych.
Specyfikacja
| obudowa | Tower 5U |
| procesory | max dwa 6; 4 lub 2- o rdzeniowe procesory Intel Xeon serii X56xx, E56xx, E55xx, L56xx, L55xx |
| pamięć cache procesora | Do 12MB L3 |
| pamięć RAM | do 288GB pamięci w 18 slotach DIMM |
| dyski twarde | do 8 szt. dysków 3.5" hot plug SAS/SATA , do 16 szt. dysków 2.5" hot plug SAS/SATA |
| kontrolery RAID | HP Smart Array P410i RAID zintegrowany na płycie głównej (RAID 0/1/10), opcjonalnie: P410i (RAID 0/1/10/5/50/6/60, cache: 256 Mb/512 Mb/1 Gb, podtrymywanie bateryjne lub flashowe) |
| Slot na napęd optyczny | Jeden osobny slot dla napędu optycznego |
| Klatka na napęd taśmowy | Opcjonalnie: DAT 160, DAT 320, Ultrium 448, Ultrium 1760 lub Ultrium 3000 |
| karty sieciowe | Zintegrowana NC326i (2 porty) |
| sloty PCI | Do 6 slotów PCI: 6x PCIe (4* x4x8, 1* x8x16, 1* x8x8), opcjonalnie 2* PCIX (zastępują 1*PCIe) |
| porty USB | 2x USB 2.0 z przodu, 2x USB 2.0 z tyłu, 2x USB 2.0 wewnątrz |
| porty VGA | 1x DB-15 video(VGA) |
| porty szeregowe | 1xDB-9 szeregowe (serial) |
| porty zarządzania | 1x RJ-45 do zarządzania serwerem |
| zasilacze | Do dwóch zasilaczy 1200 W/750 W/460 W Hot Plug (w zależności od modelu) |
| komponenty Hot Plug | Dyski, zasilacze |
| wymiary | Wysokość: 47 cm, szerokość: 21.8 cm, głębokość: 59.6 cm |
| waga | 24.5 kg minimalna - 31.8 kg maksymalna (w zależności od opcji) |
Standardowe Modele
| Entry Models | ||
| HP ProLiant ML350 G6 E5606 1P 4GB-R P410i/ZM 460W RPS LFF Tower Server | Processor | (1) Intel® Xeon® E5606 (2.13GHz/4-core/8MB/80W, DDR3-1066, HT, Turbo 1/1/2/2/3/3) Processor |
| 638180-xx1 | Cache Memory | 8MB (1 x 8MB) L3 cache |
| Memory | 4GB (1 x 4GB) PC3-10600R (DDR3-1333) Registered DIMMs | |
| Network Controller | Embedded NC326i PCI Express Dual Port Gigabit Server Adapter | |
| Storage Controller | HP Smart Array P410i/Zero Memory Controller | |
| Hard Drive | None ship standard | |
| Internal Storage | (6) LFF SATA/SAS HDD bays; upgradeable to (8) in total | |
| Optical Drive | HP Half-Height SATA DVD-ROM Optical Drive | |
| Power Supply | (1) 460 Watt Hot-Plug (Redundancy enabled) power supply | |
| Fans | 3 fans ship standard | |
| Accessories | PS/2 Keyboard and Mouse ship standard | |
| Form Factor | Tower (5U) | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response | |
| Base Models | ||
| HP ProLiant ML350 G6 E5645 1P 6GB-R P410i/256 750W RPS SFF Server | Processor | (1) Intel® Xeon® E5645 (2.40GHz/6-core/12MB/80W, DDR3-1333, HT, Turbo 1/1/2/2/3/3) Processor |
| 638181-xx1 | Cache Memory | 12MB (1 x 12MB) L3 cache |
| Memory | 6GB (3 x 2GB) PC3-10600 (DDR3-1333) Registered DIMMs | |
| Network Controller | Embedded NC326i PCI Express Dual Port Gigabit Server Adapter | |
| Storage Controller | Embedded HP Smart Array P410i/256MB Controller | |
| Hard Drive | None ship standard | |
| Internal Storage | (8) SFF SAS/SATA HDD Bays; upgradeable to (16) | |
| Optical Drive | HP Half-Height SATA DVD-ROM Optical Drive | |
| Power Supply | (1) 750 Watt Hot-Plug (Redundancy enabled) power supply | |
| Fans | 3 fans ship standard | |
| Accessories | PS/2 Keyboard and Mouse ship standard | |
| Form Factor | Tower (5U) | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response | |
| HP ProLiant ML350 G6 E5620 1P 6GB-R P410i/256 460W RPS Tower Server | Processor | (1) Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W, DDR3-1066, HT, Turbo (1/1/2/2) Processor |
| 594869-xx1 | Cache Memory | 12MB (1 x 12MB) L3 cache |
| Memory | 6GB (3 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs | |
| Network Controller | Embedded NC326i PCI Express Dual Port Gigabit Server Adapter | |
| Storage Controller | Embedded HP Smart Array P410i/256MB Controller | |
| Hard Drive | None ship standard | |
| Internal Storage | (8) SFF SAS/SATA HDD Bays; upgradeable to (16) | |
| Optical Drive | SATA DVD ROM | |
| Power Supply | (1) 460 Watt Hot-Plug (Redundancy enabled) power supply | |
| Fans | 3 fans ship standard | |
| Accessories | PS/2 Keyboard and Mouse ship standard | |
| Form Factor | Tower (5U) | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response | |
| Performance Models | ||
| HP ProLiant ML350 G6 X5650 2P 12GB-R P410i/1GB FBWC 750W RPS Tower Server | Processor | (2) Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 1/1/2/2/3/3) Processors |
| 594874-xx1 | Cache Memory | 12MB (1 x 12MB) L3 cache |
| Memory | 12 GB (6 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs | |
| Network Controller | Embedded NC326i PCI Express Dual Port Gigabit Server Adapter | |
| Storage Controller | Embedded HP Smart Array P410i/1G FBWC Controller | |
| Hard Drive | None ship standard | |
| Internal Storage | (8) SFF SAS/SATA HDD Bays; upgradeable to (16) | |
| Optical Drive | SATA DVD ROM | |
| Power Supply | (2) 750 Watt Hot-Plug Redundant power supplies | |
| Fans | 4 full Redundant fans | |
| Accessories | PS/2 Keyboard and Mouse ship standard | |
| Form Factor | Tower (5U) | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response | |
Kompatybilne opcje
| HP Models | ML350G6 Tower Models | |
| HP ProLiant ML350 G6 SFF Configure-to-order Tower Chassis | 483447-B21 | |
| Includes: | ||
| Embedded NC326i PCI Express Dual Port Gigabit Server Adapter | ||
| Embedded Smart Array P410i Controller | ||
| Eight (8) Hot-Plug (SFF) SAS/SATA Drive Bays | ||
| Seven (7) HDD blanks | ||
| Six (6) Expansion slots: One Express x16 Gen2 (x8 speed); One PCI-Express x8 | ||
| Gen2 (x8 speed); Four PCI-Express x8 Gen2 (x4 speed) | ||
| Six (6) USB ports | ||
| PS/2 Keyboard & Mouse (selection required) | ||
| Tower Form Factor | ||
| HP ProLiant ML350 G6 LFF Configure-to-order Tower Server | 483448-B21 | |
| Includes: | ||
| Embedded NC326i PCI Express Dual Port Gigabit Server Adapter | ||
| Embedded Smart Array P410i Controller | ||
| Six (6) Hot-Plug (LFF) SAS/SATA Drive Bays | ||
| Five (5) HDD blanks | ||
| Six (6) Expansion slots: One Express x16 Gen2 (x8 speed); One PCI-Express x8 Gen2(x8 speed); Four PCI-Express x8 Gen2 (x4 speed) | ||
| Six (6) USB ports | ||
| P/S 2 Keyboard & Mouse (selection required) | ||
| Tower Form Factor | ||
| ML350G6 Rack Models | ||
| HP ProLiant ML350 G6 SFF Configure-to-order Rack Server | 483443-B21 | |
| Includes: | ||
| Embedded NC326i PCI Express Dual Port Gigabit Server Adapter | ||
| Embedded Smart Array P410i Controller | ||
| Eight (8) Hot-Plug (SFF) SAS/SATA Drive Bays | ||
| Seven (7) HDD blanks | ||
| Six (6) Expansion slots: One Express x16 Gen2 (x8 speed); One PCI-Express x8 Gen2 (x8 speed); Four PCI-Express x8 Gen2 (x4 speed) | ||
| Six (6) USB ports | ||
| Rack (5U) Form Factor | ||
| HP ProLiant ML350 G6 LFF Configure-to-order Rack Server | 483444-B21 | |
| Includes: | ||
| Embedded NC326i PCI Express Dual Port Gigabit Server Adapter | ||
| Embedded Smart Array P410i Controller | ||
| Six (6) Hot-Plug (LFF) SAS/SATA Drive Bays | ||
| Five (5) HDD blanks | ||
| Six (6) Expansion slots: One Express x16 Gen2 (x8 speed); One PCI-Express x8 Gen2 (x8 speed); Four PCI-Express x8 Gen2 (x4 speed) | ||
| Six (6) USB ports | ||
| Rack (5U) Form Factor | ||
| HP Processors | Six-Core Processors | |
| HP ML350 G6 Intel® Xeon® X5675 (3.06GHz/6-core/12MB/95W) FIO Processor Kit | 638315-L21 | |
| HP ML350 G6 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) FIO Processor Kit | 601238-L21 | |
| HP ML350 G6 Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W) FIO Processor Kit | 601240-L21 | |
| HP ML350 G6 Intel® Xeon® E5649 (2.53GHz/6-core/12MB/80W) FIO Processor Kit | 638316-L21 | |
| HP ML350 G6 Intel® Xeon® E5645 (2.40GHz/6-core/12MB/80W) FIO Processor Kit | 638317-L21 | |
| Quad-Core Processors | ||
| HP ML350 G6 Intel® Xeon® X5672 (3.20GHz/4-core/12MB/95W) FIO Processor Kit | 638314-L21 | |
| HP ML350 G6 Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W) FIO Processor Kit | 601246-L21 | |
| HP ML350 G6 Intel® Xeon® E5607 (2.26GHz/4-core/8MB/80W) FIO Processor Kit | 638318-L21 | |
| HP ML350 G6 Intel® Xeon® E5606 (2.13GHz/4-core/8MB/80W) FIO Processor Kit | 638319-L21 | |
| HP ML350 G6 Intel® Xeon® E5603 (1.60GHz/4-core/4MB/80W) FIO Processor Kit | 638320-L21 | |
| HP ML350 G6 Intel® Xeon® L5630 (2.13GHz/4-core/12MB/40W) FIO Processor Kit | 601252-L21 | |
| HP Memory | Registered DIMMs (RDIMMs) | |
| HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500656-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 593339-B21 | |
| HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500658-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500662-B21 | |
| HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit | 500666-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | 604504-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | 604506-B21 | |
| HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit | 627812-B21 | |
| Unbuffered with ECC DIMMs (UDIMMs) | ||
| HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | 500668-B21 | |
| HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | 500670-B21 | |
| HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | 500672-B21 | |
| HP 4GB (1x4GB) Dual Rank x8 PC3L-10600 (DDR3-1333) Unbuffered CAS-9 Low Power Memory Kit | 619488-B21 | |
| HP Power Supplies | HP 460W Common Slot Gold Hot Plug Power Supply Kit | 503296-B21 |
| HP 750W Common Slot Gold Hot Plug Power Supply Kit | 512327-B21 | |
| HP 1200W Common Slot Silver Hot Plug Power Supply Kit | 500172-B21 | |
| HP Storage Controllers | HP Smart Array P212/256 BBWC 1-ports Int/1-ports Ext PCIe x8 FIO SAS Controller | 491191-B21 |
| HP Smart Array P411/256 BBWC 2-ports Ext PCIe x8 FIO SAS Controller | 491193-B21 | |
| Upgrade Options | ||
| HP 256MB Factory Integrated P-Series Cache Module | 534108-B21 | |
| HP Insight Software | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License | 582765-B21 |
| HP Insight Control for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License | TC203A | |
| HP Performance Packs | Performance Packs are necessary to configure a HP ProLiant ML350 G6 to a High Performance Model which includes the latest performance technologies and enterprise class availability features pre-installed for convenience and value. The Performance Pack includes a 2nd processor, 512MB cache with BBWC for P410i (650 mAh P-Series Battery), redundant fan, and (1) 750W CS HE Power supply kit. | |
| HP Unique Options | HP ML350 G6 Redundant Fan/Baffle Kit | 515081-B21 |
| HP ML350/ML330G6 2 Slot PCI-X Riser Kit | 488413-B21 | |
| HP ML350G6 Tower to Rack Conversion Kit | 534534-B21 | |
| HP 2.5 Hard Disk Drive Blank Kit | 503771-B21 | |
| HP Processors | Six-Core Processors | |
| HP ML350 G6 Intel® Xeon® X5675 (3.06GHz/6-core/12MB/95W) Processor Kit | 638315-B21 | |
| HP ML350 G6 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) Processor Kit | 601236-B21 | |
| HP ML350 G6 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) Processor Kit | 601238-B21 | |
| HP ML350 G6 Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W) Processor Kit | 601240-B21 | |
| HP ML350 G6 Intel® Xeon® E5649 (2.53GHz/6-core/12MB/80W) Processor Kit | 638316-B21 | |
| HP ML350 G6 Intel® Xeon® E5645 (2.40GHz/6-core/12MB/80W) Processor Kit | 638317-B21 | |
| Quad-Core Processors | ||
| HP ML350 G6 Intel® Xeon® X5672 (3.20GHz/4-core/12MB/95W) Processor Kit | 638314-B21 | |
| HP ML350 G6 Intel® Xeon® E5640 (2.66GHz/4-core/12MB/80W) Processor Kit | 601242-B21 | |
| HP ML350 G6 Intel® Xeon® E5630 (2.53GHz/4-core/12MB/80W) Processor Kit | 601244-B21 | |
| HP ML350 G6 Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W) Processor Kit | 601246-B21 | |
| HP ML350 G6 Intel® Xeon® E5607 (2.26GHz/4-core/8MB/80W) Processor Kit | 638318-B21 | |
| HP ML350 G6 Intel® Xeon® E5606 (2.13GHz/4-core/8MB/80W) Processor Kit | 638319-B21 | |
| HP ML350 G6 Intel® Xeon® E5603 (1.60GHz/4-core/4MB/80W) Processor Kit | 638320-B21 | |
| HP ML350 G6 Intel® Xeon® E5530 (2.40GHz/4-core/8MB/80W) Processor Kit | 495912-B21 | |
| HP ML350 G6 Intel® Xeon® E5520 (2.26GHz/4-core/8MB/80W) Processor Kit | 495914-B21 | |
| HP ML350 G6 Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W) Processor Kit | 495916-B21 | |
| HP ML350 G6 Intel® Xeon® E5504 (2.00GHz/4-core/4MB/80W) Processor Kit | 495918-B21 | |
| HP ML350 G6 Intel® Xeon® L5630 (2.13GHz/4-core/12MB/40W) Processor Kit | 601252-B21 | |
| Dual-Core Processors | ||
| HP ML350 G6 Intel® Xeon® E5503 (2.0GHz/2-core/4MB/80W) Processor Kit | 601250-B21 | |
| HP Memory | Registered RDIMMs | |
| HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500656-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 593339-B21 | |
| HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500658-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500662-B21 | |
| HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit | 500666-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | 604504-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | 604506-B21 | |
| HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit | 627812-B21 | |
| Unregistered with ECC UDIMMs | ||
| HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | 500668-B21 | |
| HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | 500670-B21 | |
| HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | 500672-B21 | |
| HP 4GB (1x4GB) Dual Rank x8 PC3L-10600 (DDR3-1333) Unbuffered CAS-9 Low Power Memory Kit | 619488-B21 | |
| HP Drive Cage | HP ML350/370 G6 8 Small Form Factor (SFF) 2nd Drive Cage Kit | 507803-B21 |
| Options | HP ML350/ML/DL370G6 2 Large Form Factor Drive Kit | 487936-B21 |
| HP Optical Drives | HP Half-Height SATA DVD-ROM Optical Drive | 447326-B21 |
| HP Half-Height SATA DVD-RW Optical Drive | 447328-B21 | |
| HP Hard Drives | SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives | |
| HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 619291-B21 | |
| HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 581286-B21 | |
| HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 581284-B21 | |
| HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3 yr Warranty Hard Drive | 627117-B21 | |
| HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 507127-B21 | |
| HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 512547-B21 | |
| HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 512545-B21 | |
| SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives | ||
| HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 516828-B21 | |
| HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 516816-B21 | |
| HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | 516814-B21 | |
| SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives | ||
| HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive | 625031-B21 | |
| HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive | 507616-B21 | |
| HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive | 507614-B21 | |
| SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives | ||
| HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive | 605835-B21 | |
| HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive | 507610-B21 | |
| SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives | ||
| HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive | 625609-B21 | |
| HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive | 507750-B21 | |
| SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives | ||
| HP 3TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive | 628059-B21 | |
| HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive | 507632-B21 | |
| HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive | 454146-B21 | |
| HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive | 458928-B21 | |
| SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives | ||
| HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive | 571230-B21 | |
| SATA Hot Plug 2.5" Enterprise Mainstream Solid State Drives | ||
| HP 400GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 636597-B21 | |
| HP 200GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 636595-B21 | |
| HP 100GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 636593-B21 | |
| SATA Hot Plug 3.5" Midline (MDL) Solid State Drives | ||
| HP 400GB 3G SATA MLC LFF (3.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 636611-B21 | |
| HP 200GB 3G SATA MLC LFF (3.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 636609-B21 | |
| HP 100GB 3G SATA MLC LFF (3.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 636607-B21 | |
| 6G SAS Hot Plug Enterprise Performance Solid State Drives | ||
| HP 400GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State Drive | 632494-B21 | |
| HP 200GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State Drive | 632492-B21 | |
| 6G SAS Hot Plug Enterprise Mainstream Solid State Drives | ||
| HP 800GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 632506-B21 | |
| HP 400GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 632504-B21 | |
| HP 200GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | 632502-B21 | |
| HP Networking | Gigabit Ethernet adapters | |
| HP NC112T PCI Express Gigabit Server Adapter | 503746-B21 | |
| HP NC360T PCI-E Dual Port Gigabit Server Adapter | 412648-B21 | |
| HP NC364T PCI-E Quad Port Gigabit Server Adapter | 435508-B21 | |
| HP NC365T 4-port Ethernet Server Adapter | 593722-B21 | |
| HP NC373F PCI-E Multifunction 1000SX Gigabit Svr Adapter | 394793-B21 | |
| HP NC373T PCI-E Multifunction Gigabit Server Adapter | 394791-B21 | |
| HP NC375T PCI Express Quad Port Gigabit Server Adapter | 538696-B21 | |
| HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter | 458492-B21 | |
| 10 Gigabit Ethernet adapters | ||
| HP NC522SFP Dual Port 10GbE Gigabit Server Adapter | 468332-B21 | |
| HP NC523SFP 10Gb 2-port Server Adapter | 593717-B21 | |
| HP NC550SFP Dual Port 10GbE Server Adapter | 581201-B21 | |
| HP NC552SFP 10Gb 2-port Ethernet Server Adapter | 614203-B21 | |
| HP Power Supplies | Power Supplies | |
| HP 460W Common Slot Gold Hot Plug Power Supply Kit | 503296-B21 | |
| HP 750W Common Slot Gold Hot Plug Power Supply Kit | 512327-B21 | |
| HP 1200W Common Slot Silver Hot Plug Power Supply Kit | 500172-B21 | |
| HP Cooling Options | HP ML350 G6 Redundant Fan/Baffle Kit | 515081-B21 |
| HP Insight Software | HP Insight Control for Linux | |
| HP Insight Control for Linux including 1yr 24x7 Support Electronic License | TC213AAE | |
| HP Insight Control for Linux including 1yr 24x7 Support Single Server License | TC209A | |
| HP Insight Control for Linux Media Kit | TC208A | |
| HP Insight Control | ||
| HP Insight Management Media Kit | 436222-B21 | |
| HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License | 452148-B22 | |
| HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Electronic License | TC278AAE | |
| HP Integrated Lights-Out (iLO) Advanced | ||
| HP iLO Advanced Pack Electronic License with 3yr 24x7 Tech Support and Updates | BD506AAE | |
| HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates | BD505A | |
| HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License | 512485-B21 | |
| HP I/O Accelerator Options | Second Generation Accelerators | |
| HP 365GB MLC G2 PCIe SSD IO Accelerator | 673642-B21 | |
| HP 785GB MLC G2 PCIe SSD IO Accelerator | 673644-B21 | |
| HP 1205GB MLC G2 PCIe SSD IO Accelerator | 673646-B21 | |
| HP 2410GB MLC G2 PCIe SSD IO Accelerator | 673648-B21 | |
| First Generation Accelerators | ||
| HP 160GB Single Level Cell PCIe ioDrive for ProLiant Servers | 600278-B21 | |
| HP 320GB Multi Level Cell PCIe ioDrive for ProLiant Servers | 600279-B21 | |
| HP 320GB Single Level Cell PCIe ioDrive Duo for ProLiant Servers | 600281-B21 | |
| HP 640GB Multi Level Cell PCIe ioDrive Duo for ProLiant Servers | 600282-B21 | |
| HP 1.28TB Multi Level Cell PCIe IO Accelerator | 641027-B21 | |
| HP Graphics Options | HP 350/370G6 Graphic Card Cable Kit | 537721-B21 |
| HP Security | HP Trusted Platform Module Option | 488069-B21 |
| HP Storage Controllers | SAS Controllers | |
| HP Smart Array P212 Controller | ||
| HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller | 462828-B21 | |
| HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller | 462834-B21 | |
| HP Smart Array P410 Controller | ||
| HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller | 462862-B21 | |
| HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller | 462864-B21 | |
| HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller | 578230-B21 | |
| HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller | 572532-B21 | |
| HP Smart Array P411 Controller | ||
| HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller | 462830-B21 | |
| HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller | 462832-B21 | |
| HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller | 578229-B21 | |
| HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller | 572531-B21 | |
| Smart Array P812 Controller | ||
| HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller | 487204-B21 | |
| Optional Upgrades | ||
| HP 256MB P-series Cache Upgrade | 462968-B21 | |
| HP 512MB P-Series Battery Backed Write Cache Upgrade | 462967-B21 | |
| HP 650 mAh P-Series Battery | 462969-B21 | |
| HP 15 Position 24in SFP Battery Cable Assembly | 496029-B21 | |
| HP 512MB Flash Backed Write Cache | 534916-B21 | |
| HP 1GB Flash Backed Cache | 534562-B21 | |
| HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License | 516471-B21 | |
| HP 24 Bay 6Gb SAS Expander Card | 468406-B21 | |
| SAS HBA | ||
| HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter | 614988-B21 | |
| SCSI HBA | ||
| HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter | 412911-B21 | |
| HP U320e SCSI Dual Channel Host Bus Adapter | AH627A | |
| HP Backup & Recovery Software | HP Basic Upgrade to Data Protector Express V6 for 1 Server E-LTU | TC333BAE |
| HP Data Protector Express V6.0 for 1 Server E-LTU | TC330BAE | |
| HP Data Protector Express V6.0 for 10 Server E-LTU | TC332BAE | |
| HP Data Protector Express V6.0 for 3 Server E-LTU | TC331BAE | |
| HP Tape Backup | HP DAT 160 SAS Internal Tape Drive | Q1587A |
| HP DAT 160 USB Internal Tape Drive | Q1580A | |
| HP DAT 320 USB Internal Tape Drive | AJ825A | |
| HP DAT 320 SAS Internal Tape Drive | AJ830A | |
| HP Ultrium 448 SAS Internal Drive | DW085A | |
| HP LTO-4 Ultrium 1760 SAS Internal WW Tape Drive | EH919A | |
| HP LTO-4 Ultrium 1840 SAS External WW Drive | EH861A | |
| HP LTO-5 Ultrium 3000 SAS Internal Tape Drive | EH957A | |
| HP LTO-5 Ultrium 3000 SAS External Tape Drive | EH958A | |
| HP 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader | AK377A | |
| HP MSL2024 1 LTO-5 Ultrium 3000 SAS Tape Library | BL537A | |
| HP MSL4048 2 LTO-4 Ultrium 1760 SAS Tape Library | AK380A | |
| HP MSL2024 1 LTO-4 Ultrium 1760 SAS Tape Library | AK378A | |
| HP Disk Backup | HP D2D Backup Systems with Backup Data Deduplication | |
| HP D2D4112 Backup System | EH993C | |
| HP D2D2502i Backup System | EJ001C | |
| HP D2D2504i Backup System | EJ002C | |
| HP RDX Removable Disk Backup Systems USB | ||
| HP RDX320 Internal Removable Disk Backup System | AJ767A | |
| HP RDX500 Internal Removable Disk Backup System | AJ934A | |
| HP RDX160 Internal Removable Disk Backup System | AJ765A | |
| HP RDX1000 Internal Removable Disk Backup System | BV847A | |
| HP Storage Options | Brocade Fibre Channel HBAs | |
| HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter | AP769A | |
| HP 41B 4Gb 1-port PCIe Fibre Channel Host Bus Adapter | AP767A | |
| HP 42B 4Gb 2-port PCIe Fibre Channel Host Bus Adapter | AP768A | |
| Emulex Fibre Channel HBAs | ||
| HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter | AJ762A | |
| HP FC2142SR 4Gb 1-port PCIe Fibre Channel Host Bus Adapter | A8002A | |
| HP FC2242SR 4Gb 2-port PCIe Fibre Channel Host Bus Adapter | A8003A | |
| QLogic Fibre Channel HBAs | ||
| HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter | AK344A | |
| HP FC1142SR 4Gb 1-port PCIe Fibre Channel Host Bus Adapter | AE311A | |
| HP FC1242SR 4Gb 2-port PCIe Fibre Channel Host Bus Adapter | AE312A | |
| Converged Network Adapter | ||
| HP CN1100E Dual Port Converged Network Adapter | BK835A | |
| HP CN1000Q Dual Port Converged Network Adapter | BS668A | |
| HP CN1000E Dual Port Converged Network Adapter | AW520A | |
| HP Disk Storage Systems | MSA SAN Storage Arrays | |
| HP MSA60 Array | 418408-B21 | |
| HP MSA70 Array | 418800-B21 | |
| Disk Enclosures | ||
| HP D2600 Disk Enclosure | AJ940A | |
| HP D2700 Disk Enclosure | AJ941A | |
| HP Uninterruptible Power Systems | HP Tower UPS | |
| HP T1500 G3 UPS Models | ||
| HP T1500 G3 1400VA INTL Tower Uninterruptible Power System | AF451A | |
| HP T1500 G3 1400VA NA Tower Uninterruptible Power System | AF450A | |
| HP T1500J JP Uninterruptible Power System | AF458A | |
| HP T1000 G3 UPS Models | ||
| HP T1000 G3 1000VA INTL Tower Uninterruptible Power System | AF449A | |
| HP T1000 G3 1000VA NA Tower Uninterruptible Power System | AF448A | |
| HP T1000J JP Uninterruptible Power System | AF457A | |
| HP R1500 G3 Uninterruptible Power Supply (UPS) | ||
| HP R1.5kVA G3 1U NA Uninterruptible Power System | AF469A | |
| HP R1.5kVA G3 1U JP/TW Uninterruptible Power System | AF470A | |
| HP R1.5kVA G3 1U INTL Uninterruptible Power System | AF471A | |
| R5000 Uninterruptible Power System (UPS) | ||
| HP R5KVA 3U IEC309-32A High Voltage INTL Uninterruptible Power System | AF461A | |
| HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System | AF460A | |
| R7000 Uninterruptible Power System (UPS) | ||
| HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System | AF462A | |
| HP R7KVA 4U IEC-32A High Voltage INTL Uninterruptible Power System | AF463A | |
| HP Rack Series | Rack 10000 G2 series | |
| HP 10642 G2 Shock Universal Rack | AF002A | |
| HP 10642 G2 1200mm deep Shock Rack | AF092A | |
| HP 10647 G2 1200mm deep Shock Rack | AF094A | |
| HP Rack Options | Keyboards and Monitors | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard BE Monitor | AZ881A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard DK Monitor | AZ876A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard FR Monitor | AZ873A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard DE Monitor | AZ872A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard Intl Monitor | AZ884A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard IT Monitor | AZ874A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard JP Monitor | AZ882A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard NO Monitor | AZ877A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard PT Monitor | AZ880A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard RU Monitor | AZ883A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard SE/FI Monitor | AZ878A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard ES Monitor | AZ875A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard CH Monitor | AZ879A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard UK Monitor | AZ871A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor | AZ870A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor | AZ885A | |
| HP 1U IT Rackmount Keyboard with USB | AG076A | |
| HP 1U US Rackmount Keyboard with USB | AG072A | |
| HP 1U BE Rackmount Keyboard with USB | AG083A | |
| HP 1U DK Rackmount Keyboard with USB | AG078A | |
| HP 1U FR Rackmount Keyboard with USB | AG075A | |
| HP 1U DE Rackmount Keyboard with USB | AG074A | |
| HP 1U INT Rackmount Keyboard with USB | AG086A | |
| HP 1U NO Rackmount Keyboard with USB | AG079A | |
| HP 1U PT Rackmount Keyboard with USB | AG082A | |
| HP 1U RU Rackmount Keyboard with USB | AG085A | |
| HP 1U ES Rackmount Keyboard with USB | AG077A | |
| HP 1U SE/FI Rackmount Keyboard with USB | AG080A | |
| HP 1U Rackmount Keyboard with USB | AG081A | |
| HP 1U UK Rackmount Keyboard with USB | AG073A | |
| HP 1U JP Rackmount Keyboard with USB | AG084A | |
| HP USB Keyboard and Mouse | ||
| HP USB BFR with PVC Free INDIA Keyboard/Mouse Kit | 672097-D63 | |
| HP USB BFR with PVC Free AP-INTL Keyboard/Mouse Kit | 672097-373 | |
| HP USB BFR with PVC Free INTL Keyboard/Mouse Kit | 672097-B33 | |
| HP USB BFR with PVC Free PORT Keyboard/Mouse Kit | 672097-133 | |
| HP USB BFR with PVC Free TURK Keyboard/Mouse Kit | 672097-143 | |
| HP USB BFR with PVC Free CZ Keyboard/Mouse Kit | 672097-223 | |
| HP USB BFR with PVC Free FIN Keyboard/Mouse Kit | 672097-353 | |
| HP USB BFR with PVC Free SWE Keyboard/Mouse Kit | 672097-103 | |
| HP USB BFR with PVC Free SWIS Keyboard/Mouse Kit | 672097-113 | |
| HP USB BFR with PVC Free KOR Keyboard/Mouse Kit | 672097-KD3 | |
| HP Server Console Switches | ||
| HP Server Console 0x2x8 Port Analog Switch | AF616A | |
| HP Server Console 0x2x16 Port Analog Switch | AF617A | |
| HP Server Console Switch G2 with Virtual Media & CAC | ||
| HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software | AF618A | |
| HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software | AF619A | |
| HP IP Console Switch G2 with Virtual Media & CAC | ||
| HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software | AF620A | |
| HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software | AF621A | |
| HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software | AF622A | |
| Rack Kits | ||
| HP ML350G6 Tower to Rack Conversion Kit | 534534-B21 | |
| HP USB and SD Options | HP 2GB USB Flash Media Drive Key Kit | 608447-B21 |
| HP 4GB Secure Digital High Capacity Flash Media Kit | 580387-B21 | |
| HP USB 2-Button Optical Scroll Mouse | DC172B | |
| HP USB Standard Keyboard US | DT528A#ABA | |
| HP Care Pack Services | Hardware Services On-site Service | |
| HP 3 year 4 hour 13x5 ProLiant ML350(p) Hardware Support | U4512E | |
| HP 3 year 4 hour 24x7 ProLiant ML350(p) Hardware Support | U4513E | |
| HP 3 year 6 hour 24x7 Call to Repair ProLiant ML350(p) Hardware Support | U4514E | |
| Installation & Start-up Services | ||
| HP Install ProLiant ML350(p) Service | U4522E | |
| HP Startup ProLiant ML350(p) Service | U4523E | |
| Support Plus 24 | ||
| HP 3 year Support Plus 24 Microsoft ProLiant ML350(p) Service | U4525E | |
| HP 3 year Support Plus 24 SuSE ProLiant ML350(p) Service | U6308E |
