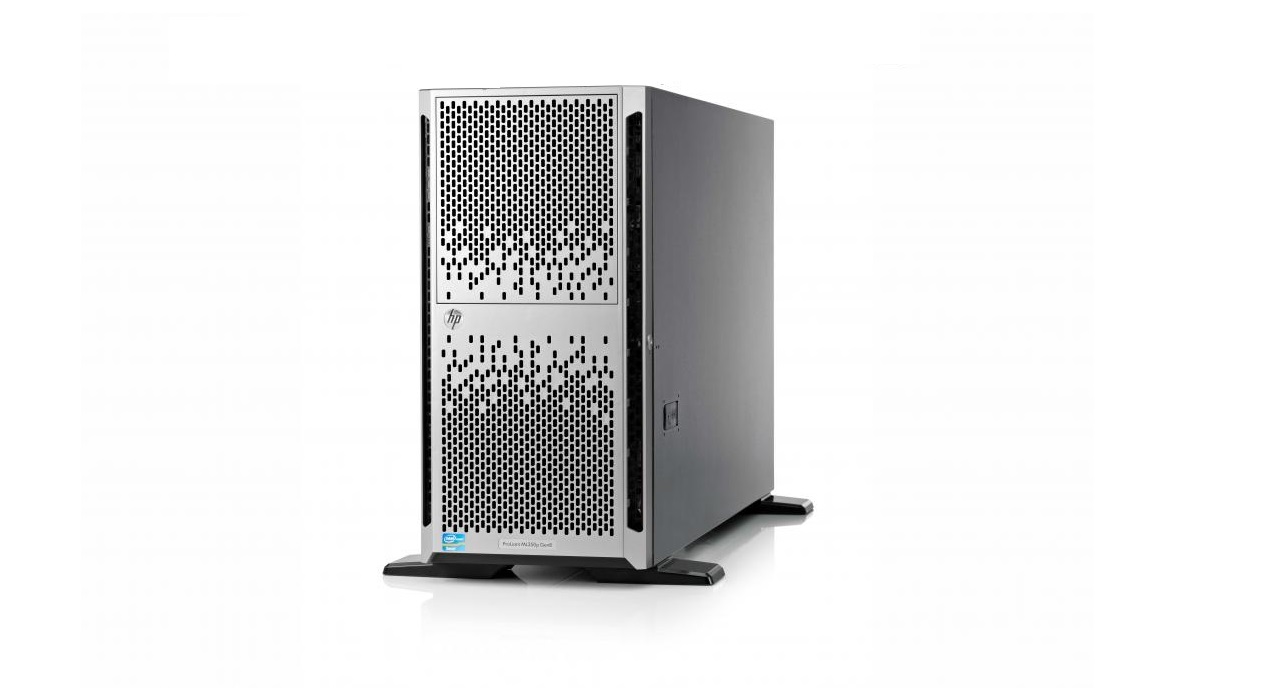

ML350p G8
HP/ML350p G8
Opis
Seria HP ProLiant ML350p Gen8 to najnowsza generacja najlepiej sprzedających się serwerów ProLiant ML, które zapewniając najwyższą w swojej klasie wydajność, dostępność i możliwości rozbudowy, nadają się doskonale do wdrażania w korporacyjnych centrach przetwarzania danych, oddziałach terenowych i rozwijających się firmach. Serwer ML350p Gen8, wyposażony w kluczowe technologie architektury HP ProActive Insight, oferuje innowacje w zakresie obsługi pamięci, zarządzania serwerami, zarządzania oprogramowaniem układowym, a także pamięci masowych. Dzięki połączeniu tych innowacji z najnowszymi procesorami Intel® Xeon® powstał system o niezrównanej elastyczności i wydajności.
Specyfikacja
| obudowa | Tower 5U |
| procesory | max dwa 8-; 6- ; 4-; 2-u rdzeniowe procesory Intel Xeon serii E5-26xx |
| pamięć cache procesora | Do 20MB L3 |
| pamięć RAM | do 384GB pamięci w 24 slotach DIMM |
| dyski twarde | do 18 szt. dysków 3.5" hot plug SAS/SATA , do 24 szt. dysków 2.5" hot plug SAS/SATA |
| kontrolery RAID | HP Smart Array P420i RAID zintegrowany na płycie głównej (RAID 0/1/10), opcjonalnie: P420i (RAID 0/1/10/5/50/6/60, cache: 512 Mb/1 Gb/2 Gb, podtrzymywanie flashowe); |
| Slot na napęd optyczny | Jeden osobny slot dla napędu optycznego |
| Klatka na napęd taśmowy | Opcjonalnie: Ultrium 920, Ultrium 1760, Ultrium 1840 lub Ultrium 3000 |
| karty sieciowe | Zintegrowana 331i (4 porty) |
| sloty PCI | Do 9 slotów PCI: 9x PCIe (5* x4x8, 3* x16x16, 1* x8x16) |
| porty USB | 4x USB 2.0 z przodu, 4x USB 2.0 z tyłu, 2x USB 2.0 wewnątrz |
| porty VGA | 1x DB-15 video(VGA) |
| porty szeregowe | 1xDB-9 szeregowe (serial) |
| porty zarządzania | 1x RJ-45 do zarządzania serwerem |
| zasilacze | Do dwóch zasilaczy 1200 W/750 W Hot Plug/460 W Hot Plug (w zależności od modelu) |
| komponenty Hot Plug | Dyski, zasilacze, wentylatory |
| wymiary | Wysokość: 46.2 cm, szerokość: 21.8 cm, głębokość: 74.0 cm |
| waga | 31.9 kg minimalna - 52.09 kg maksymalna (w zależności od opcji) |
Standardowe Modele
| Entry Models | ||
| HP ProLiant ML350p Gen8 E5-2609 1P 4GB-R P420i Hot Plug 6 LFF 460W PS Entry Svr | Processor | (1) Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/6.4GT-s QPI/80W) Processor |
| 646675-xx1 | Cache Memory | 10MB (1 x 10MB) L3 cache |
| Memory | 4GB (1x4GB) DDR3 RDIMM | |
| Network Controller | HP 1Gb Ethernet 4-port 331i Adapter | |
| Storage Controller | HP Smart Array P420i/Zero Memory Controller | |
| Hard Drive | None ship standard | |
| Internal Storage | (6) Hot plug LFF SAS/SATA HDD bays; upgradable to (18) | |
| Optical Drive | HP Half-Height SATA DVD-ROM Optical Drive | |
| Power Supply | (1) HP 460W Common Slot Gold Hot Plug Power Supply | |
| Fans | 3 hot plug, non-redundant fans | |
| Accessories | USB Keyboard and Mouse ship standard | |
| Management | iLO Management Engine Standard | |
| HP Insight Control Standard | ||
| Form Factor | Tower (5U) | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response | |
| Base Models | ||
| HP ProLiant ML350p Gen8 E5-2620 1P 8GB-R P420i Hot Plug 8 SFF 460W PS Base Svr | Processor | (1) Intel® Xeon® E5-2620 (2.00GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Processor |
| 646676-xx1 | Cache Memory | 15MB (1 x 15MB) L3 cache |
| Memory | 8GB (2x4GB) DDR3 RDIMM | |
| Network Controller | HP 1Gb Ethernet 4-port 331i Adapter | |
| Storage Controller | HP Smart Array P420i/512M FBWC Controller | |
| Hard Drive | None ship standard | |
| Internal Storage | (8) Hot plug SFF SAS/SATA HDD bays; upgradable to (24) | |
| Optical Drive | HP Half-Height SATA DVD-ROM Optical Drive | |
| Power Supply | (1) HP 460W Common Slot Gold Hot Plug Power Supply | |
| Fans | 3 hot plug, non-redundant fans | |
| Accessories | USB Keyboard and Mouse ship standard | |
| Management | iLO Management Engine Standard | |
| HP Insight Control Standard | ||
| Form Factor | Tower (5U) | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response | |
| HP ProLiant ML350p Gen8 E5-2630 1P 8GB-R P420i Hot Plug 8 SFF 750W PS Base Svr | Processor | (1) Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Processor |
| 646677-xx1 | Cache Memory | 15MB (1 x 15MB) L3 cache |
| Memory | 8GB (2x4GB) DDR3 RDIMM | |
| Network Controller | HP 1Gb Ethernet 4-port 331i Adapter | |
| Storage Controller | HP Smart Array P420i/1G FBWC Controller | |
| Hard Drive | None ship standard | |
| Internal Storage | (8) Hot plug SFF SAS/SATA HDD bays; upgradable to (24) | |
| Optical Drive | HP Half-Height SATA DVD-RW Optical Drive | |
| Power Supply | (1) HP 750W Common Slot Platinum Plus Hot Plug Power Supply | |
| Management | iLO Management Engine Standard | |
| HP Insight Control Standard | ||
| Fans | 3 hot plug, non-redundant fans | |
| Form Factor | Rack (5U) | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response | |
| Performance Models | ||
| HP ProLiant ML350p Gen8 E5-2650 2P 16GB-R P420i Hot Plug SFF 750W PS ES Server | Processor | (2) Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/8GT-s QPI/95W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8) Processors |
| 678237-xx1 | Cache Memory | 20MB (1 x 20MB) L3 cache |
| Memory | 16GB (4x4GB) DDR3 RDIMM | |
| Network Controller | HP 1Gb Ethernet 4-port 331i Adapter | |
| Storage Controller | HP Smart Array P420i/2G FBWC Controller | |
| Hard Drive | None ship standard | |
| Internal Storage | (8) Hot plug SFF SAS/SATA HDD bays; upgradable to (24) | |
| Optical Drive | HP Half-Height SATA DVD-RW Optical Drive | |
| Power Supply | (2) HP 750W Common Slot Platinum Plus Hot Plug Power Supply | |
| Fans | 4 hot plug, redundant fans plus louvers | |
| Accessories | USB Keyboard and Mouse ship standard | |
| Management | iLO Management Engine Standard | |
| Optional: HP Insight Control | ||
| Energy Star | Meets Energy Star requirements | |
| Form Factor | Tower (5U) | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response | |
| HP ProLiant ML350p Gen8 E5-2640 2P 16GB-R P420i Hot Plug 8 SFF 750W PS Perf Svr | Processor | (2) Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Processors |
| 646678-xx1 | Cache Memory | 15MB (1 x 15MB) L3 cache |
| Memory | 16GB (4x4GB) DDR3 RDIMM | |
| Network Controller | HP 1Gb Ethernet 4-port 331i Adapter | |
| Storage Controller | HP Smart Array P420i/2G FBWC Controller | |
| Hard Drive | None ship standard | |
| Internal Storage | (8) Hot plug SFF SAS/SATA HDD bays; upgradable to (24) | |
| Optical Drive | HP Half-Height SATA DVD-RW Optical Drive | |
| Power Supply | (2) HP 750W Common Slot Platinum Plus Hot Plug Power Supplies | |
| Fans | 4 hot plug, redundant fans plus louvers | |
| Management | iLO Management Engine Standard | |
| Optional: HP Insight Control | ||
| Energy Star | Meets Energy Star requirements | |
| Form Factor | Rack (5U) | |
| Warranty | Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response | |
Kompatybilne opcje
| HP Models | ML350p Gen8 Tower Models | |
| HP ProLiant ML350p Gen8 Hot Plug 8 SFF Configure-to-order Tower Server | 652065-B21 | |
| Includes: | ||
| HP 1Gb Ethernet 4-port 331i Adapter | ||
| HP Smart Array P420i Controller | ||
| Eight (8) Hot-Plug (SFF) SAS/SATA Drive Bays | ||
| Seven (7) HDD blanks | ||
| Ten (10) USB ports | ||
| Eight (8) PCIe 3.0 slots (3x16, 1x8, 4x4), One (1) PCIe 2.0 slot (1x4) | ||
| USB Keyboard & Mouse (optional) | ||
| Tower (5U) form factor | ||
| SID Module (optional) | ||
| HP ProLiant ML350p Gen8 Hot Plug 6 LFF Configure-to-order Tower Server | 652066-B21 | |
| Includes: | ||
| HP 1Gb Ethernet 4-port 331i Adapter | ||
| HP Smart Array P420i Controller | ||
| Six (6) Hot-Plug (LFF) SAS/SATA Drive Bays | ||
| Five (5) HDD blanks | ||
| Ten (10) USB ports | ||
| Eight (8) PCIe 3.0 slots (3x16, 1x8, 4x4), One (1) PCIe 2.0 slot (1x4) | ||
| USB Keyboard & Mouse (optional) | ||
| Tower (5U) form factor | ||
| SID Module (optional) | ||
| ML350p Gen8 Rack Models | ||
| HP ProLiant ML350p Gen8 Hot Plug 8 SFF Configure-to-order Rack Server | 652063-B21 | |
| Includes: | ||
| HP 1Gb Ethernet 4-port 331i Adapter | ||
| HP Smart Array P420i Controller | ||
| Eight (8) Hot-Plug (SFF) SAS/SATA Drive Bays | ||
| Seven (7) HDD blanks | ||
| Ten (10) USB ports | ||
| Eight (8) PCIe 3.0 slots (3x16, 1x8, 4x4), One (1) PCIe .2.0 slot (1x4) | ||
| Rack (5U) form factor | ||
| Sliding Rail Kit | ||
| SID module (standard) | ||
| HP ProLiant ML350p Gen8 Hot Plug 6 LFF Configure-to-order Rack Server | 652064-B21 | |
| Includes: | ||
| HP Embedded 1 Gb Ethernet 4-port 331i Adapter | ||
| Embedded HP Smart Array P420i Controller | ||
| Six(6) Hot-Plug (LFF) SAS/SATA Drive Bays | ||
| Five(5) HDD blanks | ||
| Ten (10) USB ports | ||
| Eight (8) PCIe 3.0 slots (3x16, 1x8, 4x4), One (1) PCIe 2.0 slot (1x4) | ||
| Rack (5U) form factor | ||
| Sliding Rail Kit | ||
| SID module (standard) | ||
| HP Processors | Entry Processors | |
| HP ML350p Gen8 Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) FIO Processor Kit | 660597-L21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2603 (1.80GHz/4-core/10MB/80W) FIO Processor Kit | 660595-L21 | |
| Base Processors | ||
| HP ML350p Gen8 Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/95W) FIO Processor Kit | 660600-L21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/95W) FIO Processor Kit | 660599-L21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/95W) FIO Processor Kit | 660598-L21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/60W) FIO Processor Kit | 660607-L21 | |
| Performance Processors | ||
| HP ML350p Gen8 Intel® Xeon® E5-2690 (2.90GHz/8-core/20MB/135W) FIO Processor Kit | 660605-L21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2680 (2.70GHz/8-core/20MB/130W) FIO Processor Kit | 660604-L21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2670 (2.60GHz/8-core/20MB/115W) FIO Processor Kit | 660603-L21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2667 (2.90GHz/6-core/15MB/130W) FIO Processor Kit | 660608-L21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2665 (2.40GHz/8-core/20MB/115W) FIO Processor Kit | 660596-L21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2660 (2.20GHz/8-core/20MB/95W) FIO Processor Kit | 660602-L21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/95W) FIO Processor Kit | 660601-L21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2650L (1.80GHz/8-core/20MB/70W) FIO Processor Kit | 660606-L21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2643 (3.30GHz/4-core/10MB/130W) FIO Processor Kit | 678242-L21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/80W) FIO Processor Kit | 678244-L21 | |
| HP Memory | Registered DIMMs (RDIMMs) | |
| HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit | 672631-B21 | |
| HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit | 647901-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit | 647897-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit | 647895-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit | 647893-B21 | |
| Unbuffered with ECC DIMMs (UDIMMs) | ||
| HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit | 647909-B21 | |
| HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit | 647907-B21 | |
| HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit | 647905-B21 | |
| HP Power Supplies | Primary Power Supplies | |
| HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit | 656362-B21 | |
| HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit | 656363-B21 | |
| HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit | 656364-B21 | |
| Optional Power Supplies | ||
| HP 460W Common Slot Gold Hot Plug Power Supply Kit | 503296-B21 | |
| HP 750W Common Slot Gold Hot Plug Power Supply Kit | 512327-B21 | |
| SID Module | Systems Insight Display FIO Kit | 660583-B21 |
| HP Insight Software | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License | 582765-B21 |
| HP Insight Control for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License | TC203A | |
| HP Unique Options | HP Hot Plug Redundant Fan Kit | 659486-B21 |
| HP Tower to Rack Conversion Tray Kit | 659488-B21 | |
| HP Security Bezel Kit | 660584-B21 | |
| HP Graphic Card Support Kit | 660582-B21 | |
| HP Processors | Entry Processors | |
| HP ML350p Gen8 Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor Kit | 660597-B21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2603 (1.80GHz/4-core/10MB/80W) Processor Kit | 660595-B21 | |
| Base Processors | ||
| HP ML350p Gen8 Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/95W) Processor Kit | 660600-B21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/95W) Processor Kit | 660599-B21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/95W) Processor Kit | 660598-B21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/60W) Processor Kit | 660607-B21 | |
| Performance Processors | ||
| HP ML350p Gen8 Intel® Xeon® E5-2690 (2.90GHz/8-core/20MB/135W) Processor Kit | 660605-B21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2680 (2.70GHz/8-core/20MB/130W) Processor Kit | 660604-B21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2670 (2.60GHz/8-core/20MB/115W) Processor Kit | 660603-B21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2667 (2.90GHz/6-core/15MB/130W) Processor Kit | 660608-B21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2665 (2.40GHz/8-core/20MB/115W) Processor Kit | 660596-B21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2660 (2.20GHz/8-core/20MB/95W) Processor Kit | 660602-B21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/95W) Processor Kit | 660601-B21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2650L (1.80GHz/8-core/20MB/70W) Processor Kit | 660606-B21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2643 (3.30GHz/4-core/10MB/130W) Processor Kit | 678242-B21 | |
| HP ML350p Gen8 Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/80W) Processor Kit | 678244-B21 | |
| HP Memory | Registered RDIMMs | |
| HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit | 672631-B21 | |
| HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit | 647901-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit | 647897-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit | 647893-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit | 647895-B21 | |
| Unbuffered with ECC DIMMs (UDIMMs) | ||
| HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit | 647909-B21 | |
| HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit | 647907-B21 | |
| HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit | 647905-B21 | |
| HP Drive Cage | HP 2nd Media Bay Cage Kit | 661618-B21 |
| Options | HP 5U 6LFF Hot Plug Drive Cage Kit | 659485-B21 |
| HP 5U 8SFF Hot Plug Drive Cage Kit | 659484-B21 | |
| HP Optical Drives | HP Half-Height SATA DVD ROM JackBlack Optical Drive | 624189-B21 |
| HP Half-Height SATA DVD RW JackBlack Optical Drive | 624192-B21 | |
| HP Hard Drives | SAS Hot Plug with Smart Drive SFF (2.5-inch) Enterprise Drives | |
| HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652589-B21 | |
| HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652583-B21 | |
| HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652572-B21 | |
| HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652564-B21 | |
| HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652611-B21 | |
| HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652605-B21 | |
| HP 72GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652597-B21 | |
| SAS Hot Plug Smart Drive SFF (2.5-inch) Midline Drives | ||
| HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive | 652749-B21 | |
| HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive | 652745-B21 | |
| SAS Hot Plug Smart Drive LFF (3.5-inch) Enterprise Drives | ||
| HP 600GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652620-B21 | |
| HP 450GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive | 652615-B21 | |
| SAS Hot Plug Smart Drive LFF (3.5-inch) Midline Drives | ||
| HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 652766-B21 | |
| HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 652757-B21 | |
| HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 652753-B21 | |
| 6G SATA Hot Plug with Smart Drive SFF (2.5-inch) Midline (MDL) Drives | ||
| HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive | 655710-B21 | |
| HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive | 655708-B21 | |
| 6G SATA Hot Plug with Smart Drive LFF (3.5-inch) Midline (MDL) Drives | ||
| HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 628061-B21 | |
| HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 658079-B21 | |
| HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 657750-B21 | |
| HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive | 658071-B21 | |
| 6G SAS MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives | ||
| HP 800GB 6G SAS MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 653109-B21 | |
| HP 400GB 6G SAS MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 653105-B21 | |
| HP 200GB 6G SAS MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 658478-B21 | |
| 6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives | ||
| HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive | 653082-B21 | |
| HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive | 653078-B21 | |
| 3G SATA MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives | ||
| HP 400GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 653120-B21 | |
| HP 200GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 653118-B21 | |
| HP 100GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive | 653112-B21 | |
| Hard Drive Blank Kits | ||
| HP LFF Gen8 Hard Drive Blank Kit | 666986-B21 | |
| HP SFF Gen8 Hard Drive Blank Kit | 666987-B21 | |
| HP Networking | Gigabit Ethernet adapters | |
| HP NC112T PCI Express Gigabit Server Adapter | 503746-B21 | |
| HP NC365T 4-port Ethernet Server Adapter | 593722-B21 | |
| HP Ethernet 1Gb 4-port 331T Adapter | 647594-B21 | |
| 10 Gigabit Ethernet adapters | ||
| HP NC523SFP 10Gb 2-port Server Adapter | 593717-B21 | |
| HP NC552SFP 10Gb 2-port Ethernet Server Adapter | 614203-B21 | |
| HP InfiniBand | QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA | 583211-B21 |
| HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA | 592520-B21 | |
| HP InfiniBand FDR/EN 10/40Gb Dual Port 544QSFP Adapter | 649281-B21 | |
| HP Power Supplies | Primary Power Supplies | |
| HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit | 656362-B21 | |
| HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit | 656363-B21 | |
| HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit | 656364-B21 | |
| Optional Power Supplies | ||
| HP 460W Common Slot Gold Hot Plug Power Supply Kit | 503296-B21 | |
| HP 750W Common Slot Gold Hot Plug Power Supply Kit | 512327-B21 | |
| HP Insight Software | HP Insight Control | |
| HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License | T9074BAE | |
| HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License | 452148-B22 | |
| HP Insight Management Media Kit | 436222-B21 | |
| HP Insight Control server deployment | ||
| HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License | T9082AAE | |
| HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License | 452151-B21 | |
| HP Insight Control for Linux | ||
| HP Insight Control for Linux including 1yr 24x7 Support Electronic License | TC213AAE | |
| HP Insight Control for Linux including 1yr 24x7 Support Single Server License | TC209A | |
| HP Insight Control for Linux Media Kit | TC208A | |
| HP iLO Advanced License | HP Integrated Lights-Out (iLO) Advanced for ProLiant Remote Management | |
| HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License | 512485-B21 | |
| High Performance Clusters | HP Insight Cluster Management Utility | |
| HP Insight Cluster Management Utility 1yr 24x7 Flexible License | QL803B | |
| HP Insight Cluster Management Utility 3yr 24x7 Flexible License | BD476A | |
| HP Insight Cluster Management Utility Media | BD477A | |
| HP HPC Linux Value Pack | ||
| HP High Performance Computing Linux Value Pack 1 Processor Flexible License | TC293B | |
| HP High Performance Computing Linux Value Pack Media Kit | TC294A | |
| HP I/O Accelerator Options | HP 160GB Single Level Cell PCIe ioDrive for ProLiant Servers | 600278-B21 |
| HP 320GB Multi Level Cell PCIe ioDrive for ProLiant Servers | 600279-B21 | |
| HP 320GB Single Level Cell PCIe ioDrive Duo for ProLiant Servers | 600281-B21 | |
| HP 640GB Multi Level Cell PCIe ioDrive Duo for ProLiant Servers | 600282-B21 | |
| HP 1.28TB Multi Level Cell PCIe IO Accelerator | 641027-B21 | |
| HP Graphics Options | HP Graphic Card Support Kit | 660582-B21 |
| NVIDIA Quadro 4000 2GB PCI-E Adapter | 655933-B21 | |
| NVIDIA Quadro 6000 6GB PCI-E Adapter | 655935-B21 | |
| HP Security | HP Trusted Platform Module Option | 488069-B21 |
| HP Security Bezel Kit | 660584-B21 | |
| HP Storage Controllers | SAS Controllers | |
| HP Smart Array P222 Controller | ||
| HP Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller | 631667-B21 | |
| HP Smart Array P420 Controller | ||
| HP Smart Array P420/2GB FBWC 6Gb 2-ports Int SAS Controller | 631671-B21 | |
| HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller | 631670-B21 | |
| HP Smart Array P421 Controller | ||
| HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller | 631674-B21 | |
| HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller | 631673-B21 | |
| Optional Upgrades | ||
| HP 1GB P-series Smart Array Flash Backed Write Cache | 631679-B21 | |
| HP 2GB P-series Smart Array Flash Backed Write Cache | 631681-B21 | |
| HP 512MB P-series Smart Array Flash Backed Write Cache | 661069-B21 | |
| HP Smart Array Advanced Pack 2.0 No Media 1 Server 1yr 24x7 Support Software | BC377A | |
| HP Smart Array Advanced Pack 2.0 No Media Electronic Lic 1yr 24x7 Support Software | BC390AAE | |
| HP Host Bus Adapters | ||
| HP H221 Host Bus Adapter | 650931-B21 | |
| HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter | 412911-B21 | |
| HP Backup & Recovery Software | HP Basic Upgrade to Data Protector Express V6 for 1 Server E-LTU | TC333BAE |
| HP Data Protector Express V6.0 for 1 Server E-LTU | TC330BAE | |
| HP Data Protector Express V6.0 for 10 Server E-LTU | TC332BAE | |
| HP Data Protector Express V6.0 for 3 Server E-LTU | TC331BAE | |
| HP Tape Backup | HP LTO-4 Ultrium 1760 SAS Internal WW Tape Drive | EH919A |
| HP LTO-4 Ultrium 1840 SAS Internal Tape Drive | EH860A | |
| HP Ultrium 920 SAS Internal Tape Drive | EH847A | |
| HP LTO-5 Ultrium 3000 SAS Internal Tape Drive | EH957A | |
| HP 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader | BL536A | |
| HP MSL2024 1 LTO-5 Ultrium 3000 SAS Tape Library | BL537A | |
| HP MSL4048 2 LTO-5 Ultrium 3000 SAS Tape Library | BL538A | |
| HP Disk Backup | HP D2D Backup Systems with Backup Data Deduplication | |
| HP D2D2502i Backup System | EJ001B | |
| HP D2D2504i Backup System | EJ002B | |
| HP D2D4112 Backup System | EH993B | |
| HP RDX Removable Disk Backup Systems USB | ||
| HP RDX320 Internal Removable Disk Backup System | AJ767A | |
| HP RDX500 Internal Removable Disk Backup System | AJ934A | |
| HP RDX1000 Internal Removable Disk Backup System | BV847A | |
| HP Storage Options | Emulex Fibre Channel HBAs | |
| HP 81E 8Gb Single Port PCI-e Fibre Channel Host Bus Adapter | AJ762A | |
| HP 82E 8Gb Dual Port PCI-e Fibre Channel Host Bus Adapter | AJ763A | |
| QLogic Fibre Channel HBAs | ||
| HP 81Q PCI-e Fibre Channel Host Bus Adapter | AK344A | |
| HP 82Q 8Gb Dual Port PCI-e Fibre Channel Host Bus Adapter | AJ764A | |
| SAN Switches | ||
| HP 8/20q FC 16-ports Active Switch | AK242A | |
| HP 8Gb Simple SAN Connection Kit | AK241A | |
| Converged Network Adapter | ||
| HP CN1000Q Dual Port Converged Network Adapter | BS668A | |
| HP CN1100E Dual Port Converged Network Adapter | BK835A | |
| HP Uninterruptible Power Systems | HP Tower UPS | |
| HP T1500 G3 UPS Models | ||
| HP T1500 G3 1400VA INTL Tower Uninterruptible Power System | AF451A | |
| HP T1500 G3 1400VA NA Tower Uninterruptible Power System | AF450A | |
| HP T1500J JP Uninterruptible Power System | AF458A | |
| HP T1000 G3 UPS Models | ||
| HP T1000 G3 1000VA INTL Tower Uninterruptible Power System | AF449A | |
| HP T1000 G3 1000VA NA Tower Uninterruptible Power System | AF448A | |
| HP T1000J JP Uninterruptible Power System | AF457A | |
| HP R/T3000 G2 Uninterruptible Power System (UPS) | ||
| HP R/T3000 G2 2U Detachable Cord High Voltage INTL Uninterruptible Power System | AF468A | |
| HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System | AF466A | |
| HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System | AF467A | |
| HP Power Distribution Units | Monitored PDUs | |
| HP Monitored Power Distribution Unit: Half Rack Version | ||
| HP 4.9kVA 24A Single Input Single Phase NA/JP Monitored Power Distribution Unit | AF914A | |
| HP 17.3kVA 48A Single Input Three Phase NA/JP Monitored Power Distribution Unit | AF916A | |
| HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit | AF915A | |
| HP 22kVA 32A Single Input Three Phase INTL Monitored Power Distribution Unit | AF917A | |
| HP Monitored Power Distribution Unit: Full Rack Version | ||
| HP 17.3kVA 24A Dual Three Phase NA/JP Monitored Power Distribution Unit | AF503A | |
| HP 8.6kVA 24A Single Input Three Phase NA/JP Monitored Power Distribution Unit | AF504A | |
| HP 16.6kVA 40A Dual Input Single Phase NA/JP Monitored Power Distribution Unit | AF505A | |
| HP 8.3kVA 40A Single Input Single Phase NA/JP Monitored Power Distribution Unit | AF506A | |
| HP 11kVA 16A Single Input Three Phase INTL Monitored Power Distribution Unit | AF508A | |
| HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit | AF510A | |
| Modular Power Distribution Units 1U/0U (Up to 32 outlets) | ||
| HP 2.8kVA 24A Low Voltage NA/JP Modular Power Distribution Unit | 252663-D71 | |
| HP 3.6kVA 16A High Voltage INTL Modular Power Distribution Unit | 252663-B24 | |
| HP 4.9kVA 24A High Voltage NA/JP Modular Power Distribution Unit | 252663-D72 | |
| HP 8.3kVA 40A High Voltage INTL Modular Power Distribution Unit | 252663-B21 | |
| HP 7.3kVA 32A High Voltage INTL Modular Power Distribution Unit | 252663-B31 | |
| HP 8.3kVA 40A High Voltage NA/JP Modular Power Distribution Unit | 252663-D73 | |
| HP 8.3kVA 40A High Voltage NA/JP Core Modular Power Distribution Unit | 252663-D75 | |
| HP 4.9kVA 24A High Voltage NA/JP Core Modular Power Distribution Unit | 252663-D74 | |
| HP 9.2kVA 40A High Voltage INTL Core Modular Power Distribution Unit | 252663-B34 | |
| HP 7.3kVA 32A High Voltage INTL Core Modular Power Distribution Unit | 252663-B33 | |
| HP 22kVA 32A Three Phase INTL Core Modular Power Distribution Unit | AF518A | |
| HP Intelligent Power Distribution Units (iPDU) | iPDU Core Units | |
| HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit | AF520A | |
| HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit | AF521A | |
| HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit | AF522A | |
| HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit | AF533A | |
| HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit | AF523A | |
| HP 11.4kVA 16A 415V Three Phase L22-20 NA Core Intelligent Power Distribution Unit | AF900A | |
| HP 17.3kVA 24A 415V Three Phase L22-30 NA Core Intelligent Power Distribution Unit | AF902A | |
| HP 17.3kVA 24A 415V Three Phase IEC309 NA Core Intelligent Power Distribution Unit | AF901A | |
| HP 7.3kVA 32A Single Phase INTL Core Intelligent Modular Power Distribution Unit | AF525A | |
| HP 11kVA 16A Three Phase INTL Core Intelligent Modular Power Distribution Unit | AF526A | |
| HP 22kVA 32A Three Phase INTL Core Intelligent Modular Power Distribution Unit | AF527A | |
| HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit | AF535A | |
| HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit | AF537A | |
| HP 22kVA 32A 400V Three Phase 12 Outlet Core INTL Intelligent Power Distribution Unit | AF538A | |
| iPDU Kits with Standard Extension Bars | ||
| HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit | AF531A | |
| HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit | AF532A | |
| HP 7.3kVA 32A Single Phase INTL Intelligent Modular Power Distribution Kit | AF534A | |
| iPDU Extension Bars | ||
| HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar | AF528A | |
| HP Rack Options | HP TFT7600 G2 KVM Console and Monitor | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard BE Monitor | AZ881A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard DK Monitor | AZ876A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard FR Monitor | AZ873A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard DE Monitor | AZ872A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard Intl Monitor | AZ884A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard IT Monitor | AZ874A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard JP Monitor | AZ882A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard NO Monitor | AZ877A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard PT Monitor | AZ880A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard RU Monitor | AZ883A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard SE/FI Monitor | AZ878A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard ES Monitor | AZ875A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard CH Monitor | AZ879A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard UK Monitor | AZ871A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor | AZ870A | |
| HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor | AZ885A | |
| HP 1U Rackmount Keyboard with USB | ||
| HP 1U IT Rackmount Keyboard with USB | AG076A | |
| HP 1U US Rackmount Keyboard with USB | AG072A | |
| HP 1U BE Rackmount Keyboard with USB | AG083A | |
| HP 1U DK Rackmount Keyboard with USB | AG078A | |
| HP 1U FR Rackmount Keyboard with USB | AG075A | |
| HP 1U DE Rackmount Keyboard with USB | AG074A | |
| HP 1U INT Rackmount Keyboard with USB | AG086A | |
| HP 1U NO Rackmount Keyboard with USB | AG079A | |
| HP 1U PT Rackmount Keyboard with USB | AG082A | |
| HP 1U RU Rackmount Keyboard with USB | AG085A | |
| HP 1U ES Rackmount Keyboard with USB | AG077A | |
| HP 1U SE/FI Rackmount Keyboard with USB | AG080A | |
| HP 1U Rackmount Keyboard with USB | AG081A | |
| HP 1U UK Rackmount Keyboard with USB | AG073A | |
| HP 1U JP Rackmount Keyboard with USB | AG084A | |
| HP USB Keyboard and Mouse | ||
| HP USB BFR with PVC Free US Keyboard/Mouse Kit | 631341-B21 | |
| HP USB BFR with PVC Free UK Keyboard/Mouse Kit | 631344-B21 | |
| HP USB BFR with PVC Free FR Keyboard/Mouse Kit | 631346-B21 | |
| HP USB BFR with PVC Free ES Keyboard/Mouse Kit | 631348-B21 | |
| HP USB BFR with PVC Free DE Keyboard/Mouse Kit | 631358-B21 | |
| HP USB BFR with PVC Free JP Keyboard/Mouse Kit | 631360-B21 | |
| HP USB BFR with PVC Free IT Keyboard/Mouse Kit | 631362-B21 | |
| HP USB BFR with PVC Free CN Keyboard/Mouse Kit | 631364-B21 | |
| HP USB BFR with PVC Free AE Keyboard/Mouse Kit | 638212-B21 | |
| HP USB BFR with PVC Free RU Keyboard/Mouse Kit | 638214-B21 | |
| HP USB BFR with PVC Free IN Keyboard/Mouse Kit | 672097-D63 | |
| HP USB BFR with PVC Free AP-Intl Keyboard/Mouse Kit | 672097-373 | |
| HP USB BFR with PVC Free Intl Keyboard/Mouse Kit | 672097-B33 | |
| HP USB BFR with PVC Free PT Keyboard/Mouse Kit | 672097-133 | |
| HP USB BFR with PVC Free TR Keyboard/Mouse Kit | 672097-143 | |
| HP USB BFR with PVC Free CZ Keyboard/Mouse Kit | 672097-223 | |
| HP USB BFR with PVC Free FI Keyboard/Mouse Kit | 672097-353 | |
| HP USB BFR with PVC Free SE Keyboard/Mouse Kit | 672097-103 | |
| HP USB BFR with PVC Free CH Keyboard/Mouse Kit | 672097-113 | |
| HP USB BFR with PVC Free KR Keyboard/Mouse Kit | 672097-KD3 | |
| HP Server Console Switches | ||
| HP Server Console 0x2x8 Port Analog Switch | AF616A | |
| HP Server Console 0x2x16 Port Analog Switch | AF617A | |
| HP Server Console Switch G2 with Virtual Media & CAC | ||
| HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software | AF618A | |
| HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software | AF619A | |
| HP KVM Console USB Virtual Media CAC Interface Adapter | AF623A | |
| HP IP Console Switch G2 with Virtual Media & CAC | ||
| HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software | AF620A | |
| HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software | AF621A | |
| HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software | AF622A | |
| Rack Kits | ||
| HP Tower to Rack Conversion Tray Kit | 659488-B21 | |
| HP USB and SD Options | HP 2GB USB Flash Media Drive Key Kit | 608447-B21 |
| HP 4GB Secure Digital High Capacity Flash Media Kit | 580387-B21 | |
| HP Care Pack Services | HP 3 year 4 hour 13x5 ProLiant ML350 p Hardware Support | U4512E |
| HP 3 year 4 hour 24x7 ProLiant ML350 p Hardware Support | U4513E | |
| HP 3y 6h 24x7 CTR ProLiant ML350 HW Supp | U4514E | |
| HP Install ProLiant ML350 Service | U4522E | |
| HP Startup ProLiant ML350 Service | U4523E | |
| HP 3y SupportPlus24 MS ProLiantML350 SVC | U4525E | |
| HP 3ySupportPlus24 SuSEProLiantML350 SVC | U6308E | |
| HP 3y Nbd ProCare Service | U3A72E | |
| HP 3y 4h 24x7 ProCare Service | U3A78E | |
| HP 3y Nbd Collab Support | U1K52E | |
| HP 3y 4h 24x7 Collab Support | U1K58E | |
| HP 3y Nbd ProCare with IC Service | U3N71E | |
| HP 3y 4h 24x7 ProCare with IC Service | U3N77E | |
| HP 3y SupportPlus 24 Service | UR307E |
