x3200 M3
IBM/x3200-M3
Opis

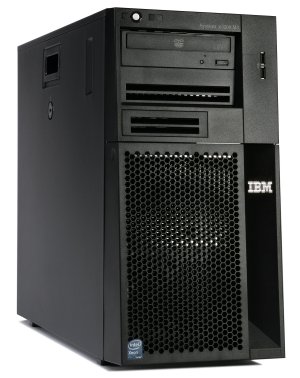

Wolnostojący serwer IBM stworzony z myślą o małych firmach. Serwer stanowi ekonomiczne i kompaktowe rozwiązanie dla przedsiębiorstw, którym zależy na utrzymaniu niskiego poziomu kosztów lub które dopiero rozpoczęły działalność.
Specyfikacja

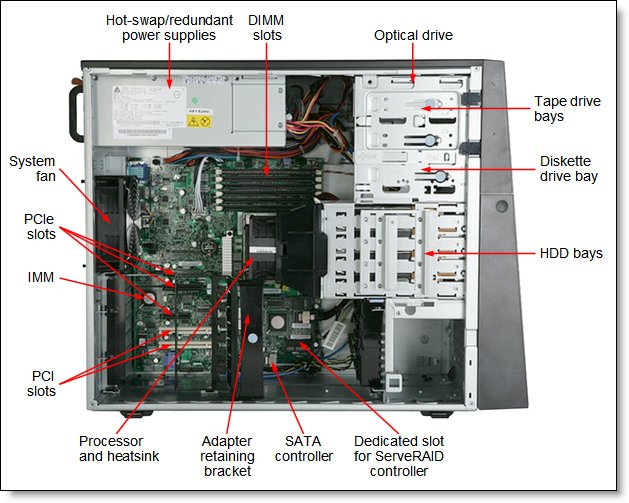

| Elementy serwera | Specyfikacja |
| Obudowa | TOWER /wolnostojąca (dzięki zestawowi Tower-to-Rack conversion istnieje możliwość zainstalowania serwera wolnostojącego w szafie przemysłowej jako obudowa RACK , wysokość serwera w szafie RACK 5U) |
| Processor | maksymalnie jeden procesor: 4-rdzeniowy (4C) Intel Xeon serii 34xx (do 3.06GHz), lub 2-rdzeniowy (2C) Intel Core i3 serii 5xx (do 3.2 GHz) ; lub 2-rdzeniowy (2C) Intel Pentium G6950 (2.8 GHz) lub 1-rdzeniowy (1C) Celeron G1101 (2.26 GHz) |
| Pamięć cache procesora | do 8 MB L3 dla procesorów serii Xeon 36xx lub do 4 MB L3 dla procesorów serii Core i3 5xx |
| Płyta główna | Intel 3420. |
| Pamięć RAM | 6 slotów DDR3 DIMM |
| Maksymany RAM | do 32 GB (8x 4 GB DDR3 RDIMM) do 16 GB (4GB x 4 UDIMM ) |
| Ochrona pamięci RAM | ECC, |
| Ilość dysków twardych - (w zależności od modelu) | do 4szt dysków 3.5" simple-swap SAS/SATA, lub do 8szt dysków 3.5" simple-swap SAS/SATA, lub do 8szt dysków 2.5" hot-swap SAS/SATA |
| Maksymala wewnętrzna przestrzeń dyskowa | do 4.8 TB przy zastosowaniu 8 x 600GB 2.5" SAS HDD, do 8 TB przy zastosowaniu 4x 3.5" SATA. Serwer nie wspiera mieszania dysków SAS/SATA. |
| Kontrolery RAID | IBM ServeRAID BR10i obsługa poziomu RAID 0, 1, 1E lub IBM ServeRAID M1015 obsługa poziomu RAID 0, 1, 1E,10, kontroler M1015 pozwala na upgrade obsługi RAID 5 (jako opcja) lub IBM ServeRAID M5014 , cache kontrolera: 256MB, obsługa poziomu RAID 0, 1, 5, 10, 50 lub IBM ServeRAID M5015, cache kontrolera: 512MB, obsługa poziomu RAID 0, 1, 5, 10, 50 IBM ServeRAID M5025, cache kontrolera: 512MB, zewnętrzne 2 porty SAS, obsługa poziomu RAID 0, 1, 5, 10, 50 IBM ServeRAID B5025 SSD, obsługa poziomu RAID 1, 5 Kontrolery M5014/M5015/M5025 pozwalają na upgrade poziomu RAID 6, 60 (jako opcja – moduł IBM M5000 Advanced Feature Key). |
| Napęd optyczny | 1 slot HH 5.25 dla napędu optycznego |
| Napęd taśmowy | 1 slot HH 5.25 dla napędu taśmowego lub RDX |
| Karta sieciowa | Zintegrowana 2 portowa karta sieciowa Gigabit Ethernet, 2x10/100/1000. 1 port jest dzielony z portem zdalnego zarządzania / IMM |
| Sloty PCI | 6x PCI Express slots: (1slot dedykowany pod ServeRAID) |
| 2x PCI Express 2.0 x8 | |
| 1x PCI Express 2.0 x1 | |
| 2x PCI 32bit/33 MHz | |

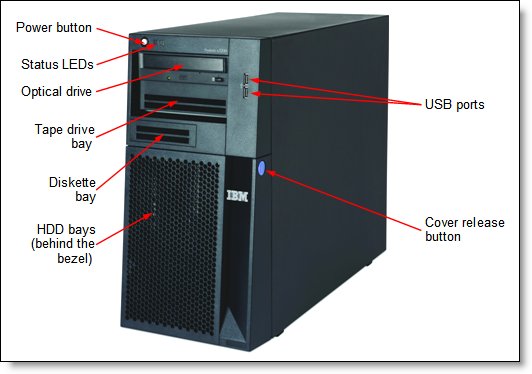

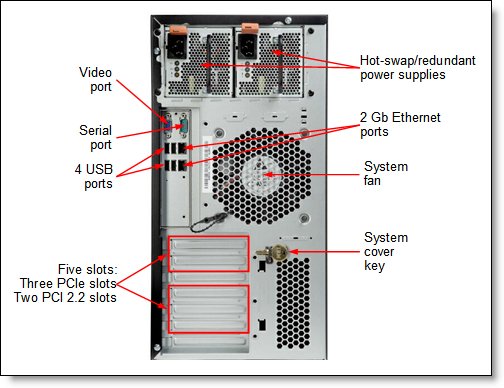

| Interfejsy | 7x USB 2.0 (2 z przodu, 2 z tyłu, jeden wewnętrzny port USB dla wbudowanego hypervisora, jeden wewnętrzny port USB dla wbudowanego hypervisora) 1x DB-15 video (VGA) 1x DB-9 (serial) szeregowy port 1xRJ-45 do zarządzania serwerem, 2x RJ-45 Gigabit Ethernet 10/100/1000 (jeden dedykowany, jeden współdzielony z IMM. ) |
| Chłodzenie | IBM Calibrated Vectored Cooling™, 3 wentylatorów, nadmiarowość N+1. |
| Zasilacze | jeden zasilacz niewymienialny w trakcie pracy 401W AC lub 2x 430W AC Hot Swap (nadmiarowe, wymienne podczas pracy w zależności od modelu) |
| Komponenty Hot-swap | dyski twadre, zasilacze (w zależności od modelu) |
| Systemy zarządzania | Zintegrowany procesor serwisowy / BMC ( Baseboard management Controller ) / tryb tekstowy UEFI, IBM Integrated Management Module (IMM), Predictive Failure Analysis, Automatic Server Restart, IBM Systems Director, IBM Systems Director Active Energy Manager, IBM ServerGuide. Opcjonalnie: Karta zdalnego zarządzania IBM Virtual Media Key (opcja, umożliwia między innymi przejęcie graficznej konsoli, klawiatury, myszy, bootowanie z lokalnych dysków) |
| Systemy zabezpieczeń | Trusted Platform Module (TPM), Power-on password, hasło administrator czujnik otwarcia obudowy |
| Karta Graficzna | Matrox G200e zintegrowana z IMM. Maksymalna rozdzielczość 1024x768 |
| Wspierane sysetmy operacyjne | Microsoft Windows Server 2008 R2 and 2008, DC/Windows Small Business Server 2008, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESX 4 and Vmware. |
| Opcje gwarancyjne | 1 lub 3 letnia gwarancja z gwarantowanym czasem reakcji serwisu lub naprawy w miejscu instalacji serwera. |
| Wymiary | wysokość: 438 mm; szerokość: 216 mm; głębokość: 540 mm |
| Waga | od 16,3 kg do 25,2 kg (w zależności od ilości komponentów) |
Modele
| 7327A2G | Pentium G6950 2.80GHz 3MB cache Dual Core, 1x1GB mem, O/B S/S SATA, optional HW RAID, DVD, 1x400W fixed |
| 7327B2G | Core i3-540 3.06GHz 4MB cache Dual Core, 1x1GB mem, O/B S/S SATA, optional HW RAID, DVD, 1x400W fixed |
| 7327C1G | Intel® Xeon™ 3430 2.40GHz 8MB cache Quad Core, 2x1GB 1333MHz 0GB SATA Simple-Swap optional 1x400w fixed |
| 7327C2G | Intel® Xeon™ 3430 2.40GHz 8MB cache Quad Core, 2x1GB 1333MHz 0GB SAS/SATA Hot-Swap SR-BR10il v2 1x400w fixed |
| 732742G | Intel® Xeon™ 3440 2.53GHz 8MB cache Quad Core, 2x1GB 1333MHz 0GB SAS/SATA Hot-Swap SR-BR10il v2 1x400w fixed |
| 732754G | Intel® Xeon™ 3450 2.67GHz 8MB cache Quad Core, 2x1GB 1333MHz 0GB SAS/SATA Hot-Swap SR-BR10il v2 2x430w Hot-swap |
| 732762G | Intel® Xeon™ 3460 2.80GHz 8MB cache Quad Core, 2x1GB 1333MHz 0GB SAS/SATA Hot-Swap SR-BR10il v2 1x400w fixed |
| Express Models | |
| 7328EAG | Express x3200 M3, Xeon 4C X3430 2.4GHz/1333MHz/8MB, 1x2GB, O/Bay HS 3.5in SAS/SATA, SR BR10il, Multi-Burner, 401W p/s, Tower |
| 7328K8G | Express x3200 M3, Xeon 4C X3440 2.53GHz/1333MHz/8MB, 1x2GB, 2x500GB HS 3.5in SAS/SATA, SR BR10il, Multi-Burner, 401W p/s, Tower |
| 7328K4G | Express x3200 M3, Xeon 4C X3440 2.53GHz/1333MHz/8MB, 1x4GB, 2x500GB SS 3.5in SATA, SR BR10il, Multi-Burner, 401W p/s, Tower |
Kompatybilne opcje
| PART NUMBER | OPTION NUMBER | EXPRESS PART NUMBER | OPIS |
| PROCESSORS | |||
| Intel Xeon X3460 2.8GHz/1333MHz-8MB 4C | |||
| 46M6615 | Intel Xeon X3450 2.67GHz/1333MHz-8MB 4C | ||
| 46M6616 | Intel Xeon X3440 2.53GHz/1333MHz-8MB 4C | ||
| 46M6617 | Intel Xeon X3430 2.4GHz/1333MHz-8MB 4C | ||
| 49Y8386 | Intel Xeon X3470 2.93GHz/1333MHz-8MB 4C | ||
| 69Y5200 | Intel Core i3-530 2.93GHz 2C 4MB cache 1333MHz 73W | ||
| 69Y5201 | Intel Pentium G6950 2.8GHz 2C 3MB cache 1333MHz 73W | ||
| 69Y5202 | Intel Core-i3 540 3.06GHz 2C 4MB cache 1333MHz 73W | ||
| 69Y5203 | Intel Xeon L3406 2.26GHz 2C 4MB cache 1066MHz 30W | ||
| 69Y5204 | Intel Core-i3 550 3.2GHz 2C 4MB cache 1333MHz 73W | ||
| 69Y5205 | Intel Xeon x3480 3.06GHz 4C 8MB cache 1333MHz 95W | ||
| 69Y5279 | Intel Celeron G1101 2.26GHz 2C 2MB cache 1066MHz 73W | ||
| MEMMORY | |||
| 44T1470 | 44T1480 | 49Y3711 | 1GB (1x1GB, Single Rankx8) PC3-10600 CL9 ECC DDR3-1333 LP RDIMM |
| 44T1471 | 44T1481 | 49Y3756 | 2GB (1x2GB, Dual Rank x8) PC3-10600 CL9 ECC DDR3-1333 LP RDIMM |
| 44T1564 | 44T1568 | 1GB (1x1GB, Single Rankx8) PC3-10600 CL9 ECC DDR3 1333MHz LP UDIMM | |
| 44T1565 | 44T1569 | 49Y3734 | 2GB (1x2GB, 2Rx8, 1.5V) PC3-10600 ECC DDR3 1333Mhz LP UDIMM |
| 44T1597 | 44T1599 | 49Y3757 | 4GB (1x4GB, Dual Rankx8) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 46C7444 | 46C7448 | 4GB (1x4GB, Quad Rankx8) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM | |
| 44T1567 | 44T1571 | 49Y3735 | 4GB (1x4GB, Dual Rankx8) PC3-10600 CL9 ECC DDR3 1333MHz LP UDIMM |
| 46C7476 | 46C7482 | 8GB (1x8GB, Quad Rankx8) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM | |
| 44T1587 | 44T1592 | 90Y4574 | 2GB (1x2GB, 1Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 44T1566 | 44T1570 | 90Y4566 | 2GB (1x2GB, 1Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP UDIMM |
| 40K1044 | 146GB 15K 3.5" Hot-Swap SAS | ||
| 44W2236 | 44W2234 | 49Y3727 | IBM 300GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 44W2241 | 44W2239 | 49Y3728 | IBM 450GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 44W2246 | 44W2244 | 49Y3729 | IBM 600GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 42D0672 | 44W2202 | IBM 73GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD | |
| 42D0632 | 44W2194 | IBM 146GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD | |
| 42D0639 | 42D0637 | 44W2193 | IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 42D0679 | 42D0677 | 44W2201 | IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 42D0709 | 42D0707 | 49Y3726 | IBM 500GB 7200 6Gbps NL SAS 2.5" SFF Slim-HS HDD |
| 42D0769 | 42D0767 | 90Y4570 | IBM 2TB 7.2K 6Gbps NL SAS 3.5" HS HDD |
| 42D0779 | 42D0777 | IBM 1TB 7.2K 6Gbps NL SAS 3.5" HS HDD | |
| 49Y2005 | 49Y2003 | 49Y2078 | IBM 600GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 44W2266 | 44W2264 | IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS SED | |
| 44W2296 | 44W2294 | IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS SED | |
| 81Y9690 | IBM 1TB 7.2K 6Gbps NL SAS 2.5" SFF HS HDD | ||
| 81Y9760 | 81Y9758 | IBM 3TB 7.2K 6Gbps NL SAS 3.5" HS HDD | |
| 81Y9652 | 81Y9650 | IBM 900GB 10K 6Gbps SAS 2.5" SFF HS HDD | |
| 81Y9672 | 81Y9670 | IBM 300GB 15K 6Gbps SAS 2.5" SFF HS HDD | |
| 90Y8645 | 90Y8643 | IBM 256GB SATA 2.5" MLC HS Entry SSD | |
| 90Y8650 | 90Y8648 | IBM 128GB SATA 2.5" MLC HS Entry SSD | |
| 43W7535 | IBM 73 GB 10K SAS 2.5" SFF Slim-HS HDD | ||
| 39M4526 | 43W7598 | 250GB 7200 RPM 3.5" Hot-Swap SATA II | |
| 39M4531 | 39M4530 | 41Y8226 | 500GB 7200 RPM 3.5" Hot-Swap SATA II |
| 43W7576 | 750GB 7200 RPM 3.5" Hot-Swap SATA II | ||
| 43W7627 | 43W7626 | 41Y8236 | IBM 1TB 7200 SATA 3.5 HS HDD |
| 42D0784 | 42D0782 | 90Y4568 | IBM 2TB 7200 Nl SATA 3.5" HS HDD |
| 43W7755 | 43W7754 | IBM 250GB SATA 3.5 HS HDD | |
| 81Y9730 | 81Y9848 | IBM 1TB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD | |
| 81Y9724 | 81Y9722 | 81Y9840 | IBM 250GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 81Y9728 | 81Y9726 | 81Y9844 | IBM 500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 81Y9776 | 81Y9774 | IBM 3TB 7.2K 6Gbps NL SATA 3.5" HS HDD | |
| 81Y9780 | 81Y9778 | IBM 3TB 7.2K 6Gbps NL SATA 3.5" SS HDD | |
| 43W7719 | 43W7718 | IBM 200GB SATA 2.5" MLC HS SSd | |
| 42D0747 | IBM 160GB 7200 NL SATA 2.5" SFF Slim-HS HDD | ||
| 39M4509 | 39M4508 | 250GB 7200 RPM 3.5" Simple-Swap SATA II | |
| 39M4515 | 39M4514 | 41Y8218 | 500GB 7200 RPM 3.5" Simple-Swap SATA II |
| 43W7572 | 750GB 7200 RPM 3.5" Simple-Swap SATA II | ||
| 43W7623 | IBM 1TB 7.2K SATA 3.5" Simple-Swap HDD | ||
| 42D0789 | 42D0787 | 41Y8284 | IBM 2TB 7200 Nl SATA 3.5" SS HDD |
| 43W7751 | 43W7750 | 41Y8288 | IBM 250GB SATA 3.5 SS HDD |
| 43W8265 | 81Y6404 | 94Y6237 | IBM HH Multiburner DVD |
| 43W8264 | Half-High SATA DVD-ROM | ||
| 49Y8417 | 3.5" Hot Swap Hard Drive Filler | ||
| 172642X | IBM System Storage DS3400 FC Dual Controller | ||
| IO | |||
| 43W4298 | 43W4296 | ServeRAID-MR10i SAS/SATA Controller | |
| 42D0486 | 42D0485 | 49Y3730 | Emulex 8Gb FC Single-port HBA for IBM System x |
| 42D0495 | 42D0494 | 49Y3731 | Emulex 8Gb FC Dual-port HBA for IBM System x |
| 42D0502 | 42D0501 | 49Y3760 | QLogic 8Gb FC Single-port HBA for IBM System x |
| 42D0511 | 42D0510 | 49Y3761 | QLogic 8Gb FC Dual-port HBA for IBM System x |
| 44E8695 | ServeRAID-MR10is VAULT SAS/SATA Controller | ||
| 44E8840 | 44E8826 | ServeRAID-MR10i Li-Ion Battery | |
| 46M6051 | 46M6049 | 49Y3702 | Brocade 8Gb FC Single-port HBA for IBM System x |
| 46M6052 | 46M6050 | 49Y3703 | Brocade 8Gb FC Dual-port HBA for IBM System x |
| 44E8702 | 44E8700 | IBM 3Gb SAS HBA Controller v2 | |
| 46M0850 | 46M0829 | 49Y3719 | ServeRAID M5015 SAS/SATA Controller (Battery not included) |
| 46M0857 | 46M0917 | 90Y4557 | ServeRAID M5000 Series Battery Assembly |
| 49Y4738 | 49Y4731 | 49Y3759 | ServeRAID-BR10il SAS/SATA Controller v2 |
| 59Y1988 | 59Y1987 | Brocade 4Gb FC Single-port HBA for IBM System x | |
| 59Y1994 | 59Y1993 | Brocade 4Gb FC Dual-port HBA for IBM System x | |
| 46M0922 | 46M0916 | 49Y3720 | ServeRAID M5014 SAS/SATA Controller (Battery not included) |
| 46M0932 | 46M0930 | 49Y3722 | ServeRAID M5000 Series Advance Feature Key |
| 46M0862 | 46M0831 | 90Y4556 | ServeRAID M1015 SAS/SATA Controller |
| 46M0865 | 46M0832 | 49Y3721 | ServeRAID M1000 Series Advance Feature Key |
| 49Y4219 | 49Y4218 | 90Y4575 | QLogic 10Gb SFP+ SR Optical Transceiver |
| 68Y7355 | 46M0907 | 90Y4579 | IBM 6Gb SAS HBA |
| 46M0853 | 46M0830 | ServeRAID M5025 SAS/SATA Controller | |
| 81Y4428 | 81Y4426 | ServeRAID M5000 Series Performance Accelerator Key | |
| 42C1823 | 42C1820 | Brocade 10Gb CNA for IBM System x | |
| 49Y4217 | 49Y4216 | Brocade 10Gb SFP+ SR Optical Transceiver | |
| 46M0914 | IBM 6Gb Performance Optimized HBA | ||
| 81Y4493 | 81Y4492 | ServeRAID H1110 SAS/SATA Controller for IBM System x | |
| 172701X | IBM System Storage EXP3000 | ||
| 44E8825 | ServeRAID-MR10M SAS/SATA Controller with Remote Battery Kit | ||
| 1746A4S | IBM System Storage DS3524 Express Single Controller Storage System | ||
| 1746A4D | IBM System Storage DS3524 Express Dual Controller Storage System | ||
| 1746A2S | IBM System Storage DS3512 Express Single Controller Storage System | ||
| 1746A2D | IBM System Storage DS3512 Express Dual Controller Storage System | ||
| 172641X | IBM System Storage DS3400 FC Single Controller | ||
| 172622X | IBM System Storage DS3200 SAS Dual Controller | ||
| 172621X | IBM System Storage DS3200 SAS Single Controller | ||
| 172632X | IBM System Storage DS3300 iSCSI Dual Controller Model | ||
| 172631X | IBM System Storage DS3300 iSCSI Single Controller Model | ||
| 174724X | IBM System Storage EXP2524 Express Storage Enclosure | ||
| 174712X | IBM System Storage EXP2512 Express Storage Enclosure | ||
| 39Y6129 | 39Y6126 | PRO/1000 PT Dual Port Server Adapter by Intel | |
| 39Y6149 | 39Y6146 | QLogic iSCSI Single Port PCIe HBA for IBM System x | |
| 42C1773 | 42C1770 | QLogic iSCSI Dual Port PCIe HBA for IBM System x | |
| 42C1803 | 42C1800 | QLogic 10Gb CNA for IBM System x | |
| 49Y4253 | 49Y4250 | Emulex 10GbE Virtual Fabric Adapter for IBM System x | |
| 49Y4233 | 49Y4230 | 49Y3758 | Intel Ethernet Dual Port Server Adapter I340-T2 for IBM System x |
| 49Y4243 | 49Y4240 | 90Y4578 | Intel Ethernet Quad Port Server Adapter I340-T4 for IBM System x |
| 42C1783 | 42C1780 | 90Y4576 | NetXtreme II 1000 Express Dual Port Ethernet Adapter |
| 49Y4223 | 49Y4220 | 90Y4577 | NetXtreme II 1000 Express Quad Port Ethernet Adapter |
| 81Y9991 | 81Y9990 | Mellanox ConnectX-2 Dual Port 10GbE Adapter for IBM System x | |
| 49Y7953 | 49Y7950 | Emulex 10GbE Virtual Fabric Adapter II for IBM System x | |
| 90Y9353 | 90Y9352 | Broadcom NetXtreme I Quad Port GbE Adapter for IBM System x | |
| 90Y9371 | 90Y9370 | Broadcom NetXtreme I Dual Port GbE Adapter for IBM System x | |
| 43V6991 | 46C7527 | 49Y3724 | IBM Virtual Media Key For Entry Systems |
| 46M4989 | 41Y8278 | IBM USB Memory Key for VMware ESXi 47 | |
| 59Y8349 | IBM USB Memory Key for VMware ESXi 4.1 | ||
| 49Y4278 | Emulex VFA II FCoE/iSCSI License for IBM System x | ||
| 94Y9770 | 41Y8300 | IBM USB Memory Key for VMWare ESXi 5.0 | |
| 39R6475 | 4-Gbps SW SFP Transceiver | ||
| PWR ACC | |||
| 46M6619 | Base Hardware/Fixed PSU (Quad-core processor recommended) | ||
| 46M6620 | Base Hardware/High Efficiency PSU (Quad-core processor recommended) | ||
| 39Y5531 | 39Y7937 | 1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | |
| 39Y5547 | 39Y7938 | 2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable | |
| 39Y5532 | Rack power cable - 2.0m, 125-250V, C13 to IEC 320-C14 (WW) | ||
| 39Y5533 | 2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | ||
| 39Y8951 | DPI Universal Rack PDU with Nema L5-20P and L6-20P | ||
| 39Y8948 | IBM Enterprise C19 PDU | ||
| 39Y8941 | IBM Enterprise C13 PDU | ||
| 39Y8940 | DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd connector | ||
| 39Y8939 | DPI 30amp/250V Front-end PDU with NEMA L6-30P | ||
| 39Y8938 | DPI 30amp/125V Front-end PDU with NEMA L5-30P | ||
| 39Y8923 | IBM Enterprise C19 3 phase PDU (60a) | ||
| 39Y7932 | 12ft Power Cable C13-C14 | ||
| 39Y7931 | Power Cable - C13 / NEMA 5-15P 14ft | ||
| 39M2816 | IBM Dpi C13 PDU+ | ||
| 71763NU | IBM Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph | ||
| 71763MU | IBM Ultra Density Enterprise C19/C13 PDU+ 60A/208V/3ph | ||
| 71762NX | IBM Ultra Density Enterprise C19/C13 PDU Module | ||
| 71762MX | IBM Ultra Density Enterprise C19/C13 PDU+ Module | ||
| 39M2817 | iDPx Three-phase 60A/208V Enterprise C13 PDU+ | ||
| 46M4005 | IBM 1U 12 C13 Switched and Monitored 60A 3 Phase PDU | ||
| 46M4004 | IBM 1U 12 C13 Switched and Monitored DPI PDU | ||
| 46M4003 | IBM 1U 9 C19/3 C13 Switched and Monitored 60A 3 Phase PDU | ||
| 46M4002 | IBM 1U 9 C19/3 C13 Switched and Monitored DPI PDU | ||
| 46M4140 | IBM 0U 12 C19/12 C13 50A 3 Phase PDU | ||
| 46M4128 | IBM 0U 24 C13 30A PDU | ||
| 46M4125 | IBM 0U 24 C13 30A 3 Phase PDU | ||
| 46M4167 | 1U Switch. and Monit. PDU 9 C19 / 3 C13 3ph 30A fixed 4.3m L21-30P. | ||
| 46M4134 | IBM 0U 12 C19/12 C13 Switched and Monitored 50A 3 Phase PDU | ||
| 46M4116 | IBM 0U 24 C13 Switched and Monitored 30A PDU | ||
| 2130R5X | IBM UPS1500tlv | ||
| 2130R3X | IBM UPS1000tlv | ||
| 21304RX | IBM UPS 10000Xhv | ||
| 21302RX | IBM UPS3000 HV | ||
| 21301RX | IBM UPS3000 LV | ||
| 24195KX | IBM UPS5000 HV | ||
| 53953JX | IBM 3000VA LCD 3U Rack UPS (200V/208V) | ||
| 53953AX | IBM 3000VA LCD 3U Rack UPS (100V/120V) | ||
| 46M4110 | 90Y4585 | IBM LCD UPS Network Management Card | |
| 53956KX | IBM 6000VA LCD 4U Rack UPS (230V) | ||
| 53956AX | IBM 6000VA LCD 4U Rack UPS (200V/208V) | ||
| 53959KX | IBM 11000VA LCD 5U Rack UPS (200V/208V/230V) | ||
| 21303RX | IBM UPS 7500Xhv | ||
| 93074XX | IBM 42U S2 expansion rack | ||
| 93074RX | 9307SRX | NetBAY S2 42U Standard Rack Cabinet | |
| 93072RX | IBM 25U S2 standard rack | ||
| 39M2895 | 49Y3709 | IBM USB Conversion Option (UCO) | |
| 39M2894 | IBM Virtual Media Conversion Option (VCO) | ||
| 17233RX | IBM 1U 15" Flat Panel Console Kit | ||
| 17231RX | IBM 1U 17" Flat Panel console Kit w/ Optical Drive Bay | ||
| 93084PX | IBM 42U Enterprise Rack | ||
| 93084EX | IBM 42U Enterprise Expansion Rack | ||
| 14104RX | IBM 42U S2 standard rack | ||
| 14102RX | IBM 25RU standard rack | ||
| 99564XX | IBM S2 42U Dynamic Expansion Rack Cabinet | ||
| 99564RX | IBM S2 42U Dynamic Standard Rack Cabinet | ||
| 93072PX | IBM S2 25U Static Base Cabinet | ||
| 93624PX | IBM 47U 1200mm Deep Static Rack | ||
| 93624EX | IBM 47U 1200mm Deep Static Expansion Rack | ||
| 93614PX | 9361EPX | IBM 42U 1200mm Deep Static Rack | |
| 93614EX | IBM 42U 1200mm Deep Static Expansion Rack | ||
| 93604PX | IBM 42U 1200mm Deep Dynamic Rack | ||
| 93604EX | IBM 42U 1200mm Deep Dynamic Expansion Rack | ||
| 39Y8070 | 1.5m KVM Conversion Cable Set | ||
| 49Y8393 | 5U Tower to Rack Conversion Kit | ||
| 46M5383 | 90Y4583 | IBM Virtual Media Conversion Option Gen2 (VCO2) | |
| 46M5382 | IBM Serial Conversion Option (SCO) | ||
| 31R3132 | IBM 3M Console Switch Cable (USB) | ||
| 17351GX | IBM Local 2x8 Console Manager (LCM2) | ||
| 17352GX | IBM Global 2x16 Console Mngr(GCM2) | ||
| 1754A2X | IBM Local 2X16 Console Manager | ||
| 1754A1X | 1754E1X | IBM Local 1X8 Console Manager | |
| 17354LX | IBM 2 x 16 Console Switch | ||
| 17353LX | IBM 1 x 8 Console Switch | ||
| 1754D2X | IBM Global 4X2X32 Console Manager | ||
| 1754D1X | IBM Global 2X2X16 Console Manager | ||
| 172319X | 1U 19in Flat Panel Console Kit | ||
| 172317X | 1723E7X | 1U 17in Flat Panel Console Kit | |
| 40K9490 | 40K9584 | IBM Preferred Pro Keyboard USB - US English 103P | |
| 40K9491 | 40K9200 | IBM 2 Button Optical Wheel Mouse - Black - USB | |
| 40K9488 | IBM Preferred Pro Keyboard USB - US Euro 103P | ||
| 40K5372 | IBM Keyboard w/ Integrated Pointing Device USB - US English 103P | ||
| 39R6531 | IBM 3m SAS Cable | ||
| 39R6529 | IBM 1m SAS Cable | ||
| 39Y8122 | Line cord - 2.8m, 10A/250V, C13 to NEMA 6-15P (US) | ||
| 39Y5651 | 2.8m, 10A/120V, C13 to NEMA 5-15P (US) Line Cord | ||
| 39Y5650 | Line cord - 1.8M, 10A/125V, C13 to NEMA 5-15P (US) | ||
| 39Y5652 | Line cord - 4.3M, 10A/125V, C13 to NEMA 5-15P (US) | ||
| 39Y8121 | Line cord - 1.8m, 10A/250V, C13 to NEMA 6-15P (US) | ||
| 39Y8123 | Line cord - 4.3m, 10A/250V, C13 to NEMA 6-15P (US) | ||
| 46M2590 | 10A/250V C13 to NEMA 6-15P 2.8m line cord | ||
| 39Y8905 | DPI 100-127v PDU with Fixed Nema L5-15P line cord | ||
| TAPE | |||
| 43W8480 | IBM DDS Gen 5 SATA Tape Drive | ||
| 43W8490 | 43W8478 | 49Y3697 | IBM Half High LTO Gen 3 SAS Tape Drive |
| 43W8492 | 39M5636 | 90Y4586 | IBM DDS Gen 6 USB Tape Drive |
| 46C5376 | IBM RDX 320GB Cartridge | ||
| 46C5378 | IBM RDX 500GB Cartridge | ||
| 46C5369 | IBM RDX Internal USB Dock | ||
| 49Y9880 | 46C5399 | 49Y3736 | IBM DDS Generation 5 USB Tape Drive |
| 44E8897 | 44E8895 | 90Y4588 | IBM Half-high LTO Gen 4 SAS Tape Drive |
| 49Y9902 | 49Y9898 | IBM Half High LTO Gen 5 Internal SAS Tape Drive | |
| 49Y9917 | IBM DDS Generation 5 Cleaning Cartridge | ||
| 49Y9918 | IBM DDS Generation 6 Cleaning Cartridge | ||
| 49Y9919 | IBM LTO Universal Cleaning Cartridge | ||
| 49Y9908 | IBM LTO Gen 5 Data Cartridge | ||
| 46C5388 | IBM RDX500 Internal USB Bundle | ||
| 46C5387 | IBM RDX320 Internal USB Bundle | ||
| 46C5364 | 49Y3699 | IBM RDX160 Internal USB Bundle | |
| 362550X | IBM RDX 500 GB External USB Drive | ||
| 362532X | IBM RDX 320 GB External USB Drive | ||
| 362516X | IBM RDX 160 GB External USB Drive | ||
| 3628L5X | IBM Half High LTO Gen 5 External SAS Tape Drive | ||
| 3628L4X | IBM Half High LTO Gen 4 External SAS Tape Drive | ||
| 3628L3X | IBM Half High LTO Gen 3 External SAS Tape Drive | ||
| 8767HHX | Half High Tape Drive Enclosure | ||
| 87651UX | 1U Tape Drive Enclosure | ||
| 44E8869 | USB Enclosure Adapter Kit | ||
Budowa serwera
