x3650 M4
IBM/x3650-M4
Opis
Specyfikacja
| Elementy serwera | Specyfikacja |
| Obudowa | stelażowa, do montażu w szafie przemysłowej RACK 2U |
| Procesor | maksymalnie dwa procesory: 8-rdzeniowe (8C) Intel Xeon E5-26xx (max 2.90 GHz) lub 6-rdzeniowe (6C) Intel Xeon E5-26xx (max 2.90 GHz) lub 4-rdzeniowe (4C) Intel Xeon E5-26xx (max 3.30 GHz) z technologią QuickPath Interconnect 2.0 (dwa linki) wydajność 8.0 GT/s/link, max częstotliwość pamięci 1600 MHz. |
| Pamięć cache procesora | do 20MB L3 |
| Płyta główna | Intel C602J. |
| Pamięć RAM | do 24 slotów DIMM (12 DIMMs per procesor). RDIMMs, UDIMMs, HCDIMMs (HyperCloud) i LRDIMMs (Load Reduced DIMMs) - zainstalowane pamięci muszą być tego samego typu. Maksymalna częstotliwość pamięci 1600 MHz. |
| Maksymalna obsada pamięci operacyjnej | pamięci RDIMMs: do 384GB w obsadzie 24x 16GB RDIMMs i dwoma procesorami pamięci UDIMMs: do 64GB w obsadzie 16x 4GB UDIMMs i dwoma procesorami pamięci HCDIMMs: do 384GB w obsadzie 24x 16GB HCDIMMs i dwoma procesorami pamięci LRDIMMs: do 768GB w obsadzie 24x 32GB LRDIMMs i dwoma procesorami |
| Ochrona pamięci RAM | ECC, memory mirroring, and memory sparing. |

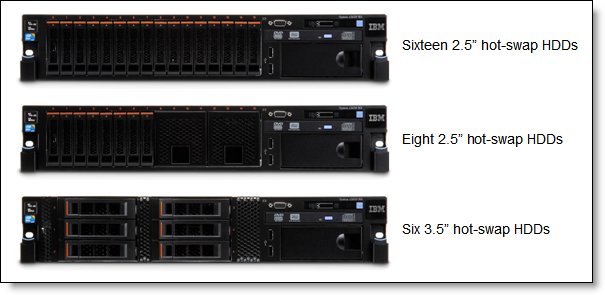

| Obsługa dysków twardych | do 16szt dysków 2.5" Hot swap SAS/SATA/SSD lub do 6szt dysków 3.5" Hot Swap SAS/SATA lub do 6szt dysków 3.5" Simple Swap SATA |
| Obsługa wewnętrznych dysków twardych | do 14.4TB w obsadzie 900GB 2.5" SAS HDDs lub do 16TB w obsadzie 1TB 2.5" NL SAS/SATA HDDs lub do 18TB w obsadzie 3TB 3.5" NL SAS/SATA HDDs. Mieszanie dysków SAS/SATA w pełni wspierane |
| Kontroler RAID | RAID 0, 1, 10 ze zintegrowanym ServeRAID M5110e; możliwy upgrade kontrolera do obsługi RAID 5, 50 z opcjami (zero-cache, 512MB battery-backed cache, 512MB lub 1GB flash-backed cache). możliwy upgrade kontrolera do obsługi RAID 6, 60 z pamięcią 512MB lub 1GB cache. |
| Wewnętrzny napęd optyczny | opcjonalnie jeden slot/napęd DVD-ROM lub Multiburner drive. |
| Wewnętrzny napęd taśmowy | opcjonalny napęd taśmowy przy użyciu Tape Enablement Kit pozwana na instalacje jednego wewnętrznego napędu taśmowego DDS5, DDS6 lub RDX na USB |
| Karty sieciowe | zintegrowana 4 portowa karta sieciowa Gigabit Ethernet 1000BASE-T (4x RJ-45); możliwość rozbudowy o 2x 10 Gb Ethernet(10GBASE-T RJ-45 lub 10GBASE-SR SFP+ based) jako 10 Gb Ethernet mezzanine card (nie zajmuje slotu PCI-dedykowany slot na płycie głównej) |
| Sloty PCIe | do 6 slotów w zależności od zainstalowanego modułu riser card: Slot 1: PCIe 3.0 x8; full-height, full-length Slot 2: PCIe 3.0 x8; full-height, half-length Slot 3: PCIe 3.0 x8; full-height, half-length Slot 4: Opcjonalny, wymagany dodatkowy procesor i dodatkowy riser card Slot 5: Opcjonalny, wymagany dodatkowy procesor i dodatkowy riser card Slot 6: Opcjonalny, wymagany dodatkowy procesor i dodatkowy riser card opcjonalny riser card dostępny ze slotem PCIe x8 lub PCIe x16 lub PCI-X |

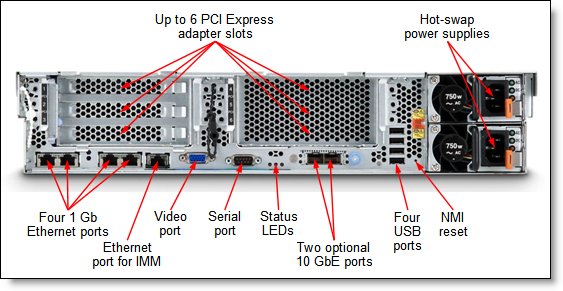

| Porty | 8x USB 2.0 (2x USB 2.0 z przodu,4x USB 2.0 z tyłu, 2x w środku serwera) 2x DB-15 video (VGA) 1x DB-9 serial 1x RJ-45 systems management 4x RJ-45 GbE network ports 2x RJ-45 or SFP+ 10 GbE (opcjonalne) |
| Chłodzenie | IBM Calibrated Vectored Cooling™ 4 przeciwsobne wentylatory, nadmiarowość N+N, nie są wymienialne w trakcie pracy serwera. (3 standardowo, dodatkowy wentylator z dodatkowym procesorem). Każdy wentylator posiada 2 niezależne silniki |
| Zasilanie | do dwóch nadmiarowych zasilaczy wymienialnych podczas pracy 550W ac lub 750W ac lub 900W ac power supplies (wszystkie z normą 80 PLUS Platinum certification - o wysokiej wydajności) |
| Video | Matrox G200eR2 z 16 MB wpółdzielonej pamięci z IMM2. maksymalna rozdzielczość 1600x1200 @ 75 Hz z 16 M kolorów |
| Komponenty HotSwap | dyski twarde, zasilacze, wentylatory |
| Zarządzanie serwerem | UEFI, IBM Integrated Management Module II (IMM2), Predictive Failure Analysis, Light Path Diagnostics, Automatic Server Restart, IBM Systems Director and Active Energy Manager, IBM ServerGuide. opcjonalny moduł zarządzania IMM Advanced Upgrade (licencja- pozwalająca na przejęcie graficznej konsoli oraz bootowania z lokalnych napędów- dawniej Virtual Media Key) |
| Zabezpieczenia serwera | Power-on password, administrator's password, Trusted Platform Module (TPM). |
| Wspierane systemy operacyjne | Microsoft Windows Server 2008 R2, 2008, Red Hat Enterprise Linux 5, 6, SUSE Linux Enterprise Server 10, 11, VMware ESX 4.1, VMware ESXi 4.1/ 5.0 embedded hypervisor, VMware vSphere 5. |
| Wymiary | wysokość: 86 mm (3.4 in), szerokość: 445 mm (17.5 in), głębokość: 746 mm (29.4 in) |
| Waga | minimalna konfiguracja: 25 kg (55 lb), pełna: 30 kg (65 lb) |
Modele
| 7915A2G | x3650 M4, Xeon 4C E5-2603 80W 1.8GHz/1066MHz/10MB, 1x4GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, 550W p/s, Rack 2U |
| 7915B2G | x3650 M4, Xeon 4C E5-2609 80W 2.4GHz/1066MHz/10MB, 1x4GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, 550W p/s, Rack 2U |
| 7915C2G | x3650 M4, Xeon 6C E5-2620 95W 2.0GHz/1333MHz/15MB, 1x8GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, 550W p/s, Rack 2U |
| 7915C4G | x3650 M4, Xeon 6C E5-2620 95W 2.0GHz/1333MHz/15MB, 1x8GB, O/Bay HS 3.5in SAS/SATA, SR M5110e, 550W p/s, Rack 2U |
| 7915D2G | x3650 M4, Xeon 6C E5-2630 95W 2.3GHz/1333MHz/15MB, 1x8GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, 750W p/s, Rack 2U |
| 7915F2G | x3650 M4, Xeon 6C E5-2640 95W 2.5GHz/1333MHz/15MB, 1x8GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, 750W p/s, Rack 2U |
| 7915G2G | x3650 M4, Xeon 8C E5-2650 95W 2.0GHz/1600MHz/20MB, 1x8GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, 750W p/s, Rack 2U |
| 791552G | x3650 M4, Xeon 8C E5-2650L 70W 1.8GHz/1600MHz/20MB, 1x8GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, 550W p/s, Rack 2U |
| 7915H2G | x3650 M4, Xeon 8C E5-2660 95W 2.2GHz/1600MHz/20MB, 1x8GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, 750W p/s, Rack 2U |
| 791562G | x3650 M4, Xeon 8C E5-2665 115W 2.4GHz/1600MHz/20MB, 1x8GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, 750W p/s, Rack 2U |
| 7915J2G | x3650 M4, Xeon 8C E5-2670 115W 2.6GHz/1600MHz/20MB, 1x8GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, 750W p/s, Rack 2U |
| 7915L2G | x3650 M4, Xeon 8C E5-2680 130W 2.7GHz/1600MHz/20MB, 1x8GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, 900W p/s, Rack 2U |
| 7915A2x | x3650 M4, Intel Xeon 1.8 GHz 4GB 6.4 SAS/SATA 2.5-in Hot Swap Cache: 10 MB M5110e 1 x 550W Power Supply |
| 7915B2x | x3650 M4,Intel Xeon 2.4 GHz 4GB 6.4 SAS/SATA 2.5-in Hot Swap Cache: 10 MB M5110e 1 x 550W Power Supply |
| 7915C2x | x3650 M4,Intel Xeon 2.0 GHz 8GB 7.2 SAS/SATA 2.5-in Hot Swap Cache: 15 MB M5110e 1 x 550W Power Supply |
| 7915C4x | x3650 M4,Intel Xeon 2.0 GHz 8GB 7.2 SAS/SATA 3.5-in Cache: 15 MB M5110e 1 x 550W Power Supply |
| 7915D2x | x3650 M4,Intel Xeon 2.3 GHz 8GB 7.2 SAS/SATA 2.5-in Hot Swap Cache: 15 MB M5110e+512MB Flash 1 x 750W Power Supply |
| 7915F2x | x3650 M4,Intel Xeon 2.5 GHz 8GB 7.2 SAS/SATA 2.5-in Hot Swap Cache: 15 MB M5110e+512MB Flash 1 x 750W Power Supply |
| 791552x | x3650 M4,Intel Xeon 1.8 GHz 8GB 8.0 SAS/SATA 2.5-in Hot Swap Cache: 20 MB M5100e+1GB Flash 1 x 550W Power Supply |
| 7915G2x | x3650 M4,Intel Xeon 2.0 GHz 8GB 8.0 SAS/SATA 2.5-in Hot Swap Cache: 20 MB M5100e+1GB Flash 1 x 750W Power Supply |
| 7915H2x | x3650 M4,Intel Xeon 2.2 GHz 8GB 8.0 SAS/SATA 2.5-in Hot Swap Cache: 20 MB M5100e+1GB Flash 1 x 750W Power Supply |
| 791562x | x3650 M4,Intel Xeon 2.4 GHz 8GB 8.0 SAS/SATA 2.5-in Hot Swap Cache: 20 MB M5100e+1GB Flash 1 x 750W Power Supply |
| 7915J2x | x3650 M4,Intel Xeon 2.6 GHz 8GB 8.0 SAS/SATA 2.5-in Hot Swap Cache: 20 MB M5100e+1GB Flash 1 x 750W Power Supply |
| 7915L2x | x3650 M4,Intel Xeon 2.7 GHz 8GB 8.0 SAS/SATA 2.5-in Hot Swap Cache: 20 MB M5100e+1GB Flash 1 x 900W Power Supply |
| Express models | |
| 7915E5G | Express x3650 M4, 2xXeon 8C E5-2650 70W 2.0GHz/1600MHz/20MB, 2x8GB, 3x300GB HS 2.5in SAS, SR M5110e, Multi-Burner, 2x750W p/s, Rack 2U |
| 7915E1G | Express x3650 M4, Xeon 4C E5-2603 80W 1.8GHz/1066MHz/10MB, 1x4GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, Multi-Burner, 550W p/s, Rack 2U |
| 7915E2G | Express x3650 M4, Xeon 6C E5-2620 95W 2.0GHz/1333MHz/15MB, 1x8GB, 2x300GB HS 2.5in SAS, SR M5110e, Multi-Burner, 2x550W p/s, Rack 2U |
| 7915E3G | Express x3650 M4, Xeon 6C E5-2620 95W 2.0GHz/1333Mhz/15MB, 1x8GB, O/Bay HS 2.5in SAS/SATA, SR M5110e, Multi-Burner, 550W p/s, Rack 2U |
| 7915E4G | Express x3650 M4, Xeon 6C E5-2630 95W 2.3GHz/1333MHz/15MB, 1x8GB, 2x300GB HS 2.5in SAS, SR M5110e, Multi-Burner, 750W p/s, Rack 2U |
Kompatybilne opcje
| PART NUMBER | OPTION NUMBER | EXPRESS PART NUMBER | OPIS |
| PROCESSORS | |||
| 81Y6794 | - | Intel Xeon Processor E5-2603 4C 1.8GHz 10MB Cache 1066MHz 80W | |
| 81Y6796 | - | Intel Xeon Processor E5-2609 4C 2.4GHz 10MB Cache 1066MHz 80W | |
| 81Y6797 | - | Intel Xeon Processor E5-2620 6C 2.0GHz 15MB Cache 1333MHz 95W | |
| 81Y6798 | - | Intel Xeon Processor E5-2630 6C 2.3GHz 15MB Cache 1333MHz 95W | |
| 81Y6799 | - | Intel Xeon Processor E5-2640 6C 2.5GHz 15MB Cache 1333MHz 95W | |
| 81Y6800 | - | Intel Xeon Processor E5-2650 8C 2.0GHz 20MB Cache 1600MHz 95W | |
| 81Y6801 | - | Intel Xeon Processor E5-2660 8C 2.2GHz 20MB Cache 1600MHz 95W | |
| 81Y6802 | - | Intel Xeon Processor E5-2680 8C 2.7GHz 20MB Cache 1600MHz 130W | |
| 81Y6804 | - | Intel Xeon Processor E5-2667 6C 2.9GHz 15MB Cache 1600MHz 130W | |
| 81Y6807 | - | Intel Xeon Processor E5-2650L 8C 1.8GHz 20MB Cache 1600MHz 70W | |
| 94Y6593 | - | Intel Xeon Processor E5-2670 8C 2.6GHz 20MB Cache 1600MHz 115W | |
| 94Y6594 | - | Intel Xeon Processor E5-2630L 6C 2.0GHz 15MB Cache 1333MHz 60W | |
| 94Y6595 | - | Intel Xeon Processor E5-2643 4C 3.3GHz 10MB Cache 1600MHz 130W | |
| 94Y6676 | - | Intel Xeon Processor E5-2690 8C 2.9GHz 20MB Cache 1600MHz 135W | |
| 94Y6677 | - | Intel Xeon Processor E5-2637 2C 3.0GHz 5MB Cache 1600MHz 80W | |
| 94Y6678 | - | Intel Xeon Processor E5-2665 8C 2.4GHz 20MB Cache 1600MHz 115W | |
| 81Y6810 | 69Y5323 | 90Y4596 | Addl Intel Xeon Processor E5-2603 4C 1.8GHz 10MB 80W W/Fan |
| 81Y6812 | 69Y5325 | 00D7080 | Addl Intel Xeon Processor E5-2609 4C 2.4GHz 10MB 80W W/Fan |
| 81Y6813 | 69Y5326 | 90Y4597 | Addl Intel Xeon Processor E5-2620 6C 2.0GHz 15MB 95W W/Fan |
| 81Y6814 | 69Y5327 | 90Y4598 | Addl Intel Xeon Processor E5-2630 6C 2.3GHz 15MB 95W W/Fan |
| 81Y6815 | 69Y5328 | Addl Intel Xeon Processor E5-2640 6C 2.5GHz 15MB 95W W/Fan | |
| 81Y6817 | 69Y5330 | Addl Intel Xeon Processor E5-2660 8C 2.2GHz 20MB 95W W/Fan | |
| 81Y6818 | 69Y5331 | Addl Intel Xeon Processor E5-2680 8C 2.7GHz 20MB 130W W/Fan | |
| 81Y6819 | 69Y5329 | 90Y4599 | Addl Intel Xeon Processor E5-2650 8C 2.0GHz 20MB 95W W/Fan |
| 81Y6820 | 69Y5333 | Addl Intel Xeon Processor E5-2667 6C 2.9GHz 15MB 130W W/Fan | |
| 81Y6823 | 69Y5336 | Addl Intel Xeon Processor E5-2650L 8C 1.8GHz 20MB 70W W/Fan | |
| 94Y6596 | 94Y6602 | Addl Intel Xeon Processor E5-2670 8C 2.6GHz 20MB 115W W/Fan | |
| 94Y6597 | 94Y6603 | Addl Intel Xeon Processor E5-2630L 6C 2.0GHz 15MB 60W W/Fan | |
| 94Y6598 | 94Y6604 | Addl Intel Xeon Processor E5-2643 4C 3.3GHz 10MB 130W W/Fan | |
| 94Y6679 | 94Y6685 | Addl Intel Xeon Processor E5-2690 8C 2.9GHz 20MB 135W W/Fan | |
| 94Y6680 | 94Y6686 | Addl Intel Xeon Processor E5-2637 2C 3.0GHz 5MB 80W W/Fan | |
| 94Y6681 | 94Y6687 | Addl Intel Xeon Processor E5-2665 8C 2.4GHz 20MB 115W W/Fan | |
| MEMMORY | |||
| 49Y1386 | 49Y1404 | 4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP UDIMM | |
| 49Y1387 | 49Y1405 | 90Y4550 | 2GB (1x2GB, 1Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 49Y1388 | 49Y1406 | 90Y4551 | 4GB (1x4GB, 1Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 49Y1389 | 49Y1407 | 49Y3777 | 4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 49Y1558 | 49Y1559 | 4GB (1x4GB, 1Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM | |
| 49Y1381 | 49Y1399 | 8GB (1x8GB, 4Rx8, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM | |
| 49Y1379 | 49Y1397 | 49Y3778 | 8GB (1x8GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 90Y3108 | 90Y3109 | 8GB (1x8GB, 2Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM | |
| 49Y1562 | 49Y1563 | 16GB (1x16GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM | |
| 00D4963 | 00D4964 | 16GB (1x16GB, 1.5V)PC3-10600 CL9 ECC DDR3 1333MHz LP HyperCloud DIMM | |
| HDD | |||
| - | 42D0672 | 44W2202 | IBM 73GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| - | 42D0632 | 44W2194 | IBM 146GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 90Y8928 | 90Y8926 | IBM 146GB 15K 6Gbps SAS 2.5" SFF G2HS HDD | |
| - | 44W2294 | IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS SED | |
| 90Y8879 | 90Y8877 | IBM 300GB 10K 6Gbps SAS 2.5" SFF G2HS HDD | |
| - | 44W2264 | IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS SED | |
| 81Y9672 | 81Y9670 | IBM 300GB 15K 6Gbps SAS 2.5" SFF HS HDD | |
| 90Y8955 | 90Y8953 | IBM 500GB 7.2K 6Gbps NL SAS 2.5" SFF G2HS HDD | |
| 90Y8874 | 90Y8872 | IBM 600GB 10K 6Gbps SAS 2.5" SFF G2HS HDD | |
| 81Y9652 | 81Y9650 | IBM 900GB 10K 6Gbps SAS 2.5" SFF HS HDD | |
| 81Y9692 | 81Y9690 | IBM 1TB 7.2K 6Gbps NL SAS 2.5" SFF HS HDD | |
| - | 43W7714 | IBM 50GB SATA 2.5" SFF Slim-HS High IOPS SSD | |
| - | 42D0747 | IBM 160GB 7200 NL SATA 2.5" SFF Slim-HS HDD | |
| 81Y9724 | 81Y9722 | 81Y9840 | IBM 250GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 81Y9728 | 81Y9726 | 81Y9844 | IBM 500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 42D0754 | 42D0752 | IBM 500GB 7200 NL SATA 2.5" SFF Slim-HS HDD | |
| 81Y9732 | 81Y9730 | 81Y9848 | IBM 1TB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 90Y8569 | 90Y8567 | IBM 1TB 7.2K 6Gbps NL SAS 3.5" G2HS HDD | |
| 90Y8574 | 90Y8572 | IBM 2TB 7.2K 6Gbps NL SAS 3.5" G2HS HDD | |
| 90Y8579 | 90Y8577 | IBM 3TB 7.2K 6Gbps NL SAS 3.5" G2HS HDD | |
| 81Y9788 | 81Y9786 | 90Y8830 | IBM 500GB 7.2K 6Gbps NL SATA 3.5" G2HS HDD |
| 81Y9792 | 81Y9790 | 90Y8826 | IBM 1TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD |
| 81Y9796 | 81Y9794 | 90Y8822 | IBM 2TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD |
| 81Y9800 | 81Y9798 | IBM 3TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD | |
| 81Y9804 | 81Y9802 | IBM 500GB 7.2K 6Gbps NL SATA 3.5" G2SS HDD | |
| 81Y9808 | 81Y9806 | IBM 1TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD | |
| 81Y9812 | 81Y9810 | IBM 2TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD | |
| 81Y9816 | 81Y9814 | IBM 3TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD | |
| 44W3251 | 46M0901 | IBM UltraSlim Enhanced SATA DVD-ROM | |
| 44W3253 | 46M0902 | 49Y3715 | IBM UltraSlim Enhanced SATA Multi-Burner |
| IO | |||
| 81Y4486 | 81Y4484 | 00D7085 | ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade for IBM System x |
| 90Y4301 | 81Y4487 | 00D7084 | ServeRAID M5100 Series 512MB Flash/RAID 5 Upgrade for IBM System x |
| 81Y4545 | 81Y4544 | ServeRAID M5100 Series Zero Cache/RAID 5 Upgrade for IBM System x | |
| 90Y4302 | 81Y4559 | ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade for IBM System x | |
| 81Y4547 | 81Y4546 | 00D7083 | ServeRAID M5100 Series RAID 6 Upgrade for IBM System x |
| 42C2179 | 39R6525 | 43W8353 | QLogic 4Gb FC Single-Port PCIe HBA for IBM System x |
| 42C2182 | 39R6527 | QLogic 4Gb FC Dual-Port PCIe HBA for IBM System x | |
| 59Y1994 | 59Y1993 | Brocade 4Gb FC Dual-port HBA for IBM System x | |
| 59Y1988 | 59Y1987 | Brocade 4Gb FC Single-port HBA for IBM System x | |
| 43W7492 | 42C2071 | Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x | |
| 43W7491 | 42C2069 | 43W8352 | Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 42D0511 | 42D0510 | 49Y3761 | QLogic 8Gb FC Dual-port HBA for IBM System x |
| 42D0502 | 42D0501 | 49Y3760 | QLogic 8Gb FC Single-port HBA for IBM System x |
| 46M6052 | 46M6050 | 49Y3703 | Brocade 8Gb FC Dual-port HBA for IBM System x |
| 46M6051 | 46M6049 | 49Y3702 | Brocade 8Gb FC Single-port HBA for IBM System x |
| 42D0495 | 42D0494 | 49Y3731 | Emulex 8Gb FC Dual-port HBA for IBM System x |
| 42D0486 | 42D0485 | 49Y3730 | Emulex 8Gb FC Single-port HBA for IBM System x |
| 42C1803 | 42C1800 | QLogic 10Gb CNA for IBM System x | |
| 42C1823 | 42C1820 | Brocade 10Gb CNA for IBM System x | |
| 49Y4217 | 49Y4216 | Brocade 10Gb SFP+ SR Optical Transceiver | |
| 49Y4219 | 49Y4218 | 90Y4575 | QLogic 10Gb SFP+ SR Optical Transceiver |
| 68Y7355 | 46M0907 | 90Y4579 | IBM 6Gb SAS HBA |
| 81Y4588 | 81Y4508 | ServeRAID M5100 Series Battery Kit for IBM System x | |
| - | 172701X | IBM System Storage EXP3000 | |
| - | 172642X | IBM System Storage DS3400 FC Dual Controller | |
| - | 172641X | IBM System Storage DS3400 FC Single Controller | |
| - | 172622X | IBM System Storage DS3200 SAS Dual Controller | |
| - | 172621X | IBM System Storage DS3200 SAS Single Controller | |
| - | 172632X | IBM System Storage DS3300 iSCSI Dual Controller Model | |
| - | 172631X | IBM System Storage DS3300 iSCSI Single Controller Model | |
| - | 43W4296 | ServeRAID-MR10i SAS/SATA Controller | |
| - | INFE+INF | ServeRAID-MR10i Li-Ion Battery | |
| - | INFE+INF | ServeRAID-MR10M SAS/SATA Controller with Remote Battery Kit | |
| - | INFE+INF | IBM 3Gb SAS HBA Controller v2 | |
| - | INFE+INF | 49Y3701 | ServeRAID-BR10i SAS/SATA Controller |
| - | 46M0917 | 90Y4557 | ServeRAID M5000 Series Battery Kit |
| - | 46M0916 | 49Y3720 | ServeRAID M5014 SAS/SATA Controller |
| - | 46M0829 | 49Y3719 | ServeRAID M5015 SAS/SATA Controller |
| - | 49Y4731 | 49Y3759 | ServeRAID-BR10il SAS/SATA Controller v2 |
| - | 46M0930 | 49Y3722 | ServeRAID M5000 Series Advance Feature Key |
| - | 46M0832 | 49Y3721 | ServeRAID M1000 Series Advance Feature Key |
| - | 46M0831 | 90Y4556 | ServeRAID M1015 SAS/SATA Controller |
| - | 1746A4S | IBM System Storage DS3524 Express Single Controller Storage System | |
| - | 1746A4D | IBM System Storage DS3524 Express Dual Controller Storage System | |
| - | 1746A2S | IBM System Storage DS3512 Express Single Controller Storage System | |
| - | 1746A2E | IBM System Storage EXP3512 Express Storage Expansion Unit | |
| - | 1746A2D | IBM System Storage DS3512 Express Dual Controller Storage System | |
| 39Y6071 | 39Y6066 | 44W3278 | NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 42C1753 | 42C1750 | PRO/1000 PF Server Adapter | |
| 42C1783 | 42C1780 | 90Y4576 | NetXtreme II 1000 Express Dual Port Ethernet Adapter |
| 59Y1887 | - | QLogic QLE7340 single-port 4X QDR IB x8 PCI-E 2.0 HCA | |
| 49Y4223 | 49Y4220 | 90Y4577 | NetXtreme II 1000 Express Quad Port Ethernet Adapter |
| 49Y4233 | 49Y4230 | 49Y3758 | Intel Ethernet Dual Port Server Adapter I340-T2 for IBM System x |
| 49Y4243 | 49Y4240 | 90Y4578 | Intel Ethernet Quad Port Server Adapter I340-T4 for IBM System x |
| 49Y8577 | - | IBM 10GbE SW SFP+ Transceiver | |
| 90Y3505 | - | IBM QSFP+ SR Transceiver | |
| 49Y7913 | 49Y7910 | Broadcom NetXtreme II Dual Port 10GBaseT Adapter for IBM System x | |
| 90Y3841 | - | Mellanox QSA Adapter (QSFP to SFP+) | |
| 95Y3450 | - | Mellanox ConnectX-3 VPI Single-port QSFP QDR/FDR10/10GbE HCA | |
| 95Y3454 | - | Mellanox ConnectX-3 VPI Dual-port QSFP QDR/FDR10/10GbE HCA | |
| 95Y3458 | - | Mellanox ConnectX-3 EN Dual-port QSFP+ 40GbE Adapter | |
| 49Y7963 | 49Y7960 | Intel x520 Dual Port 10GbE SFP+ Adapter for IBM System x | |
| 90Y9353 | 90Y9352 | Broadcom NetXtreme I Quad Port GbE Adapter for IBM System x | |
| 90Y9371 | 90Y9370 | Broadcom NetXtreme I Dual Port GbE Adapter for IBM System x | |
| 90Y6268 | 90Y6456 | Emulex Dual Port 10GbE SFP+ Embedded VFA III for IBM System x | |
| 95Y3763 | 95Y3762 | Emulex Dual Port 10GbE SFP+ VFA III for IBM System x | |
| - | 39Y6126 | PRO/1000 PT Dual Port Server Adapter by Intel | |
| - | 39Y6136 | PRO/1000 PT Quad Port Server Adapter by Intel | |
| - | 42C1770 | Qlogic iSCSI Dual-Port PCIe HBA for IBM System x | |
| - | 39Y6146 | Qlogic iSCSI Single-Port PCIe HBA for IBM System x | |
| - | 42C1790 | NetXtreme II 10 GigE Express Fiber SR Adapter | |
| - | 46M1076 | 49Y3717 | Dual Port 1Gb Ethernet Daughter Card |
| - | 49Y4250 | Emulex 10GbE Virtual Fabric Adapter for IBM System x | |
| 80Y9626 | - | IBM Integrated Management Module Advanced Upgrade | |
| - | 81Y9990 | Mellanox ConnectX-2 Dual Port 10GbE Adapter for IBM System x | |
| 41Y8306 | - | IBM Blank USB Memory Key for VMWare ESXi Downloads | |
| 90Y3809 | - | 1m Mellanox QSFP Passive Copper InfiniBand Cable | |
| 90Y3813 | - | 3m Mellanox QSFP Passive Copper InfiniBand Cable | |
| 90Y3817 | - | 5m Mellanox QSFP Passive Copper InfiniBand Cable | |
| 90Y3821 | - | 10m Mellanox QSFP Optical InfiniBand Cable | |
| 90Y3825 | - | 15m Mellanox QSFP Optical InfiniBand Cable | |
| 90Y3829 | - | 20m Mellanox QSFP Optical InfiniBand Cable | |
| 90Y3837 | - | 30m Mellanox QSFP Optical InfiniBand Cable | |
| 95Y3462 | - | 3m Mellanox QSFP Optical InfiniBand Cable | |
| 95Y3466 | - | 5m Mellanox QSFP Optical InfiniBand Cable | |
| 94Y9770 | - | IBM USB Memory Key for VMWare ESXi 5.0 | |
| 81Y6836 | 69Y5319 | x3650 M4 Plus 8x 2.5" HS HDD Assembly Kit with Expander | |
| 81Y6837 | 69Y5320 | x3650 M4 Tape Enablement Kit | |
| 81Y6892 | 69Y5321 | x3650 M4 PCIe Gen-III Riser Card 2 (1 x8 FH/FL + 2 x8 FH/HL Slots) | |
| 81Y6893 | 69Y5322 | x3650 M4 PCIe Gen-III Riser Card 2 (1 x16 FH/FL + 1 x8 FH/HL Slots) | |
| 81Y6895 | 81Y6843 | x3650 M4 PCIX Riser Card 2 (1 x16 FH/HL PCIe + 2 PCIX FH/FL Slots) | |
| 90Y5044 | - | x3650 M4 Remote Supercap and Battery Tray | |
| 90Y6458 | 81Y6821 | IBM System x Gen-III Slides Kit | |
| 90Y6461 | 81Y6822 | IBM System x Gen-III CMA | |
| 90Y6464 | 69Y1192 | IBM System x Gen-III Large Capacity CMA | |
| 90Y6465 | 69Y1193 | IBM System x Universal Slides Kit | |
| 90Y6536 | 69Y1194 | x3650 M4 ODD Cable | |
| - | 46M1071 | IBM System x3550 M2 PCI-X Riser Card | |
| - | 46M1070 | IBM System x3550 M2 PCI-Express (1x16) Riser Card | |
| - | 46C7526 | 49Y3723 | IBM Virtual Media Key |
| - | 41Y8278 | IBM USB Memory Key for VMware ESXi 4 | |
| PWR ACC | |||
| 81Y6563 | 94Y6668 | 00D7087 | IBM System x 550W High Efficiency Platinum AC Power Supply |
| 81Y6562 | 94Y6669 | 00D7088 | IBM System x 750W High Efficiency Platinum AC Power Supply |
| 94Y6666 | 94Y6667 | IBM System x 900W High Efficiency Platinum AC Power Supply | |
| - | 39M2819 | IBM DPI C19 3 phase PDU+ | |
| - | 39M2818 | IBM Dpi C19 PDU+ | |
| - | 40K9620 | IBM UPS3000 Ebm | |
| - | 21304RX | IBM UPS 10000Xhv | |
| - | 21302RX | IBM UPS3000 HV | |
| - | 21301RX | IBM UPS3000 LV | |
| - | 24195KX | IBM UPS5000 HV | |
| - | 21303RX | IBM UPS 7500Xhv | |
| 39Y7957 | - | Virtual Media Conversion Option | |
| 39Y7960 | - | IBM USB Conversion Option Pack | |
| 69Y2045 | - | IBM Serial Conversion Option (SCO) | |
| 69Y2046 | - | IBM Virtual Media Conversion Option Gen2 (VCO2) | |
| - | 17233RX | IBM 1U 15" Flat Panel Console Kit | |
| - | 17231RX | IBM 1U 17" Flat Panel console Kit w/ Optical Drive Bay | |
| - | 17237RX | IBM 19" Fixed Shelf Option | |
| - | 93634PX | IBM 42U 1100mm Enterprise V2 Dynamic Rack | |
| - | 93634EX | IBM 42U 1100mm Enterprise V2 Dynamic Expansion Rack | |
| - | 93061RX | NetBAY11 Standard Rack | |
| - | 31R3132 | IBM 3M Console Switch Cable (USB) | |
| - | 17354GX | Global 4x16 Console Mngr (GCM4) | |
| - | 40K9584 | IBM Preferred Pro Keyboard USB - US English 103P | |
| - | 40K9201 | IBM 3 Button Optical Mouse - Black - USB | |
| - | 40K9200 | IBM Optical Wheel Mouse - USB RoHS | |
| - | 40K5372 | IBM Keyboard w/ Integrated Pointing Device USB - US English 103P | |
| - | 39R6531 | IBM 3M SAS Cable | |
| - | 39R6529 | IBM 1M SAS Cable | |
| 39Y8072 | - | IBM Single Cable USB Conversion Option (UCO) | |
| TAPE | |||
| 46C5376 | - | IBM RDX 320GB Cartridge | |
| 46C5378 | - | IBM RDX 500GB Cartridge | |
| 46C5369 | - | IBM RDX Internal USB Dock | |
| - | 43W8478 | 49Y3697 | IBM Half High LTO Gen 3 SAS Tape Drive |
| - | INFE+INF | 90Y4588 | IBM Half High LTO Gen 4 SAS Tape Drive |

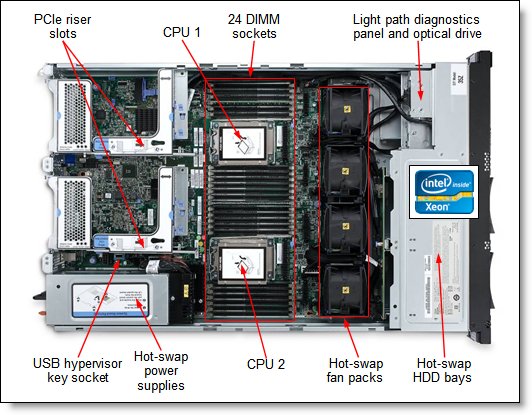

Budowa serwera
