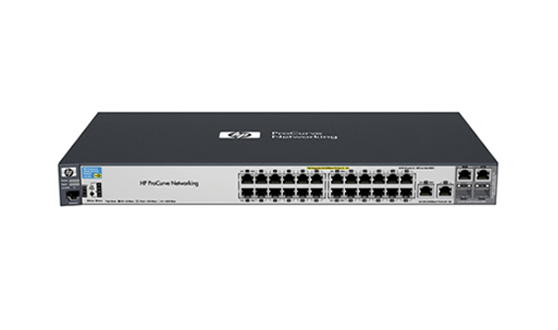

Switch HP 2520-24-PoE, J9138A, 24x 10/100 PoE
towar niedostępny
dodaj do przechowalniOpis
Switch HP 2520-24-PoE, J9138A,
Przełącznik HP ProCurve 2520-24-PoE jest idealny dla małych i średnich firm, które chcą wdrożyć rozwiązania głosowe, wideo i / lub bezprzewodowe, które wymagają połączenia Power over Ethernet (PoE). Zarządzany przełącznik obsługuje podwójne gigabitowe porty, które można wykorzystać do połączenia miedzianego lub światłowodowego. W pełni zarządzane przez SNMP, z interfejsem wiersza poleceń (CLI) i graficznym interfejsem użytkownika (GUI), oferuje także zestaw funkcji warstwy 2.
Porty:
- 24 RJ-45 auto-sensing 10/100 PoE ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3af PoE)
- Media Type: Auto-MDIX
- Duplex: half or full
- 2 RJ-45 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T)
- Media Type: Auto-MDIX
- Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only
- 2 dual-personality ports: each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers)
- 1 RJ-45 serial console port
wymiary: 44x24,5x4,4
Standards and protocols:
- Denial of service protection
- CPU DoS Protection
- Device management
- RFC 1591 DNS (client)
- SSHv1/SSHv2 Secure Shell
- General protocols
- IEEE 802.1D MAC Bridges
- IEEE 802.1p Priority
- IEEE 802.1Q VLANs
- IEEE 802.1s Multiple Spanning Trees
- IEEE 802.1w Rapid Reconfiguration of Spanning Tree
- IEEE 802.3 Type 10BASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- IEEE 802.3af Power over Ethernet
- IEEE 802.3x Flow Control
- RFC 768 UDP
- RFC 783 TFTP Protocol (revision 2)
- RFC 792 ICMP
- RFC 793 TCP
- RFC 826 ARP
- RFC 854 TELNET
- RFC 868 Time Protocol
- RFC 951 BOOTP
- RFC 1350 TFTP Protocol (revision 2)
- RFC 1542 BOOTP Extensions
- RFC 2030 Simple Network Time Protocol (SNTP) v4
- RFC 2131 DHCP
- IP multicast
- RFC 3376 IGMPv3 (host joins only)
- IPv6
- RFC 1981 IPv6 Path MTU Discovery
- RFC 2460 IPv6 Specification
- RFC 2925 Remote Operations MIB (Ping only)
- RFC 3315 DHCPv6 (client only)
- RFC 3513 IPv6 Addressing Architecture
- RFC 3596 DNS Extension for IPv6
- RFC 4022 MIB for TCP
- RFC 4113 MIB for UDP
- RFC 4251 SSHv6 Architecture
- RFC 4252 SSHv6 Authentication
- RFC 4253 SSHv6 Transport Layer
- RFC 4254 SSHv6 Connection
- RFC 4293 MIB for IP
- RFC 4419 Key Exchange for SSH
- RFC 4443 ICMPv6
- RFC 4861 IPv6 Neighbor Discovery
- RFC 4862 IPv6 Stateless Address Auto-configuration
- MIBs
- RFC 1213 MIB II
- RFC 1493 Bridge MIB
- RFC 2021 RMONv2 MIB
- RFC 2613 SMON MIB
- RFC 2618 RADIUS Client MIB
- RFC 2620 RADIUS Accounting MIB
- RFC 2665 Ethernet-Like-MIB
- RFC 2668 802.3 MAU MIB
- RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
- RFC 2737 Entity MIB (Version 2)
- RFC 2863 The Interfaces Group MIB
- Network management
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
- RFC 1098 A Simple Network Management Protocol (SNMP)
- RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
- SNMPv1/v2c/v3
- QoS/Cos
- RFC 2474 Diffserv precedence, with 4 queues per port
- RFC 2475 DiffServ Architecture
- RFC 2597 DiffServ Assured Forwarding (AF)
- RFC 2598 DiffServ Expedited Forwarding (EF)
- Security
- IEEE 802.1X Port Based Network Access Control
- RFC 1492 TACACS+
- RFC 2138 RADIUS Authentication
- RFC 2866 RADIUS Accounting
- Secure Sockets Layer (SSL)
+ uchwyty montażowe
brak okablowania
zdjęcie poglądowe
Dane techniczne
stan | używany |
Model | J9138A |
ilosc | 24 |
poe | Tak |
Głębokość (CM) | 24,5 |
