BL2x220c G7
HP/BL2x220c G7
Opis

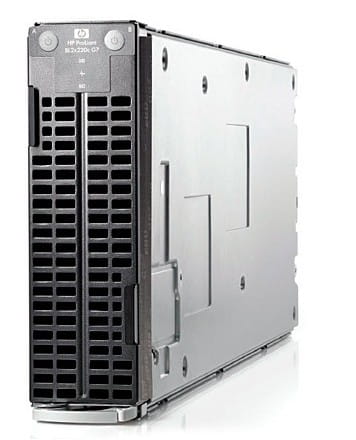

Serwer HP ProLiant BL2x220c G7, przełomowe rozwiązanie w zakresie połączeń sieciowych i zagęszczenia komponentów, oferuje najlepsze w branży funkcje obsługi sieci dostępne za pośrednictwem wbudowanej karty Mellanox QDR Infiniband. Dzięki temu klienci zyskują skoncentrowane środowisko Infiniband, które umożliwia obniżenie kosztów i łatwiejsze zarządzanie siecią. Połączenie gęstości upakowania i szybkich interfejsów sieciowych oferuje doskonałą wydajność oraz największą sprawność energetyczną skalowalnych centrów przetwarzania danych.
Specyfikacja
| obudowa | Blade c-class half height |
| procesory | cztery 6- lub 4-o rdzeniowe procesory Intel Xeon z serii E 55xx, X56xx, L56xx |
| pamięć cache procesora | Do 12MB L3 |
| pamięć RAM | do 96GB pamięci w 6 slotach DIMM |
| dyski twarde | do 2szt. dysków 2.5" non-hot plug SATA |
| kontrolery RAID | SATA Controller zintegrowany na płycie głównej |
| Slot na napęd optyczny | brak |
| Klatka na napęd taśmowy | brak |
| karty sieciowe | Zintegrowana Dual-port NC362i Gigabit Server Adapter lub One-port NC543i 1-port 4xQDR IB/10Gb Flex-10 Adapter |
| sloty PCI | brak |
| porty USB | 1x USB 2.0 wewnątrz |
| porty VGA | zewnętrzne / w obudowie BladeCenter |
| porty szeregowe | zewnętrzne / w obudowie BladeCenter |
| porty zarządzania | zewnętrzne / w obudowie BladeCenter |
| zasilacze | zewnętrzne / w obudowie BladeCenter |
| komponenty Hot Plug | brak |
| wymiary | Wysokość: 18,17 cm, szerokość: 5,56 cm, głębokość: 50,95 cm |
| waga | 5,8 kg minimalna - 7,03 kg maksymalna (w zależności od opcji) |
Standardowe Modele
| HP ProLiant BL2x220c G7 X5670 2x2P 48GB-R Non-hot Plug SATA 500GB SFF Server | Processor(s) | (2) Intel® Xeon® processor E5649 (2.53GHz/6-core/12MB/80W, DDR3-1333, HT, Turbo1/1/1/1/2/2) |
| 661103-B21 | (2) Intel® Xeon® processor E5640 (2.66GHz/4-core/12MB/80W, DDR3-1066, HT, Turbo 1/1/2/2) | |
| (2) Intel® Xeon® processor X5670 (2.93GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) | ||
| HP ProLiant BL2x220c G7 E5649 2x2P 48GB-R Non-hot Plug SATA 500GB SFF Server | (2) Intel® Xeon® processor L5640 (2.26GHz/6-core/12MB/60W, DDR3-1333, HT, Turbo 2/2/3/3/4/4) | |
| 661101-B21 | Cache Memory | 12MB L3 cache |
| Memory | 24 GB (6 x 4GB) PC3-10600 (DDR3-1333) Registered DIMMs | |
| HP ProLiant BL2x220c G7 E5640 2x2P 48GB-R Non-hot Plug SATA 500GB SFF Server | ||
| 661102-B21 | Network Adapter | Embedded NC362i Dual Port Gigabit Server Adapter |
| Embedded Single Port NC543i 4xQDR IB/10Gb Flex-10 Adapter and one (1) additional 10/100 network adapter dedicated to iLO 3 | ||
| HP ProLiant BL2x220c G7 L5640 2x2P 48GB-R Non-hot Plug SATA 500GB SFF Server | Management | |
| 661104-B21 | Storage Controller | HP Embedded SATA Controller |
| Hard Drives | One (1) 500GB SATA Non-Hot Plug Hard Drive | |
| Internal Storage | SATA: 500GB Maximum | |
| Optical Drive | None | |
| Form Factor | Up to 16 half-height blades (32 server nodes) supported in HP BladeSystem c7000 Enclosure |
Kompatybilne opcje
| Models | HP ProLiant BL2x220c G7 Configure-to-order Server | 605069-B21 |
| HP ProLiant BL2x220c G7 Configure-to-order Node-A Server | 611118-B21 | |
| HP ProLiant BL2x220c G7 Configure-to-order Node-B Server | 611119-B21 | |
| Configurable Model ships with: | ||
| Embedded 1GbE NC362i Dual-port Gigabit Server Adapter per server node, Embedded NC543i Single-port 4xQDR IB/10Gb Flex-10 Adapter per server node | ||
| plus one (1) additional 10/100 network adapter dedicated to iLO 3 Management | ||
| Integrated Lights-Out 3 Standard Blade Edition | ||
| HP Processors | Six-Core Processor Option Kits | |
| HP BL2x220c G7 Intel® Xeon® X5675 (3.06GHz/6-core/12MB/95W) FIO Processor Kit | 632682-L21 | |
| HP BL2x220c G7 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) FIO Processor Kit | 611120-L21 | |
| HP BL2x220c G7 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) FIO Processor Kit | 611121-L21 | |
| HP BL2x220c G7 Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W) FIO Processor Kit | 611122-L21 | |
| HP BL2x220c G7 Intel® Xeon® E5649 (2.53GHz/6-core/12MB/80W) FIO Processor Kit | 632684-L21 | |
| HP BL2x220c G7 Intel® Xeon® E5645 (2.40GHz/6-core/12MB/80W) FIO Processor Kit | 632685-L21 | |
| HP BL2x220c G7 Intel® Xeon® L5640 (2.26GHz/6-core/12MB/60W) FIO Processor Kit | 611127-L21 | |
| Four-Core Processor Option Kits | ||
| HP BL2x220c G7 Intel® Xeon® X5672 (3.20GHz/4-core/12MB/95W) FIO Processor Kit | 632683-L21 | |
| HP BL2x220c G7 Intel® Xeon® E5640 (2.66GHz/4-core/12MB/80W) FIO Processor Kit | 611123-L21 | |
| HP BL2x220c G7 Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W) FIO Processor Kit | 611125-L21 | |
| HP BL2x220c G7 Intel® Xeon® L5630 (2.13GHz/4-core/12MB/40W) FIO Processor Kit | 611128-L21 | |
| HP Memory | Registered DIMMs (RDIMMs) | |
| HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500656-B21 | |
| HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500658-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 593339-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | 604504-B21 | |
| HP 4GB (1x4GB) Dual Rank x8 PC3L-10600 (DDR3-1333) Unbuffered CAS-9 Low Power Memory Kit | 619488-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | 604506-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500662-B21 | |
| HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit | 500666-B21 | |
| HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit | 627812-B21 | |
| Unbuffered with ECC DIMMs (UDIMMs) | ||
| HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | 500668-B21 | |
| HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | 500670-B21 | |
| HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | 500672-B21 | |
| Hard Drives | SATA Non-Hot Plug SFF (2.5-inch) Entry (ETY) Drives | |
| HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Non-hot plug Entry 1yr Warranty Hard Drive | 628033-B21 | |
| HP Unique Options | HP BL2x220c Secure Digital Reader Kit | 584518-B21 |
| HP Memory | Registered DIMMs (RDIMMs) | |
| HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500656-B21 | |
| HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500658-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 593339-B21 | |
| HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | 604504-B21 | |
| HP 4GB (1x4GB) Dual Rank x8 PC3L-10600 (DDR3-1333) Unbuffered CAS-9 Low Power Memory Kit | 619488-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | 604506-B21 | |
| HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | 500662-B21 | |
| HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit | 500666-B21 | |
| HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit | 627812-B21 | |
| Unbuffered with ECC DIMMs (UDIMMs) | ||
| HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | 500668-B21 | |
| HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | 500670-B21 | |
| HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | 500672-B21 | |
| HP Hard Drive | SATA Non-Hot Plug SFF (2.5-inch) Entry (ETY) Drives | |
| HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Non-hot plug Entry 1yr Warranty Hard Drive | 628033-B21 | |
| HP Insight software | HP Insight Control | |
| HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License | T9074BAE | |
| HP Insight Software Media Kit | 436222-B21 | |
| HP Insight Control for Linux | ||
| HP Insight Control for Linux including 1yr 24x7 Support Electronic License | TC213AAE | |
| HP Insight Control for Linux including 1yr 24x7 Support Single Server License | TC209A | |
| HP Insight Control for Linux Media Kit | TC208A | |
| HP iLO Advanced for BladeSystem | ||
| HP iLO Advanced for BladeSystem including 1yr 24x7 Support Electronic License | TA851AAE | |
| HP iLO Advanced for BladeSystem including 1yr 24x7 Support Single Server License | 512488-B21 | |
| HP Insight Control server deployment | ||
| HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License | T9082AAE | |
| HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License | 452151-B21 | |
| High Performance Clusters | HP Insight Cluster Management Utility | |
| HP Insight Cluster Management Utility Compute Node Flexible License | QL803B | |
| HP Insight Cluster Management Utility License and Media | BD477A | |
| HP Insight Cluster Management Utility Flexible License with 3 years of 24x7 updates and technical support | BD476A | |
| HP HPC Linux Value Pack | ||
| HP High Performance Computing Linux Value Pack 1 Processor Flexible License | TC293B | |
| HP High Performance Computing Linux Value Pack Media Kit | TC294A | |
| HP InfiniBand Interconnects | HP 4X DDR InfiniBand Generation2 Switch Module for c-Class BladeSystem | 489183-B21 |
| HP 4X QDR InfiniBand Switch Module for c-Class BladeSystem | 489184-B21 | |
| HP Ethernet Interconnects | HP 1/10Gb-F Virtual Connect Ethernet Module for c-Class BladeSystem | 447047-B21 |
| HP 1GB Ethernet Pass-Thru Module for c-Class BladeSystem | 406740-B21 | |
| Cisco Catalyst 1/10GbE 3120X Blade Switch | 451439-B21 | |
| Cisco Catalyst Blade Switch 3020 for HP c-Class BladeSystem | 410916-B21 | |
| Cisco Catalyst 1GbE 3120G Blade Switch | 451438-B21 | |
| HP GbE2c Layer 2/3 Ethernet Blade Switch | 438030-B21 | |
| HP 6120G/XG Ethernet Blade Switch | 498358-B21 | |
| HP 10GbE Ethernet Pass-Thru Module for c-Class BladeSystem | 538113-B21 | |
| HP Virtual Connect Flex-10 10Gb Ethernet Module for c-Class BladeSystem | 455880-B21 | |
| HP Virtual Connect FlexFabric 10Gb/24-port Module for c-Class BladeSystem | 571956-B21 | |
| HP 6120XG Blade Switch | 516733-B21 | |
| HP USB and SD Options | HP BL2x220c Secure Digital Reader Kit | 584518-B21 |
| HP 4GB Secure Digital High Capacity Flash Media Kit | 580387-B21 | |
| HP 2GB USB Flash Media Drive Key Kit | 608447-B21 | |
| HP Care Pack Services | Hardware Services On-site Service | |
| HP 3 year 4 hour 13x5 BL2x2xxc Server Blade Hardware Support | UK144E | |
| HP 3 year 4 hour 24x7 BL2x2xxc Server Blade Hardware Support | UK145E | |
| HP 3 year 6 hour 24x7 Call to Repair BL2x2xxc Server Blade Hardware Support | UK146E |
