QuickSpecs HPE ProLiant DL180 Gen10 Server Overview

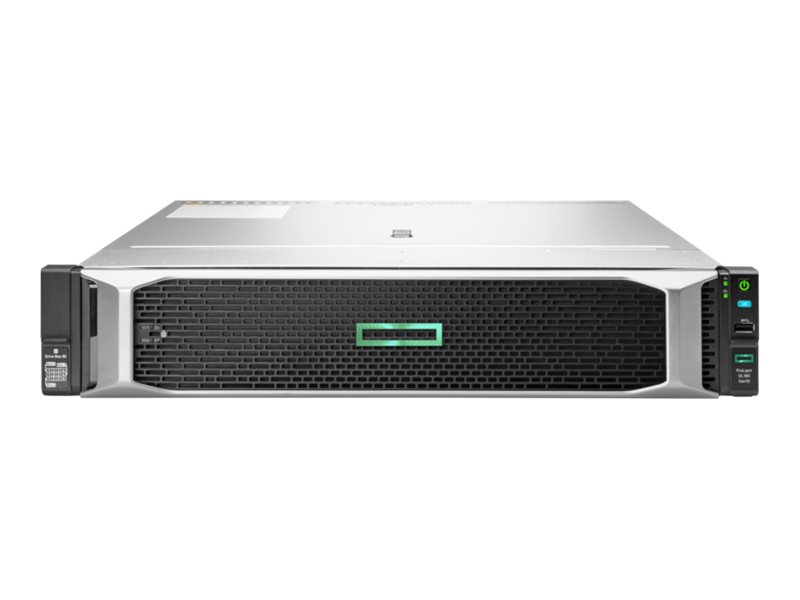

HPE ProLiant DL180 Gen10 Server
Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL180 Gen10 delivers world-class compelling performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency with the right balance of reliability, manageability and performance, while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform. SMBs and enterprises running application.
- 8 SFF Drive Cage USB 3.0
- iLO Front Service Port Serial label pull tag
- Health LED 10 Box 3
- NIC status Box 2 (Optional 8 SFF, blank shown)
- Power On/Standby button and system power LED button 12 Box 1 (Optional 8 SFF or Optical Drive, blank shown)
8SFF Chassis – with optional 2nd CPU - Internal View
- Standard single rotor hot swap fans MicroSD card slot
- CPU – 3 standard fans
- CPUs – 5 standard fans (1 redundant fan shown)*
- Smart Storage Battery (No battery shown) * iLO Service Port Connector
- Up to 2 processors (shown with standard heat sinks) Primary PCIe Riser: 8x8x8
- Chassis Intrusion Detection connector * Media Module Connector
- Hard Drive backplane power connector Mini-SAS port 1
- System Battery Mini-SAS port 2
- Internal USB 3.0 connector Mini-SAS port 3
- Power supply (non-redundant power supply shown) SATA port 4
- Secondary (CPU2) PCIe 3.0 riser SATA port 5
- Flexible Smart Array Controller Connector Front Power USB 3.0 connector
- TPM 2.0* DDR4 DIMM slots
(Fully populated 16 DIMMs shown)
Notes: *Optional
HPE ProLiant DL180 Gen10 Server
Rear View
- Primary Riser. PCI Slots (Slots 1-3 top to bottom) VGA Port
- Serial Port * Dedicated iLO management port
- Secondary Riser. PCI Slots (Slots 4-6 top to bottom, requires USB connectors 3.0 (2) second riser card and second processor).
- Power Supply (Redundant Hot plug shown) Media Module*
- Embedded 2 x 1GbE Network Adapter
Notes: *Optional
8LFF Chassis - Front View
- Quick removal access panel UID button
- Optional: Optical drive (Blank Shown) USB 3.0
- iLO Front Service Port LFF Drive cage
- Health LED Box 3 5. NIC Status 11. Box 2
- Power On/Standby button and system power LED button 12. Box 1
12LFF Chassis - Front View
- Quick removal access panel USB 3.0
- Health LED LFF Drive cage
- NIC Status Box 3
- Power On/Standby button and system power LED button Box 2
- UID button 10 Box 1
What’s New
- 800GB, 1.6/3.2/6.4TB Mixed Use SAS SFF PM6 SSDs
- 960GB, 1.92/3.84/7.68TB Read Intensive SAS SFF PM6 SSDs
- 400/800GB, 1.6TB Write Intensive SAS SFF PM6 SSDs
- Support for P816i-a storage controller including new cable/enablement kits
- Pre-configured server including P816i-a storage controller
Platform Information
Form Factor
- 2U rack
Chassis Types
- 8 SFF (upgradeable to 24SFF)
- 8 LFF
- 12 LFF
Notes: All models come with the S100i Smart Array Controller with embedded software RAID support for 14 drives. However this needs to be enabled using Enable SW RAID option (784308-B21) while configuring.
System Fans
- Standard – fan types (without rear drives)
Model |
Non-Redundant |
Redundant |
1P Model |
3 fans |
4 fans |
2P Model |
5 fans |
6 fans |
HPE ProLiant DL180 Gen10 Server
Processors – Up to 2 of the following depending on model. Notes:
− |
The 2nd digit of the processor model number “x1xx” and “x2xx” is used to denote the processor generation (i.e. 1=1st generation and 2=2nd generation) |
− |
Field upgrades from 1st generation processors (x1xx) to 2nd generation processors (x2xx) not supported. |
− |
“U” processors (i.e. 6209U) only supported in single socket configurations |
− |
This table covers the public Intel offering only. |
− |
For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon. |
2nd Generation Intel® Xeon® Scalable Processor Family |
|
|
|
|
|||
Intel Xeon Models |
CPU Frequency |
Cores |
L3 Cache |
Power |
UPI |
DDR4 |
Memory per socket |
Platinum 8256 Processor |
3.8 GHz |
4 |
16.50 MB |
105W |
3 @ 10.4 GT/s |
2933 MT/s |
1TB |
Platinum 8253 Processor |
2.2 GHz |
16 |
22.00 MB |
125W |
3 @ 10.4 GT/s |
2933 MT/s |
1TB |
Notes:
− |
6-Channel DDR4 @ 2933 MT/s with 1TB memory capacity per socket |
− |
2 and 4 socket capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 10.4 GT/s. |
− |
Support for: Vector Neural Network Instructions (VNNI) for inference acceleration, Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA), advanced RAS |
− |
48 lanes PCIe 3.0 |
2nd Generation Intel® Xeon® Scalable Processor Family |
|
|
|
|
|||
Intel Xeon Models |
CPU Frequency |
Cores |
L3 Cache |
Power |
UPI |
DDR4 |
Memory per socket |
Gold 6252 Processor |
2.1 GHz |
24 |
35.75 MB |
150W |
3 @ 10.4 GT/s |
2933 MT/s |
1TB |
Gold 6248 Processor |
2.5 GHz |
20 |
27.5 MB |
150W |
3 @ 10.4 GT/s |
2933 MT/s |
1TB |
Gold 6244 Processor |
3.6 GHz |
8 |
24.75 MB |
150W |
3 @ 10.4 GT/s |
2933 MT/s |
1TB |
Gold 6242 Processor |
2.8 GHz |
16 |
22 MB |
150W |
3 @ 10.4 GT/s |
2933 MT/s |
1TB |
Gold 6240 Processor |
2.6 GHz |
18 |
24.75 MB |
150W |
3 @ 10.4 GT/s |
2933 MT/s |
1TB |
Gold 6238 Processor |
2.1 GHz |
22 |
30.25 MB |
140W |
3 @ 10.4 GT/s |
2933 MT/s |
1TB |
Gold 6234 Processor |
3.3 GHz |
8 |
24.75 MB |
130W |
3 @ 10.4 GT/s |
2933 MT/s |
1TB |
Gold 6230R Processor |
2.1 GHz |
26 |
35.75 MB |
150W |
2 @ 10.4 GT/s |
2933 MT/s |
1TB |
Gold 6230 Processor |
2.1 GHz |
20 |
27.5 MB |
125W |
3 @ 10.4 GT/s |
2933 MT/s |
1TB |
Gold 6226R Processor |
2.9 GHz |
16 |
22 MB |
150W |
2 @ 10.4 GT/s |
2933 MT/s |
1TB |
Gold 6226 Processor |
2.7 GHz |
12 |
19.25 MB |
125W |
3 @ 10.4 GT/s |
2933 MT/s |
1TB |
Gold 6210U Processor |
2.5 GHz |
20 |
27.50 MB |
150W |
N/A |
2933 MT/s |
1TB |
Gold 6209U Processor |
2.1 GHz |
20 |
27.50 MB |
125W |
N/A |
2933 MT/s |
1TB |
Gold 6208U Processor |
2.9 GHz |
16 |
22 MB |
150W |
N/A |
2933 MT/s |
1TB |
Gold 5222 Processor |
3.8 GHz |
4 |
16.5 MB |
105W |
2 @ 10.4 GT/s |
2933 MT/s |
1TB |
Gold 5220R Processor |
2.2 GHz |
24 |
35.75 MB |
150W |
2 @ 10.4 GT/s |
2933 MT/s |
1TB |
Gold 5220 Processor |
2.2 GHz |
18 |
24.75 MB |
125W |
2 @ 10.4 GT/s |
2666 MT/s |
1TB |
Gold 5218R Processor |
2.1 GHz |
20 |
27.50 MB |
125W |
2 @ 10.4 GT/s |
2666 MT/s |
1TB |
Gold 5218 Processor |
2.3 GHz |
16 |
22 MB |
125W |
2 @ 10.4 GT/s |
2666 MT/s |
1TB |
Gold 5217 Processor |
3.0 GHz |
8 |
11 MB |
115W |
2 @ 10.4 GT/s |
2666 MT/s |
1TB |
Gold 5215 Processor |
2.5 GHz |
10 |
13.75 MB |
85W |
2 @ 10.4 GT/s |
2666 MT/s |
1TB |
Notes:
− 6-Channel DDR4 @ 2933 MT/s (Gold 6200 & 5222 skus only), 2666 MT/s on all Gold 5200 skus (except 5222 @ 2933 MT/s) with 1TB memory capacity per socket
− 2 and 4 socket capable, 2S - 2UPI, 2S - 3UPI, 4S-2UPI, 4S - 3UPI @ 10.4 GT/s.
− Support for: Vector Neural Network Instructions (VNNI) for inference acceleration, Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA) (Gold 6200 and SKU 5222 - supports 2x 512 bit FMA), advanced RAS
− 48 lanes PCIe 3.0
1st Generation Intel® Xeon® Scalable Processor Family |
|
|
|
|
|||
Intel Xeon Models |
CPU Frequency |
Cores |
L3 Cache |
Power |
UPI |
DDR4 |
Memory per socket |
Gold 6152 Processor |
2.1 GHz |
22 |
30.25 MB |
140W |
3 @ 10.4 GT/s |
2666 MT/s |
768GB |
Gold 6148 Processor |
2.4 GHz |
20 |
27.50 MB |
150W |
3 @ 10.4 GT/s |
2666 MT/s |
768GB |
Gold 6144 Processor |
3.5 GHz |
8 |
24.75 MB |
150W |
3 @ 10.4 GT/s |
2666 MT/s |
768GB |
Gold 6142 Processor |
2.6 GHz |
16 |
22.00 MB |
150W |
3 @ 10.4 GT/s |
2666 MT/s |
768GB |
Gold 6140 Processor |
2.3 GHz |
18 |
24.75 MB |
140W |
3 @ 10.4 GT/s |
2666 MT/s |
768GB |
Gold 6138 Processor |
2.0 GHz |
20 |
27.50 MB |
125W |
3 @ 10.4 GT/s |
2666 MT/s |
768GB |
Gold 6136 Processor |
3.0 GHz |
12 |
24.75 MB |
150W |
3 @ 10.4 GT/s |
2666 MT/s |
768GB |
Gold 6134 Processor |
3.2 GHz |
8 |
24.75 MB |
130W |
3 @ 10.4 GT/s |
2666 MT/s |
768GB |
Gold 6132 Processor |
2.6 GHz |
14 |
19.25 MB |
140W |
3 @ 10.4 GT/s |
2666 MT/s |
768GB |
Gold 6130 Processor |
2.1 GHz |
16 |
22.00 MB |
125W |
3 @ 10.4 GT/s |
2666 MT/s |
768GB |
Gold 6128 Processor |
3.4 GHz |
6 |
19.25 MB |
115W |
3 @ 10.4 GT/s |
2666 MT/s |
768GB |
Gold 6126 Processor |
2.6 GHz |
12 |
19.25 MB |
125W |
3 @ 10.4 GT/s |
2666 MT/s |
768GB |
Gold 5122 Processor |
3.6 GHz |
4 |
16.50 MB |
105W |
2 @ 10.4 GT/s |
2666 MT/s |
768GB |
Gold 5120 Processor |
2.2 GHz |
14 |
19.25 MB |
105W |
2 @ 10.4 GT/s |
2400 MT/s |
768GB |
Gold 5118 Processor |
2.3 GHz |
12 |
16.50 MB |
105W |
2 @ 10.4 GT/s |
2400 MT/s |
768GB |
Gold 5115 Processor |
2.4 GHz |
10 |
13.75 MB |
85W |
2 @ 10.4 GT/s |
2400 MT/s |
768GB |
Notes:
− |
6-Channel 1DPC DDR4 @ 2666 MT/s (Gold 6100 skus), 2400 MT/s on all Gold 5100 skus (SKU 5122 - supports 2666 MT/s), with 768GB memory capacity per socket |
||||||||||||||||||
− |
2 and 4 socket capable, 2S - 2UPI, 2S-3UPI, 4S - 3UPI @ 10.4 GT/s. |
||||||||||||||||||
− |
Support for: Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA) (Gold 6100 and SKU 5122 - supports 2x 512 bit FMA), advanced RAS |
||||||||||||||||||
− |
48 lanes PCIe 3.0 |
||||||||||||||||||
2nd Generation Intel® Xeon® Scalable Processor Family |
|
|
|
|
|||||||||||||||
Intel Xeon Models |
CPU Frequency |
Cores |
L3 Cache |
Power |
UPI |
DDR4 |
Memory per socket |
||||||||||||
Silver 4216 Processor |
2.1 GHz |
16 |
22 MB |
100W |
2 @ 9.6 GT/s |
2400 MT/s |
1TB |
||||||||||||
Silver 4215R Processor |
3.2 GHz |
8 |
11 MB |
130W |
2 @ 9.6 GT/s |
2400 MT/s |
1TB |
||||||||||||
Silver 4215 Processor |
2.5 GHz |
8 |
11 MB |
85W |
2 @ 9.6 GT/s |
2400 MT/s |
1TB |
||||||||||||
Silver 4214R Processor |
2.4 GHz |
12 |
16.5 MB |
100W |
2 @ 9.6 GT/s |
2400 MT/s |
1TB |
||||||||||||
Silver 4214 Processor |
2.2 GHz |
12 |
16.5 MB |
85W |
2 @ 9.6 GT/s |
2400 MT/s |
1TB |
||||||||||||
Silver 4210R Processor |
2.4 GHz |
10 |
13.75 MB |
100W |
2 @ 9.6 GT/s |
2400 MT/s |
1TB |
||||||||||||
Silver 4210 Processor |
2.2 GHz |
10 |
13.75 MB |
85W |
2 @ 9.6 GT/s |
2400 MT/s |
1TB |
||||||||||||
Silver 4208 Processor |
2.1 GHz |
8 |
11 MB |
85W |
2 @ 9.6 GT/s |
2400 MT/s |
1TB |
||||||||||||
Notes: |
|
|
|
|
|
||||||||||||||
− |
6-Channel DDR4 @ 2400 MT/s with 1TB memory capacity per socket |
||||||||||||||||||
− |
2 socket supports 2UPI @ 9.6 GT/s. |
||||||||||||||||||
− |
Support for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration, Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA), standard RAS |
||||||||||||||||||
− |
48 lanes PCIe 3.0 |
||||||||||||||||||
1st Generation Intel® Xeon® Scalable Processor Family |
|
|
|
|
|||||||||||||||
Intel Xeon Models |
CPU Frequency |
Cores |
L3 Cache |
Power |
UPI |
DDR4 |
Memory per socket |
||||||||||||
Silver 4116 Processor |
2.1 GHz |
12 |
16.50 MB |
85W |
2 @ 9.6 GT/s |
2400 MT/s |
768GB |
||||||||||||
Silver 4114 Processor |
2.2 GHz |
10 |
13.75 MB |
85W |
2 @ 9.6 GT/s |
2400 MT/s |
768GB |
||||||||||||
Silver 4112 Processor |
2.6 GHz |
4 |
8.25 MB |
85W |
2 @ 9.6 GT/s |
2400 MT/s |
768GB |
||||||||||||
Silver 4110 Processor |
2.1 GHz |
8 |
11.00 MB |
85W |
2 @ 9.6 GT/s |
2400 MT/s |
768GB |
||||||||||||
Silver 4108 Processor |
1.8 GHz |
8 |
11.00 MB |
85W |
2 @ 9.6 GT/s |
2400 MT/s |
768GB |
Notes:
− |
6-Channel DDR4 @ 2400 MT/s providing with 768GB memory capcity per socket |
− |
2 Socket supports 2UPI @ 9.6 GT/s |
− |
Support for: Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), standard RAS |
− |
48 lanes PCIe 3.0 |
2nd Generation Intel® Xeon® Scalable Processor Family |
|
|
|
|
||||||
Intel Xeon Models |
CPU Frequency |
Cores |
L3 Cache |
Power |
UPI |
DDR4 |
Memory per socket |
|||
Bronze 3206R |
1.9 GHz |
8 |
11 MB |
85W |
2 @ 9.6 GT/s |
2133 MT/s |
1 TB |
|||
Bronze 3204 Processor |
1.9 GHz |
6 |
8.25 MB |
85W |
2 @ 9.6 GT/s |
2133 MT/s |
1 TB |
|||
Notes: |
|
|
|
|
|
|||||
− |
6-Channel DDR4 @ 2133 MT/s with 1TB memory capacity per socket |
|||||||||
− |
2 Socket supports 2UPI @ 9.6 GT/s |
|||||||||
− |
Support for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration., Intel AVX-512 (1x 512-bit FMA), standard RAS |
|||||||||
− |
48 lanes PCIe 3.0 |
1st Generation Intel® Xeon® Scalable Processor Family |
|
|
|
|
|||
Intel Xeon Models |
CPU Frequency |
Cores |
L3 Cache |
Power |
UPI |
DDR4 |
Memory per socket |
Bronze 3106 Processor |
1.7 GHz |
8 |
11.00 MB |
85W |
2 @ 9.6 GT/s |
2133 MT/s |
768GB |
Bronze 3104 Processor |
1.7 GHz |
6 |
8.25 MB |
85W |
2 @ 9.6 GT/s |
2133 MT/s |
768GB |
Notes:
− 6-Channel DDR4 @ 2133 MT/s with 768GB memory capacity per socket
− 2 Socket supports 2UPI @ 9.6 GT/s
− Support for: Intel AVX-512(1x 512-bit FMA), standard RAS − 48 lanes PCIe 3.0
Chipset
Intel C622 Chipset
Notes: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/
On System Management Chipset
HPE iLO 5 ASIC
Notes: Read and learn more in the iLO QuickSpecs.
Memory
Type |
HPE DDR4 SmartMemory Registered (RDIMM), Load Reduced (LRDIMM) |
DIMM Slots Available |
16 8 DIMM slots per processor, 6 channels per processor, 2 channels @ 2 DIMMs per channel, 4 channels @ 1 DIMM per channel |
Maximum capacity (LRDIMM) |
1.0 TB 16 x 64 GB LRDIMM @ 2933 MT/s |
Maximum capacity (RDIMM) |
1.0 TB 16 x 64 GB RDIMM @ 2933 MT/s |
Notes:
− Mixing of RDIMM and LRDIMM memory is not supported.
− For General Server Memory Population Rules and Guidelines for Gen10 see details here:
http://www.hpe.com/docs/memory-population-rules
Memory Protection
Advanced ECC
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.
Online Spare
Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.
Notes: For more information see our Memory RAS feature technical whitepaper
Expansion Slots
CPU1 x8x8x8 riser |
|
|
|
|
|
Slots # |
Technology |
Bus Width |
Connector Width |
Slot Form Factor |
Notes |
1 |
PCIe 3.0 |
X8 |
X8 |
Full-height, full-length slot |
Proc 1 |
2 |
PCIe 3.0 |
X8 |
X8 |
Full-height, half-length slot |
Proc 1 |
3 |
PCIe 3.0 |
X8 |
X8 |
Full-height, half-length slot |
Proc 1 |
Notes: Bus Width Indicates the number of physical electrical lanes running to the connector.
FlexibleLOM |
|
|
|
|
|
Slots # |
Technology |
Bus Width |
Connector Width |
Slot Form Factor |
Notes |
1 |
PCIe 3.0 |
X8 |
X8 |
Full-height, full-length slot |
Proc 1 |
2 |
PCIe 3.0 |
X8 |
X8 |
Full-height, half-length slot |
Proc 1 |
3 |
PCIe 3.0 |
X8 |
X8 |
FlexibleLOM |
Proc 1 |
Notes:
− Bus Width Indicates the number of physical electrical lanes running to the connector.
− This riser is necessary to install FlexibleLOM adapters
CPU1 x16x8 riser |
|
|
|
|
|
Slots # |
Technology |
Bus Width |
Connector Width |
Slot Form Factor |
Notes |
1 |
PCIe 3.0 |
X16 |
X16 |
Full-height, full-length slot |
Proc 1 |
2 |
PCIe 3.0 |
X8 |
X8 |
Full-height, half-length slot |
Proc 1 |
Notes: Bus Width Indicates the number of physical electrical lanes running to the connector.
CPU2 x8x8x8 riser |
|
|
|
|
|
Slots # |
Technology |
Bus Width |
Connector Width |
Slot Form Factor |
Notes |
1 |
PCIe 3.0 |
X8 |
X8 |
Full-height,full-length slot |
Proc 2 |
2 |
PCIe 3.0 |
X8 |
X8 |
Full-height,half-length slot |
Proc 2 |
3 |
PCIe 3.0 |
X8 |
X8 |
Low profile |
Proc 2 |
Notes:
− Bus Width Indicates the number of physical electrical lanes running to the connector.
− When populating the second optional riser slot, the second processor must be installed.
CPU2 x16x8 riser |
|
|
|
|
|
Slots # |
Technology |
Bus Width |
Connector Width |
Slot Form Factor |
Notes |
1 |
PCIe 3.0 |
X16 |
X16 |
Full-height, full-length slot |
Proc 2 |
2 |
PCIe 3.0 |
X8 |
X8 |
Low profile |
Proc 2 |
Notes:
− Bus Width Indicates the number of physical electrical lanes running to the connector.
− When populating the second optional riser slot, the second processor must be installed.
− Includes GPU cable kit
Storage Controllers
The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet. One of the following depending on model
Software RAID
HPE Smart Array S100i SR Gen10 SW RAID Notes:
− |
HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed. |
− |
HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. |
− |
HPE Smart Array S100i SR Gen10 SW RAID only supports Windows and does not support Linux. For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information |
visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/
Essential RAID Controller
- HPE Smart Array E208i-a SR Gen10 Controller
- HPE Smart Array E208i-p SR Gen10 Controller
- HPE Smart Array E208e-p SR Gen10 Controller
Performance RAID Controller
- HPE Smart Array P816i-a SR Gen10 Controller
- HPE Smart Array P408i-a SR Gen10 LH Controller
- HPE Smart Array P408i-p SR Gen10 Controller
- HPE Smart Array P408e-p SR Gen10 Controller Notes:
− Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) which is sold separately.
− For additional details, please see HPE Smart Array Gen10 Controllers Data Sheet
Internal Storage Devices
- Optical Drive
Optional: DVD-ROM or DVD-RW
• Hard Drives
None ship standard
Maximum Internal Storage
Drive |
Capacity |
Configuration |
Hot Plug SFF SAS HDD |
62.4 TB |
24 + 2 X 2.4 TB (with dual SFF rear drive option) |
Hot Plug LFF SAS HDD |
144 TB |
12 X 12 TB |
Hot Plug SFF SATA HDD |
52 TB |
24 + 2 X 2 TB (with dual SFF rear drive option) |
Hot Plug LFF SATA HDD |
144 TB |
12 X 12 TB |
Hot Plug SFF SAS SSD |
200 TB |
24 + 2 X 7.68 TB (with dual SFF rear drive option) |
Hot Plug LFF SAS SSD |
19.2 TB |
12 X 1.6 TB |
Hot Plug SFF SATA SSD |
200 TB |
24 + 2 X 7.68 TB (with dual SFF rear drive option) |
Hot Plug LFF SATA SSD |
92 TB |
12 X 7.68 TB |
Interfaces
Video |
1 rear – VGA Port (standard ) |
Network Ports |
2 x 1 GbE ports embedded on board with optional Media Module, FlexibleLOM or stand up card |
Management Network Port |
1 Gb Dedicated |
Front iLO Service Port |
1 standard |
Micro SD Slot |
1 Micro SD Notes: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered. |
USB 3.0 |
Up to 4 total: 1 front, 2 rear, 1 internal (secure), |
Operating Systems and Virtualization Software Support for ProLiant Servers
2nd Generation Intel® Xeon® Scalable Processor Family
- Windows Server 2016*, 2019
- VMware ESXi 6.5 U3*, 6.7 U3, 7.0
- Red Hat Enterprise Linux (RHEL)6 with Kbase*, 8.0
- SUSE Linux Enterprise Server (SLES)12 SP4*
1st Generation Intel® Xeon® Scalable Processor Family
- Windows Server 2012R2*, 2016, 2019
- VMware ESXi 6.0 U3*, 6.5 U3, 7 U3, 7.0
- Red Hat Enterprise Linux (RHEL)9*, 7.3, 7.6 (with Kbase), 8.0
- SUSE Linux Enterprise Server (SLES)12 SP2*, 12 SP3-SP4
CentOS- Limited HPE support. Please review https://techlibrary.hpe.com/us/en/enterprise/servers/supportmatrix/cent_os.aspx Notes:
− *Minimum required OS
− For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server http://www.hpe.com/info/ossupport
Industry Standard Compliance
- ACPI 6.1 Compliant
- PCIe 3.0 Compliant
- WOL Support
- Microsoft® Logo certifications
- PXE Support
- USB 3.0 Compliant (internal)
- SMBIOS 3.1
- UEFI 2.6
- Redfish API
- IPMI 2.0
- Secure Digital 2.0
- Advanced Encryption Standard (AES)
- Triple Data Encrytion Standard (3DES)
- SNMP v3
- TLS 1.2
- DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
- Active Directory v1.0
- ASHRAE A3/A4
Notes: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae.
- UEFI (Unified Extensible Firmware Interface Forum)
Notes: UEFI is the default for the HPE ProLiant DL160 Gen10. Legacy mode can be selected in the field.
European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html
Power Supply
- HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit Notes:Available in 94% efficiency.
- HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit Notes:
− Available in 94% and 96% efficiency. − Also available in -48VDC power input.
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.
For information on power specifications and technical content visit HPE Server power supplies.
Graphics
Integrated Video Standard
- Video modes up to 1920 x 1200@60Hz (32 bpp)
- 16MB Video Memory
HPE iLO 5 on system management memory
- 32 MB Flash
- 4 Gbit DDR 3 with ECC protection
HPE Server UEFI/Legacy ROM
Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.
Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.
- UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:
- Secure Boot and Secure Start enable for enhanced security
- Operating system specific functionality
- Support for > 2.2 TB (using GPT) boot drives
- USB 3.0 Stack
- Embedded UEFI Shell
- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
- PXE boot support for IPv6 networks
- Workload Profiles for simple performance optimization
- UEFI Boot Mode only:
- NVMe Boot Support
- iSCSI Software Initiator Support.
- HTTP/HTTPs Boot support as a PXE alternative.
- Boot support for option cards that only support a UEFI option ROM
Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.
Security
- UEFI Secure Boot and Secure Start support
- Immutable Silicon Root of Trust
- FIPS 140-2 validation
- Common Criteria certification
- Configurable for PCI DSS compliance
- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
- Support for Commercial National Security Algorithms (CNSA)
- iLO Security Modes
- Granular control over iLO interfaces
- Tamper-free updates – components digitally signed and verified
- Secure Recovery – recover critical firmware to known good state on detection of compromised firmware
- Ability to rollback firmware
- Secure erase of NAND/User data
- TPM (Trusted Platform Module) 2.0 option
- Bezel Locking Kit
- Chassis Intrusion detection option
Embedded Management
UEFI
Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hpe.com/servers/uefi.
Intelligent Provisioning
Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning.
iLO RESTful API
iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.
Server Utilities
iLO Amplifier Pack
Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities. Learn more at http://www.hpe.com/servers/iLOamplifierpack.
HPE iLO Mobile Application
Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.
RESTful Interface Tool
RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.
Scripting Tools
Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at or http://www.hpe.com/servers/powershell.
HPE OneView Standard
HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview
HPE Systems Insight Manager (HPE SIM)
Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/info/hpesim. Active Health System Viewer
Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE selfrepair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.
Service Pack for ProLiant (SPP)
The Service Pack for ProLiant (SPP) is a comprehensive collection of server firmware, drivers, and system software tested as a single solution stack, which is delivered as a single ISO image. Learn more at http://www.hpe.com/servers/spp
Warranty
This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.
Optional Features
Server Management
HPE iLO Advanced
HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. Learn more about HPE iLO Advanced at http://www.hpe.com/servers/iloadvanced..
HPE GreenLake for Compute Ops Management
HPE is intelligently transforming compute management with a completely new as-a-service experience that delivers greater security, simplicity, and efficiency through HPE GreenLake that securely streamlines operations from edge-to-cloud, and automates key lifecycle tasks (onboard, update, manage and monitor HPE servers), bringing the agility and greater efficiencies to wherever compute devices reside via a unified single browser-based interface.
Compute Ops Management is built on a unique cloud-native architecture that abstracts, manages and controls HPE servers regardless of physical location. The management application resides in the HPE GreenLake cloud platform (access via console.greenlake.hpe.com) and leverages the HPE GreenLake architecture, security, and unified operations. Standard and Enhanced tier subscription options are available.
For a complete list of SKUs and more information, visit the HPE GreenLake for Compute Ops Management QuickSpecs:
https://www.hpe.com/psnow/doc/a50004263enw
Supported Servers – Complete list can be found here: https://www.hpe.com/info/com-supported-servers
HPE OneView Advanced
HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to
provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers. To learn more visit http://www.hpe.com/info/oneview
HPE InfoSight for Servers
HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The end result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities. Learn more at https://www.hpe.com/servers/infosight
HPE Insight Cluster Management Utility (CMU)
HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu.
Standard Features
Rack and Power Infrastructure
The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.
HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.
HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.
HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you’re critical dense data center is covered in power outages.
HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a costeffective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.
Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.
One Config Simple (SCE)
SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#
HPE Pointnext - Service and Support
Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext
Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.
Consume IT on your terms
HPE GreenLake brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.
- Get faster time to market
- Save on TCO, align costs to business
- Scale quickly, meet unpredictable demand
- Simplify IT operations across your data centers and clouds
Managed services to run your IT operations
HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.
Recommended Services
HPE Pointnext Tech Care.
HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.
https://www.hpe.com/services/techcare
HPE Pointnext Complete Care
HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customercentric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:
- A complete coverage approach -- edge to cloud
- An assigned HPE team
- Modular and fully personalized engagement
- Enhanced Incident Management experience with priority access
- Digitally enabled and AI driven customer experience
https://www.hpe.com/services/completecare
Other related Services
HPE Server Hardware Installation
Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
https://h20195.www2.hpe.com/v2/Getdocument.aspx?docname=5981-9356enw
HPE Installation and Startup Service
Provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux).
DC for Hyperscale
Complete Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture can take advantage of this environment support tailored to their operating model.
HPE Factory Express for Servers and storage
HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.
HPE Service Credits
HPE Service Credits offers flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.
HPE Education Services
Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn
HPE Support Center
The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers. Learn more http://www.hpe.com/support/hpesc.
The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.
Notes: *HPE Support Center Mobile App is subject to local availability.
For more information: http://www.hpe.com/services.
Notes: HPE ProLiant DL385 Gen10 Plus Server is covered under the HPE Service Contract applied to the HPE ProLiant Server. No separate HPE support services need to be purchased.
Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS batteries over 12KVA. See the specific high value options that require additional support here.
Parts and Materials
Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.
Pre-Configured Models
- Pre- Configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
- Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
- If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.
European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit:
https://www.hpe.com/us/en/about/environment/msds-specs-more.html
Powered by 2nd Generation Intel Xeon Processors |
|||
SKU Number- WW |
P35519-B21 |
P35520-B21 |
P37151-B21 |
SKU Number- Japan |
P35519-291 |
P35520-291 |
P37151-291 |
Model Name |
HPE ProLiant DL180 Gen10 4210R 2.4GHz 10-core 1P 16GB-R S100i 8SFF 500W PS Server |
HPE ProLiant DL180 Gen10 5218 2.3GHz 16-core 1P 16GB-R S100i 8SFF 500W PS Server |
HPE ProLiant DL180 Gen10 4208 2.1GHz 8-core 1P 16GB-R P816i-a 12LFF 500W PS Server |
Chassis |
8SFF |
8SFF |
12LFF |
Processor |
4210R (2.4GHz/10core/100W) |
5218 (2.3GHz/16-core/125W) |
4208 (2.1GHz/8-core/85W) |
Number of Processors |
One processor with Standard heatsink |
One processor with Standard heatsink |
One processor with Standard heatsink |
Memory |
HPE 16GB 1Rx4 PC4-2933Y- R Smart Kit |
HPE 16GB 1Rx4 PC4-2933Y- R Smart Kit |
HPE 16GB 1Rx4 PC4-2933Y- R Smart Kit |
Network Controller |
Embedded 2-Port 1GbE |
Embedded 2-Port 1GbE |
Embedded 2-Port 1GbE |
Storage Controller |
Embedded 14Port S100i Notes: SATA only |
Embedded 14Port S100i Notes: SATA only |
P816i-a and Smart Storage Battery |
Cables |
1x Box3 MB/-p cable (879752-B21) to connect 8 drive bays in box3 to S100i (can also be used to connect to –p controller). |
1x Box3 MB/-p cable (879752-B21) to connect 8 drive bays in box3 to S100i (can also be used to connect to –p controller). |
HPE DL180 Gen10 LFF P816i-a Cable Kit (P36415B21) |
Hard Drive |
None included |
None included |
None included |
Optical Drive |
None included |
None included |
None included |
PCIe Slots |
3 PCIe: 1x8 FHFL, 1x8 FHHL, 1x8 FHHL |
||
Power Supply |
1x 500W Hot Plug; RPS ready |
1x 500W Hot Plug; RPS ready |
1x 500W Hot Plug; RPS ready |
Fans |
3 Fans |
3 Fans |
3 Fans |
Management |
HPE iLO5, Infosight |
||
Rail Kit |
SFF Easy Install |
SFF Easy Install |
LFF Easy Install |
Form Factor |
2U Rack |
||
Warranty |
3-year parts, 3-year labor, 3-year onsite support with next business day response |
Country Code Key
- B21 = Worldwide except Japan & PRC
- 291 = Japan
HPE ProLiant DL180 Gen10 Server
Factory Integrated Models
This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
- Factory Integrated Models must start with a CTO Server.
- FIO indicates that this option is only available as a factory installable option.
- All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.
- Some options may not be integrated at the factory. Contact your local sales representative for additional information.
European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html
Step 1: Base Configuration (choose one of the following configurable models)
CTO Server |
HPE DL180 Gen10 8SFF CTO Server |
HPE DL180 Gen10 8LFF CTO Server |
HPE DL180 Gen10 12LFF CTO Server |
SKU Number |
879517-B21 |
879515-B21 |
879516-B21 |
Processor |
Not included as standard |
||
DIMM Slots |
16-DIMM Slots |
||
Storage Controller |
Embedded SW RAID with 14 SATA ports, choice of HPE modular Smart Array and PCIe plug-in controller |
||
PCIe |
None standard. Primary riser must be added. |
||
Drive Cage – included |
8SFF 8LFF 12LFF |
||
Network Controller |
Embedded 2x1GbE with optional, Media Module, HPE FlexibleLOM on riser and optional Standup card |
||
Fans |
1 CPU- 3 Standard Fans 2 CPU- 5 Standard Fans |
||
Management |
HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional) |
||
USB |
Front: 1 USB 3.0 + iLO service port Rear: 2 USB 3.0 Internal: 1 USB 3.0 |
||
Included Drive Cage |
8 SFF |
8LFF |
12 LFF |
Additional drive cages |
8-16 SFF SAS/SATA 16-24 SFF SAS/SATA |
8—12 LFF SAS/SATA |
- |
ODD - 2SFF Rear |
Optional |
Optional |
2SFF rear- Optional |
Step 2: Choose Required Options (only one of the following unless otherwise noted) Please select one –L21 processor required below.
For second processor, please select the same processor model with –B21 from Core Options – HPE Processors section. For example: first processor, select P12007-L21 then for second processor, select P12007-B21. Notes:
− Mixing of 2 different processor models is not supported.
− For first processor, -L21 will include 3 fans, For second processor, -B21 will add 2 additional fans
− When 2nd Generation Intel Xeon Scalable Processor is slected, then only DDR4-2933 Memory Kit can be selected; When 1st Generation Intel Xeon Scalable Processor is selected, then only DDR4-2666 Memory Kit can be selected
Step 2a: Choose Processors
Processor Option Kits (Required Processor)
2nd Generation Intel Xeon-Gold
Intel Xeon-Gold 6248 (2.5GHz/20-core/150W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11160-L21
Intel Xeon-Gold 6244 (3.6GHz/8-core/150W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11159-L21
Intel Xeon-Gold 6242 (2.8GHz/16-core/150W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11158-L21
Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11157-L21
Intel Xeon-Gold 6234 (3.3GHz/8-core/130W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11166-L21
Intel Xeon-Gold 6230R (2.1GHz/26-core/150W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P24214-L21
Intel Xeon-Gold 6226R (2.9GHz/16-core/150W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P21201-L21
Intel Xeon-Gold 6210U (2.5GHz/20-core/150W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11163-L21
Notes: Only supported in single socket configurations
Intel Xeon-Gold 6208U (2.9GHz/16-core/150W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P21197-L21
Notes: Only supported in single socket configurations
Intel Xeon-Gold 5222 (3.8GHz/4-core/105W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11164-L21
Intel Xeon-Gold 5220R (2.2GHz/24-core/150W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P21202-L21
Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11155-L21
Intel Xeon-Gold 5218R (2.1GHz/20-core/125W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P24213-L21
Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11154-L21
Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11152-L21
2nd Generation Intel Xeon- Silver
Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11151-L21
Intel Xeon-Silver 4215R (3.2GHz/8-core/130W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P24215-L21
Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P21199-L21
Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11149-L21
Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P21198-L21
Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11148-L21
Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11147-L21
2nd Generation Intel Xeon- Bronze
Intel Xeon-Bronze 3206R (1.9GHz/8-core/85W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P21196-L21
Intel Xeon-Bronze 3204 (1.9GHz/6-core/85W) FIO Processor Kit for HPE ProLiant DL180 Gen10 P11146-L21 Step 2b: Choose Memory Options Please select one or more memory from below.
For new Gen10 memory population rule whitepaper and optimal memory performance guidelines, please go to:
https://www.hpe.com/docs/memory-population-rules
For Gen10 memory speed table, please go to: https://www.hpe.com/docs/memory-speed-table
For memory Reliability, Accessibility, Serviceability (RAS) features whitepaper like Gen10 Fast Fault Tolerance and legacy mirrored memory feature etc. please go to: http://www.hpe.com/docs/memory-ras-feature Notes:
− Maximum memory capacity and speed per processor is dependent on processor model selection or limitation.
− DDR4-2933 Memory Kits are only supported with 2nd Generation Intel Xeon Scalable Series Processors and DDR4-2666 Memory Kits are only supported with 1st Generation Intel Xeon Scalable Series Processors.
Registered DIMMs (RDIMMs) for 2nd Generation Intel Xeon Scalable Series
HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit P00930-B21
HPE 32GB (1x32GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Memory Kit P38446-B21
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit P00924-B21
HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit P00922-B21
HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit P00920-B21
HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit P00918-B21
Registered DIMMs (RDIMMs) for 1st Generation Intel Xeon Scalable Series
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit 815100-B21
HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit 835955-B21
HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit 815098-B21
HPE 8GB (1x8GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit 815097-B21 Step 2c: Choose Power Supplies
Please select one or two power supplies from below. Notes:
− Mixing of 2 different power supplies is NOT supported.
− HPE DL160/180 Gen10 Redundant Power Supply Enablement Kit (866442-B21) required with selection of power supply.
HPE Flex Slot Power Supplies
HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit 865408-B21
HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit 865438-B21
HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit 865428-B21
HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit 865414-B21
HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit 865434-B21
HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit 830272-B21
HPE DL160/180 Gen10 Redundant Power Supply Enablement Kit 866442-B21
Notes: This enablement kit is required with the selection of a Flex Slot power supply
Step 3: Choose Additional Factory Integratable Options
One of the following from each list may be selected if desired at time of factory integration
HPE Legacy FIO Mode Setting 758959-B22
HPE FIO Enable Smart Array SW RAID 784308-B21
HPE Gen10 TPM 1.2 FIO Setting 872108-B21 Cable Kits (factory integrated only)
HPE DL180 Gen10 8 to 16SFF Smart Array S100i/E208i-p/P408i-p FIO Cable Kit 875154-B21
Notes: This will be used to connect Box2 to Smart Array S100i/E208i-p/P408i-p
HPE Server Security Optimized Service for HPE ProLiant (R9S59A) is an optional security upgrade intended for agencies and regulated industries with enhanced security and compliance needs. Applying this option to a DL3XX Gen10/Gen10 Plus CTO server ensures it is hardened by turning on advanced safeguards in place against cyber-exploits throughout the server lifecycle. An iLO Advanced License required for High Security
Mode and compatible intrusion detection device option kits are prerequisites for the full optimization service.
HPE DL180 Gen10 8 to 16SFF Smart Array E208i-a/P408i-a SAS FIO Cable Kit |
|
Notes: This will be used to connect Box2 to Smart Array E208i-a/P408i-a |
|
HPE DL180 Gen10 16 to 24SFF Smart Array S100i/E208i-p/P408i-p FIO Cable Kit |
875160-B21 |
Notes: This will be used to connect Box1 to Smart Array S100i/E208i-p/P408i-p |
|
HPE DL180 Gen10 16 to 24SFF Smart Array E208i-a/P408i-a SAS FIO Cable Kit |
|
Notes: This will be used to connect Box1 to Smart Array E208i-a/P408i-a |
|
HPE DL180 Gen10 LFF Smart Array S100i/E208i-p/P408i-p FIO Cable Kit |
|
Notes: This will be used to connect to Smart Array S100i/E208i-p/P408i-p |
|
HPE DL180 Gen10 LFF Smart Array E208i-a/P408i-a SAS FIO Cable Kit |
|
Notes: This will be used to connect to Smart Array E208i-a/P408i-a |
|
HPE DL180 Gen10 Rear 2SFF to Smart Array S100i/E208i-p/P408i-p FIO Cable Kit |
|
Notes: This will be used to connect the rear 2SFF to Smart Array E208i-p/P408i-p |
|
HPE DL180 Gen10 Rear 2SFF to Smart Array E208i-a/P408i-a SAS FIO Cable Kit |
|
Notes: This will be used to connect the rear 2SFF to Smart Array E208i-a/P408i-a |
|
HPE DL180 Gen10 Rear 2SFF to Smart Array S100i SATA FIO Cable Kit |
|
Notes: This will be used to connect the rear 2SFF to Smart Array S100i |
|
HPE DL180 Gen10 Rear 2SFF to SAS Expander FIO Cable Kit |
|
Notes: Connects SAS Expander to the rear 2SFF drive cage |
|
HPE DL180 Gen10 SFF Box3 to Smart Array S100i/E208i-p/P408i-p FIO Cable Kit |
Notes: This will be used to connect the default Box3 in 8SFF Chassis to Smart Array S100i/E208i-p/P408i-p
HPE DL180 Gen10 SFF Box3 to Smart Array E208i-a/P408i-a SAS FIO Cable Kit |
|
Notes: This will be used to connect the default Box3 in 8SFF Chassis to Smart Array E208i-a/P408i-a HPE Unique Options (factory integrated only) |
|
HPE DL180 Gen10 8 to 16SFF FIO Upgrade Kit |
|
HPE DL180 Gen10 16 to 24SFF FIO Upgrade Kit |
|
HPE DL180 Gen10 Rear 2SFF FIO Enablement Kit |
|
Notes: Cannot be used to attach rear drives to P816i-a storage controller (for connection to P816i-a, see P37790-B21). Does not include cables. |
|
Step 4: Choose additional options for Factory Integration from Core and Additional Options sections below:
Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.
HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU E5Y43A
HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU P8B31A
Risers Notes: This server does not have a default primary riser. A primary riser must be selected from CPU1 riser options below. HPE DL180 Gen10 CPU1 x8x8x8 PCIe Riser Kit |
|
HPE DL180 Gen10 CPU1 FlexibleLOM Riser Kit |
|
Notes: This riser is required to use FlexibleLOM adapters HPE DL180 Gen10 CPU1 x16/x8 PCIe Riser Kit |
|
HPE DL180 Gen10 CPU2 x8/x8/x8 PCIe Riser Kit |
|
HPE DL180 Gen10 CPU2 x16/x8 PCIe Riser and GPU Enablement Kit Notes: Includes GPU cable kit |
|
Cable/Enablement Kits HPE DL360 Gen9 Rear Serial Port and Enablement Kit |
|
HPE DL180 Gen10 LFF Smart Array P816i-a Cable Kit |
|
Notes: Contains cables to connect 8-12 front LFF SAS/SATA drives to the P816i-a storage controller. Required with selection of P816i-a controller and LFF chassis. HPE DL180 Gen10 SFF Smart Array P816i-a Cable Kit |
|
Notes: Contains cables to connect 8-16 front SFF SAS/SATA drives to the P816i-a storage controller. Required with selection of P816i-a controller and SFF chassis. HPE DL180 Gen10 Rear 2SFF to P816i-a Enablement Kit Notes: Includes rear drive cage and cables to connect 2 rear SFF SAS/SATA drives to the P816i-a storage controller. |
|
Cooling Options HPE DL180 Gen10 Redundant Fan Kit Notes: This kit contains one additional fan. |
|
Optical Drive Options HPE 9.5mm SATA DVD-ROM Optical Drive |
|
Notes: The ODD Enablement kit (866951-B21) is required for this option on a SFF model. HPE 9.5mm SATA DVD-RW Optical Drive |
|
Notes: The ODD Enablement kit (866951-B21) is required for this option on a SFF model. HPE DL180 Gen10 SFF Optical Drive Enablement Kit |
|
Notes: Cannot be seleced with 24SFF configuration HPE Mobile USB DVD-RW Optical Drive Notes: This option is only supported on USB 3.0 ports. |
|
Security HPE Gen10 Chassis Intrusion Detection Kit |
|
HPE Bezel Lock Kit |
|
HPE Gen10 2U Bezel Kit |
|
HPE Trusted Platform Module 2.0 Gen10 Option |
Field Upgrade Kits
HPE DL180 Gen10 8 to 16SFF Upgrade Kit Notes: Includes cables needed to connect to S100i or Smart Array controller |
|
HPE DL180 Gen10 16 to 24SFF Upgrade Kit Notes: Includes cables needed to connect to S100i or Smart Array controller |
|
HPE DL180 Gen10 8 to 12LFF Upgrade Kit Notes: Includes cables needed to connect to S100i or Smart Array controller |
|
HPE DL180 Gen10 Rear 2SFF Enablement Kit Notes: Includes rear drive cage and cables needed to connect to S100i, Smart Array controller, or expander. Cannot be used to attach rear drives to P816i-a storage controller (for connection to P816i-a, see P37790B21). |
|
HPE DL180 Gen10 SFF Optical Drive Enablement Kit |
Cable Field Upgrade Kits
HPE DL180 Gen10 SFF Box3 to Smart Array E208i-a/P408i-a Cable Kit 882011-B21
Notes: Includes cables to connect 8 SFF drive bays to Flexible Smart Array controller (P408i-a/E208i-a)
HPE DL180 Gen10 LFF to Smart Array E208i-a/P408i-a Cable Kit 882015-B21
Notes: Includes cables to connect 8 LFF drive bays to Flexible Smart Array controller (P408i-a/E208i-a)
HPE Processors
Please select one –L21 processor required above.
For second processor, please select the same processor model with –B21 from Core Options – HPE Processors section below.
For example: first processor, select P11161-L21 then for second processor, select P11161-B21. Notes:
− Field upgrades from 1st generation processors (x1xx) to 2nd generation processors (x2xx) not supported. − Mixing of 2 different processor models is not supported. − For first processor, -L21 will include 3 fans, For second processor, -B21 will add 2 additional fans − When 2nd Generation Intel Xeon Scalable Processor is slected, then only DDR4-2933 Memory Kit can be selected; When 1st Generation Intel Xeon Scalable Processor is selected, then only DDR4-2666 Memory Kit can be selected. 2nd Generation Intel Xeon-Gold |
|
Intel Xeon-Gold 6248 (2.5GHz/20-core/150W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Gold 6244 (3.6GHz/8-core/150W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Gold 6242 (2.8GHz/16-core/150W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Gold 6234 (3.3GHz/8-core/130W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Gold 6230R (2.1GHz/26-core/150W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Gold 6226R (2.9GHz/16-core/150W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Gold 5222 (3.8GHz/4-core/105W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Gold 5220R (2.2GHz/24-core/150W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Gold 5218R (2.1GHz/20-core/125W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) Processor Kit for HPE ProLiant DL180 Gen10 2nd Generation Intel Xeon- Silver |
|
Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Silver 4215R (3.2GHz/8-core/130W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) Processor Kit for HPE ProLiant DL180 Gen10 2nd Generation Intel Xeon- Bronze |
|
Intel Xeon-Bronze 3206R (1.9GHz/8-core/85W) Processor Kit for HPE ProLiant DL180 Gen10 |
|
Intel Xeon-Bronze 3204 (1.9GHz/6-core/85W) Processor Kit for HPE ProLiant DL180 Gen10 |
HPE Memory
For new Gen10 memory population rule whitepaper and optimal memory performance guidelines, please go to:
https://www.hpe.com/docs/memory-population-rules
For Gen10 memory speed table, please go to: https://www.hpe.com/docs/memory-speed-table
For memory Reliability, Accessibility, Serviceability (RAS) features whitepaper like Gen10 Fast Fault Tolerance and legacy mirrored memory feature etc. please go to: http://www.hpe.com/docs/memory-ras-feature Notes:
− Maximum memory capacity and speed per processor is dependent on processor model selection or limitation.
− DDR4-2933 Memory Kits are only supported with 2nd Generation Intel Xeon Scalable Series Processors and DDR4-2666 Memory Kits are only supported with 1st Generation Intel Xeon Scalable Series Processors.
HPE DDR4 Memory
Registered DIMMs (RDIMMs) for 2nd Generation Intel Xeon Scalable Series
HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
|
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
|
HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
|
HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
|
HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit Registered DIMMs (RDIMMs) for 1st Generation Intel Xeon Scalable Series |
|
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit |
|
HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit |
|
HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit |
|
HPE 8GB (1x8GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit |
HPE Smart Array Controllers
The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.
Essential RAID Controllers
Notes: E208i-p and E208e-p PCIe plug-in controllers use a PCIe slot.
HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller |
|
HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller |
HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular Controller 804326-B21
Notes: SFF Box3 to Smart Array E208i-a/P408i-a Cable Kit’ (882011-B21) is required for the installation of the controllers E208i-a or P408i-a Performance RAID Controller
HPE Smart Array P816i-a SR Gen10 (16 Internal Lanes/4GB Cache/SmartCache) 12G SAS Modular Controller 804338-B21
Notes: Requires either LFF for SFF P816i-a cable kit (P36415-B21, P37221-B21)
HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller 804331-B21
HPE Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller 804405-B21
HPE Smart Array P408i-p SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS PCIe Plug-in Controller 830824-B21 Notes: ‘SFF Box3 to Smart Array E208i-a/P408i-a Cable Kit’ (882011-B21) is required for the installation of the controllers E208i-a or P408i-a
SAS Expander HPE DL180 Gen10 12Gb SFF SAS Expander Card FIO Kit with Cables Notes: − Connects more than 8 drives to a single controller − This option comes with the necessary cables to connect to the corresponding controller and to the drive backplane − This option can only be used in Slot 1 on 8SFF CTO model (879517-B21) |
|
HPE Cable Options HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit |
|
Notes: Supports up to 3 P-class Smart Array controllers HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit |
|
Notes: Supports up to 6 P-class Smart Array controllers HPE DL180 Gen10 SFF Box3 to Smart Array E208i-a/P408i-a Cable Kit |
|
Optional Software HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU |
|
HPE Smart Array SR SmartCache (Single Key/Multiple Servers) LTU |
|
HPE Smart Array SR SmartCache (Single Key/Multiple Servers) E-LTU Notes: Smart Cache is offered on HPE Smart Array performance RAID controllers |
HPE Drives
Mission Critical (Enterprise) - 12G SAS - SFF Drives
HPE 2.4TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD |
|
HPE 1.8TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD |
|
HPE 1.2TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD |
|
HPE 600GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD |
|
HPE 300GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD |
|
HPE 900GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD |
|
HPE 600GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD |
|
HPE 300GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD Business Critical (Midline) - 12G SAS- SFF Drives |
|
HPE 2TB SAS 12G Business Critical 7.2K SFF SC 1-year Warranty 512e HDD |
|
HPE 1TB SAS 12G Business Critical 7.2K SFF SC 1-year Warranty HDD |
Business Critical (Midline) - 12G SAS - LFF Drives
HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD |
|
HPE 8TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD |
|
HPE 6TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD |
|
HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD |
|
HPE 2TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD |
|
HPE 10TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e ISE Multi Vendor HDD Business Critical (Midline) - 6G SATA- SFF Drives |
|
HPE 2TB SATA 6G Business Critical 7.2K SFF SC 1-year Warranty 512e HDD |
|
HPE 1TB SATA 6G Business Critical 7.2K SFF SC 1-year Warranty HDD Business Critical (Midline) - 6G SATA - LFF Drives |
|
HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD |
|
HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD |
|
HPE 6TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD |
|
HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD |
|
HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD |
|
HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD |
|
HPE 10TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e ISE Multi Vendor HDD |
SSD Selection
For SSD selection guidance, please visit https://ssd.hpe.com/ Read Intensive - 12G SAS - SFF - Solid State Drives
HPE 7.68TB SAS 12G Read Intensive SFF SC Multi Vendor SSD |
|
HPE 7.68TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD |
|
HPE 3.84TB SAS 12G Read Intensive SFF SC Multi Vendor SSD |
|
HPE 3.84TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD |
|
HPE 1.92TB SAS 12G Read Intensive SFF SC Multi Vendor SSD |
|
HPE 1.92TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD |
|
HPE 960GB SAS 12G Read Intensive SFF SC Multi Vendor SSD |
|
HPE 960GB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD Mixed Use - 12G SAS - SFF - Solid State Drives |
|
HPE 6.4TB SAS 12G Mixed Use SFF SC Multi Vendor SSD |
|
HPE 3.84TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD |
|
HPE 3.2TB SAS 12G Mixed Use SFF SC Multi Vendor SSD |
|
HPE 1.92TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD |
|
HPE 1.6TB SAS 12G Mixed Use SFF SC Multi Vendor SSD |
|
HPE 960GB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD |
|
HPE 800GB SAS 12G Mixed Use SFF SC Multi Vendor SSD Write Intensive - 12G SAS - SFF - Solid State Drives |
|
HPE 1.6TB SAS 12G Write Intensive SFF SC PM6 SSD |
|
HPE 800GB SAS 12G Write Intensive SFF SC PM6 SSD |
|
HPE 400GB SAS 12G Write Intensive SFF SC PM6 SSD Mixed Use - 12G SAS - LFF - Solid State Drives |
|
HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD Read Intensive - SATA - SFF - Solid State Drives |
|
HPE 7.68TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
|
HPE 3.84TB SATA 6G Read Intensive SFF SC PM893 SSD |
|
HPE 3.84TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
|
HPE 3.84TB SATA 6G Read Intensive SFF SC S4520 SSD |
HPE 1.9TB SATA 6G Read Intensive SFF SC PM893 SSD P47812-B21
HPE 1.92TB SATA 6G Read Intensive SFF SC Multi Vendor SSD P18426-B21
HPE 1.92TB SATA 6G Read Intensive SFF SC S4520 SSD P47319-B21
HPE 960GB SATA 6G Read Intensive SFF SC PM893 SSD P47811-B21
HPE 960GB SATA 6G Read Intensive SFF SC Multi Vendor SSD P18424-B21
HPE 480GB SATA 6G Read Intensive SFF SC PM893 SSD P47810-B21
HPE 480GB SATA 6G Read Intensive SFF SC Multi Vendor SSD P18422-B21
HPE 240GB SATA 6G Read Intensive SFF SC Multi Vendor SSD P18420-B21
Very Read Optimized- SATA – LFF – Solid State Drives
HPE 7.68TB SATA 6G Very Read Optimized LFF LPC 5400 SSD P58232-B21
Mixed Use - SATA - SFF - Solid State Drives
HPE 3.84TB SATA 6G Mixed Use SFF SC S4620 SSD P47326-B21
HPE 3.84TB SATA 6G Mixed Use SFF SC Multi Vendor SSD P18438-B21
HPE 1.92TB SATA 6G Mixed Use SFF SC PM897 SSD P47816-B21
HPE 1.92TB SATA 6G Mixed Use SFF SC Multi Vendor SSD P18436-B21
HPE 1.92TB SATA 6G Mixed Use SFF SC S4620 SSD P47325-B21
HPE 960GB SATA 6G Mixed Use SFF SC PM897 SSD P47815-B21
HPE 960GB SATA 6G Mixed Use SFF SC Multi Vendor SSD P18434-B21
HPE 480GB SATA 6G Mixed Use SFF SC PM897 SSD P47814-B21
HPE 480GB SATA 6G Mixed Use SFF SC Multi Vendor SSD P18432-B21
HPE 480GB SATA 6G Mixed Use SFF SC S4620 SSD P47323-B21
Read Intensive - SATA - LFF - Solid State Drives
HPE 7.68TB SAS 24G Read Intensive LFF LPC Multi Vendor SSD P49040-B21
HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD P47808-B21
Internal Dual M.2 Kit
HPE Universal SATA 6G AIC HHHL M.2 SSD Enablement Kit 878783-B21
Notes: The Universal SATA M.2 Kit above will require a PCIe slot and support up to two of the same M.2 cards below.
Read Intensive - M.2 - Solid State Drives (2280 type)
HPE 960GB SATA 6G Read Intensive M.2 2280 5300P SSD P19892-B21
HPE 480GB SATA 6G Read Intensive M.2 Multi Vendor SSD P47818-B21 HPE 240GB SATA 6G Read Intensive M.2 Multi Vendor SSD P47817-B21
M.2 Cable Kit
HPE DL160 Gen10 SATA M.2 Cable Kit 866456-B21
Notes: Must be selected along with “HPE Universal SATA HHHL 3yr Wty M.2 Kit- 878783-B21” Hard Drive Blank Kits
HPE Small Form Factor Hard Drive Blank Kit 666987-B21
HPE Gen9 LFF HDD Spade Blank Kit 807878-B21
HPE Networking
25 Gigabit Ethernet adapters
HPE Ethernet 10/25Gb 2-port SFP28 QL41401-A2G Adapter |
867328-B21 |
HPE Ethernet 10/25Gb 2-port SFP28 BCM57414 Adapter |
|
HPE Ethernet 10/25Gb 2-port SFP28 MCX4121A-ACUT Adapter 10 Gigabit Ethernet adapters |
|
HPE Ethernet 10Gb 2-port BASE-T QL41401-A2G Adapter |
Notes: Max 1 per system
HPE Ethernet 10Gb 2-port BASE-T 57810S Adapter |
|
HPE Ethernet 10Gb 2-port SFP+ 57810S Adapter |
|
HPE Ethernet 10Gb 2-port BASE-T BCM57416 Adapter |
|
HPE Ethernet 10Gb 2-port SFP+ X710-DA2 Adapter |
|
HPE Ethernet 10Gb 2-port BASE-T X550-AT2 Adapter 1 Gigabit Ethernet adapters |
|
HPE Ethernet 1Gb 4-port BASE-T BCM5719 Adapter |
<p>647594-B21 |
HPE Ethernet 1Gb 4-port BASE-T I350-T4V2 Adapter Notes: Max 1 per system. Can only be installed in Slot 1 |
|
HPE Ethernet 1Gb 2-port BASE-T I350-T2V2 Adapter |
|
HPE Ethernet 1Gb 2-port BASE-T BCM5720 Adapter FlexibleLOM adapters |
|
HPE Ethernet 10/25Gb 2-port FLR-SFP28 MCX4121A-ACFT Adapter |
|
HPE Ethernet 10/25Gb 2-port FLR-SFP28 MCX4121A-ACFT Adapter |
|
HPE Ethernet 10/25Gb 2-port FLR-SFP28 QL41401-A2G Converged Network Adapter |
|
HPE FlexFabric 10Gb 4-port FLR-T 57840S Adapter |
|
HPE Ethernet 10Gb 2-port FLR-T BCM57416 Adapter |
|
HPE FlexFabric 10Gb 2-port FLR-SFP+ 57810S Adapter |
|
HPE FlexFabric 10Gb 2-port FLR-T 57810S Adapter |
|
HPE Ethernet 1Gb 4-port FLR-T BCM5719 Adapter |
|
HPE Ethernet 1Gb 4-port FLR-T I350-T4V2 Adapter Notes: − The DL180 Gen10 ships with 2x 1 Gb Embedded Network controller. − Only one FlexibleLOM can be added to the server. These options are upgradeable and can be changed from the original configuration after the server is shipped. − FlexibleLOM Enablement Kit (866941-B21) is required to install these adapters − Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. Please see the related NIC QuickSpecs for Technical Specifications and additional information: |
https://www.hpe.com/us/en/product-catalog/servers/adapters/pip.models.hpe-storefabric-convergednetwork-adapters.4118472.html Media Module adapters
HPE Ethernet 1Gb 2-port 368T Media Module Adapter 866464-B21
HPE Ethernet 10Gb 2-port 568SFP+ Media Module Adapter 866467-B21
HPE Ethernet 10Gb 2-port 568T Media Module Adapter 866470-B21
SKU |
|||
Description |
HPE Ethernet 1Gb 2-port 368FLR-T Media Module Adapter |
HPE Ethernet 10Gb 2-port 568FLR-SFP+ Media Module Adapter |
HPE Ethernet 10Gb 2-port 568FLR-T Media Module Adaptor |
Card Type/Profile |
Media Module Adapter |
Media Module Adapter |
Media Module Adapter |
ASIC/Chip |
C622 |
C622 |
C622 |
PCIe Version |
PCIe Gen3 |
PCIe Gen3 |
PCIe Gen3 |
Networking PHY |
Marvell 88E1514 |
Inphi (Cortina) CS4227 |
Intel X557 |
Network controller |
Intel C622 Chipset* |
Intel C622 Chipset* |
Intel C622 Chipset* |
UEFI PXE Boot |
√ |
√ |
√ |
Root of Trust1 |
√ |
√ |
√ |
Secure Boot1 |
√ |
√ |
√ |
Wake-on-LAN (WOL) 1 |
√ |
√ |
√ |
Notes:
− 1 Feature support dependent on server chipset
− *Media Module Adapter is a unique form factor to HPE and provides physical network ports to the server with the Intel chipset performing as the networking controller.
− ** Media Module Adaptors do not consume a PCI slot. Notes:
− |
The DL180 Gen10 chassis ships with 2x 1 Gb embedded. |
− |
Only one Media Module can be added to the server. These options are upgradeable and can be changed from the original configuration after the server is shipped |
− |
These adapters should be installed in the Media Module connector slot on the system board only. |
− |
Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. |
HPE Power Supplies
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.
HPE Flex Slot Power Supplies
HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
|
HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit |
|
HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit |
|
HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
|
HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit |
|
HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
|
HPE DL160/180 Gen10 Redundant Power Supply Enablement Kit |
Notes: This enablement kit is required with the selection of a Flex Slot power supply
Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.
Embedded Management |
|
HPE iLO Advanced |
|
HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features |
|
HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features |
|
HPE iLO Advanced Flexible Quantity License with 1yr Support on iLO Licensed Features |
|
HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features |
|
HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features |
|
HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features |
|
HPE iLO Advanced Flexible Quantity License with 3yr Support on iLO Licensed Features |
|
HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features |
Software as a Service Management
|
|
HPE GreenLake for Compute Ops Management |
|
HPE GreenLake for Compute Ops Management Standard 3-year Upfront ProLiant SaaS |
|
Additional Options |
|
HPE GreenLake for Compute Ops Management Standard 1-year Upfront ProLiant SaaS |
|
HPE GreenLake for Compute Ops Management Standard 5-year Upfront ProLiant SaaS |
|
HPE GreenLake for Compute Ops Management Standard 1-year Monthly ProLiant SaaS |
|
HPE GreenLake for Compute Ops Management Standard 3-year Monthly ProLiant SaaS |
|
HPE GreenLake for Compute Ops Management Standard 5-year Monthly ProLiant SaaS |
|
HPE GreenLake for Compute Ops Management Enhanced 1-year Upfront ProLiant SaaS |
|
HPE GreenLake for Compute Ops Management Enhanced 3-year Upfront ProLiant SaaS |
|
HPE GreenLake for Compute Ops Management Enhanced 5-year Upfront ProLiant SaaS |
|
HPE GreenLake for Compute Ops Management Enhanced 1-year Monthly ProLiant SaaS |
|
HPE GreenLake for Compute Ops Management Enhanced 3-year Monthly ProLiant SaaS |
|
HPE GreenLake for Compute Ops Management Enhanced 5-year Monthly ProLiant SaaS |
Notes: For customers purchasing HPE GreenLake for Compute Ops Management, without a hardware purchase or a BTO purchase, use this base SKU within ASQ order:
HPE GreenLake for Compute Ops Management Base SaaS R6Z73AAE
HPE iLO Common Password Setting
HPE iLO Common Password FIO Setting P08040-B21
Notes:
− Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.
− Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services
HPE Converged Infrastructure Management Software
HPE OneView including 3yr 24x7 Support Physical 1-server LTU E5Y34A
HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU E5Y35AAE
HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU
HPE OneView Advanced (without HPE iLO Advanced)
HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU P8B24A
HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU P8B25A HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU P8B26AAE
Notes: − Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded at:
https://www.hpe.com/us/en/integrated-systems/software.html
− Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key. − Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded at:
https://www.hpe.com/us/en/integrated-systems/software.html
HPE Storage Options
Emulex Fibre Channel HBAs HPE SN1200E 16Gb Single Port Fibre Channel Host Bus Adapter |
|
HPE SN1200E 16Gb Dual Port Fibre Channel Host Bus Adapter |
|
HPE SN1600E 32Gb Single Port Fibre Channel Host Bus Adapter |
|
HPE SN1600E 32Gb Dual Port Fibre Channel Host Bus Adapter |
|
QLogic Fibre Channel HBAs HPE SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter |
|
HPE SN1100Q 16Gb Dual Port Fibre Channel Host Bus Adapter |
|
HPE SN1600Q 32Gb Single Port Fibre Channel Host Bus Adapter |
|
HPE SN1600Q 32Gb Dual Port Fibre Channel Host Bus Adapter |
|
HPE Rack Options
Rail Kits HPE 2U Small Form Factor Easy Install Rail Kit |
|
Notes: This (733660-B21) Rail kit can alos be used for LFF chassis. HPE 2U Cable Management Arm for Easy Install Rail Kit |
HPE Racks
- Please see the HPE Advanced Series Racks QuickSpecsfor information on additional racks options and rack specifications.
- Please see the HPE Enterprise Series Racks QuickSpecsfor information on additional racks options and rack specifications.
HPE Power Distribution Units (PDUs)
- Please see the HPE Basic Power Distribution Units (PDU) QuickSpecsfor information on these products and their specifications.
- Please see the HPE Metered Power Distribution Units (PDU) QuickSpecsfor information on these products and their specifications.
- Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecsfor information on these products and their specifications.
- Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecsfor information on these products and their specifications.
HPE Uninterruptible Power Systems (UPS)
- To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.
- Please see the HPE DirectFlow Three Phase Uninterruptible Power System QuickSpecsfor information on these products and their specifications.
- Please see the HPE Line Interactive Single Phase UPS QuickSpecsfor information on these products and their specifications.
HPE Rack Options • Please see the HPE IT Access and Control for information on these products and their specifications. |
|
HPE USB and SD Options
HPE Enterprise Mainstream Flash Media Kits for Memory Cards HPE 32GB microSD Flash Memory Card |
|
HPE 32GB microSD RAID 1 USB Boot Drive Notes: In vSphere 7.0, VMware made changes that impact the use of an SD Card/USB media as a standalone boot device and will be removing support for them after version 7.x. SD Card/USB media can still be used as a standalone boot option through all 7.x releases via published Customer Advisory Usage of SD Card/USB Devices As Standalone Boot Devices Has Changed Due to System Storage Changes For VMware ESXi 7.0 (Or Later). For any major release beyond VMware ESXi 7.x, VMware will require M.2 or another local persistent device as the standalone boot option. |
|
HPE Support Services Tech Care HPE 5 Year Tech Care Essential DL180 Gen10 Service |
|
HPE 5 Year Tech Care Essential wDMR DL180 Gen10 Service |
|
HPE 3 Year Tech Care Essential DL180 Gen10 Service |
|
HPE 3 Year Tech Care Essential wDMR DL180 Gen10 Service Notes: For a full listing of support services available for this server, please visit http://www.hpe.com/services. |
Memory
Memory Population guidelines
HPE DL160/DL180 Gen 10 Servers Front Server
(2+1+1 slots per channel)
1 DIMM |
|
|
3 |
|
|
|
|
|
2 DIMM s |
|
2 |
3 |
|
|
|
|
|
3 DIMM s |
1 |
2 |
3 |
|
|
|
|
|
4 DIMM s |
|
2 |
3 |
|
|
6 |
7 |
|
5 DIMM s* |
1 |
2 |
3 |
|
|
6 |
7 |
|
6 DIMM s |
1 |
2 |
3 |
|
|
6 |
7 |
8 |
7 DIMM s* |
1 |
2 |
3 |
4 |
|
6 |
7 |
8 |
8 DIMM s* |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
HPE ProLiant Gen10 8 slot per CPU DIMM population order Notes:*Unbalanced, not recommended
General Memory Population Rules and Guidelines:
- Install DIMMs only if the corresponding processor is installed.
- If only one processor is installed in a two-processor system, only half of the DIMM slots are available.
- To maximize performance, it is recommended to balance the total memory capacity between all installed processors.
- When two processors are installed, balance the DIMMs across the two processors.
- White DIMM slots denote the first slot to be populated in a channel.
- Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.
- The maximum memory speed is a function of the memory type, memory configuration, and processor model.
- The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.
- For details on the HPE Server Memory Options Population Rules, visit:
http://www.hpe.com/docs/memory-population-rules
- To realize the performance memory capabilities listed in this document, HPE DDR4 SmartMemory is required. For additional information, please see the HPE DDR4 SmartMemory QuickSpecs.
Notes: The maximum memory speed is a function of the memory type, memory configuration, and processor model
For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table
Storage
8 SFF Drives
8LFF Drives
12LFF Drives
Technical Specifications
System Unit
Dimensions (Height X Width X Depth)
- 8.75 x 44.54 x 63.47 cm
3.44 x 17.54 x 24.99 in (Dimensions for 12LFF)
Weight (approximate)
• Minimum
8 SFF/LFF chassis with 1x SFF/LFF HDD and 7 HDD blanks, 2x Drive Bay blanks, 1x processor including standard heatsink, 1x power supply (plus blank), 1x Smart Array, 1x Riser installed, cables for the above)
− 13.0 kg--26.0 kg
28.0lb--58.0 lb
Input Requirements(per power supply)
Rated Line Voltage
- 100 to 120 VAC • 200 to 240 VAC
BTU Rating
• Maximum
For 500W Power Supply: 1979 BTU/hr (at 100 VAC), 1911 BTU/hr (at 200 VAC), 1965 BTU/hr (at 240 VAC) for China Only
Power Supply Output(per power supply)
• Rated Steady-State Power
For 500W Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VAC) input for China only
System Inlet Temperature
• Standard Operating Temperature
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.
System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).
• Extended Ambient Operating Temperature
For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and
35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:http://www.hpe.com/servers/ashrae
For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:http://www.hpe.com/servers/ashrae
System performance may be reduced if operating in the extended ambient operating range or with a fan fault.
• Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Technical Specifications
Relative Humidity
• Operating
8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing. • Non-operating (Non-condensing)
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing..
Altitude
• Operating
3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
• Non-operating
9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.
Configuration SKU |
Entry(LFF )/ (SFF) |
Base(LFF)/ SFF) |
Performance(LFF)/ (SFF) |
Idle |
|
|
|
LWAd |
4.2 B |
4.3 B |
4.7 B |
LpAm |
26.6 dBA |
27.0 dBA |
28.5 dBA |
Operating |
|
|
|
LWAd |
5.2 B |
5.4 B |
5.7 B |
LpAm |
35.4 dBA |
37.2 dBA |
39.7 dBA |
Notes:
− Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only. − Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
− The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.
Emissions Classification (EMC) – Regulatory Information
To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center: http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts
HPE Smart Array
- For information on the HPE Smart Array E208i-p SR Gen10 Controller please refer to their QuickSpecs.
- For information on the HPE Smart Array E208e-p SR Gen10 Controller please refer to their QuickSpecs.
Environment-friendly Products and Approach - End-of-life Management and Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
Summary of Changes
Date |
Version History |
Action |
Description of Change |
05-Dec-2022 |
Version 27 |
Changed |
Core Options and Additional Options sections were updated. Obsolete SKUs were removed. |
07-Nov-2022 |
Version 26 |
Changed |
Optional Features, Core Options and Additional Options sections were updated. Obsolete SKUs were removed. |
01-Aug-2022 |
Version 25 |
Changed |
Configuration Information section was updated. Obsolete SKU was removed. |
05-Jul-2022 |
Version 24 |
Changed |
Core Options sections was updated. Obsolete SKUs were removed. |
06-Dec-2021 |
Version 23 |
Changed |
Core Options and Additional Options sections were updated. Obsolete SKUs were removed. |
01-Nov-2021 |
Version 22 |
Changed |
Core Options sections was updated. Obsolete SKUs were removed. |
02-Aug-2021 |
Version 21 |
Changed |
Core Options sections was updated. Obsolete SKUs were removed. |
06-Apr-2021 |
Version 20 |
Changed |
Service and Support and Additional Options sections were updated. Obsolete SKUs were removed. |
01-Feb-2021 |
Version 19 |
Changed |
Overview and Core Options sections were updated. Obsolete SKUs were removed. |
07-Dec-2020 |
Version 18 |
Changed |
Overview, Standard Features, Configuration Information, Core Options and Additional Options sections were updated. Obsolete SKUs were removed. |
05-Oct-2020 |
Version 17 |
Changed |
Pre- Configured Models, Configuration Information, Core Options and Additional Options sections were updated. Obsolete SKUs were removed. |
08-Sep-2020 |
Version 16 |
Changed |
Overview, Standard Features, Pre- Configured Models, Configuration Information, Core Options and Additional Options sections were updated. Obsolete SKUs were removed. |
01-Jun-2020 |
Version 15 |
Changed |
Overview, Configuration Information, Core Options and Additional Options sections were updated. |
06-Apr-2020 |
Version 14 |
Changed |
Core Options section was updated. |
16-Mar-2020 |
Version 13 |
Changed |
Service and Support, Pre- Configured Models, Core Options and Additional Options sections were updated. |
03-Feb-2020 |
Version 12 |
Changed |
Overview, Standard Features,Configuration Information, Pre- Configured Models, Core Options, Additional Options and Memory sections were updated. |
02-Dec-2019 |
Version 11 |
Changed |
Configuration Information, Core Options, and Additional Options were updated. |
18-Nov-2019 |
Version 10 |
Changed |
Overview, Standard Features, Configuration Information, Core Options, and Additional Options were updated. |
04-Nov-2019 |
Version 9 |
Changed |
Standard Features and Additional Options section were updated. |
07-Oct-2019 |
Version 8 |
Changed |
Overview, Standard Features, Pre-configured Models, Core Options, Additional Options, Memory and Technical Specifications sections were updated. Obsolete SKUs were removed. |
12-Aug-2019 |
Version 7 |
Changed |
Overview, Standard Features and Additional Options sections were updated. |
30-Jul-2019 |
Version 6 |
Changed |
Additional Options section was updated. |
HPE ProLiant DL380 Generation9 (Gen9)
Summary of Changes
Date |
Version History |
Action |
Description of Change |
01-Jul-2019 |
Version 5 |
Changed |
Overview, Standard Features, Service and Support, Configuration Information and Additional Options sections were updated. |
03-Jun-2019 |
Version 4 |
Changed |
Overview, Standard Features, Service and Support, Configuration Information, Additional Options, Memory, Storage and Technical Specifications sections were updated. |
02-Apr-2019 |
Version 3 |
Changed |
Standard Features and Additional Options sections were updated. |
04-Mar-2019 |
Version 2 |
Changed |
Internal View image has been updated |
04-Feb-2019 |
Version 1 |
New |
New QuickSpecs. |
Copyright
Make the right purchase decision.
Contact our presales specialists.
© Copyright 2022 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Intel and Xeon are registered trademarks of Intel Corporation in the U.S. and other countries.
Microsoft, Windows, and Windows Server are U.S. registered trademarks of the Microsoft group of companies.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less
a00021862enw - 16058 - Worldwide - V27 - 05-December-2022
