DL80 G9

QuickSpecs HPE ProLiant DL80 Generation9 (Gen9) Overview







HPE ProLiant DL80 Generation9 (Gen9)

The HPE ProLiant DL80 Gen9 Server is designed with affordable storage, networking and processor scalability, and manageability in a 2U server for cost conscious service provider and SMBs. Apart from basic IT infrastructure workloads this server is ideal for running storage capacity intensive applications like cold storage, back-up due to compelling cost/GB that it offers.

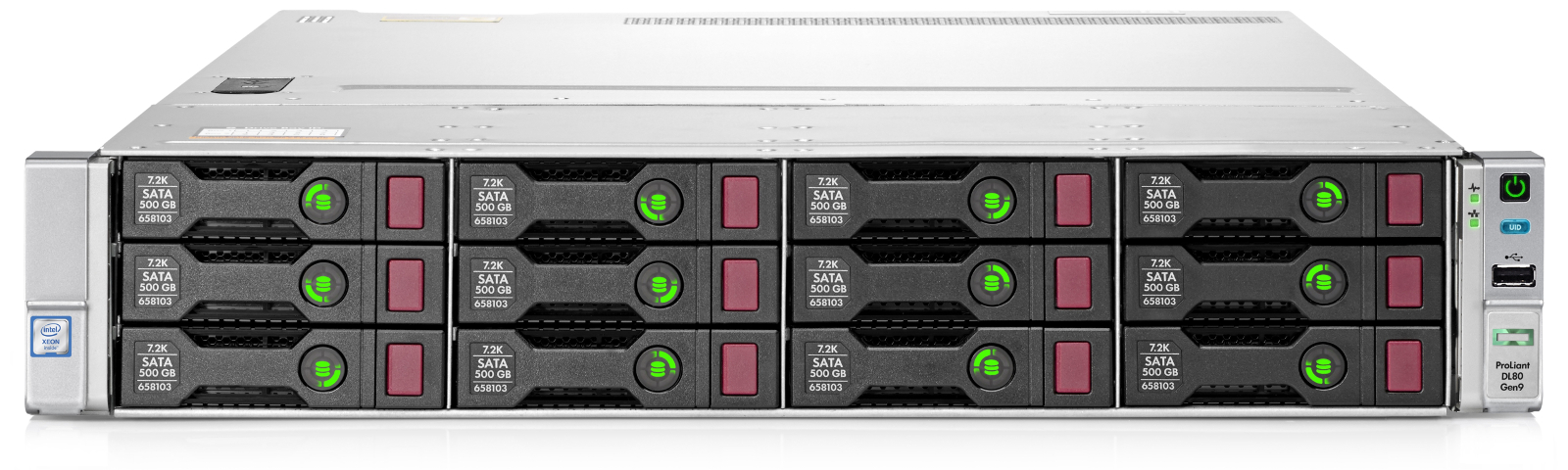

Front View







1. Access Panel (Top Cover)

2.

USB 2.0 connector

3. UID button/LED

4.

Health LED

5. NIC status LED

6.

Power On/Standby button and system power LED

7. Serial label pull tab



8.

8-bay LFF drive cage bay



Page 1



HPE ProLiant DL80 Generation9 (Gen9) Overview











Rear View



1. Slot 7 PCIe3 x16 low-profile, standup 2. Slot 6 PCIe3 x8 low-profile, standup

3. Slot 4 PCIe3 x8 low-profile, riser (optional) 4. Slot 5 PCIe3 x8 FlexibleLOM riser (optional)

5. Slot 4 PCIe3 x16 low-profile, standup 6. Slot 3 PCIe3 x8 low-profile, standup

7. Slot 1 PCIe3 x16 low-profile, standup 8. Slot 1 PCIe3 x16 full-height, full-length GPU riser (optional)

9. Slot 2 PCIe3 x8 full-height half-length riser (optional) or Slot 1 PCIe3 x8 (8, 4, 1) full-height, half-length riser

11. Power supply status LED (optional)

13. Embedded 2x1GbE network adapter 10. Power supply power connection

  1. Video connector 12. Non-hot-plug power supply

14. UID LED

  1. USB 3.0 connectors



Page 2



Overview









Internal View







1. Fans shown with 6 Hot-swap fans

2.

HPE Smart Storage Battery connector (optional)

3. Internal USB 3.0 connector

4.

Embedded HPE Smart Array B140i Controller

5. PCIe riser kits

6.

(Under) Non-Hot Plug HPE Power supply

7. PCIe 3.0 slots

8.

MicroSD card slot

9. 2 Processors, heatsink showing, with HPE Smart Socket Guide 10. HPE DDR4 SmartMemory DIMM slots. Shown fully populated in 8 slots (4 per processor)





What's New

Support for ClearOS – an easy to use OS with its own application marketplace

HPE ProLiant DL80 Generation9 (Gen9)



NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

Model

CPU frequency

Cores



L3 Cache

Power

QPI

DDR4 Hz

E5-2660v3

2.6GHz

10

25MB

105W

9.6GT/s

2133

E5-2650v3

2.3GHz

10

25MB

105W

9.6GT/s

2133

E5-2650Lv3

1.8GHz

12

30MB

65W

9.6GT/s

2133

E5-2640v3

2.6GHz

8

20MB

90W

8.0GT/s

1866

E5-2630v3

2.4GHz

8

20MB

85W

8.0GT/s

1866

E5-2630Lv3

1.8GHz

8

20MB

55W

8.0GT/s

1866

E5-2623v3

3.0GHz

4

10MB

105W

8.0GT/s

1866

E5-2620v3

2.4GHz

6

15MB

85W

8.0GT/s

1866

E5-2609v3

1.9GHz

6

15MB

85W

6.4GT/s

1600

E5-2603v3

1.6GHz

6

15MB

85W

6.4GT/s

1600

E5-2660v4

2.0GHz

14

35MB

105W

9.6GT/s

2400

E5-2650v4

2.2GHz

12

30MB

105W

9.6GT/s

2400

E5-2650Lv4

1.7GHz

14

35MB

65W

9.6GT/s

2400

E5-2640v4

2.4GHz

10

25MB

90W

8.0GT/s

2133

E5-2630v4

2.2GHz

10

25MB

85W

8.0GT/s

2133

E5-2630Lv4

1.8GHz

10

25MB

55W

8.0GT/s

2133

E5-2623v4

2.6GHz

4

10MB

85W

8.0GT/s

2133

E5-2620v4

2.1GHz

8

20MB

85W

8.0GT/s

2133

E5-2609v4

1.7GHz

8

20MB

85W

6.4GT/s

1866

E5-2603v4

1.7GHz

6

15MB

85W

6.4GT/s

1866

Processor

One of the following depending on model



Chipset

One of the following depending on model

Intel® C610 Series Chipset

Intel® E5-2600v3 Processor Family

Intel® E5-2600v4 Processor Family

NOTE: For more information regarding Intel® chipsets, please see the following URL:

http://www.intel.com/products/server/chipsets/

On System

Management

Chipset

HPE iLO (Firmware HPE iLO4 2.0 or later) 2GB NAND NOTE: Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on model

Type:

HPE SmartMemory and Standard Memory

DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)

DIMM Slots Available 8 (4 DIMM slots per processor, 4 channels per processor, 1 DIMMs per channel)



Maximum Capacity (LRDIMM)

256GB

(8 x 32GB LRDIMM @2400MHz)



Maximum Capacity (RDIMM)

256GB

(8 x 32GB LRDIMM @2400MHz)



Memory Protection Advanced ECC Advanced ECC uses single device data correction to detect and correct single and

Page 4





One of the following depending on model

Online Spare

all multibit error that occurs within a single DRAM chip.

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.



Mirroring mode

Memory mirroring inter-socket stores a copy of memory with dynamic failover in case of failure. Once a DIMM in a mirrored set is detected as failed, the mirror failover uses its mirrored DIMM.



Expansion Slots Motherboard slots

(Standard)

Expansion Technology

Slots #

Bus Width

Connector Width

Bus Form Factor Notes Number



1 PCIe 3.0

x16

x16

Low profile

CPU 1 slots



3 PCIe 3.0

x8

x8

Low profile

CPU 1 slots



4 PCIe 3.0

x16

x16

Low profile

CPU 1 slots



6 PCIe 3.0

x8

x8

Low profile

CPU 2 slots



7 PCIe 3.0

x16

x16

Low profile

CPU 2 slots

Primary Riser (Optional)

NOTE:

Expansion Slots #

Bus Width data indicates the

Technology

number of

Bus

Width

physical electric

Connector Width

Bus

Number

al lanes running to the conn

Form Factor

ector.

Notes



1

PCIe 3.0

x8

x8



Full-height, half-length slot

CPU 1 slots



2

PCIe 3.0

x8

x8



Full-height, half-length slot

CPU 1 slots

Flexible LOM Riser (Optional)

Expansion Slots #

Technology

Bus Width

Connector Width

Bus

Number

Form Factor

Notes



4

PCIe 3.0

x8

x8



Low profile

CPU 1 slots



5

PCIe 3.0

x8

x8



Flexible LOM

CPU 1 slots



NOTE: This riser is mandatory for installing FlexibleLOMs.







GPU riser (Optional)

Expansion Technology Bus Connector

Slots # Width Width

Bus

Number

Form Factor

Notes



1 PCIe 3.0 x16 x16

NOTE: When populating slots on second riser, a second process



or must be i



nstalled.

Full-height, full-length slot

Storage Controller One of the following depending on model

Entry Models HPE Dynamic Smart Array B140i Controller

NOTE: Provides support for up to 10 SATA drives and data transmission speeds up to 6Gb/s and supports RAID 0, 1 & 5.

Base Models HPE H240 FIO Smart Host Bus Adapter

NOTE: H240 Provides support for up to 8 SAS/SATA drives, data transmission speeds up to 12Gb/s and supports RAID 0, 1 & 5.



Internal Storage

Devices

One of the following depending on model

Optical Drive

Hard Drives

Hard Drive Bays

Via USB only

None ship standard

12 LFF drive bays total without Optical Bay

8 LFF drive bays total without Optical Bay

Maximum Internal

Storage

One of the following depending on model



Hot Plug LFF SAS

Hot Plug LFF SATA

Hot Plug LFF SATA SSD

CAPACITY

96.0TB

96.0TB

46.08TB

CONFIGURATION

12 x 8TB (with 12LFF drive cage)

12 x 8TB (with 12LFF drive cage)

12 x 3.84TB (with 12LFF drive cage)





Non Hot Plug LFF SATA

32TB

8 x 4TB (with 8LFF drive cage)



Power Supply

One of the following depending on model

HPE 550W FIO Power Supply

HPE 900W AC 240V DC Redundant Power Supply

Looking for high-efficiency power solutions at an entry-level price for your ProLiant Gen9 Essential Server? HPE Entry-Level Power Supplies offer an optimized set of features with options for both redundant and non-redundant power configurations.



The HPE 550W FIO Power Supply offers Silver-certified 80 Plus power efficiency (up to 89%) with an optimized set of features for non-redundant power configurations.



The HPE 900W AC 240VDC Power Input Module with Power Backplane can be configured to support power redundancy in ProLiant servers that offer only a single power supply bay, providing additional protection against power loss. With an 80 Plus Gold power efficiency rating (up to 92%), this power option helps to reduce operating expenses while protecting against trapped power capacity in the data center. Hot-plug AC power input modules allow for better serviceability with fast and easy deployment and replacement.

System Fans One of the following depending on model

Non-redundant Redundant

1P model 2 fans 4 fans

NOTE: Redundant and non-redundant fan counts vary with riser selection. 1P configurations either one of primary and secondary risers need 3 fans in non-redundant configuration.

Non-redundant Redundant

2P model 4 fans 5 fans

NOTE: Customers may separately purchase redundant fans with the 765516-B21 option kit. Additional fans (two) are also included in -B21 processor option kits when upgrading from one processor to two processors.

NOTE: All the riser option kits ship with necessary fan option kits.

Interfaces

Video 1 (Vaux Support)

LOM Network Ports 2 x 1GbE ports

Micro SD Slot 1 Micro SD

NOTE: The SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.

USB Up to 4 USB ports (standard);

Front: 1xUSB 2.0 std; (1xUSB2.0 optional upgrade with quick release ears) Rear: 2xUSB 3.0

Internal: 1x USB 3.0

Operating Systems Microsoft Windows Server and Virtualization Red Hat Enterprise Linux (RHEL) Software Support for SUSE Linux Enterprise Server (SLES)

ProLiant Servers

VMware ClearOS

NOTE: ClearOS allows you to build a fully functional server that is just right for you at no upfront cost.

It is available via CTO preload, Intelligent Provisioning or via download. For more information on

ClearOS, please visit http://www.hpe.com/servers/clearos.

NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hpe.com/info/ossupport and our driver download page.

Upgradeability One of the following depending on model

Upgradeable to 2 processors (28 cores)

NOTE: Processor upgrade from E5-2600v3 to E5-2600v4 is supported. Please refer to DL80 Gen9 User Guide for more details.

Up to 8 DIMM slots

NOTE: To take advantage of DIMMs 5-8, a second processor must be installed.

FlexibleLOM slot for 1GbE or 10GbE or QDR/FDR InfiniBand Networking Options

NOTE: To take advantage of the additional 2 PCI slot upgrade, a second processor must be installed.

Redundant Power Supply

Redundant Fan

Industry Standard Compliance

ACPI 2.0b Compliant

PCIe 3.0 Compliant

PXE Support

WOL Support

Microsoft® Logo certifications

USB 3.0 Support

ASHRAE A3

NOTE: Supports A3 extended ambient temperature.

NOTE: Refer to technical specifications section for more details.

Graphics

Integrated Matrox G200eH2 video standard

  • 1280 x 1024 (32 bpp)

  • 1920 x 1200 (16 bpp)

HPE Server Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability

UEFI/Legacy ROM and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode.

NOTE: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.



UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

  • Secure Boot

  • Operating system specific functionality

  • Support for > 2.2 TB (using GPT) boot drives

  • USB 3.0 Stack

  • Embedded UEFI Shell

  • Mass Configuration Deployment Tool using RESTful API for iLO 4

  • PXE boot support for IPv6 networks

  • Boot support for option cards that only support a UEFI option ROM

  • Network Stack configurations

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen9 Server.

Form Factor

One of the following depending on model

2U Rack form factor

All models ship with Easy Install rails (Cable management arm optional).

8 LFF Drive Bay Version:

3.44 (8.75cm) Height x 17.54" (44.55 cm) Width x 23.9" (60.70 cm) Length 12 LFF Drive Bay Version:

3.44 (8.75cm) Height x 17.54" (44.55 cm) Width x 23.9" (60.70 cm) Length

Embedded Management

HPE Integrated

Lights-Out

(HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at http://www.hpe.com/info/ilo.





UEFI



Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hpe.com/servers/uefi.



RESTful API

RESTful API for iLO 4 is Redfish 1.0 conformance for simplified server management such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.





Intelligent

Provisioning

Hassle free server and OS provisioning for 1 or few servers with Intelligent

Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning.





Embedded

Remote Support

The Hewlett Packard Enterprise embedded remote support, when used with Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to Hewlett Packard Enterprise or a Hewlett Packard Enterprise Authorized Partner for automated phone home support. Learn more at http://www.hpe.com/info/insightonline/explore.

Server utilities

Smart Update



Optimize firmware and driver updates with Smart Update solutions including Smart Update Manager (SUM) and Service Pack for ProLiant (SPP). Learn more at http://www.hpe.com/servers/smartupdatemanager.





HPE Systems

Insight Manager

(HPE SIM)

HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers, and also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/servers/hpsim.





Scripting Tool Kit Provision 1 to many servers using your own scripts to discover and deploy them with and Windows Scripting Tool Kit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell PowerShell. Learn more at http://www.hpe.com/servers/proliant/stk or http://www.hpe.com/servers/powershell.



RESTful Interface RESTful Interface tool is a scripting tool to provision using RESTful API for iLO 4 to Tool discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.



HPE iLO Mobile

Application



Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

HPE Insight Online

HPE Insight Online, available at no additional cost as part of your Hewlett Packard

Enterprise warranty or contractual support agreement with Hewlett Packard Enterprise, is a personalized dashboard for simplified tracking of IT operations and support information from anywhere, anytime. Learn more at

http://www.hpe.com/info/insightonline/explore.



Security Power-on password

Serial interface control

Administrator's password

TPM 1.2

TPM 2.0

NOTE: TPM 2.0 works only in UEFI Mode. UEFI



Warranty This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity.

Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge.

Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

Optional Features





Embedded Management

iLO Essentials

HPE iLO Essentials is the preferred license for small and medium business that offers full remote server management capabilities for small and medium business via the Integrated Remote Console (IRC), virtual media, and e-mail based alerts. Learn more about HPE iLO Essentials at http://www.hpe.com/servers/iLO/essentials.







iLO Scale-Out

HPE iLO Scale-Out is the preferred license built for web hosting, cloud service providers, and high performance computing data centers, managing massive scale out environments for the DL 100 and 10 series servers, not available for ML servers. This license offers sophisticated scripting tools that provides remote access through Text Console via SSH, Dynamic power capping, Email-based Alerting and proactive notifications. For more information, visit http://www.hpe.com/servers/iLO/scale-out.







iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. Learn more about HPE iLO

Advanced at http://www.hpe.com/servers/iloadvanced.

Server Management

HPE Insight HPE Insight Control, lets you deploy, migrate, monitor, remote control, and optimize your Control IT infrastructure through a single, simple management console. For more information, see http://www.hpe.com/info/insightcontrol.

Rack and Power Infrastructure

HPE Rack and Power Infrastructure products and services create highly efficient and intelligent solutions for existing or new IT data centers. HPE Rack and Power infrastructure solutions – rack infrastructure, power protection and management, performance optimized data centers (PODs) – are the foundation you are looking for to help secure your long-term IT success. These products are designed to help you react to changes in the industry. They deliver efficient, easy-to-use capabilities to manage, monitor, deploy and provision infrastructure from entry to enterprise. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access. Learn more at HPE Rack and Power Infrastructure.

High Performance Clusters

HPE Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPEC Server. A Cluster Platform Configurator simplifies ordering. https://www.hpe.com/us/en/solutions/hpc-high-performance-computing/hpc-software.html.

HPC Interconnects

NOTE: High Performance Computing (HPC) interconnect technologies are available for this server under the HPE Cluster Platform product portfolio. These high-speed interconnects are fully supported by Hewlett Packard Enterprise when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the following URL to configure HPEC Clusters with InfiniBand Interconnects: https://www.hpe.com/info/hpc/solutions.

Storage Software Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than Hewlett Packard Enterprise storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities. Storage software that gets the job done:

Data Protection and Recovery Software

Optional Features



Whether you're a large enterprise or a smaller business, Hewlett Packard Enterprise data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.

  • Data Archive and Migration Software

Hewlett Packard Enterprise storage software enables you to comply with data retention and retrieval requirements, improve application performance, and reduce costs by efficiently migrating infrequently accessed or less valuable data to lower cost storage.

  • Storage Resource Management Software (SRM)

Hewlett Packard Enterprise storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.

  • Data Replication Software

Hewlett Packard Enterprise offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.

  • Storage Device Management Software

Maximize your investment in Hewlett Packard Enterprise storage and networking with software that enables hardware-specific configuration, performance tuning and connectivity management.

  • HPE StoreVirtual VSA

With HPE StoreVirtual VSA you can use the power of virtualization to create a virtual array within your host server. Manage it as a single pool of shared storage capacity, and scale it to match your evolving needs. HPE ProLiant Gen9 servers include a 3-year limited license for HPE StoreVirtual VSA software with 1TB of capacity at no extra cost. Simply select to install HPE StoreVirtual VSA software during server setup within Intelligent Provisioning. More information, instructional videos, and free console management software are available at http://www.hpe.com/info/vsa1TB.

NOTE: For more information about Storage Software including QuickSpecs, please see: https://www.hpe.com/us/en/storage/software-defined.html.



ClearOS HPE and ClearCenter will help you lower the cost of building on-premise solutions without sacrificing security and ease of use. HPE ProLiant servers with ClearOS give you a simple, secure, and affordable operating system with an intuitive web based graphical user interface that provides a cloud-like experience on- premise, and an Application Marketplace with over 100 apps and growing. Whether you’re starting out or scaling, you decide what applications you need and pay as you grow.



One Config Simple SCE is a guided self-service tool to help sales and non-technical people provide customers with initial (SCE) configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in

your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. http://ocs.ext.hpe.com/.

Page

Service and Support





HPE Support Services

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability.

Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. HPE Support Services enable you to choose the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement to the support for need for your IT and business.

Connect your devices

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to Hewlett Packard Enterprise support.

1- IDC 2 – HP CSC reports 2014 - 2015

Recommended Support

Basic: HPE Foundation Care NBD, three-year Support Service

HPE Foundation Care Next Business Day connects you to Hewlett Packard Enterprise during business hours for assistance on resolving issues – This service features need based next business day hardware onsite response and software call back within two hours. In addition, Collaborative software support and provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make Hewlett Packard Enterprise your first call to help resolve hardware or software problems.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en



Standard: HPE Foundation Care 24x7, three-year Support Service

HPE Foundation Care 24x7 gives you access to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues. This service includes need based Hardware onsite response within four hours. In addition, collaborative software support is included in this service that provides

troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make Hewlett Packard Enterprise your first call to help resolve hardware or software problems.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en



Optimized: HPE Proactive Care* with 24x7 coverage, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to Hewlett Packard Enterprise, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.

Parts and Materials

Hewlett Packard Enterprise will provide Hewlett Packard Enterprise-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.



Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.



The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Related Services HPE Server Hardware Installation

Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices

Service and Support



and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf



HPE Installation and Startup Service

Provides for the installation and startup of Hewlett Packard Enterprise technology including BladeSystems, C-Class enclosure, HPE ProLiant c-Class and Integrity server blades, storage blades, SAN switch blades, HPE Virtual Connect modules (Ethernet and Fibre Channel), Ethernet network interconnects, and

InfiniBand, as well as the installation of one supported operating system type (Windows® or Linux).



HPE Technology Services Support Credits

Offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.



HPE Education Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book Services on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn



HPE Support Center The HPE Support Center is a personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers.



Learn more http://www.hpe.com/support/hpesc



The Hewlett Packard Enterprise Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Support Service or Hewlett Packard Enterprise contractual support agreement.



*HPE Support Center Mobile App is subject to local availability.



For more information: http://www.hpe.com/services

Page

Pre-configured Models







Entry Models

Base Models

[SKU Number]

830013-B21

833869-B21

Model Name

HPE ProLiant DL80 Gen9 E5-2603v4 4GB-R B140i 4LFF Non-hot Plug 550W PS Entry Server

HPE ProLiant DL80 Gen9 E5-2609v4 8GB-R H240 8LFF 550W PS Base Server

Processor

Intel® Xeon® E5-2603v4

Intel® Xeon® E5-2609v4

Number of Processors

One

Memory



8GB (1x8GB Registered DIMMs STND,

2400 MHz)

NOTE: Due to processor limitation, these DDR4 DIMMs will operate at 1833 MHz in this model.

8GB (1x8GB Registered DIMMs, 2400 MHz) NOTE: Due to processor limitation, these DDR4 DIMMs will operate at 1833 MHz in this model.

Network Controller

HPE Embedded Dual Port 361i Adapter Network Interface

Storage Controller

HPE Dynamic Smart Array B140i

HPE H240 Smart Host Bus Adapter

Hard Drive

None ship standard

Internal Storage

4 LFF HDD Bays (Non Hot Plug)

8 LFF HDD Bays

Optical Drive Bay

Not Available

Optical Drive

Optional via HPE Mobile USB DVDRW Drive (701498-B21)

PCI-Express Slots

3 PCIe 3.0 slots (Without risers)

Power Supply

(1) HPE 550W FIO Power Supply

Fans

2 hot swap fans, non-redundant

4 hot plug fans, redundant

Management

iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials (optional), iLO Scaleout (optional only for DL), iLO Advanced (optional)

Form Factor

Rack (2U), HPE Easy Install Rails

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response





Country Code Key xx1 = B21 Worldwide

NOTE: The -B21 WW SKU is to be ordered in all countries other than Japan or PRC.

xx1 = 291 Japan xx1 = AA1 PRC



This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

  1. Factory Integrated Models must start with a CTO Server.

  2. FIO indicates that this option is only available as a factory installable option.

  3. All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

  4. Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)



[Chassis]

HP ProLiant DL80 Gen9 Non-hot

Plug 4LFF Configure-to-order Server

HP ProLiant DL80 Gen9 8LFF Configure-to-order Server

HP ProLiant DL80 Gen9

12LFF Configure-to-order Server

SKU Number

778686-B21

778685-B21

787217-B21

Processor

2 (optional) x HPE Smart Socket Guide

DIMM Slots

8 DIMM slots for RDIMM, LRDIMM DDR4 Memory

Storage Controller

HPE Dynamic Smart Array B140i

PCIe

5 Low Profile PCIe 3.0 slots

Drive Cage

4LFF Non Hot Plug

8LFF Hot Plug

12LFF Hot Plug

Network Controller

HPE Embedded Dual Port 361i Adapter Network Interface

Fans

2 hot swap fans, non-redundant

Management

iLO Management (standard), Intelligent Provisioning (standard)

USB

1 front, 1 internal, 2 rear



Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

HPE Processors

HPE Memory

Select one or two processors from Core Options-Processor section below.



  • If one processor is desired, select one xxxxxx-L21

  • If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.

  • Up to 2 processors supported. Mixing different processor models is not supported.

  • DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.



For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x v#, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, x = L for low power SKUs and v# (not yet designated) = version number.

Select one or more memory from Core Options-Memory section below.

  • UDIMM, RDIMM, and LRDIMM are all distinct memory technologies and cannot be mixed within a server.

  • HPE memory options from previous generation servers are not qualified or warranted with Hewlett Packard Enterprise Gen9 systems. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9.

  • If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors all DIMM slots are available.

  • Depending on the memory configuration and processor model, the memory speed may run at

Page 15







2400MHz, 2133MHz, 1866MHz or 1600MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://www.hpe.com/go/ddr4config.

HPE Power Supplies Select one or more power supplies from Core Options-Power Supplies section below.



  • Prior to selecting a power supply option, it is highly recommended that you review your server configuration in the HPE Power Advisor tool to determine the right size power supply for your server configuration. The HPE Power Advisor is located at:

http://www.hpe.com/info/hppoweradvisor.

  • Mixing of power supplies in the same server is not supported. All power supplies must be of the same input voltage, output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message and/or experience operational issues with your server.

Step 3: Choose Additional Factory Integratable Options

HPE Unique Options Select one or more Unique options from Core Options section below.

  • This section may contain FIO options, please see the Unique options section below.

  • FIO indicates that this option is only available as a factory installable option.

HPE I/O Expansion Select one or more Riser Kit options from Core Options section below.

Options

  • To take advantage of the additional PCI slot upgrade, the second processor must be installed.

  • This section may contain FIO options, please see HPE I/O Expansion Options section below.

  • FIO indicates that this option is only available as a factory installable option.

HPE Drives Select one or more drives from Core Options-HPE Drives section below.

  • The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

  • Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

  • The HPE ProLiant Gen9 Smart Storage solutions are equipped with re-designed Small Form Factor (SFF 2.5 in) and Large Form Factor (LFF 3.5 in) hot plug carriers for HPE Qualified Hard Drives and Solid State Drives. These new carriers provide status and activity indicators as well as caution indicators for "Do Not Remove."

HPE FlexibleLOM Select a FlexibleLOM from Core Options-Networking section below.

  • Only one FlexibleLOM can be added to the server. These options are upgradeable and can be changed from the original configuration after the server is shipped.

  • For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

  • Please see the QuickSpecs for Technical Specifications and additional information:

http://www.hpe.com/go/ProLiantNICs.

HPE Networking Select a standup NIC adapter from Core Options-Networking section below.

  • Please see the QuickSpecs for Technical Specifications and additional information:

http://www.hpe.com/go/ProLiantNICs.

  • These options are upgradeable and can be changed from the original configuration after the server is shipped.

Page 16



  • For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

    HPE Graphics Options

    Select one or more graphics adapter from Additional Options section below.

    • Please see the HPE Power Advisor for estimated power consumption of your individual system configuration prior to installing GPUs. The HPE Power Advisor is located at:

    http://www.hpe.com/info/hppoweradvisor.

    • This section may contain FIO options, please see HPE Computation & Graphics Accelerators section below.

    HPE Cooling Options

    Select one or more Fan Kits from Core Options section below.

    • This section may contain FIO options, please see HPE Cooling Options section below.

    • FIO indicates that this option is only available as a factory installable option.

    HPE Storage Controllers

    Select one or more Storage options from Additional Options section below.

    • The embedded B140i controller will operate in UEFI only mode. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

    • This section may contain FIO options, please see HPE Storage Controllers section below.

    • FIO indicates that this option is only available as a factory installable option.

    HPE Rail Kits

    Select one type of rail kit from Additional Options section below.

  • Please take a moment to review the installation documentation that comes with the server to help you with the installation of your Gen9 server.

  • To assist in the installation of the server into the rack, an optional installation tool is available by contacting your local services representative (p/n 695539-001).

  • See Hewlett Packard Enterprise Rack Options in Additional Options section of this QuickSpecs for more rack kit choices.

CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.





NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE Unique HP DL80 Gen9 8LFF Non-hot Plug Enablement Kit 788355-B21 Options NOTE: Required to upgrade from 4LFF NHP to 8LFF NHP models. HP DL80 Gen9 Full Height Half Length Riser Kit 765515-B21 NOTE: Includes two FHHL PCIe 3.0 slots and one fan. HP DL80 Gen9 GPU Enablement Kit 765518-B21 NOTE: Includes 1 FHFL slot, one fan and power cable required to enable GPU support. Either one of FHHL or FlexibleLOM riser or GPU riser can be selected.

HP DL80 Gen9 FlexibleLOM Riser Kit 765514-B21

NOTE: Includes one FlexibleLOM slot, one Low Profile slot and one fan.

HPE Legacy FIO Mode Setting 758959-B22

NOTE: UEFI is the default, this FIO part can be used for CTO to enable Legacy mode.

HP AHCI-Enable FIO Setting 801845-B21 NOTE: This needs to be selected when Advanced Host Controller Interface mode is required on B140i controller.



HPE Processors

E5-2600v4 series Processors

HPE DL80 Gen9 Intel® Xeon® E5-2609v4 (1.7GHz/8-core/20MB/85W) Processor Kit HPE DL80 Gen9 Intel® Xeon® E5-2609v4 (1.7GHz/8-core/20MB/85W) FIO Processor

Kit

HPE DL80 Gen9 Intel® Xeon® E5-2603v4 (1.7GHz/6-core/15MB/85W) Processor Kit HPE DL80 Gen9 Intel® Xeon® E5-2603v4 (1.7GHz/6-core/15MB/85W) FIO Processor

Kit

HPE DL80 Gen9 Intel® Xeon® E5-2650Lv4 (1.7GHz/14-core/35MB/65W) Processor

Kit

HPE DL80 Gen9 Intel® Xeon® E5-2650Lv4 (1.7GHz/14-core/35MB/65W) FIO Processor Kit

HPE DL80 Gen9 Intel® Xeon® E5-2630Lv4 (1.8GHz/10-core/25MB/55W) Processor

Kit

HPE DL80 Gen9 Intel® Xeon® E5-2630Lv4 (1.8GHz/10-core/25MB/55W) FIO Processor Kit

HPE DL80 Gen9 Intel® Xeon® E5-2620v4 (2.1GHz/8-core/20MB/85W) Processor Kit HPE DL80 Gen9 Intel® Xeon® E5-2620v4 (2.1GHz/8-core/20MB/85W) FIO Processor

Kit

HPE DL80 Gen9 Intel® Xeon® E5-2623v4 (2.6GHz/4-core/10MB/85W) Processor Kit HPE DL80 Gen9 Intel® Xeon® E5-2623v4 (2.6GHz/4-core/10MB/85W) FIO Processor

Kit

HPE DL80 Gen9 Intel® Xeon® E5-2660v4 (2.0GHz/14-core/35MB/105W) Processor

Kit

HPE DL80 Gen9 Intel® Xeon® E5-2660v4 (2.0GHz/14-core/35MB/105W) FIO Processor Kit

HPE DL80 Gen9 Intel® Xeon® E5-2650v4 (2.2GHz/12-core/30MB/105W) Processor

Kit

HPE DL80 Gen9 Intel® Xeon® E5-2650v4 (2.2GHz/12-core/30MB/105W) FIO



803091-B21

803091-L21

803093-B21

803093-L21

803095-B21

803095-L21

803097-B21

803097-L21

803087-B21

803087-L21

803089-B21

803089-L21

803079-B21

803079-L21

803081-B21

803081-L21





Page 18







Processor Kit



HPE DL80 Gen9 Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W) Processor Kit

803083-B21

HPE DL80 Gen9 Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W) FIO Processor

Kit

803083-L21

HPE DL80 Gen9 Intel® Xeon® E5-2630v4 (2.2GHz/10-core/25MB/85W) Processor Kit

803085-B21

HPE DL80 Gen9 Intel® Xeon® E5-2630v4 (2.2GHz/10-core/25MB/85W) FIO Processor

Kit

803085-L21

E5-2600v3 series Processors



HP DL80 Gen9 Intel® Xeon® E5-2603v3 (1.6GHz/6-core/15MB/85W) Processor Kit

765521-B21

HP DL80 Gen9 Intel® Xeon® E5-2609v3 (1.9GHz/6-core/15MB/85W) Processor Kit

765523-B21

HP DL80 Gen9 Intel® Xeon® E5-2620v3 (2.4GHz/6-core/15MB/85W) Processor Kit

765525-B21

HP DL80 Gen9 Intel® Xeon® E5-2630v3 (2.4GHz/8-core/20MB/85W) Processor Kit

765526-B21

HP DL80 Gen9 Intel® Xeon® E5-2630Lv3 (1.8GHz/8-core/20MB/55W) Processor Kit

765530-B21

HP DL80 Gen9 Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W) Processor Kit

765531-B21

HP DL80 Gen9 Intel® Xeon® E5-2623v3 (3GHz/4-core/10MB/105W) Processor Kit

780100-B21

HP DL80 Gen9 Intel® Xeon® E5-2650v3 (2.3GHz/10-core/25MB/105W) Processor Kit

765528-B21

HP DL80 Gen9 Intel® Xeon® E5-2660v3 (2.6GHz/10-core/25MB/105W) Processor Kit

765529-B21

HP DL80 Gen9 Intel® Xeon® E5-2650Lv3 (1.8GHz/12-core/30MB/65W) Processor Kit

765532-B21

NOTE: Processor upgrade from E5-2600v3 to E5-2600v4 is supported. Please refer



to DL80 Gen9 User Guide for more details.



HPE Memory

Registered DIMMs (RDIMMs) for E5-2600v4 Series





HP 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805347-B21



HP 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805349-B21



HPE 16GB (1x16GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

836220-B21



HP 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805351-B21



NOTE: These DIMMs are supported only with E5-2600v4 processors.





Registered DIMMs (RDIMMs) for E5-2600v3 Series





HP 4GB (1x4GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726717-B21



HP 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726718-B21



HP 8GB (1x8GB) Dual Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

759934-B21



HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726719-B21



HP 32GB (1x32GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

728629-B21



NOTE: These DIMMs are supported only with E5-2600v3 processors.





Load Reduced DIMMs (LRDIMMs) for E5-2600v4 Series





HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory

Kit

805353-B21



NOTE: These DIMMs are supported only with E5-2600v4 processors.





Load Reduced DIMMs (LRDIMMs) for E5-2600v3 Series





HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory

Kit

726720-B21



HP 32GB (1x32GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory

Kit

726722-B21



NOTE: These DIMMs are supported only with E5-2600v3 processors.





HPE Standard Memory for E5-2600v4 Series





HPE 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Standard

851353-B21

Memory Kit

NOTE: These memory options are available as standalone only and cannot be configured in the factory. These are standard memory DIMMs with no Smart Memory features.

NOTE: These DIMMs are supported only with E5-2600v4 processors.



HPE Standard Memory for E5-2600v3 Series





HPE 4GB (1x4GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Registered Standard Memory Kit

803026-B21



HPE 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Standard Memory Kit

803028-B21



NOTE: These memory options are available as standalone only and cannot be configured in the factory. These are standard memory DIMMs with no Smart Memory features.

NOTE: These DIMMs are supported only with E5-2600v3 processors.



HPE Optical Drives



HPE Mobile USB Non Leaded System DVD RW Drive



701498-B21

HPE Drives

SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives





HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD

801888-B21



HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD

801884-B21



HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD

801882-B21



SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives





HPE 12TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

881785-B21



HPE 10TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

857648-B21



HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

819203-B21



HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

861594-B21



HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861750-B21



HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

846510-B21



HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872491-B21



HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861752-B21



HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

861678-B21



HPE 3TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

861693-B21



HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872489-B21



HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

861676-B21



HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

861691-B21



6G SATA SC Hot Plug LFF 7.2K (3.5-inch) Standard Drives





HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

858596-B21



HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

858594-B21



SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives





HPE 10TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

857644-B21



HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

861590-B21



HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware

819201-B21



HDD



HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861754-B21

HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

846514-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872487-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861756-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

818367-B21

HPE 3TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

846528-B21

HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872485-B21

HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

818365-B21

HPE 1TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

846524-B21

SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives



HPE 600GB SAS 12G Enterprise 15K LFF (3.5in) SC 3yr Wty HDD

765424-B21

HPE 450GB SAS 12G Enterprise 15K LFF (3.5in) SCC 3yr Wty HDD

737394-B21

HPE 300GB SAS 12G Enterprise 15K LFF (3.5in) SCC 3yr Wty HDD

737261-B21

12G SAS Hot Plug LFF (3.5-inch) SC Mixed Use Solid State Drives



HPE 800GB SAS 12G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

872378-B21

6G SATA Hot Plug LFF (3.5-inch) Write Intensive Solid State Drives



HPE 1.6TB SATA 6G WI LFF SCC DS SSD

872365-B21

HPE 800GB SATA 6G WI LFF SCC DS SSD

872361-B21

HPE 400GB SATA 6G WI LFF SCC DS SSD

872357-B21

6G SATA Hot Plug LFF (3.5-inch) Mixed Use Solid State Drives



HPE 1.92TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

877790-B21

HPE 1.6TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

804634-B21

HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

877784-B21

HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

875476-B21

HPE 480GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

875472-B21

6G SATA Hot Plug LFF (3.5-inch) Read Intensive Solid State Drives



HPE 1.92TB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

877760-B21

HPE 1.6TB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

869388-B21

HPE 960GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

877754-B21

HPE 480GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

877748-B21

HPE 480GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

869380-B21

6G SATA Hot Plug LFF (3.5-inch) MU-3 SCC SSD



HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

872350-B21

HPE 480GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

872346-B21



Hard Drive Blank Kits

HPE Large Form Factor Hard Drive Blank Kit 666986-B21

Hard Drive Kits

HP DL80 Gen9 8LFF Non-hot Plug Enablement Kit 788355-B21 NOTE: Required to move from 4LFF NHPE model to 8 LFF NHPE model.

HPE Networking

1 Gigabit Ethernet adapters

HPE Ethernet 1Gb 4-port 331T Adapter



647594-B21





HPE Ethernet 1Gb 2-port 332T Adapter

615732-B21





HPE Ethernet 1Gb 2-port 361T Adapter

652497-B21





HPE Ethernet 1Gb 4-port 366T Adapter

811546-B21





10 Gigabit Ethernet adapters

HPE Ethernet 10Gb 2-port 530SFP Adapter



652503-B21





HPE Ethernet 10Gb 2-port 530T Adapter

656596-B21





HPE Ethernet 10Gb 2-port 546SFP+ Adapter

779793-B21





HPE Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21





HPE Ethernet 10Gb 2-port 561T Adapter

716591-B21





HPE Ethernet 10Gb 2-port 562SFP+ Adapter

727055-B21





NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. See cables/options below.

25 Gigabit Ethernet adapters

HPE Ethernet 4x25Gb 1-port 620QSFP28 Adapter

817762-B21





FlexibleLOM Adapters

HPE Ethernet 1Gb 4-port 366FLR Adapter

665240-B21





HPE FlexFabric 10Gb 2-port 533FLR-T Adapter

700759-B21





HPE FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

700751-B21





HPE FlexFabric 10Gb 4-port 536FLR-T Adapter

764302-B21





HPE Ethernet 10Gb 2-port 546FLR-SFP+ Adapter

779799-B21





HPE Ethernet 10Gb 2-port 560FLR-SFP+ Adapter

665243-B21





HPE Ethernet 10Gb 2-port 561FLR-T Adapter

700699-B21





HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hpe.com/servers/ProLiantNICs.

727054-B21





HPE InfiniBand

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+QSFP Adapter

NOTE: Please see the HPE InfiniBand Options for HP ProLiant and Integrity Servers QuickSpecs for additional information.

764284-B21



HPE I/O Expansion Options

HP DL80 Gen9 FlexibleLOM Riser Kit

NOTE: Includes one FlexibleLOM slot, one Low Profile slot and one fan.

765514-B21





HP DL80 Gen9 Full Height Half Length Riser Kit

765515-B21



NOTE: Includes two FLFH PCIe 3.0 slots and one fan.





HP DL80 Gen9 GPU Enablement Kit

765518-B21

NOTE: Includes 1 FHFL slot, one fan and power cable required to enable GPU support. Either one of FHHL or FlexibleLOM riser or GPU riser can be selected.



HPE Power Supplies

HPE Entry-Level Power Supplies

HPE 550W Standard FIO Power Supply Kit



730941-B21



NOTE: This is a Factory Installed Option (FIO) only.

NOTE: Supports Silver-level efficiency (89%) with a standard C14 inlet connector. No support for HPE Power Discovery Services. Only compatible with select HPE ProLiant Gen9 Essential servers.





HPE 900W Standard AC 240VDC Power Input Module FIO Kit

828734-B21



NOTE: This is a Factory Installed Option (FIO) only.

NOTE: RPS Backplane is mandatory to be chosen with this power input module.





HPE 900W Standard AC 240VDC RPS Power Backplane FIO Kit

828735-B21



NOTE: This is a Factory Installed Option (FIO) only.

NOTE: This RPS backplane is mandatory to be chosen along with 900W RPS input module.





HPE 900W Standard AC 240VDC Power Input Module

775595-B21



NOTE: This part number can only be bought standalone and is for field integration only.

NOTE: RPS Backplane is mandatorily needed with this power input module.





HPE 900W Standard AC 240VDC RPS Power Backplane

814835-B21



NOTE: This part number can only be bought standalone and is for field integration only.

NOTE: This RPS backplane is mandatorily needed with 900W RPS input module.





HPE 900W Standard AC 240VDC Redundant Power Supply Kit

820792-B21



NOTE: This Redundant Power supply kit includes 2 power supply input module and 1



backplane kit.

NOTE: This part number is both factory installed option and field integrable option.

NOTE: This Power supply supports both 100-240V AC and 240V DC.

NOTE: Supports Gold-level efficiency (92%) with a standard C14 inlet connector. No support for HPE Power Discovery Services. Only compatible with select HPE ProLiant Gen9 Essential servers.

NOTE: HPE 900W Gold (Redundant) AC 240VDC Power Input Module (775595-B21/ 828734-B21) must be used with Power Backplane (814835-B21).

NOTE: Each Redundant Power Supply Backplane can support up to two (2) power input modules.

NOTE: Redundant AC Power Input Modules do not share power. Redundant AC Power Input Module #1 is the primary AC Power Input Module. Redundant AC Power Input Module #2 is the backup AC Power Input Module.

NOTE: Mixing of power supplies in the same server is not supported. All power supplies must be of the same input voltage, output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message and/or experience operational issues with your server.

NOTE: Prior to selecting a power supply option, it is highly recommended that you review your server configuration in the HPE Power Advisor tool to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hpe.com/info/hppoweradvisor.





HPE Cooling Options

HP DL80 Gen9 Redundant Fan Kit

NOTE: Includes two fans and is required to move from non-redundant to redundant fan configurations. Since each riser includes a fan as well, please refer to user-guide for exact fan requirements to enable fan redundancy.

765516-B21









NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE Insight Software

HPE Insight Control

HPE Insight Control including 1yr 24x7 Technical Support and Updates 1-server LTU



C6N27A



HPE Insight Control including 1yr 24x7 TSU E-LTU

C6N28ABE



HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO LTU

C6N36A



HPE Insight Control Upgrade from iLO Advanced including 1yr 24x7 Support E-LTU

C6N38ABE

NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.

NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24x7 HPE Software Technical Support and Update Service.

NOTE: Licenses ship without media. The HPE Insight Control Media Kit can be ordered separately, or can be downloaded at: https://www.hpe.com/info/insightmanagement.

NOTE: For additional license options please see the HPE Insight Control QuickSpecs.



Embedded HPE iLO Advanced

Management HPE iLO Advanced including 1yr 24x7 Technical Support and Updates 1-server LTU 512485-B21

HPE iLO Advanced including 3yr 24x7 Tech Support and Updates 1-server LTU

BD505A

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates E-LTU

E6U59ABE

HPE iLO Advanced including 3yr 24x7 Technical Support and Updates E-LTU

E6U64ABE

HPE iLO Essentials



HPE iLO Essentials including 3yr 24x7 Technical Support and Updates E-LTU

E6U61ABE

HPE iLO Essentials including 3yr 24x7 Tech Support and Updates 1-server LTU

BD774A

HPE iLO Essentials including 1yr 24x7 Tech Support and Updates 1-server LTU

BD775A

HPE iLO Essentials including 1yr 24x7 Technical Support and Updates E-LTU

E6U62ABE

HPE iLO Scale-out



HPE iLO Scale-Out 3yr 24x7 Tech Support and Updates Flexible Quantity LTU

BD776A

HPE iLO Scale-Out 1yr 24x7 Tech Support and Updates Flexible Quantity LTU

BD778A

HPE iLO Scale-Out including 3yr 24x7 Tech Support and Updates Flex Qty E-LTU

BD776AAE

HPE iLO Scale-Out including 3yr 24x7 Tech Support and Updates Tracking LTU

BD777A

HPE iLO Scale-Out including 1yr 24x7 Tech Support and Updates Flex Qty E-LTU

BD778AAE

HPE iLO Scale-Out including 1yr 24x7 Tech Support and Updates Tracking LTU

BD779A



HPE Converged

Infrastructure

Management

Software

HPE OneView Advanced (with HPE iLO Advanced)

HPE OneView including 3yr 24x7 Support Physical 1-server LTU

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

HPE OneView Advanced (without HPE iLO Advanced)

HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU



E5Y34A

E5Y35AAE

E5Y43A



P8B24A

P8B26AAE P8B31A





Page 25







HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

HPE OneView Physical Media Kit LTU

E5Y37A

NOTE: Full licenses of HPE OneView Advanced also provide the right-to-use HPE



Insight Control without additional charge.

NOTE: Server provisioning (via 'HPE Insight Control server provisioning') is licensed as part of HPE OneView Advanced and provides multi-server OS and driver provisioning. Media kit #BD883A can be ordered for a physical copy of this software (USB flash drive).

NOTE: Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded at: http://www.hpe.com/info/hpeoneview.

NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.



HPE Security HPE Trusted Platform Module 2.0 Kit 745823-B21

HPE Trusted Platform Module Option 488069-B21

HPE 2U Security Bezel Kit 666988-B21

NOTE: Quick Release Ear FIO kit (P/N: 778109-B21) is required for installing security bezel.

HPE DL80 Gen9 Quick Release Ear FIO Kit 778109-B21 NOTE: Quick Release Ears are mandatory for 12LFF models. HPE DL80 Gen9 Thumbscrew Ear FIO Kit 787211-B21



HPE Storage Controllers

SAS Controllers

HPE Smart Array Controllers





HPE Smart Array P440/2GB FBWC 12Gb 1-port Int SAS Controller

820834-B21



NOTE: Includes the HPE Smart Storage Battery.





HPE Smart Array P840/4GB FBWC 12Gb 2-ports Int SAS Controller

726897-B21



HP Smart Array P840/4GB FBWC 12Gb 2-ports Int FIO SAS Controller

761874-B21



NOTE: Includes the HPE Smart Storage Battery.





HPE Smart Array P841/4GB FBWC 12Gb 4-ports Ext SAS Controller

726903-B21



HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller

726821-B21



HPE Smart Array P441/4GB FBWC 12Gb 2-ports Ext SAS Controller

726825-B21



HP Smart Array P440/4GB FBWC 12Gb 1-port Int FIO SAS Controller

761872-B21



NOTE: Includes the HPE Smart Storage Battery.





HPE Smart Host Bus Adapters





HPE H240 12Gb 2-ports Int Smart Host Bus Adapter

726907-B21



HP H240 12Gb 2-ports Int FIO Smart Host Bus Adapter

761873-B21



HPE H241 12Gb 2-ports Ext Smart Host Bus Adapter

726911-B21



HPE Cable Options





HP DL80 Gen9 LFF Smart Array P440/P840 SAS Cable Kit

779619-B21



NOTE: One cable kit must be selected with P440 controller.

NOTE: Two of these cable kits must be selected with P840 controller.





HP DL80 Gen9 LFF Smart HBA H240 SAS Cable Kit

779622-B21



NOTE: Two cable Kits must be selected with H240.





HPE DL60/80/120 Gen9 4LFF Cable FIO Kit

777331-B21



NOTE: One of the above cables is required to be selected depending on the



combination of chassis and storage controller. Cable option kit descriptions include

the right chassis and storage controller names.

NOTE: FIO indicates that this option is only available as a factory installable option.

Please select FIO option if you want the option to be factory installed.

NOTE: NHPE server chassis (Mod-x) includes SATA cables required to connect drives to embedded B140i SATA controller.

Optional Software



HPE Smart Array SR SmartCache (Single Key/Single Server) LTU

D7S26A

HPE Smart Array SR SmartCache (Single Key/Multiple Servers) LTU

D7S27A

HPE Smart Array SR SmartCache (Single Key/Multiple Servers) E-LTU

D7S27AAE

NOTE: HPE SmartCache is supported when one of the supported Smart Array Controllers is installed in the server.

NOTE: HPE SmartCache comes standard (no licensing is required) if the HPE Smart Array P840 Controller is installed in the server.



HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU

Q2F26AAE

Optional Upgrades



HP 96W Smart Storage Battery with 145mm Cable for DL/ML/SL Servers

727258-B21

NOTE: This option is mandatorily required with HPE Smart Array controllers. One



server can accommodate only 1 Smart Storage Battery that would suffice the requirement of all HPE Smart Array controllers.



HPE Tape Backup NOTE: For the complete range of tape drives, autoloaders, libraries and media see: http://www.hpe.com/storage/storeever. For hardware and software compatibility of HPE tape backup products see: http://www.hpe.com/storage/spock.

NOTE: For Internal drives to be connected to DL servers please make sure that you order rack mount kit as well.

Tape Drives



HPE StoreEver LTO-7 Ultrium 15000 External Tape Drive

BB874A

HPE StoreEver LTO-6 Ultrium 6250 External Tape Drive

EH970A

HPE StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive

EH958B

HPE StoreEver LTO-4 Ultrium 1760 SAS External Tape Drive

EH920B

SAS Rack-Mount Tape Solutions



HPE StoreEver MSL LTO-7 Ultrium 15000 SAS Drive Upgrade Kit

N7P37A

HPE StoreEver MSL LTO-7 Ultrium 15000 FC Drive Upgrade Kit

N7P36A

HPE StoreEver LTO-6 Ultrium 6250 Tape Drive in a 1U Rack Mount Kit

C0L99A

HPE StoreEver MSL LTO-6 Ultrium 6250 SAS Drive Upgrade Kit

C0H27A

HPE StoreEver MSL LTO-6 Ultrium 6250 Fibre Channel Drive Upgrade Kit

C0H28A

HPE StoreEver LTO-5 Ultrium 3000 SAS Tape Drive in a 1U Rack Mount Kit

EJ014B

HPE StoreEver MSL LTO-5 Ultrium 3000 SAS Drive Upgrade Kit

BL540B

HPE StoreEver LTO-4 Ultrium 1760 SAS (1) in a 1U Rack Mount Kit

EH946C

HPE StoreEver 1U SAS Rack Mount Kit

AE459B

HPE DAT Autoloader



HPE StoreEver 1/8 G2 LTO-7 Ultrium 15000 SAS Tape Autoloader

N7P35A

HPE StoreEver 1/8 G2 LTO-7 Ultrium 15000 FC Tape Autoloader

N7P34A

HPE StoreEver 1/8 G2 LTO-6 Ultrium 6250 Fibre Channel Tape Autoloader

C0H19A

HPE StoreEver 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader

BL536B

HPE MSL2024 Tape Library



HPE StoreEver MSL2024 0-drive Tape Library

AK379A

HPE MSL4048 Tape Library



HPE StoreEver MSL4048 0-drive Tape Library

AK381A

HPE StoreEver MSL6480



HPE StoreEver MSL6480 Scaleable Expansion Module QU626A

HPE StoreEver MSL6480 Scalable Base Module QU625A

HPE Disk Backup

HPE RDX Removable Disk Backup System

HP RDX+ 1TB External Backup System

B7B69B



HP RDX+ 500GB External Backup System

B7B66B



HPE RDX 2TB USB3.0 External Disk Backup System

E7X53B



HPE RDX+ 3TB USB 3.0 External Disk Backup System

P9L72A



HPE RDX 3TB USB 3.0 Internal Disk Backup System

P9L71A



HPE RDX 4TB USB 3.0 External Disk Backup System

Q2R33A



HPE D3700 Enclosure

QW967A



HPE D3600 Enclosure

QW968A



HPE RDX+ External Docking System

C8S07B



NOTE: For the complete range of RDX drives and media see: https://www.hpe.com/us/en/product-catalog/storage/disk-based-backupsystems.html. For hardware and software compatibility of HPE disk backup products see: http://www.hpe.com/storage/spock.

NOTE: Please see the HPE RDX Removable Disk Backup System QuickSpecs for additional part numbers, technical specifications, and additional information. HPE StoreOnce Backup systems

HPE StoreOnce 3100 8TB System

BB913A



HPE StoreOnce 3540 24TB System

BB914A



HPE StoreOnce 5100 48TB System

BB915A



HPE StoreOnce 3520 12TB System

BB922A

HPE Storage Options

Emulex Fibre Channel HBAs

HPE 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AJ762B



HPE 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ763B



HPE StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter

C8R38A



HPE StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter

C8R39A



QLogic Fibre Channel HBAs

HPE 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AK344A



HPE 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ764A



HPE StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter

QW971A



HPE StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter

QW972A



Converged Network Adapter

HPE StoreFabric CN1100R Dual Port Converged Network Adapter

QW990A



HPE StoreFabric CN1100R 10GBASE-T Dual Port Converged Network Adapter

N3U52A



HPE StoreFabric CN1200E 10Gb Converged Network Adapter

E7Y06A



HPE StoreFabric CN1200E 10GBASE-T Dual Port Converged Network Adapter

N3U51A

HPE Data Center HPE Advanced Series Racks Racks HPE 48U 600mm x 1075mm Advanced Pallet Rack H6J87A

HPE 48U 600mm x 1075mm Advanced Shock Rack H6J88A

HPE 42U 600mm x 1075mm Advanced Pallet Rack H6J65A

HPE 42U 600mm x 1075mm Advanced Shock Rack H6J66A

HPE 42U 600mm x 1200mm Advanced Pallet Rack H6J67A

HPE 42U 600mm x 1200mm Advanced Shock Rack H6J68A

HPE 36U 600mm x 1075mm Advanced Pallet Rack H6J77A

HPE 36U 600mm x 1075mm Advanced Shock Rack H6J78A

HPE 22U 600mm x 1075mm Advanced Pallet Rack H6J83A

HPE 22U 600mm x 1075mm Advanced Shock Rack H6J84A

HPE 14U 600mm x 1075mm Advanced Shock Rack H6J82A NOTE: Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications.

HPE Enterprise Series Racks

HP 47U 600mm x 1075mm Enterprise Pallet Rack BW911A

HP 47U 600mm x 1075mm Enterprise Shock Rack BW912A

HP 47U 600mm x 1200mm Enterprise Pallet Rack BW913A

HP 47U 600mm x 1200mm Enterprise Shock Rack BW914A

HPE 42U 600mm x 1075mm Enterprise Pallet Rack BW903A

HP 42U 600mm x 1075mm Enterprise Shock Rack BW904A

HP 42U 600mm x 1200mm Enterprise Pallet Rack BW907A

HP 42U 600mm x 1200mm Enterprise Shock Rack BW908A

HP 42U 800mm x 1075mm Enterprise Pallet Rack BW917A

HP 42U 800mm x 1075mm Enterprise Shock Rack BW918A NOTE: Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications.



HPE Power

Distribution Units

(PDUs)

HPE Basic Power Distribution Units (PDU)

HPE 800VA - 277V Input / 230V Output NA Rack Mount Transformer

NOTE: Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on additional options and product specifications.



H3X09A





HPE Metered Power Distribution Units (PDU)





HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (12) C13/Horizontal NA/JP PDU

D9N44A



HPE Metered 3.6kVA/60320 C20 Detachable 16A/230V Outlets (16) C13/Vertical WW PDU

D9N45A



HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU

D9N47A



HPE Metered 7.3kVA/60309 32A 3-wire/230V Outlets (20) C13 (4) C19/Vertical INTL PDU

D9N48A



HPE Metered 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13 (3) C19/Vertical NA/JP PDU

D9N51A



HPE Metered 3Ph 8.6kVA/L21-30P 24A/120-208V Outlets (18) C13 (3) C19 (3) 520R/Vertical NA/JP PDU

D9N53A



HPE Metered 3Ph 11kVA/60309 5-wire 16A/230V Outlets (18) C13 (3) C19/Vertical INTL PDU

D9N55A



HPE Metered 7.3kVA/60309 32A 3-wire/230V Outlet (32) C13 (4) C19/Vertical INTL PDU

D9N50A



HPE Metered 3Ph 11kVA/60309 5-wire 16A/230V Outlets (30) C13 (3) C19/Vertical INTL PDU

D9N57A

HPE Metered 3Ph 14.4kVA/CS8365C 40A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

D9N58A

HPE Metered 3Ph 16.6kVA/60309 32A-30A 5-wire 24A/230V Outlets (30) C13 (3) C19/Vertical NA/JP PDU

D9N61A

HPE Metered 3Ph 16.6kVA/60309 32A-30A 5-wire 24A/230V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

D9N62A

HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (24) C13 (3) C19/Vertical NA/JP PDU

D9N54A

HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

D9N59A

HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

G9Z07A

HPE Metered 3Ph 19.9kVA/L22-30P 24A/277V Outlets (30) RF-203P-HP/Vertical NA PDU

D9N63A

HPE Metered 3Ph 22kVA/60309 5-wire 32A/230V Outlet (30) C13 (3) C19/Vertical INTL PDU

D9N56A

HPE Metered 3Ph 22kVA/60309 5-wire 32A/230V Outlets (12) C13 (12) C19/Vertical INTL PDU

D9N60A

HPE Metered 3Ph 22kVA/60309 5-wire WT 32A/230V Outlets (12) C13 (12) C19/Vertical INTL PDU

G9Z08A

HP Environmental Sensor for Remote Monitored and Managed PDUs

E2D53A

NOTE: Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on additional options and product specifications.



HPE Intelligent Power Distribution Unit (PDU)



HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF520A

HPE Intelligent Modular 8.3kVA/CS8265C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF521A

HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF522A

HPE Intelligent Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208V (6) C19/Horizontal NA/JP PDU

AF523A

HPE Intelligent Modular 3Ph 17.3kVA/60309 30A 5-wire 24A/240V (6) C19/Horizontal NA/JP PDU

AF901A

HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU

AF525A

HPE Intelligent Modular 3Ph 11kVA/60309 5-wire 16A/230V Outlets (6) C19/Horizontal INTL PDU

AF526A

HPE Intelligent Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU

AF527A

HPE Intelligent Modular 3Ph 17.3kVA/IEC 60309 60A 4-wire 48A/208V (12) C19/Horizontal NA/JP PDU

AF535A

HPE Intelligent Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (12) C19/Horizontal INTL PDU

AF538A

HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (6) C19/Horizontal NA/JP PDU

AF531A

HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (20) C13 (6) C19/Horizontal NA/JP PDU

AF532A

HPE Intelligent Modular 3Ph 14.4kVA/CS8365C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF533A

HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU Kit

AF534A

HPE 5xC13 Intelligent PDU Extension Bar G2 Kit

AF547A

HPE 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar

AF528A

NOTE: Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on additional options and product specifications.



HPE Metered and Switched Power Distribution Units (PDU)



HPE Metered Switched 2.8kVA/L5-30P 24A/120V Outlets (24) 5-20R /Vertical NA/JP PDU

H8B48A

HPE Metered Switched 3.6kVA/60320 C20 Detachable 16A/230V Outlets (7) C13 (1) C19/Vertical WW PDU

H8B49A

HPE Metered Switched 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU

H8B50A

HPE Metered Switched 7.3kVA/60309 3-wire 32A/230V Outlets (20) C13 (4) C19/Vertical INTL PDU

H8B51A

HPE Metered Switched 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13 (6) C19/Vertical NA/JP PDU

H8B52A

HPE Metered Switched 3Ph 8.6kVA/L21-30P 24A/208V Outlets (20)C13 (3)C19 (1)520R/Vertical NA/JP PDU

H8B53A

HPE Metered Switched 3Ph 11kVA/60309 5-wire 16A/230V Outlets (21) C13 (3) C19/Vertical INTL PDU

H8B54A

HPE Metered Switched 3Ph 14.4kVA/CS8365C 40A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

H8B55A

HPE Metered Switched 3Ph 17.3kVA/60309 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

H8B56A

NOTE: Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for information on additional options and product specifications.



NOTE: To learn more, please visit the HPE Uninterruptible Power Systems (UPS)



web page.



HPE Rack Mount

Consoles, KVM

Switches, and

Keyboards

HPE Location Discovery Services

HPE Location Discovery Services LCD8500 Kit

NOTE: Please see the HPE Location Discovery Services QuickSpecs for information on additional options and product specifications.



TL052A





HPE Rack Mount Consoles





HP LCD8500 1U US Rackmount Console Kit

AF630A



HP LCD8500 1U UK Rackmount Console Kit

AF631A



HP LCD8500 1U DE Rackmount Console Kit

AF632A



HP LCD8500 1U FR Rackmount Console Kit

AF633A



HP LCD8500 1U JP Rackmount Console Kit

AF642A



HP LCD8500 1U RU Rackmount Console Kit

AF643A



HP LCD8500 1U INTL Rackmount Console Kit

AF644A



HP LCD8500 1U US TAA Rackmount Console Kit

AF645A



HPE KVM Switches





HP 0x1x8 G3 KVM Console Switch

AF651A



HP 0x2x16 G3 KVM Console Switch

AF652A

HP TAA 0x2x16 G3 KVM Console Switch AF653A

HP USB Remote Access Key for G3 KVM Console Switches AF650A

HPE KVM Console USB/Display Port Interface Adapter AF654A

HPE KVM Console USB 8-pack Interface Adapter AF655A

HP KVM Console USB Interface Adapter AF628A

HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software AF618A

HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software AF619A

HP KVM Console USB 2.0 Virtual Media CAC Interface Adapter AF629A

HP 1x4 USB/PS2 KVM Console Switch AF611A

HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software AF620A

HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software AF621A

HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software AF622A

NOTE: To learn more, please visit the HPE KVM Switches web page.

HPE USB Keyboard and Mouse

HPE USB US Keyboard/Mouse Kit 631341-B21

HPE USB UK Keyboard/Mouse Kit 631344-B21

HPE USB FR Keyboard/Mouse Kit 631346-B21

HPE USB ES Keyboard/Mouse Kit 631348-B21

HPE USB DE Keyboard/Mouse Kit 631358-B21

HPE USB JP Keyboard/Mouse Kit 631360-B21

HPE USB IT Keyboard/Mouse Kit 631362-B21

HPE USB CN Keyboard/Mouse Kit 631364-B21

HPE USB AE Keyboard/Mouse Kit 638212-B21

HPE USB RU Keyboard/Mouse Kit 638214-B21

HPE USB IN Keyboard/Mouse Kit 672097-D63

HPE USB AP/INTL Keyboard/Mouse Kit 672097-373

HPE USB INTL Keyboard/Mouse Kit 672097-B33

HPE USB PT Keyboard/Mouse Kit 672097-133

HPE USB TR Keyboard/Mouse Kit 672097-143

HPE USB CZ Keyboard/Mouse Kit 672097-223

HPE USB FI Keyboard/Mouse Kit 672097-353

HPE USB SE Keyboard/Mouse Kit 672097-103

HPE USB CH Keyboard/Mouse Kit 672097-113

HPE USB KR Keyboard/Mouse Kit 672097-KD3 NOTE: Please see the HPE USB Keyboard and Mouse QuickSpecs for information on additional options and product specifications.

Rail Kits

HP 2U Small Form Factor Easy Install Rail Kit 733660-B21

HP 2U Cable Management Arm for Easy Install Rail Kit 733664-B21

HPE Other Options

HPE Rack LED Light Kit BW939A

HP Kit LCD 1.83m Latch Display Port Cable G7T29A





HPE Uninterruptible HPE DirectFlow Three Phase UPS

Power Systems (UPS)

Power Unit (1U UPS)

HPE R12000 DirectFlow - 1U Rackmount Uninterruptible Power System



G9Y75A



HPE R12000 DirectFlow - POD 1U Rackmount Uninterruptible Power System

AF478A



HPE RP12000/3 12000VA Three Phase INTL 6U Rackmount Uninterruptible Power System

AF437A



Input/Output Module Options for 1U UPS





HPE 32A 400-415 Volt Three Phase INTL R12000 DirectFlow UPS IEC309 Input/Output Module

AF488A



HPE 30A 400-415 Volt Three Phase NA R10000 DirectFlow UPS IEC309 Input/Output Module

AF489A



HPE 32A 380 Volt Three Phase China R12000 DirectFlow UPS Unterminated Input/Output Module

AF490A



HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS L22-30 Input/Output Module

AF491A



HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module

AF492A



HPE 30A 400-415 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module

G9Y76A



Power Unit (2U UPS)





HPE R18000 DirectFlow - 2U Rackmount Uninterruptible Power System

AF479A



Input/Output Module Options for 2U UPS





HPE 32A 400-415 Volt Three Phase INTL R18000 DirectFlow UPS IEC309 Input/Output Module

AF483A



HPE 30A 380 Volt Three Phase China R18000 DirectFlow UPS Unterminated Input/Output Module

AF485A



HPE 30A 480 Volt Three Phase NA R18000 DirectFlow UPS IEC309 Input/Output Module

AF486A



HPE 30A 480 Volt Three Phase NA R18000 DirectFlow UPS IEC309 Input/Output Module

AF487A



HPE 30A 400 Volt Three Phase NA R18000 DirectFlow UPS IEC309 Input/Output Module

D9Q02A



HPE 30A 400-415V Three Phase NA R18000 DirectFlow UPS 1:1 IEC309 Input/Output Module

AF484A



NOTE: All Input/Output Modules support dual output outlets except the AF484A.





HPE DirectFlow UPS Management Card

AF493A



Battery Pack Options





HPE DirectFlow UPS - 1U Rackmount Lithium-ion Battery Pack

AF480A



HPE DirectFlow UPS - 3U Rackmount VRLA Battery Pack

AF482A



HPE WW DirectFlow Secondary Battery Cable

AF497A



NOTE: Please see the HPE DirectFlow Three Phase Uninterruptible Power System QuickSpecs for information on additional options and product specifications.





HPE Tower UPS





HPE T750 G4 UPS Models





HPE T750 G4 NA/JP Uninterruptible Power System

J2P85A



HPE T750 G4 INTL Uninterruptible Power System

J2P88A



HPE T1000 G4 UPS Models





HPE T1000 G4 NA/JP Uninterruptible Power System

J2P86A



HPE T1000 G4 INTL Uninterruptible Power System

J2P89A



HPE T1500 G4 UPS Models





HPE T1500 G4 NA/JP Uninterruptible Power System

J2P87A



HPE T1500 G4 INTL Uninterruptible Power System

J2P90A



HPE Rack-mountable UPS





HPE R/T2200 G4 UPS Models





HPE R/T2200 G4 NA/JP Uninterruptible Power System

J2R00A



HPE R/T3000 G4 UPS Models





HPE R/T3000 G4 Low Voltage NA/JP Uninterruptible Power System

J2R01A



HPE R/T3000 G4 High Voltage NA/JP Uninterruptible Power System

J2R02A



HPE R/T3000 G4 High Voltage INTL Uninterruptible Power System

J2R04A



R1500 G4 Models





HPE R1500 G4 NA Uninterruptible Power System

J2Q99A



HPE R1500 G4 JP/TWN Uninterruptible Power System

J2R05A



HPE R1500 G4 INTL Uninterruptible Power System

J2R03A



R7000 Uninterruptible Power System (UPS)





HPE R7000 4U 50A High Voltage NA/JP Uninterruptible Power System

AF462A



HPE R7000 4U IEC-32A High Voltage INTL Uninterruptible Power System

AF463A



R5000 Uninterruptible Power System (UPS)





HPE R5000 3U L630 High Voltage NA/JP Uninterruptible Power System

AF460A



HPE R5000 3U IEC309-32A High Voltage INTL Uninterruptible Power System

AF461A



NOTE: Please see the HPE Line Interactive Single Phase UPS QuickSpecs for information on additional options and product specifications.





HPE UPS Options





HPE R/T2200 G4 Extended Runtime Module

J2R09A



HPE R/T3000 G4 Extended Runtime Module

J2R10A



HPE 2U Rack/Tower UPS Shipping Kit

L4Q11A



NOTE: To learn more, please visit the HPE Uninterruptible Power Systems (UPS)



web page.



HPE USB and SD HPE Enterprise Mainstream Flash Media Kits for Memory Cards

Options HPE 32GB microSD Mainstream Flash Media Kit 700139-B21

HPE 8GB microSD Enterprise Mainstream Flash Media Kit 726116-B21

HPE 8GB USB Enterprise Mainstream Flash Media Drive Key Kit 737953-B21

HPE Dual 8GB microSD Enterprise Midline USB Kit 741279-B21



HPE Support Services

Installation & Start-up Services

HPE Installation ML/DL Series 10 Service



U7WZ5E



HPE Startup ML/DL Series 10 Service

U7WZ7E



Foundation Care





HPE 3 year Foundation Care Next business day DL80 Gen9 Service

U7WG1E



HPE 3 year Foundation Care Next business day with DMR DL80 Gen9 Service

U7WG2E



HPE 3 year Foundation Care Next business day with CDMR DL80 Gen9 Service

U7WG3E



HPE 3 year Foundation Care 24x7 DL80 Gen9 Service

U7WG4E

HPE 3 year Foundation Care 24x7 wDMR DL80 Gen9 Service

U7WG5E

HPE 3 year Foundation Care 24x7 wCDMR DL80 Gen9 Service

U7WG6E

Proactive Care



HPE 3 year Proactive Care 24x7 DL80 Gen9 Service

U7WK1E

HPE 3 year Proactive Care 24x7 with DMR DL80 Gen9 Service

U7WK2E

HPE 3 year Proactive Care 24x7 with CDMR DL80 Gen9 Service

U7WK3E



M emory Population guidelines



General Memory Population Rules and Guidelines:

. Install DIMMs only if the corresponding processor is installed.

. If only one processor is installed in a two processor system, only half of the DIMM slots are available.

. To maximize performance, it is recommended to balance the total memory capacity between all installed processors and to load the channels similarly whenever possible.

. When two processors are installed, balance the DIMMs across the two processors.

. White DIMM slots denote the first slot to be populated in a channel.

. Do not mix RDIMMs or LRDIMMs.

. Quad rank RDIMMs are not supported in HPE ProLiant DL80 Gen9 servers.

. DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.

. The maximum memory speed is a function of the memory type, memory configuration, and processor model.

. The maximum memory capacity is a function of the memory type and number of installed processors.

. To realize the performance memory capabilities listed in this document, HPE SmartMemory is required.





Page 36







Intel Gen9 Supported Memory Bandwidth for HPE ProLiant Gen9 Intel® Xeon® E5-2600v4 Series Processor Family



Memory Bandwidth and Capacity



[DIMM Type]



Registered DIMMs (RDIMMs)

Load Reduced (LRDIMMs)

HPE SKU P/N

805347-B21

805349-B21

836220-B21

805351-B21

805353-B21

DIMM Rank



Single Rank

Single Rank

Dual Rank

Dual Rank

Dual Rank

DIMM Capacity



8GB

16GB

16GB

32GB

32GB

Voltage

Std Voltage 1.2V

Std Voltage 1.2V

Std Voltage 1.2V

Std Voltage 1.2V

Std Voltage 1.2V

DRAM Depth [bit]

1G

2G

1G

2G

2G

DRAM Width [bit]

x8

x4

x4

x4

x4

DRAM Density

8Gb

8Gb

4Gb

8Gb

8Gb

CAS Latency

17-17-17

17-17-17

17-17-17

17-17-17

17-17-17

DIMM Native Speed (MT/s)

2400

2400

2400

2400

2400

SLOTS THAT CAN BE POPULATED



8 slot servers 8 8 8 8



8

MAXIMUM CAPACITY (GB)





64

128

128

256

256

POPULATED DIMM SPEED (MT/s)



1 DIMM Per Channel

2400



2400



2400



2400



2400



2 DIMM Per Channel

n/a



n/a



n/a



n/a



n/a



3 DIMM Per Channel

n/a



n/a



n/a



n/a



n/a





NOTE: DL80 has 1 DIMM per channel and hence 2 DIMMs and 3 DIMMs per channel memory speeds are not applicable on DL80.



Intel Gen9 Supported Memory Bandwidth for HPE ProLiant Gen9 Intel® Xeon® E5-2600v3 Series Processor Family



Memory Bandwidth and Capacity

[DIMM Type]



Registered DIMMs (RDIMMs)

Load Reduced (LRDIMMs)

HPE SKU P/N

726717-B21

726718-B21

759934-B21

726719-B21

728629-B21

726720-B21

726722-B21

DIMM Rank



Single Rank

Single Rank

Dual Rank

Dual Rank

Dual Rank

Dual Rank

Quad Rank

DIMM Capacity



4GB

8GB

8GB

16GB

32GB

16GB

32GB

Voltage

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

DRAM Depth [bit]

512M

1G

512M

1G

1G

2G

2G

DRAM Width [bit]

x8

x4

x8

x4

x4

x4

x4

DRAM Density

4Gb

4Gb

4Gb

4Gb

4Gb

8Gb

8Gb

CAS Latency

15-15-15

15-15-15

15-15-15

15-15-15

15-15-15

15-15-15

15-15-15

DIMM Native Speed (MT/s)

2133

2133

2133

2133

2133

2133

2133

SLOTS THAT CAN BE POPULATED

8 slot servers



8

8

8

8

8

8

8

MAXIMUM CAPACITY (GB)

32 64 64 128 256 128 256



POPULATED DIMM SPEED (MT/s)

1 DIMM Per Channel

2133



2133



2133



2133



2133



2133



2133



2 DIMM Per Channel

n/a



n/a



n/a



n/a



n/a



n/a



n/a



3 DIMM Per Channel

n/a



n/a



n/a



n/a



n/a



n/a



n/a





NOTE: DL80 has 1 DIMM per channel and hence 2 DIMMs and 3 DIMMs per channel memory speeds are not applicable on DL80.



DIMM slot and DIMM slot and configuration diagrams configuration Basic memory slot & population diagram diagram

  • Population order; start with "A" first, "B" second, "C" third, etc.

  • When one processor is installed, install DIMMs in sequential alphabetic order: A, B, C, D, E, F.

  • When two processors are installed, install DIMMs in sequential alphabetic order: CPU1-A, CPU2-A,CPU1B,CPU2-B,CPU1-C, CP2-C.

CPU #1 IS PROCESSOR ON LEFT - LOOKING FROM FRONT OF SERVER





CPU 1



CPU 2



Slot #

Population order

Slot #

Population order

Chnl 1

1

A1

1

A1















CPU 1



CPU 2



Slot #

Population order

Slot #

Population order

Chnl 2



2



B2



2



B2







CPU 1



CPU 2



Slot #

Population order

Slot #

Population order

Chnl 4



3



D3



3



D3







CPU 1



CPU 2



Slot #

Population order

Slot #

Population order

Chnl 3

4

C4

4

C4





Processor Models

Supported Memory Speeds

E5-2603v3, E5-2609v3

1600MT/s

E5-2620v3, E5-2630v3, E5-2630Lv3, E5-2640v3, E5-2623v3

1866MT/s

E5-2650v3, E5-2660v3, E5-2650Lv3

2133MT/s

E5-2609v4, E5-2603v4

1866MT/s

E5-2630Lv4, E5-2620v4, E5-2623v4, E5-2640v4, E5-2630v4

2133MT/s

E5-2650Lv4, E5-2660v4, E5-2650v4

2400MT/s

Memory Speed by

Processor Model





Pre-Configured Models

Standard Memory

Maximum Memory Plus Optional Memory

Standard Memory

Replaced with Optional Memory

E5-2609v4, E5-2609v3, E5-2603v4

8GB (1x8GB)

232GB (7x32GB, 1x8GB)

256GB (8x32GB)

E5-2603v3

4GB (1x4GB)

228GB (7x32GB, 1x4GB)

256GB (8x32GB)

Standard and

Maximum

Memory Capacity

(Pre-configured

Models)





DDR4 memory options part number decoder NOTE: Capacity references are rounded to the common gigabyte (GB) values:

  • 2GB = 2,048MB

  • 4GB = 4,096MB

  • 8GB = 8,192MB

  • 16GB = 16,384MB

  • 32GB = 32,768MB

  • 64GB = 65,536MB



Storage





4-bay LFF non-hot-plug drive model

1 -4 4 x LFF SATA Non-Hot Pluggable Hard Drive Bays



8-bay LFF non-hot plug drive model

1 -8 8 x LFF SATA Non- Hot Pluggable Hard Drive Bays



8-bay LFF hot-plug drive model

1 -8 8 x LFF SATA/SAS/SDD Hot Pluggable Hard Drive Bays



12-bay LFF hot-plug drive model

1-12 12 x LFF SATA/SAS/SDD Hot Pluggable Hard

drive bays





Page 40





Technical Specifications





System Unit Dimensions

(with bezel) Weight

(approximate) Input Requirements

(for Standard 460W PSU, see power specifications tables for detail on 460W, 750W and

1200W power supplies)

BTU Rating

Power Specifications

Power Supply Output

System Inlet Temperature







3.45 x 18.98 x 24.97 in (8.75 x 44.55 x 60.7 cm)



Maximum:

47.6 lb (21.59 kg)

Minimum:

36.58 lb (16.59 kg)

Rated Line Voltage

100 to 240 VAC

Rated Input Current

For 550W Power Supply:

6.7 A (at 100 VAC)

3.3 A (at 100 VAC)

Rated Input Frequency

47 to 63 Hz

Rated Input Power

For 550 W Power Supply:

< 670 W (at 100 VAC)

< 660 W (at 200 VAC)

Maximum

For 550 W Power Supply:

2201 BTU/hr (at 100 VAC)

2153 BTU/hr (at 200 VAC)

To review typical system power ratings use the Power Advisor which is available via the online tool located at:

Rated Steady-State Power

Maximum Peak Power

Standard Operating

Support

Extended Ambient

Operating Support

For 550 W Power Supply:

550 W (at 100 VAC)

550 W (at 200 VAC) For 550 W Power Supply:

550 W (at 100 VAC)

550 W (at 200 VAC)

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed. System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to

104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m

(10,000 ft). The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae.



System performance may be reduced if operating



Page 41

http://www.hpe.com/info/hppoweradvisor - Click on the system of interest. Example: DL80 Gen9- Follow the instructions of the next screens.

in the extended ambient operating range or with a fan fault.



NOTE: Supports A3 extended ambient.



Non-operating -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity

Operating Minimum to be the higher (more moisture) of -

12°C (10.4°F) dew point or 8% relative humidity. Maximum to be the lower (less moisture) of 24°C (75.2°F) dew point or 90% relative humidity.

(non-condensing)

Non-operating 5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, noncondensing.

Altitude

Operating 3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457.2 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

LWAd Entry: 4.8 B

Base: 4.7 B

LpAm Entry: 34 dBA

Base: 33 dBA

Operating

LWAd Entry: 4.9 B

Base: 4.9 B

LpAm Entry: 34 dBA

Base: 36 dBA

NOTE: The listed sound levels apply to standard shipping configurations.

Additional options may result in increased sound levels.

Emissions Classification (EMC)

FCC Rating Class A

Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS14336-1; CNS13438;

GB4943; GB9254; EN 61000-3-2; EN 61000-33; EN 60950-1; IEC 60950-1

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

NOTE: The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.



HPE Dynamic Smart Number of PCI links Four

Array B140i Controller

PCI link rate

Storage protocol support

4Gb/s

SATA



SAS/SATA peak data transfer rate

6Gb/s



Number of SAS/SATA links

10 links



SAS/SATA connectivity

2x4 connectors; 2x1 connectors



Expander support

No



Drives supported (max)

Up to 10 Internal Drives



RAID support

0, 1, 10, 5 SATA



Software management

HPE SSA, SMH, SIM



Warranty

Server warranty



HPE Secure Encryption license

Not Supported



HPE SmartCache License

Not Supported



HPE Smart Storage Administrator

Supported



HPE Embedded Dual Network Interface

10Base-T/100Base-TX/1000Base-TX

IEEE 802.3 10Base-T

IEEE 802.3ab 1000Base-T

IEEE 802.3u 100Base-TX IEEE 1588, IEEE 802.1AS

IEEE 802.3az - Energy Efficient Ethernet (EEE)

Port 361i Adapter

Compatibility



Data Transfer Method

PCI Express v 2.0, 5.0 GT/s, two lanes (x2)



Controller

Intel I350 Powerville



Network Transfer Rate

10Base-T (Half-Duplex) 10 Mb/s per port, 40 Mb/s combined

10Base-T (Full-Duplex) 20 Mb/s per port, 80 Mb/s combined

100Base-TX (Half- 100 Mb/s per port, 400 Mb/s combined

Duplex)

100Base-TX (Full-Duplex) 200 Mb/s per port, 800 Mb/s combined

1000Base-TX (Half and 1000 Mb/s per port, 4000 Mb/s combined Full-Duplex)



Connector

Two RJ-45



Cable Support

10 Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m) 10/100/1000 Base-TX Category 5 or higher UTP; up to 328 ft (100 m)



Environment- End-of-life Management and Hewlett Packard Enterprise offers end-of-life product return, trade-in, and friendly Products Recycling recycling programs, in many geographic areas, for our products. Products and Approach returned to Hewlett Packard Enterprise will be recycled, recovered or

disposed of in a responsible manner.



http://www.hpe.com/recycle



The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

http://www.hpe.com/recycle





Date

Version History

Action

Description of Change

4-Dec-2017

From Version 25 to 26

Added

Added new HPE 12TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD.

25-Sep-2017

From Version 24 to 25

Added

Added new SSD offering.

Added new Storage options.

Changed

Core Options and Additional Options were revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

11-Jul-2017

From Version 23 to 24

Changed

Operating Systems and Virtualization Software Support for ProLiant Servers section was revised.

5-Jun-2017

From Version 22 to 23

Added

Added new Solid State Drive option.

8-May-2017

From Version 21 to 22

Added

Added support for ClearOS.

Changed

Operating Systems and Virtualization Software Support for ProLiant Servers and HPE Drives were revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

27-Mar-2017

From Version 20 to 21

Added

Added new Hard Drives.

17-Feb-2017

From Version 19 to 20

Changed

HPE Storage Options section was revised.

13-Feb-2017

From Version 18 to 19

Added

Added new HDD and SSD offering to the HPE Drives section.

Changed

HPE Converged Infrastructure Management Software and HPE Drives were revised.

Removed

SKUs 778640-B21 and 778641-B21 were removed from the Pre-configured Models section.



Obsolete SKUs were removed from the HPE Processors section.

28-Nov-2016



From Version 17 to 18



Added

Added new Hard Drives offering.

Removed

Obsolete SKUs were removed from the QuickSpecs.

28-Oct-2016

From Version 16 to 17

Removed

Obsolete Hard Drives were removed from the QuickSpecs.

26-Sep-2016





From Version 15 to 16





Added

Added new 10TB SATA Hot Plug LFF drives offering and new 900W AC/ 240VDC power supply.

Changed

HPE Power Supplies section was revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

17-Jun-2016

From Version 14 to 15

Added

Power supply information was added to the Configuration Information - Factory Integrated

Models section.

6-Jun-2016



From Version 13 to 14



Added

Added new HDD offering to the HPE Drives section.

Changed

New options added to the HPE Disk Backup and HPE Storage Options.

8-Apr-2016

From Version 12 to 13

Changed

HPE Processors section was revised.

31-Mar-2016

From Version 11 to 12

Added

Added new HPE Smart Memory 2400 MHz memory, Intel Xeon E5-2600v4 processor support, new HPE Trusted Platform Module (TPM) 2.0, new 900W AC/ 240VDC power supply, new SATA Hot Plug Standard drives.

Page 45







Changed

Power Supply, Upgradeability, Embedded

Management, Service and Support, Pre-configured Models, HPE Security, and Memory sections were revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

16-Feb-2016





From Version 10 to 11





Added

New HDD offering was added to HPE Drives.

Changed

HPE Power Supplies, HPE Computation and Graphics Accelerators, HPE Data Center Racks, and HPE Power Distribution Units (PDUs) were revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

17-Dec-2015

From Version 9 to 10

Added

Smart Buy models were added to the NA version.

1-Dec-2015





From Version 8 to 9





Added

New options added to HPE Disk Backup, HPE Disk Storage Systems, and HPE Power Distribution Units (PDUs).

Changed

On System Management Chipset, Maximum Internal Storage, Embedded Management, and Server utilities were revised.



Product images were updated.

Removed

Obsolete SKUs were removed from QuickSpecs.

28-Sep-2015



From Version 7 to 8



Added

Added new 6Gb SATA Solid State Drives.



Added new HPE OneView management software.

Removed

Obsolete SKUs were removed from the QuickSpecs.

17-Aug-2015





From Version 6 to 7





Added

New Solid State Drives offering was added to Core Options.

Changed

Maximum Internal Storage was revised.

Removed

Obsolete SKUs were removed from QuickSpecs.

10-Jun-2015

From Version 5 to 6

Added

Added new HPE Drives:

HPE 8TB 12G SAS 7.2K rpm LFF (3.5-inch) SC

512e Helium 1yr Warranty Hard Drive



HPE 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC

512e Helium 1yr Warranty Hard Drive



HPE 8TB 6G SATA 7.2K rpm LFF (3.5-inch) SC

512e Helium 1yr Warranty Hard Drive



HPE 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC

512e Helium 1yr Warranty Hard Drive

1-Jun-2015





From Version 4 to 5





Added

New Hard Drives were added to Core Options.



Added new HPE Power Supplies options.



Added new HPE OneView LTUs to HPE Converged Infrastructure Management Software.



New RDX+ backup external backup options added to HPE Disk Backup.

Changed

Core Options and Additional Options were revised.

Removed

Obsolete SKUs were removed from QuickSpecs.

24-Apr-2015

From Version 3 to 4

Added

Added 813534-B21 and 813535-B21 to HPE Power Supplies.

Page 46



30-Mar-2015



From Version 2 to 3



Added

New Hard Drives offering.



Optional Software added to HPE Storage Controllers.

Changed

HPE Memory, HPE Disk Storage Systems, HPE USB and SD Options, HPE Storage Controllers, and HPE Disk Storage Systems were updated.

9-Feb-2015



From Version 1 to 2



Added

Added HP Insight Software.



Added new G4 UPS models.

Changed

HPE Memory, HPE Tape Backup, HPE Disk Backup,

HPE Rack Mount Consoles, KVM Switches, and Keyboards, and HPE Uninterruptible Power Systems (UPS) sections were revised.













Sign up for updates





© Copyright 2017 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.



Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.



Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.



For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less



c04447832 - 15089 - Worldwide - V26 - 4-December-2017



Page 47



do góry
Sklep jest w trybie podglądu
Pokaż pełną wersję strony
Sklep internetowy Shoper.pl
