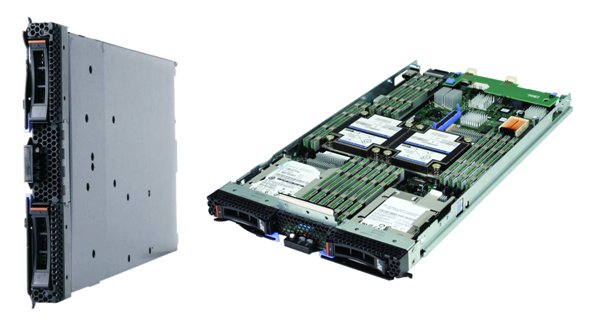

HS23
IBM/HS23
Specyfikacja
| Komponenty | Specyfikacja IBM BladeCenter HS23 |
| Obudowa | blade |
| Procesory | max dwa procesory: 8rdzeniowe (8C) Intel Xeon E5-26xx (max 2.90 GHz) lub 6rdzeniowe (6C) Intel Xeon E5-26xx (max 2.90 GHz) lub 4rdzeniowe (4C) Intel Xeon E5-26xx (max 3.30 GHz) z technologią QuickPath Interconnect 2.0 (dwa linki) wydajność 8.0 GT/s/link, max częstotliwość pamięci 1600 MHz. |
| Pamięć cache procesora | do 20 MB L3 |
| Chipset płyty głównej | Intel C600 |
| Pamięć RAM | do 16 slotów DIMM (8 DIMMs per procesor) . Obsługa do 1600 MHz pamięci. 4 kanały na procesor (2 DIMMs na kanał). |
| Maksymalna rozbudowa pamięci | do 256 GB przy zainstalowaniu 16x 16 GB RDIMMs i 2 procesorów |
| Ochrona pamięci RAM | ECC, memory mirroring, memory sparing |
| Dyski twarde / zatoki/ klatki na dyski | do 2szt dysków 2.5" Hot-swap SAS/SATA lub SSD |
| Kontroler RAID | RAID 0, 1, 1E, 10 zintegrowany LSI SAS2004 |
| Karta sieciowa | Zintegrowana 2 portowa karta sieciowa Gigabit Ethernet i 2portowa 10 Gb Ethernet ze zintegrowanym modułem Emulex BladeEngine 3 (BE3) controller. |
| Sloty PCIe | 1 slot CIOv (PCIe 3.0 x8) , 1 slot CFFh (PCIe 3.0 x16). 2 zewnętrzne sloty PCIe 2.0 x8 standard form factor slots (slot 1 is full-height full-length, slot 2 is full-height half-length) przy zainstalowaniu opcjonalnego PCI Express Gen 2 Expansion Blade II. Opcjonalnie możliwość zainstalowania modułu GPU expansion blades with either NVIDIA Tesla M2090, M2075, M2070Q graphics processing units. |
| Karta graficzna | Matrox G200eR2 video core z 16 MB pamięcią, zintegrowaną z modułem IMM2. maks. rozdzielczość 1600x1200 @ 75 Hz, 16 M colors (32 bits per pixel). |
| Porty | 1x wewnętrzny USB port (dla hypervisora), pozostałe zewnętrzne / w obudowie bladecenter / chassis E, H, S, HT |
| Chłodzenie | zewnętrzne / w obudowie bladecenter / chassis E, H, S, HT |
| Zasilacze | zewnętrzne / w obudowie bladecenter / chassis E, H, S, HT |
| Komponenty Hot Swap / wymienne podczas pracy serwera– w razie awarii | zewnętrzne / w obudowie bladecenter / chassis E, H, S, HT |
| Systemy zarządzania | Integrated system management processor (BMC); |
| UpdateXpress, | |
| Remote Deployment Manager, | |
| Predictive Failure Analysis, | |

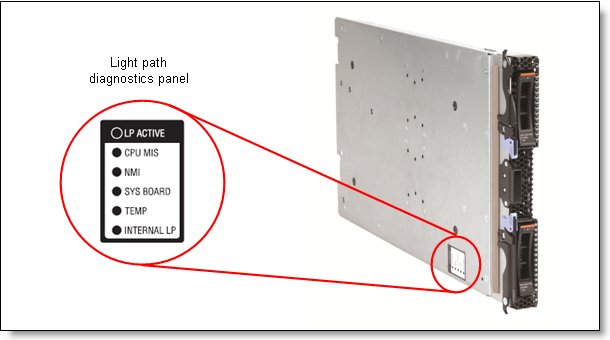

| Light Path Diagnostics, | |
| IBM Director, | |
| IBM Systems Director Active Energy Manager™, | |
| ServerGuide™ 7.x, Scripting Toolkit 1.x | |
| Zabezpieczenia | hasło administratora, |
| Trusted Platform Module(TPM) | |
| Wymiary | wysokość: 245 mm (9.7 in), szerokość: 29 mm (1.14 in), głębokość: 446 mm (17.6 in) |
| Waga | pełna configuracja (single-wide blade): 5.4 kg |
Standardowe Modele
| 7875-A1x | HS23, 1x Xeon E5-2603 4C 1.8GHz 1x 4 GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 10MB 1066MHz 80 W 256 GB SAS/SATA |
| 7875-A2x | HS23, 1x Xeon E5-2609 4C 2.4GHz 4x 4 GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 10MB 1066MHz 80 W 256 GB SAS/SATA |
| 7875-B1x | HS23, 1x Xeon E5-2620 6C 2.0GHz 4x 4 GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 15MB 1333MHz 95W 256 GB SAS/SATA 2x 10Gb |
| 7875-B2x | HS23, 1x Xeon E5-2640 6C 2.5GHz 4x 4 GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 15MB 1333MHz 95W 256 GB SAS/SATA 2x 10Gb |
| 7875-B3x | HS23, 1x Xeon E5-2630 6C 2.3GHz 4x 4 GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 15MB 1333MHz 95W 256 GB SAS/SATA 2x 10Gb |
| 7875-C1x | HS23, 1x Xeon E5-2650 8C 2.0GHz 4x 4 GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 20MB 1600MHz 95W 256 GB SAS/SATA 2x 10Gb |
| 7875-C2x | HS23, 1x Xeon E5-2660 8C 2.2GHz 4x 4 GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 20MB 1600MHz 95W 256 GB SAS/SATA 2x 10Gb |
| 7875-C3x | HS23, 1x Xeon E5-2665 8C 2.4GHz 4x 4 GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 20MB 1600MHz 115W 256 GB SAS/SATA 2x 10Gb |
| 7875-C4x | HS23, 1x Xeon E5-2670 8C 2.6GHz 4x 4 GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 20MB 1600MHz 115W 256 GB SAS/SATA 2x 10Gb |
| 7875-C5x | HS23, 1x Xeon E5-2680 8C 2.7GHz 4x 4 GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 20MB 1600MHz 130W 256 GB SAS/SATA 2x 10Gb |
| 7875-D1x | HS23, 1x Xeon E5-2650L 8C 1.8GHz 4x 4 GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 20MB 1600MHz 70W 256 GB SAS/SATA 2x 10Gb |
| 7875-F1x | HS23, 1x Xeon E5-2648L 8C 1.8GHz 4x 4GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 20MB 1600MHz 70W 256 GB SAS/SATA 2x 10Gb |
| 7875-G1x | HS23, 1x Xeon E5-2630 6C 2.3GHz 4x 4GB / Integrated 0 / 2 Optional 2x 1Gb 15MB 1333MHz 95W 256 GB SAS/SATA 4x 10Gb |
| 7875-G2x | HS23, 1x Xeon E5-2670 8C 2.6GHz 4x 4 GB / Integrated 0 / 2 Optional 2x 1Gb 20MB 1600MHz 115W 256 GB SAS/SATA 4x 10Gb |
| 7875-91x | HS23, 2x Xeon E5-2620 6C 2.0GHz 16x 8GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 15MB 1333MHz 95W 256 GB SAS/SATA 2x 10Gb |
| 7875-92x | HS23, 2x Xeon E5-2650 8C 2.0GHz 16x 8GB / Integrated 0 / 2 Optional 2x 1Gb 0 / 2 20MB 1600MHz 95W 256 GB SAS/SATA 2x 10Gb |
| 787591G | HS23, 2xXeon 6C E5-2620 95W 2.0GHz/1333MHz/15MB, 16x8GB, O/Bay 2.5in SAS |
| 7875G1G | HS23, 2xXeon 6C E5-2630 95W 2.3GHz/1333MHz/15MB, 4x4GB, O/Bay 2.5in SAS, Emulex 10GbE VFA Advanced II |
| 787592G | HS23, 2xXeon 8C E5-2650 95W 2.0GHz/1600MHz/20MB, 16x8GB, O/Bay 2.5in SAS |
| 7875A1G | HS23, Xeon 4C E5-2603 80W 1.8GHz/1066MHz/10MB, 1x4GB, O/Bay 2.5in SAS |
| 7875A2G | HS23, Xeon 4C E5-2609 80W 2.4GHz/1066MHz/10MB, 4x4GB, O/Bay 2.5in SAS |
| 7875B1G | HS23, Xeon 6C E5-2620 95W 2.0GHz/1333MHz/15MB, 4x4GB, O/Bay 2.5in SAS |
| 7875B3G | HS23, Xeon 6C E5-2630 95W 2.3GHz/1333MHz/15MB, 4x4GB, O/Bay 2.5in SAS |
| 7875B2G | HS23, Xeon 6C E5-2640 95W 2.5GHz/1333MHz/15MB, 4x4GB, O/Bay 2.5in SAS |
| 7875F1G | HS23, Xeon 8C E5-2648L 70W 1.8GHz/1600MHz/20MB, 4x4GB, O/Bay 2.5in SAS |
| 7875C1G | HS23, Xeon 8C E5-2650 95W 2.0GHz/1600MHz/20MB, 4x4GB, O/Bay 2.5in SAS |
| 7875D1G | HS23, Xeon 8C E5-2650L 70W 1.8GHz/1600MHz/20MB, 4x4GB, O/Bay 2.5in SAS |
| 7875C2G | HS23, Xeon 8C E5-2660 95W 2.2GHz/1600MHz/20MB, 4x4GB, O/Bay 2.5in SAS |
| 7875C3G | HS23, Xeon 8C E5-2665 115W 2.4GHz/1600MHz/20MB, 4x4GB, O/Bay 2.5in SAS |
| 7875C4G | HS23, Xeon 8C E5-2670 115W 2.6GHz/1600MHz/20MB, 4x4GB, O/Bay 2.5in SAS |
| 7875G2G | HS23, Xeon 8C E5-2670 115W 2.6GHz/1600MHz/20MB, 4x4GB, O/Bay 2.5in SAS, Emulex 10GbE VFA Advanced II |
| 7875C5G | HS23, Xeon 8C E5-2680 130W 2.7GHz/1600MHz/20MB, 4x4GB, O/Bay 2.5in SAS |
Kompatybilne opcje
| OPTION NUMBER | PART NUMBER | EXPRESS PART NUMBER | OPIS |
| PROCESSORS | |||
| 81Y9306 | - | Intel Xeon Processor E5-2603 4C 1.8GHz 10MB Cache 1066MHz 80W | |
| 81Y9308 | - | Intel Xeon Processor E5-2609 4C 2.4GHz 10MB Cache 1066MHz 80W | |
| 81Y9309 | - | Intel Xeon Processor E5-2620 6C 2.0GHz 15MB Cache 1333MHz 95W | |
| 81Y9312 | - | Intel Xeon Processor E5-2650 8C 2.0GHz 20MB Cache 1600MHz 95W | |
| 81Y9313 | - | Intel Xeon Processor E5-2660 8C 2.2GHz 20MB Cache 1600MHz 95W | |
| 81Y9314 | - | Intel Xeon Processor E5-2680 8C 2.7GHz 20MB Cache 1600MHz 130W | |
| 81Y9316 | - | Intel Xeon Processor E5-2667 6C 2.9GHz 15MB Cache 1600MHz 130W | |
| 81Y9318 | - | Intel Xeon Processor E5-2630L 6C 2.0GHz 15MB Cache 1333MHz 60W | |
| 81Y9319 | - | Intel Xeon Processor E5-2650L 8C 1.8GHz 20MB Cache 1600MHz 70W | |
| 94Y8561 | - | Intel Xeon Processor E5-2648L 8C 1.8GHz 20MB Cache 1600MHz 70W | |
| 94Y8564 | - | Intel Xeon Processor E5-2658 8C 2.1GHz 20MB Cache 1600MHz 95W | |
| 94Y8567 | - | Intel Xeon Processor E5-2637 2C 3.0GHz 5MB Cache 1600MHz 80W | |
| 94Y8568 | - | Intel Xeon Processor E5-2640 6C 2.5GHz 15MB Cache 1333MHz 95W | |
| 94Y8569 | - | Intel Xeon Processor E5-2630 6C 2.3GHz 15MB Cache 1333MHz 95W | |
| 94Y8590 | - | Intel Xeon Processor E5-2670 8C 2.6GHz 20MB Cache 1600MHz 115W | |
| 94Y8673 | - | Intel Xeon Processor E5-2665 8C 2.4GHz 20MB Cache 1600MHz 115W | |
| 81Y9404 | 81Y9292 | Addl Intel Xeon Processor E5-2603 4C 1.8GHz 10MB Cache 1066MHz 80W | |
| 81Y9406 | 81Y9294 | Addl Intel Xeon Processor E5-2609 4C 2.4GHz 10MB Cache 1066MHz 80W | |
| 81Y9407 | 81Y9295 | Addl Intel Xeon Processor E5-2620 6C 2.0GHz 15MB Cache 1333MHz 95W | |
| 81Y9410 | 81Y9298 | Addl Intel Xeon Processor E5-2650 8C 2.0GHz 20MB Cache 1600MHz 95W | |
| 81Y9411 | 81Y9299 | Addl Intel Xeon Processor E5-2660 8C 2.2GHz 20MB Cache 1600MHz 95W | |
| 81Y9412 | 81Y9300 | Addl Intel Xeon Processor E5-2680 8C 2.7GHz 20MB Cache 1600MHz 130W | |
| 81Y9414 | 81Y9302 | Addl Intel Xeon Processor E5-2667 6C 2.9GHz 15MB Cache 1600MHz 130W | |
| 81Y9416 | 81Y9304 | Addl Intel Xeon Processor E5-2630L 6C 2.0GHz 15MB Cache 1333MHz 60W | |
| 81Y9417 | 81Y9305 | Addl Intel Xeon Processor E5-2650L 8C 1.8GHz 20MB Cache 1600MHz 70W | |
| 94Y8577 | 94Y8570 | Addl Intel Xeon Processor E5-2637 2C 3.0GHz 5MB Cache 1600MHz 80W | |
| 94Y8578 | 94Y8571 | Addl Intel Xeon Processor E5-2640 6C 2.5GHz 15MB Cache 1333MHz 95W | |
| 94Y8579 | 94Y8572 | Addl Intel Xeon Processor E5-2630 6C 2.3GHz 15MB Cache 1333MHz 95W | |
| 94Y8580 | 94Y8565 | Addl Intel Xeon Processor E5-2658 8C 2.1GHz 20MB Cache 1600MHz 95W | |
| 94Y8581 | 94Y8562 | Addl Intel Xeon Processor E5-2648L 8C 1.8GHz 20MB Cache 1600MHz 70W | |
| 94Y8591 | 94Y8589 | Addl Intel Xeon Processor E5-2670 8C 2.6GHz 20MB Cache 1600MHz 115W | |
| 94Y8675 | 94Y8671 | Addl Intel Xeon Processor E5-2665 8C 2.4GHz 20MB Cache 1600MHz 115W | |
| MEMMORY | |||
| 46C0556 | 46C0568 | 90Y4580 | 8GB (1x8GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz VLP RDIMM |
| 49Y1527 | 46C0599 | 16GB (1x16GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz VLP RDIMM | |
| 46C0551 | 46C0563 | 90Y4555 | 4GB (1x4GB, 1Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz VLP RDIMM |
| 46C0552 | 46C0564 | 90Y4559 | 4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz VLP RDIMM |
| 90Y3144 | 90Y3147 | 4GB (1x4GB, 1Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz VLP RDIMM | |
| 90Y3145 | 90Y3148 | 4GB (1x4GB, 2Rx8, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz VLP RDIMM | |
| 90Y3146 | 90Y3149 | 8GB (1x8GB, 2Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz VLP RDIMM | |
| HDD | |||
| 42D0639 | 42D0637 | 44W2193 | IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 42D0679 | 42D0677 | 44W2201 | IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 42D0709 | 42D0707 | 49Y3726 | IBM 500GB 7200 6Gbps NL SAS 2.5" SFF Slim-HS HDD |
| 49Y2005 | 49Y2003 | 49Y2078 | IBM 600GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 81Y9692 | 81Y9690 | IBM 1TB 7.2K 6Gbps NL SAS 2.5" SFF HS HDD | |
| 90Y8874 | 90Y8872 | IBM 600GB 10K 6Gbps SAS 2.5" SFF G2HS HDD | |
| 90Y8879 | 90Y8877 | IBM 300GB 10K 6Gbps SAS 2.5" SFF G2HS HDD | |
| 90Y8928 | 90Y8926 | IBM 146GB 15K 6Gbps SAS 2.5" SFF G2HS HDD | |
| 90Y8955 | 90Y8953 | IBM 500GB 7.2K 6Gbps NL SAS 2.5" SFF G2HS HDD | |
| 81Y9724 | 81Y9722 | 81Y9840 | IBM 250GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 81Y9728 | 81Y9726 | 81Y9844 | IBM 500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 81Y9732 | 81Y9730 | 81Y9848 | IBM 1TB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 81Y9652 | 81Y9650 | IBM 900GB 10K 6Gbps SAS 2.5" SFF HS HDD | |
| 81Y9672 | 81Y9670 | IBM 300GB 15K 6Gbps SAS 2.5" SFF HS HDD | |
| 43W7719 | 43W7718 | IBM 200GB SATA 2.5" MLC HS SSd | |
| 90Y8645 | 90Y8643 | IBM 256GB SATA 2.5" MLC HS Entry SSD | |
| 90Y8650 | 90Y8648 | IBM 128GB SATA 2.5" MLC HS Entry SSD | |
| IO | |||
| 44W4480 | 44W4479 | 2/4 Port Ethernet Expansion Card (CFFh) for IBM BladeCenter | |
| 44X1941 | 44X1940 | QLogic Eth and 8Gb Fibre Channel Exp Card (CFFh) for IBM BladeCenter | |
| 44W4476 | 44W4475 | Ethernet Expansion Card (CIOv) for IBM BladeCenter | |
| 46C5070 | 43W4068 | 49Y3705 | SAS Connectivity Card (CIOv) for IBM BladeCenter |
| 46M6066 | 46M6065 | QLogic 4Gb Fibre Channel Expansion Card (CIOv) for IBM BladeCenter | |
| 42C1833 | 42C1830 | QLogic 2-pt 10Gb Converged Network Adapter(CFFh) for IBM BladeCenter | |
| 44X1946 | 44X1945 | Qlogic 8Gb Fibre Channel Expansion Card (CIOv) for IBM BladeCenter | |
| 46M6141 | 46M6140 | Emulex 8Gb Fibre Channel Expansion Card (CIOv) for IBM BladeCenter | |
| 46M6003 | 46M6001 | 2-port 40Gb InfiniBand Expansion Card (CFFh) for IBM BladeCenter | |
| 46M6166 | 46M6164 | Broadcom 10Gb Gen2 4-port Ethernet Exp Cd (CFFh) for IBM BladeCenter | |
| 46M6170 | 46M6168 | Broadcom 10Gb Gen2 2-port Ethernet Exp Cd (CFFh) for IBM BladeCenter | |
| 42C1813 | 42C1810 | Intel 10Gb 2-port Ethernet Expansion Card (CFFh) for IBM BladeCenter | |
| 81Y1651 | 81Y1650 | Brocade 2 port 10GbE Converged Network Adapter for IBM BladeCenter | |
| 90Y3571 | 90Y3570 | Mellanox 2-port 10Gb Enet Expansion Card (CFFh) - IBM BladeCenter | |
| 81Y3134 | 81Y3133 | Broadcom 2-port 10Gb Virtual Fabric Adapter for IBM BladeCenter | |
| 81Y3123 | - | Emulex 10GbE VFA II for IBM BladeCenter HS23 | |
| 90Y9333 | - | Emulex 10GbE VFA Advanced II for IBM BladeCenter HS23 | |
| 00D6880 | - | IBM BladeCenter GPU Expansion Blade II with NVIDIA Tesla M2090 | |
| 68Y7482 | 68Y7478 | IBM BladeCenter GPU Expansion Blade II with NVIDIA Tesla M2075 | |
| 68Y7483 | 68Y7479 | IBM BladeCenter GPU Expansion Blade II with NVIDIA Tesla M2070Q | |
| 68Y7485 | 68Y7484 | IBM BladeCenter PCI Express Gen 2 Expansion Blade II | |
| 94Y9770 | 41Y8300 | IBM USB Memory Key for VMWare ESXi 5.0 | |
| 90Y9311 | 90Y9310 | IBM Virtual Fabric Advanced Software Upgrade (LOM) | |
| 90Y9351 | - | Virtual Fabric Advanced FOD Upgrade for IBM BladeCenter HS23 | |
| 81Y9369 | 94Y8550 | 10Gb Interposer Card for IBM BladeCenter HS23 | |

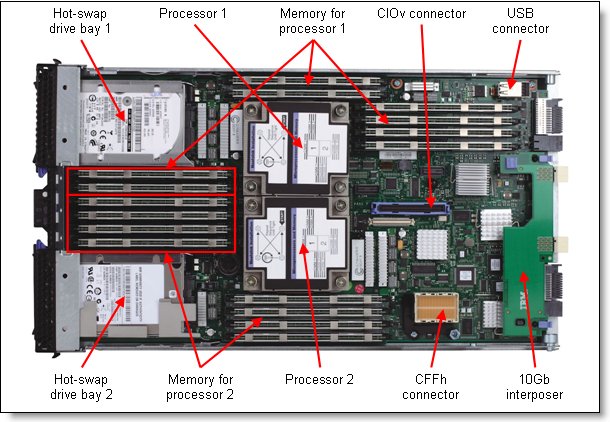

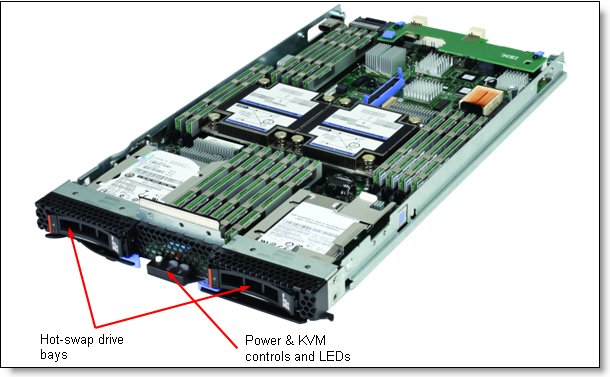

Budowa serwera
