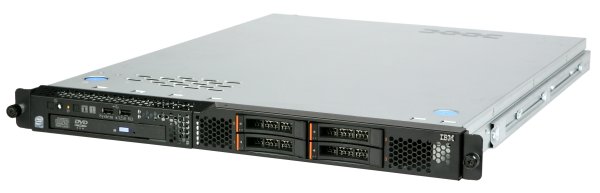

x3250 M3
IBM/x3250-M3
Specyfikacja

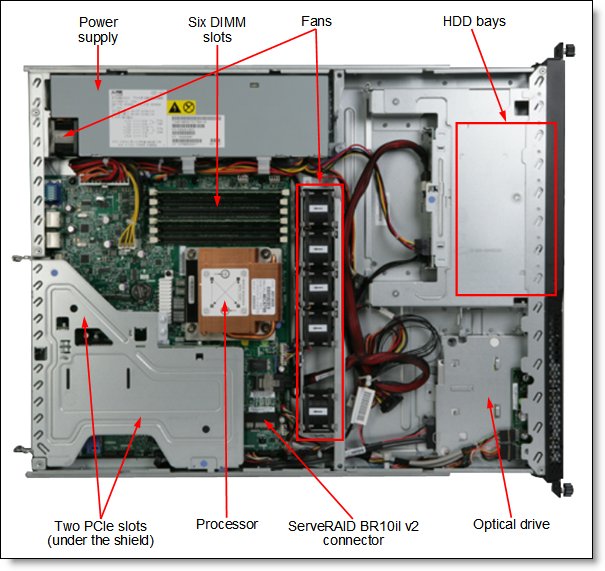

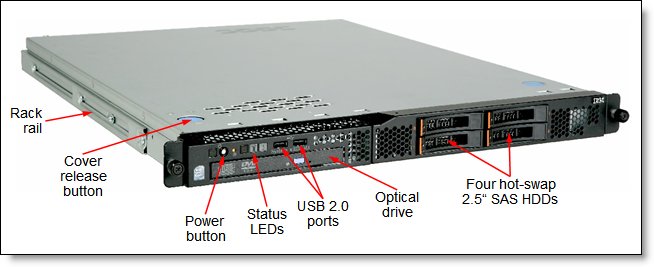

| Elementy serwera | Specyfikacja |
| Obudowa | 1U rack |
| Processor | maksymalnie jeden procesor 4rdzeniowy Intel Xeon seria 34xx (max do 3.06 GHz) lub 2rdzeniowy Intel Core i3 seria 3xx (max do 3.2 GHz) lub 2rdzeniowy Intel Pentium G6950 (2.8 GHz) lub 1rdzeniowy Celeron G1101 (2.26 GHz) częstotliwość pamięci do 1066 MHz. |
| Pamięć cache procesora | do 8 MB L3 dla procesorów serii Xeon 34xx lub do 4 MB L3 dla procesorów serii i3. |
| Płyta główna | Intel 3420. |
| Pamięć RAM | 6 slotów DDR3 DIMM |
| Maksymany RAM | do 48 GB pamięci (6x 8 GB DDR3 RDIMM) do 32 GB (4x 8 GB DDR3 UDIMM) |
| Ochrona pamięci RAM | ECC |
| Ilość dysków twardych - (w zależności od modelu) | do 2szt dysków 3.5" simple-swap SATA, lub do 2szt dysków 3.5" hot-swap SAS/SATA, lub do 4szt dysków 2.5" hot-swap SAS/SATA |
| Kontrolery RAID | IBM ServeRAID BR10i obsługa poziomu RAID 0, 1, 1E lub IBM ServeRAID H1110 obsługa poziomu RAID 0, 1, 1E,10 lub IBM ServeRAID M1015 obsługa poziomu RAID 0, 1, 1E,10, kontroler M1015 pozwala na upgrade obsługi RAID 5 (jako opcja) lub IBM ServeRAID M5014 , cache kontrolera: 256MB, obsługa poziomu RAID 0, 1, 5, 10, 50 lub IBM ServeRAID M5015, cache kontrolera: 512MB, obsługa poziomu RAID 0, 1, 5, 10, 50 IBM ServeRAID M5025, cache kontrolera: 512MB, zewnętrzne 2 porty SAS, obsługa poziomu RAID 0, 1, 5, 10, 50 Kontrolery M5014/M5015/M5025 pozwalają na upgrade poziomu RAID 6, 60 (jako opcja – moduł IBM M5000 Advanced Feature Key). |
| Napęd optyczny | 1 slot dla napędu optycznego |
| Napęd taśmowy | brak wsparcia dla wewnętrznych napędów taśmowych |
| Karta sieciowa | Zintegrowana 2 portowa karta sieciowa Gigabit Ethernet, 2x 10/100/1000. Dodatkowy port dla IMM |
| Sloty PCI | 2x PCI Express 2.0 slots: |
| 1x PCI Express 2.0 x8 (dedykowany pod ServeRAID) | |
| 1x PCI Express 2.0 x8 | |

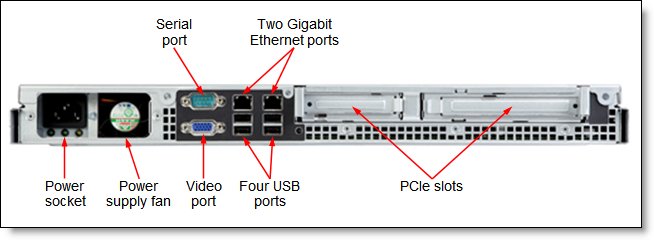

| Interfejsy | 7x USB 2.0 (2 z przodu. 4 z tyłu, jeden wewnętrzny port USB dla wbudowanego hypervisora) 1 x DB-15 video, 1x DB-9 szeregowy(serial), 2x RJ-45 Gigabit Ethernet 10/100/1000 (dwa dedykowane i , IMM) |
| Chłodzenie | IBM Calibrated Vectored Cooling™, 5 wentylatorów, nadmiarowość N+1. |
| Zasilacze | jeden niewymienialny w trakcie pracy zasilacz 351W AC,(standard ) lub jeden niewymienialny w trakcie pracy zasilacz 351W AC HE (tylko CTO) |
| Komponenty Hot-swap | dyski twadre |
| Systemy zarządzania | Zintegrowany procesor serwisowy / BMC ( Baseboard management Controller ) / tryb tekstowy UEFI, IBM Integrated Management Module (IMM), Predictive Failure Analysis, Automatic Server Restart, IBM Systems Director, IBM Systems Director Active Energy Manager, IBM ServerGuide. Opcjonalnie: Karta zdalnego zarządzania IBM Virtual Media Key (opcja, umożliwia między innymi przejęcie graficznej konsoli, klawiatury, myszy, bootowanie z lokalnych dysków) |
| Systemy zabezpieczeń | Power-on password, hasło administratora, Trusted Platform Module (TPM). |
| Karta Graficzna | Matrox G200e 16 MB pamięci, zintegrowana z IMM. Max rozdzielczość 1024x768 |
| Wymiary | wysokość: 43 mm; szerokość: 440 mm; głębokość: 559mm |
| Waga | od 11kg do 12.7kg (w zależności od ilości komponentów) |
Modele
| 4252C2G | Intel® Xeon™ X3430 2.40GHz 8MB L2 Cache Quad Core, 2GB Mem, 0GB SATA Simple-Swap, Optional RAID, Optional DVD or Multiburner |
| 425242G | Intel® Xeon™ X3440 2.53GHz 8MB L2 Cache Quad Core, 2GB Mem, 0GB SAS/SATA Hot-swap, SR-BR10il v2 RAID, Optional DVD or Multiburner |
| 425252G | Intel® Xeon™ X3450 2.67GHz 8MB L2 Cache Quad Core, 2GB Mem, 0GB SAS/SATA Hot-swap, SR-BR10il v2 RAID, Optional DVD or Multiburner |
| 425262G | Intel® Xeon™ X3460 2.80GHz 8MB L2 Cache Quad Core, 2GB Mem, 0GB SAS Hot-swap SFF, SR-BR10il v2 RAID, Optional DVD or Multiburner |
| 4252A2G | Intel® Pentium G6950 2.80GHz 3MB L2 Cache Dual Core , 1x1GB DDR3 memory, OB S/S SATA (2bays), optional HW RAID, optional optical, 1x351w fixed |
| 4252B2G | Intel® Core i3-540 3.06GHz 4MB L2 Cache Dual Core, 1x1GB memory, O/B S/S SATA (2bays), optional HW RAID, optional optical, 1x351w fixed |
| Express models | |
| 4252EAG | Intel® Xeon™ X3430 2.40GHz, 8MB L3 Cache, Quad Core, 1x 2GB, O/B SAS/SATA 3.5", BR10il v2, multiburner, 1x PS |
| 4252EBG | Intel® Xeon™ X3440 2.53GHz, 8MB L3 Cache, Quad Core, 1x 2GB, 2x 500GB SATA 3.5" HS, BR10il v2, multiburner, 1x PS |
| 4252K3G | Intel® Xeon™ X3430 2.40GHz, 8MB L3 Cache, Quad Core, 2x 2GB, O/B 3.5" HS SAS, M1015, 1x fixed PS, multiburner |
| 4252K4G | Intel® Xeon™ X3430 2.40GHz, 1x 2GB UDIMM, O/B H/S 3.5" SAS (2 bays), BR10ilv2, Multiburner, 1x 351W PS |
| 4252K5G | Intel® Xeon™ X3450 2.67GHz, 2x 2GB UDIMM, O/B H/S 3.5" SAS (2 bays), BR10ilv2, Multiburner, 1x 351W PS |
| 4252K8G | Intel® Xeon™ X3430 2.40GHz 8MB L3 Cache, Quad Core (95W), 2GB (1x 2GB (2Rx8, 1.5V) UDIMM), O/B 3.5" HS SAS(2), M1015, Multiburner, 1x351W Fixed PSU |
| 4252K7G | Intel® Xeon™ X3440 2.53GHz 8MB L3 Cache 1 x 2GB UDIMM, 2x 500GB HS SATA 3.5" (2 bays), BR10ilv2, 1x 351W fixed PS, multiburner |
Kompatybilne opcje
| PART NUMBER | OPTION NUMBER | EXPRESS PART NUMBER | OPIS |
| PROCESSORS | |||
| 46C6773 | - | Intel Xeon X3470 2.93GHz/1333MHz-8MB 4C | |
| 49Y4602 | - | Intel Xeon X3430 2.4GHz/1333MHz-8MB 4C | |
| 49Y4603 | - | Intel Xeon X3450 2.67GHz/1333MHz-8MB 4C | |
| 49Y4604 | - | Intel Xeon X3440 2.53GHz/1333MHz-8MB 4C | |
| 49Y4655 | - | Intel Xeon X3460 2.8GHz/1333MHz-8MB 4C | |
| 69Y4580 | - | Intel Core i3-530 2.93 GHz 2C 4MB cache1333MHz 73W | |
| 69Y4581 | - | Intel Pentium G6950 2.8GHz 2C 3MB cache 1333MHz 73W | |
| 69Y4582 | - | Intel Core-i3 540 3.06GHz 2C 4MB cache1333MHz 73W | |
| 69Y4583 | - | Intel Xeon L3406 2.26GHz 2C 4MB cache 1066MHz 30W | |
| 69Y4584 | - | Intel Core-i3 550 3.2GHz 2C 4MB cache1333MHz 73W | |
| 69Y4585 | - | Intel Xeon x3480 3.06GHz 4C 8MB cache1333MHz 95W | |
| 69Y5280 | - | Intel Celeron G1101 2.26GHz 2C 2MB cache 1066 MHz 73W | |
| MEMORY | |||
| 44T1470 | 44T1480 | 49Y3711 | 1GB (1x1GB, Single Rankx8) PC3-10600 CL9 ECC DDR3-1333 LP RDIMM |
| 44T1471 | 44T1481 | 49Y3756 | 2GB (1x2GB, Dual Rank x8) PC3-10600 CL9 ECC DDR3-1333 LP RDIMM |
| 44T1564 | 44T1568 | 1GB (1x1GB, Single Rankx8) PC3-10600 CL9 ECC DDR3 1333MHz LP UDIMM | |
| 44T1565 | 44T1569 | 49Y3734 | 2GB (1x2GB, 2Rx8, 1.5V) PC3-10600 ECC DDR3 1333Mhz LP UDIMM |
| 44T1597 | 44T1599 | 49Y3757 | 4GB (1x4GB, Dual Rankx8) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 46C7444 | 46C7448 | 4GB (1x4GB, Quad Rankx8) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM | |
| 44T1567 | 44T1571 | 49Y3735 | 4GB (1x4GB, Dual Rankx8) PC3-10600 CL9 ECC DDR3 1333MHz LP UDIMM |
| 46C7476 | 46C7482 | 8GB (1x8GB, Quad Rankx8) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM | |
| 44T1587 | 44T1592 | 90Y4574 | 2GB (1x2GB, 1Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 44T1566 | 44T1570 | 90Y4566 | 2GB (1x2GB, 1Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP UDIMM |
| HDD | |||
| - | 40K1044 | 146GB 15K 3.5" Hot-Swap SAS | |
| - | 43W7535 | IBM 73 GB 10K SAS 2.5" SFF Slim-HS HDD | |
| - | 42D0672 | 44W2202 | IBM 73GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| - | 42D0632 | 44W2194 | IBM 146GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 42D0639 | 42D0637 | 44W2193 | IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 42D0679 | 42D0677 | 44W2201 | IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 44W2236 | 44W2234 | 49Y3727 | IBM 300GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 44W2241 | 44W2239 | 49Y3728 | IBM 450GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 44W2246 | 44W2244 | 49Y3729 | IBM 600GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 44W2266 | 44W2264 | IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS SED | |
| 44W2296 | 44W2294 | IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS SED | |
| 42D0709 | 42D0707 | 49Y3726 | IBM 500GB 7200 6Gbps NL SAS 2.5" SFF Slim-HS HDD |
| 42D0769 | 42D0767 | 90Y4570 | IBM 2TB 7.2K 6Gbps NL SAS 3.5" HS HDD |
| 42D0779 | 42D0777 | IBM 1TB 7.2K 6Gbps NL SAS 3.5" HS HDD | |
| 49Y2005 | 49Y2003 | 49Y2078 | IBM 600GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| - | 81Y9690 | IBM 1TB 7.2K 6Gbps NL SAS 2.5" SFF HS HDD | |
| 81Y9760 | 81Y9758 | IBM 3TB 7.2K 6Gbps NL SAS 3.5" HS HDD | |
| 81Y9652 | 81Y9650 | IBM 900GB 10K 6Gbps SAS 2.5" SFF HS HDD | |
| 81Y9672 | 81Y9670 | IBM 300GB 15K 6Gbps SAS 2.5" SFF HS HDD | |
| 90Y8645 | 90Y8643 | IBM 256GB SATA 2.5" MLC HS Entry SSD | |
| 90Y8650 | 90Y8648 | IBM 128GB SATA 2.5" MLC HS Entry SSD | |
| - | 42D0747 | IBM 160GB 7200 NL SATA 2.5" SFF Slim-HS HDD | |
| - | 39M4526 | 43W7598 | 250GB 7200 RPM 3.5" Hot-Swap SATA II |
| 39M4531 | 39M4530 | 41Y8226 | 500GB 7200 RPM 3.5" Hot-Swap SATA II |
| - | 43W7576 | 750GB 7200 RPM 3.5" Hot-Swap SATA II | |
| 43W7627 | 43W7626 | 41Y8236 | IBM 1TB 7200 SATA 3.5 HS HDD |
| 42D0784 | 42D0782 | 90Y4568 | IBM 2TB 7200 Nl SATA 3.5" HS HDD |
| 43W7755 | 43W7754 | IBM 250GB SATA 3.5 HS HDD | |
| - | 81Y9730 | 81Y9848 | IBM 1TB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 81Y9724 | 81Y9722 | 81Y9840 | IBM 250GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 81Y9728 | 81Y9726 | 81Y9844 | IBM 500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 81Y9776 | 81Y9774 | IBM 3TB 7.2K 6Gbps NL SATA 3.5" HS HDD | |
| 81Y9780 | 81Y9778 | IBM 3TB 7.2K 6Gbps NL SATA 3.5" SS HDD | |
| 43W7719 | 43W7718 | IBM 200GB SATA 2.5" MLC HS SSd | |
| 39M4509 | 39M4508 | 250GB 7200 RPM 3.5" Simple-Swap SATA II | |
| 39M4515 | 39M4514 | 41Y8218 | 500GB 7200 RPM 3.5" Simple-Swap SATA II |
| - | 43W7572 | 750GB 7200 RPM 3.5" Simple-Swap SATA II | |
| 43W7623 | - | IBM 1TB 7.2K SATA 3.5" Simple-Swap HDD | |
| 42D0789 | 42D0787 | 41Y8284 | IBM 2TB 7200 Nl SATA 3.5" SS HDD |
| 43W7751 | 43W7750 | 41Y8288 | IBM 250GB SATA 3.5 SS HDD |
| 44W3251 | 46M0901 | IBM UltraSlim Enhanced SATA DVD-ROM | |
| 44W3253 | 46M0902 | 49Y3715 | IBM UltraSlim Enhanced SATA Multi-Burner |
| 44W3252 | - | UltraSlim Enhanced SATA CD-RW / DVD-ROM Combo | |
| - | 172701X | ||
| IO | |||
| 43W4298 | 43W4296 | ServeRAID-MR10i SAS/SATA Controller | |
| 42D0486 | 42D0485 | 49Y3730 | Emulex 8Gb FC Single-port HBA for IBM System x |
| 42D0495 | 42D0494 | 49Y3731 | Emulex 8Gb FC Dual-port HBA for IBM System x |
| 42D0502 | 42D0501 | 49Y3760 | QLogic 8Gb FC Single-port HBA for IBM System x |
| 42D0511 | 42D0510 | 49Y3761 | QLogic 8Gb FC Dual-port HBA for IBM System x |
| - | 44E8695 | ServeRAID-MR10is VAULT SAS/SATA Controller | |
| 44E8840 | 44E8826 | ServeRAID-MR10i Li-Ion Battery | |
| 46M6051 | 46M6049 | 49Y3702 | Brocade 8Gb FC Single-port HBA for IBM System x |
| 46M6052 | 46M6050 | 49Y3703 | Brocade 8Gb FC Dual-port HBA for IBM System x |
| 44E8702 | 44E8700 | IBM 3Gb SAS HBA Controller v2 | |
| 46M0850 | 46M0829 | 49Y3719 | ServeRAID M5015 SAS/SATA Controller (Battery not included) |
| 46M0857 | 46M0917 | 90Y4557 | ServeRAID M5000 Series Battery Assembly |
| 49Y4738 | 49Y4731 | 49Y3759 | ServeRAID-BR10il SAS/SATA Controller v2 |
| 59Y1988 | 59Y1987 | Brocade 4Gb FC Single-port HBA for IBM System x | |
| 59Y1994 | 59Y1993 | Brocade 4Gb FC Dual-port HBA for IBM System x | |
| 46M0922 | 46M0916 | 49Y3720 | ServeRAID M5014 SAS/SATA Controller (Battery not included) |
| 46M0932 | 46M0930 | 49Y3722 | ServeRAID M5000 Series Advance Feature Key |
| 46M0862 | 46M0831 | 90Y4556 | ServeRAID M1015 SAS/SATA Controller |
| 46M0865 | 46M0832 | 49Y3721 | ServeRAID M1000 Series Advance Feature Key |
| 49Y4219 | 49Y4218 | 90Y4575 | QLogic 10Gb SFP+ SR Optical Transceiver |
| 68Y7355 | 46M0907 | 90Y4579 | IBM 6Gb SAS HBA |
| 46M0853 | 46M0830 | ServeRAID M5025 SAS/SATA Controller | |
| 81Y4428 | 81Y4426 | ServeRAID M5000 Series Performance Accelerator Key | |
| 46M0914 | - | IBM 6Gb Performance Optimized HBA | |
| 81Y4493 | 81Y4492 | ServeRAID H1110 SAS/SATA Controller for IBM System x | |
| - | 172642X | IBM System Storage DS3400 FC Dual Controller | |
| - | 172641X | IBM System Storage DS3400 FC Single Controller | |
| - | 172622X | IBM System Storage DS3200 SAS Dual Controller | |
| - | 172621X | IBM System Storage DS3200 SAS Single Controller | |
| - | 172632X | IBM System Storage DS3300 iSCSI Dual Controller Model | |
| - | 172631X | IBM System Storage DS3300 iSCSI Single Controller Model | |
| - | 44E8825 | ServeRAID-MR10M SAS/SATA Controller with Remote Battery Kit | |
| - | 49Y4216 | Brocade 10Gb SFP+ SR Optical Transceiver | |
| - | 42C1820 | Brocade 10Gb CNA for IBM System x | |
| - | 1746A4S | IBM System Storage DS3524 Express Single Controller Storage System | |
| - | 1746A4D | IBM System Storage DS3524 Express Dual Controller Storage System | |
| - | 1746A2S | IBM System Storage DS3512 Express Single Controller Storage System | |
| - | 1746A2D | IBM System Storage DS3512 Express Dual Controller Storage System | |
| - | 174724X | IBM System Storage EXP2524 Express Storage Enclosure | |
| - | 174712X | IBM System Storage EXP2512 Express Storage Enclosure | |
| 39Y6071 | 39Y6066 | 44W3278 | NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 39Y6129 | 39Y6126 | PRO/1000 PT Dual Port Server Adapter by Intel | |
| 39Y6139 | 39Y6136 | PRO/1000 PT Quad Port Server Adapter | |
| 42C1753 | 42C1750 | PRO/1000 PF Server Adapter | |
| 39Y6149 | 39Y6146 | QLogic iSCSI Single Port PCIe HBA for IBM System x | |
| 42C1773 | 42C1770 | QLogic iSCSI Dual Port PCIe HBA for IBM System x | |
| 42C1803 | 42C1800 | QLogic 10Gb CNA for IBM System x | |
| 49Y4253 | 49Y4250 | Emulex 10GbE Virtual Fabric Adapter for IBM System x | |
| 49Y4233 | 49Y4230 | 49Y3758 | Intel Ethernet Dual Port Server Adapter I340-T2 for IBM System x |
| 49Y4243 | 49Y4240 | 90Y4578 | Intel Ethernet Quad Port Server Adapter I340-T4 for IBM System x |
| 59Y8022 | - | PRO/1000 PT Quad Port Server Adapter | |
| 42C1783 | 42C1780 | 90Y4576 | NetXtreme II 1000 Express Dual Port Ethernet Adapter |
| 49Y4223 | 49Y4220 | 90Y4577 | NetXtreme II 1000 Express Quad Port Ethernet Adapter |
| 81Y9991 | 81Y9990 | Mellanox ConnectX-2 Dual Port 10GbE Adapter for IBM System x | |
| 49Y7953 | 49Y7950 | Emulex 10GbE Virtual Fabric Adapter II for IBM System x | |
| 49Y7913 | 49Y7910 | Broadcom NetXtreme II Dual Port 10GBaseT Adapter for IBM System x | |
| 49Y7963 | 49Y7960 | Intel x520 Dual Port 10GbE SFP+ Adapter for IBM System x | |
| 90Y9353 | 90Y9352 | Broadcom NetXtreme I Quad Port GbE Adapter for IBM System x | |
| 90Y9371 | 90Y9370 | Broadcom NetXtreme I Dual Port GbE Adapter for IBM System x | |
| 43V6991 | 46C7527 | 49Y3724 | IBM Virtual Media Key For Entry Systems |
| 46M4989 | 41Y8278 | IBM USB Memory Key for VMware ESXi 41 | |
| 59Y8349 | - | IBM USB Memory Key for VMware ESXi 4.1 | |
| 81Y9998 | - | 2U Bracket for Mellanox ConnectX-2 Dual Port 10GbE Adapter | |
| 49Y4278 | - | Emulex VFA II FCoE/iSCSI License for IBM System x | |
| 94Y9770 | 41Y8300 | IBM USB Memory Key for VMWare ESXi 5.0 | |
| - | 39R6475 | 4-Gbps SW SFP Transceiver | |
| PWR ACC | |||
| 39Y5531 | 39Y7937 | 1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | |
| 39Y5547 | 39Y7938 | 2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable | |
| 39Y7979 | 39Y7932 | 4.3m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | |
| 39Y5532 | - | Rack power cable - 2.0m, 125-250V, C13 to IEC 320-C14 (WW) | |
| 39Y5533 | - | 2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | |
| 49Y4610 | - | Base Hardware/Fixed PSU (Quad-core processor recommended) | |
| 49Y4611 | - | Base Hardware/High Efficiency PSU (Quad-core processor recommended) | |
| - | 39Y8951 | DPI Universal Rack PDU with Nema L5-20P and L6-20P | |
| - | 39Y8948 | IBM Enterprise C19 PDU | |
| - | 39Y8941 | IBM Enterprise C13 PDU | |
| - | 39Y8940 | DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd connector | |
| - | 39Y8939 | DPI 30amp/250V Front-end PDU with NEMA L6-30P | |
| - | 39Y8938 | DPI 30amp/125V Front-end PDU with NEMA L5-30P | |
| - | 39Y8923 | IBM Enterprise C19 3 phase PDU (60a) | |
| - | 39M2816 | IBM Dpi C13 PDU+ | |
| - | 71763NU | IBM Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph | |
| - | 71763MU | IBM Ultra Density Enterprise C19/C13 PDU+ 60A/208V/3ph | |
| - | 71762NX | IBM Ultra Density Enterprise C19/C13 PDU Module | |
| - | 71762MX | IBM Ultra Density Enterprise C19/C13 PDU+ Module | |
| - | 39M2817 | iDPx Three-phase 60A/208V Enterprise C13 PDU+ | |
| - | 46M4005 | IBM 1U 12 C13 Switched and Monitored 60A 3 Phase PDU | |
| - | 46M4004 | IBM 1U 12 C13 Switched and Monitored DPI PDU | |
| - | 46M4003 | IBM 1U 9 C19/3 C13 Switched and Monitored 60A 3 Phase PDU | |
| - | 46M4002 | IBM 1U 9 C19/3 C13 Switched and Monitored DPI PDU | |
| - | 46M4140 | IBM 0U 12 C19/12 C13 50A 3 Phase PDU | |
| - | 46M4128 | IBM 0U 24 C13 30A PDU | |
| - | 46M4125 | IBM 0U 24 C13 30A 3 Phase PDU | |
| - | 46M4167 | 1U Switch. and Monit. PDU 9 C19 / 3 C13 3ph 30A fixed 4.3m L21-30P. | |
| - | 46M4134 | IBM 0U 12 C19/12 C13 Switched and Monitored 50A 3 Phase PDU | |
| - | 46M4116 | IBM 0U 24 C13 Switched and Monitored 30A PDU | |
| - | 21304RX | IBM UPS 10000Xhv | |
| - | 21302RX | IBM UPS3000 HV | |
| - | 21301RX | IBM UPS3000 LV | |
| - | 24195KX | IBM UPS5000 HV | |
| - | 53953JX | IBM 3000VA LCD 3U Rack UPS (200V/208V) | |
| - | 53953AX | IBM 3000VA LCD 3U Rack UPS (100V/120V) | |
| - | 46M4110 | 90Y4585 | IBM LCD UPS Network Management Card |
| - | 53956KX | IBM 6000VA LCD 4U Rack UPS (230V) | |
| - | 53956AX | IBM 6000VA LCD 4U Rack UPS (200V/208V) | |
| - | 53959KX | IBM 11000VA LCD 5U Rack UPS (200V/208V/230V) | |
| - | 21303RX | IBM UPS 7500Xhv | |
| - | 39M2895 | 49Y3709 | IBM USB Conversion Option (UCO) |
| - | 39M2894 | IBM Virtual Media Conversion Option (VCO) | |
| - | 17233RX | IBM 1U 15" Flat Panel Console Kit | |
| - | 17231RX | IBM 1U 17" Flat Panel console Kit w/ Optical Drive Bay | |
| - | 93624PX | IBM 47U 1200mm Deep Static Rack | |
| - | 93624EX | IBM 47U 1200mm Deep Static Expansion Rack | |
| - | 93614PX | 9361EPX | IBM 42U 1200mm Deep Static Rack |
| - | 93614EX | IBM 42U 1200mm Deep Static Expansion Rack | |
| - | 93604PX | IBM 42U 1200mm Deep Dynamic Rack | |
| - | 93604EX | IBM 42U 1200mm Deep Dynamic Expansion Rack | |
| - | 46M5383 | 90Y4583 | IBM Virtual Media Conversion Option Gen2 (VCO2) |
| - | 46M5382 | IBM Serial Conversion Option (SCO) | |
| - | 93074XX | IBM 42U S2 expansion rack | |
| - | 93074RX | 9307SRX | NetBAY S2 42U Standard Rack Cabinet |
| - | 93072RX | IBM 25U S2 standard rack | |
| - | 93084PX | IBM 42U Enterprise Rack | |
| - | 93084EX | IBM 42U Enterprise Expansion Rack | |
| - | 14104RX | IBM 42U S2 standard rack | |
| - | 14102RX | IBM 25RU standard rack | |
| - | 99564XX | IBM S2 42U Dynamic Expansion Rack Cabinet | |
| - | 99564RX | IBM S2 42U Dynamic Standard Rack Cabinet | |
| - | 93072PX | IBM S2 25U Static Base Cabinet | |
| - | 31R3132 | 3m Console Switch Cable (USB) | |
| - | 17351GX | IBM Local 2x8 Console Manager (LCM2) | |
| - | 17354LX | IBM 2 x 16 Console Switch | |
| - | 17353LX | IBM 1 x 8 Console Switch | |
| - | 17352GX | IBM Global 2x16 Console Mngr(GCM2) | |
| - | 1754D2X | IBM Global 4X2X32 Console Manager | |
| - | 1754D1X | IBM Global 2X2X16 Console Manager | |
| - | 1754A2X | IBM Local 2X16 Console Manager | |
| - | 1754A1X | 1754E1X | IBM Local 1X8 Console Manager |
| - | 172319X | 1U 19in Flat Panel Console Kit | |
| - | 172317X | 1723E7X | 1U 17in Flat Panel Console Kit |
| - | 40K9200 | IBM 2 Button Optical Wheel Mouse - Black - USB | |
| - | 40K9584 | IBM Preferred Pro Keyboard USB - US English 103P | |
| - | 40K5372 | IBM Keyboard w/ Integrated Pointing Device USB - US English 103P | |
| 39Y8072 | - | IBM Single Cable USB Conversion Option (UCO) | |
| 40K9805 | - | 5m LC-LC Fiber Cable (networking) | |
| 40K9806 | - | 25m LC-LC Fiber Cable (networking) | |
| - | 39R6531 | IBM 3m SAS Cable | |
| - | 39R6529 | IBM 1m SAS Cable | |
| 40K5564 | - | 1.5m Blue Cat5e Cable | |
| 40K5627 | - | 1.5m Green Cat5e Cable | |
| 40K5791 | - | 3m Green Cat5e Cable | |
| 40K5792 | - | 10m Green Cat5e Cable | |
| 40K8868 | - | 25m Green Cat5e Cable | |
| 40K8926 | - | 10m Blue Cat5e Cable | |
| 40K8929 | - | 25m Blue Cat5e Cable | |
| 40K8936 | - | 3m Blue Cat5e Cable | |
| 40K8941 | - | 25m Yellow Cat5e Cable | |
| - | 0.6m Blue Cat5e Cable | ||
| 40K8960 | - | 3m Yellow Cat5e Cable | |
| 40K8963 | - | 0.6m Green Cat5e Cable | |
| 39Y8122 | - | Line cord - 2.8m, 10A/250V, C13 to NEMA 6-15P (US) | |
| 39Y5646 | 39Y7931 | Line cord - 4.3M, 10A/125V, C13 to NEMA 5-15P (US) | |
| 39Y5651 | - | 2.8m, 10A/120V, C13 to NEMA 5-15P (US) Line Cord | |
| 39Y5650 | - | Line cord - 1.8M, 10A/125V, C13 to NEMA 5-15P (US) | |
| 39Y8121 | - | Line cord - 1.8m, 10A/250V, C13 to NEMA 6-15P (US) | |
| 46M2590 | - | 10A/250V C13 to NEMA 6-15P 2.8m line cord | |
| - | 39Y8905 | DPI 100-127v PDU with Fixed Nema L5-15P line cord | |
| TAPE | |||
| - | 43W8478 | 49Y3697 | IBM Half High LTO Gen 3 SAS Tape Drive |
| - | 39M5636 | 90Y4586 | IBM DDS Generation 6 USB Tape Drive |
| - | 44E8895 | 90Y4588 | IBM Half High LTO Gen 4 SAS Tape Drive |
| - | 46C5399 | 49Y3736 | IBM DDS Generation 5 USB Tape Drive |
| - | 49Y9898 | IBM Half High LTO Gen 5 Internal SAS Tape Drive | |
| - | 3628L5X | IBM Half High LTO Gen 5 External SAS Tape Drive | |
| - | 3628L4X | IBM Half High LTO Gen 4 External SAS Tape Drive | |
| - | 3628L3X | IBM Half High LTO Gen 3 External SAS Tape Drive | |
| - | 8767HHX | Half High Tape Drive Enclosure | |
| - | 87651UX | 1U Tape Drive Enclosure | |
| - | 8767HNX | HH Tape Enclosure, No Power Cord | |
| - | 87651NX | 1U Tape Enclosure, No Power Cord | |
| - | 40K2599 | SAS Enclosure Adapter Kit | |
| - | 44E8869 | USB Enclosure Adapter Kit | |
Budowa serwera
