x3630 M4
IBM/x3630-M4
Opis

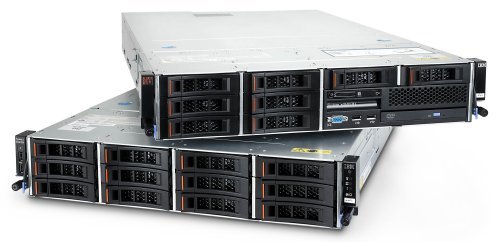

Serwer IBM ® System x3630 M4 jest efektywnym kosztowo rozwiązaniem o dużej pojemności dyskowej (do 42TB) w kompaktowej obudowie 2U. Zaprojektowany w celu sprostania wymaganiom działalności gospodarczej, znacząco poprawia wydajność infrastruktury dzięki zastosowaniu takich rozwiązań, jak obsługa dwóch ośmiu-rdzeniowych procesorów Intel Xeon i dwunastu gniazd pamięci DDR3 DIMM.
Specyfikacja
| Elementy serwera | Specyfikacja |
| Obudowa | 2U rack. |
| Processor | maksymalnie dwa procesory: 8-, 6- lub 4-rdzeniowe Intel Xeon E5-2400 (max 2.4 GHz) lub 4rdzeniowe (4C) Intel Xeon E5-1400 (max 2.8 GHz) lub 4rdzeniowy (4C) Inter Pentium 1400 (max. 2.8 GHz) |
| Pamięć cache procesora | do 10 MB L3 dla procesorów serii Xeon E5-1400 do 5 MB L3 dla procesorów serii Intel Pentium 1400 |
| Płyta główna | Intel C600 |
| Pamięć RAM | 12 slotów DDR3 DIMM (6 slotów na procesor) |
| Maksymany RAM | do 192 GB (12x 16 GB DDR3 RDIMM) |
| Ochrona pamięci RAM | ECC, ChipKill, memory mirroring, memory rank sparing |

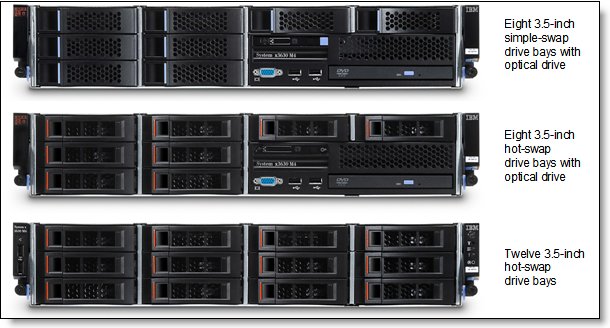

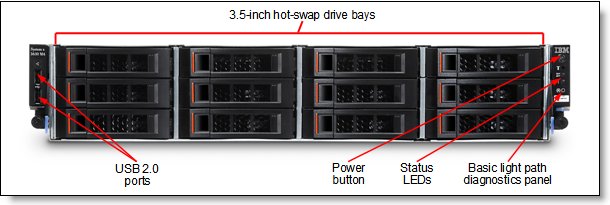

| Ilość dysków twardych - (w zależności od modelu) | do 8szt. dysków 3.5" simple-swap SATA do 8szt. dysków 3.5" hot-swap SAS/SATA do 14szt. dysków 3.5" hot-swap SAS/SATA |
| Kontrolery RAID | IBM ServeRAID C105 RAID 0, 1 lub IBM ServeRAID M1115, obsługa poziomu RAID 0,1,10 IBM ServeRAID M5110, obsługa poziomu RAID 0, 1, 10 Kontrolery M1115/M5110 pozwalają na upgrade poziomu RAID 5, 50 Kontroler M5110 pozwala na upgrade poziomu RAID 6, 60. |
| Napęd optyczny | 1 slot dla napędu optycznego, dla modeli do 8 dysków 3.5" |
| Napęd taśmowy | opcjonalnie dla modeli do 8 dysków 3.5", przy zastosowaniu Tape Enablement Kit. |
| Karta sieciowa | Do czterech zintegrowanych portów Gigabit Ethernet 1000BASE-T RJ-45 z kontrolerem I350-CM2 (dwa w standardzie, pozostałe dwa wymagają aktywacji upgrade'u oprogramowania Feature on Demand) |

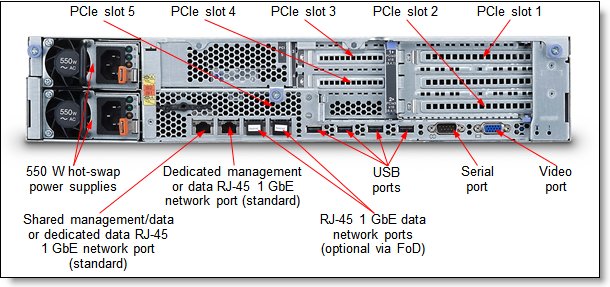

| Sloty PCI | Do 5 slotów PCIe 3.0 (w modelach z 12 wnękami na dyski) |
| 4x PCIe 3.0 x16 | |
| 1x PCIe 3.0 x4 (dedykowany pod ServerRAID) Do 3 slotów PCIe 3.0 (w modelach z 14 wnękami na dyski) 2x PCIe 3.0 x8 1x PCIe 3.0 x8 (dedykowany pod Server RAID) |
|

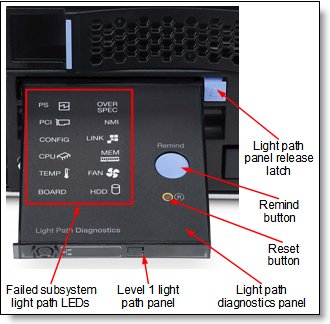

| Interfejsy | 6x USB 2.0 (2 z przodu, 4 z tyłu, plus dwa wewnętrzne porty USB: jeden dla wbudowanego hypervisora, jeden dla wewnętrznego napędu taśmowego) 2 porty DB-15 video (VGA), 1 z przodu, 1 z tyłu serwera 1 szeregowy port DB-9 (serial) 4 porty RJ-45 Gigabit Ethernet z tyłu |
| Chłodzenie | IBM Calibrated Vectored Cooling™, 6 wentylatorów. |
| Zasilacze | do dwóch nadmiarowych, wymiennych podczas pracy zasilaczy 460 W AC lub 675 W HE AC lub lub jeden niewymienialny w trakcie pracy 460 W AC |
| Komponenty Hot-swap | dyski twadre, zasilacze (w zależności od modelu) |
| Systemy zarządzania | UEFI, IBM Integrated Management Module II (IMM2), Predictive Failure Analysis, Light path diagnostic (basic w standardzie, advanced - opcjonalnie) Automatic Server Restart, IBM Systems Director, IBM Systems Director Active Energy Manager, IBM ServerGuide. Opcjonalnie: IMM Advanded FoD Upgrade dla zdalnego zarządzania (opcja, umożliwia między innymi przejęcie graficznej konsoli, klawiatury, myszy) |
| Systemy zabezpieczeń | Power-on password, hasło administratora, Trusted Platform Module (TPM). |
| Karta Graficzna | Matrox G200eR2 16 MB pamięci, zintegrowana z IMM2. Maksymalna rozdzielczość 1600x1200 |
| Wymiary | wysokość: 86 mm; szerokość: 447 mm; głębokość: 749 mm |
| Waga | od 16.4kg do 28.2kg (w zależności od ilości komponentów) |
Kompatybilne opcje
| OPTION NUMBER | PART NUMBER | EXPRESS PART NUMBER | OPIS |
| PROCESSORS | |||
| 90Y5002 | - | Intel Pentium processor 1407 2C 2.8GHz 5MB cache 1066MHz 80W | |
| 90Y4998 | - | Intel Pentium processor 1403 2C 2.6GHz 5MB cache 1066MHz 80W | |
| 00D9031 | - | Intel Xeon Processor E5-1410 4C 2.8GHz 10MB Cache 1333MHz 80W | |
| 90Y5005 | - | Intel Xeon Processor E5-2403 4C 1.8GHz 10MB Cache 1066MHz 80W | |
| 90Y5004 | - | Intel Xeon Processor E5-2407 4C 2.2GHz 10MB Cache 1066MHz 80W | |
| 90Y5003 | - | Intel Xeon Processor E5-2420 6C 1.9GHz 15MB Cache 1333MHz 95W | |
| 90Y5001 | - | Intel Xeon Processor E5-2430 6C 2.2GHz 15MB Cache 1333MHz 95W | |
| 90Y5007 | - | Intel Xeon Processor E5-2430L 6C 2.0GHz 15MB Cache 1333MHz 60W | |
| 90Y5000 | - | Intel Xeon Processor E5-2440 6C 2.4GHz 15MB Cache 1333MHz 95W | |
| 90Y4999 | - | Intel Xeon Processor E5-2450 8C 2.1GHz 20MB Cache 1600MHz 95W | |
| 90Y5006 | - | Intel Xeon Processor E5-2450L 8C 1.8GHz 20MB Cache 1600MHz 70W | |
| 90Y4997 | - | Intel Xeon Processor E5-2470 8C 2.3GHz 20MB Cache 1600MHz 95W | |
| 90Y5009 | 90Y6356 | Addl Intel Xeon Processor E5-2470 8C 2.3GHz 20MB Cache 1600MHz 95W | |
| 90Y5011 | 90Y6361 | Addl Intel Xeon Processor E5-2450 8C 2.1GHz 20MB Cache 1600MHz 95W | |
| 90Y5012 | 90Y6362 | Addl Intel Xeon Processor E5-2440 6C 2.4GHz 15MB Cache 1333MHz 95W | |
| 90Y5013 | 90Y6363 | Addl Intel Xeon Processor E5-2430 6C 2.2GHz 15MB Cache 1333MHz 95W | |
| 90Y5015 | 90Y6364 | Addl Intel Xeon Processor E5-2420 6C 1.9GHz 15MB Cache 1333MHz 95W | |
| 90Y5016 | 90Y6365 | Addl Intel Xeon Processor E5-2407 4C 2.2GHz 10MB Cache 1066MHz 80W | |
| 90Y5017 | 90Y6367 | Addl Intel Xeon Processor E5-2403 4C 1.8GHz 10MB Cache 1066MHz 80W | |
| 90Y5018 | 90Y6368 | Addl Intel Xeon Processor E5-2450L 8C 1.8GHz 20MB Cache 1600MHz 70W | |
| 90Y5019 | 90Y6384 | Addl Intel Xeon Processor E5-2430L 6C 2.0GHz 15MB Cache 1333MHz 60W | |
| MEMMORY | |||
| 49Y1379 | 49Y1397 | 49Y3778 | 8GB (1x8GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 49Y1387 | 49Y1405 | 90Y4550 | 2GB (1x2GB, 1Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 49Y1388 | 49Y1406 | 90Y4551 | 4GB (1x4GB, 1Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 49Y1389 | 49Y1407 | 49Y3777 | 4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 49Y1386 | 49Y1404 | 4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP UDIMM | |
| 49Y1562 | - | 16GB (1x16GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM | |
| 49Y1558 | - | 4GB (1x4GB, 1Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM | |
| 90Y3108 | - | 8GB (1x8GB, 2Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM | |
| HDD | |||
| 90Y8569 | 90Y8567 | IBM 1TB 7.2K 6Gbps NL SAS 3.5" G2HS HDD | |
| 90Y8579 | 90Y8577 | IBM 3TB 7.2K 6Gbps NL SAS 3.5" G2HS HDD | |
| 81Y9788 | 81Y9786 | 90Y8830 | IBM 500GB 7.2K 6Gbps NL SATA 3.5" G2HS HDD |
| 81Y9792 | 81Y9790 | 90Y8826 | IBM 1TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD |
| 81Y9796 | 81Y9794 | 90Y8822 | IBM 2TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD |
| 81Y9800 | 81Y9798 | IBM 3TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD | |
| 81Y9804 | 81Y9802 | IBM 500GB 7.2K 6Gbps NL SATA 3.5" G2SS HDD | |
| 81Y9808 | 81Y9806 | IBM 1TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD | |
| 81Y9812 | 81Y9810 | IBM 2TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD | |
| 81Y9816 | 81Y9814 | IBM 3TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD | |
| 44W3251 | 46M0901 | IBM UltraSlim Enhanced SATA DVD-ROM | |
| 44W3253 | 46M0902 | 49Y3715 | IBM UltraSlim Enhanced SATA Multi-Burner |
| 90Y4350 | - | 8-pack SATA Enabler for IBM System x | |
| 90Y6126 | - | 3.5" Hot Swap Cage Assembly, Rear, 2 x 3.5" | |
| 90Y6160 | - | x3630 M4 ODD Cage assembly | |
| IO | |||
| 42D0486 | 42D0485 | 49Y3730 | Emulex 8Gb FC Single-port HBA for IBM System x |
| 42D0495 | 42D0494 | 49Y3731 | Emulex 8Gb FC Dual-port HBA for IBM System x |
| 42D0502 | 42D0501 | 49Y3760 | QLogic 8Gb FC Single-port HBA for IBM System x |
| 42D0511 | 42D0510 | 49Y3761 | QLogic 8Gb FC Dual-port HBA for IBM System x |
| 46M6051 | 46M6049 | 49Y3702 | Brocade 8Gb FC Single-port HBA for IBM System x |
| 46M6052 | 46M6050 | 49Y3703 | Brocade 8Gb FC Dual-port HBA for IBM System x |
| 42C2179 | 39R6525 | 43W8353 | QLogic 4Gb FC Single-Port PCIe HBA for IBM System x |
| 42C2182 | 39R6527 | QLogic 4Gb FC Dual-Port PCIe HBA for IBM System x | |
| 43W7491 | 42C2069 | 43W8352 | Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 43W7492 | 42C2071 | Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x | |
| 42C1803 | 42C1800 | QLogic 10Gb CNA for IBM System x | |
| 42C1823 | 42C1820 | Brocade 10Gb CNA for IBM System x | |
| 49Y4217 | 49Y4216 | Brocade 10Gb SFP+ SR Optical Transceiver | |
| 49Y4219 | 49Y4218 | 90Y4575 | QLogic 10Gb SFP+ SR Optical Transceiver |
| 59Y1988 | 59Y1987 | Brocade 4Gb FC Single-port HBA for IBM System x | |
| 59Y1994 | 59Y1993 | Brocade 4Gb FC Dual-port HBA for IBM System x | |
| 68Y7355 | 46M0907 | 90Y4579 | IBM 6Gb SAS HBA |
| 46M0914 | 46M0912 | IBM 6Gb Performance Optimized HBA | |
| 81Y4493 | 81Y4492 | ServeRAID H1110 SAS/SATA Controller for IBM System x | |
| 46C8967 | 81Y4481 | 00D7082 | ServeRAID M5110 SAS/SATA Controller for IBM System x |
| 81Y4450 | 81Y4448 | ServeRAID M1115 SAS/SATA Controller for IBM System x | |
| 81Y4480 | 81Y4478 | ServeRAID M5120 SAS/SATA Controller for IBM System x | |
| 81Y4545 | 81Y4544 | ServeRAID M5100 Series Zero Cache/RAID 5 Upgrade for IBM System x | |
| 81Y4547 | 81Y4546 | 00D7083 | ServeRAID M5100 Series RAID 6 Upgrade for IBM System x |
| 81Y4588 | 81Y4508 | ServeRAID M5100 Series Battery Kit for IBM System x | |
| 90Y4311 | 81Y4542 | 00D7081 | ServeRAID M1100 Series Zero Cache/RAID 5 Upgrade for IBM System x |
| 81Y1669 | 81Y1668 | Brocade 16Gb FC Single-port HBA for IBM System x | |
| 81Y1676 | 81Y1675 | Brocade 16Gb FC Dual-port HBA for IBM System x | |
| - | 81Y1662 | Emulex 16Gb FC Dual-port HBA for IBM System x | |
| 39Y6071 | 39Y6066 | 44W3278 | NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 42C1753 | 42C1750 | PRO/1000 PF Server Adapter | |
| 42C1783 | 42C1780 | 90Y4576 | NetXtreme II 1000 Express Dual Port Ethernet Adapter |
| 49Y4223 | 49Y4220 | 90Y4577 | NetXtreme II 1000 Express Quad Port Ethernet Adapter |
| 49Y4233 | 49Y4230 | 49Y3758 | Intel Ethernet Dual Port Server Adapter I340-T2 for IBM System x |
| 49Y4243 | 49Y4240 | 90Y4578 | Intel Ethernet Quad Port Server Adapter I340-T4 for IBM System x |
| 49Y7963 | 49Y7960 | Intel x520 Dual Port 10GbE SFP+ Adapter for IBM System x | |
| 90Y9353 | 90Y9352 | Broadcom NetXtreme I Quad Port GbE Adapter for IBM System x | |
| 90Y9371 | 90Y9370 | Broadcom NetXtreme I Dual Port GbE Adapter for IBM System x | |
| 95Y3763 | 95Y3762 | Emulex Dual Port 10GbE SFP+ VFA III for IBM System x | |
| - | 81Y1655 | Emulex 16Gb FC Single-port HBA for IBM System x | |
| 90Y9374 | - | Broadcom NetXtreme I Quad Port GbE Adapter - 2U Bracket | |
| 90Y9377 | - | Broadcom NetXtreme I Dual Port GbE Adapter - 2U Bracket | |
| 95Y3768 | - | Emulex Dual Port 10GbE SFP+ Integrated VFA III for IBM System x | |
| 59Y1887 | - | QLogic QLE7340 single-port 4X QDR IB x8 PCI-E 2.0 HCA | |
| 49Y8577 | - | IBM 10GbE SW SFP+ Transceiver | |
| 90Y3841 | - | Mellanox QSA Adapter (QSFP to SFP+) | |
| 95Y3450 | - | Mellanox ConnectX-3 VPI Single-port QSFP QDR/FDR10/10GbE HCA | |
| 95Y3454 | - | Mellanox ConnectX-3 VPI Dual-port QSFP QDR/FDR10/10GbE HCA | |
| 95Y3458 | - | Mellanox ConnectX-3 EN Dual-port QSFP+ 40GbE Adapter | |
| 00W0036 | - | Mellanox ConnectX-3 VPI Single-port QSFP FDR14/40GbE HCA | |
| 00W0040 | - | Mellanox ConnectX-3 VPI Dual-port QSFP FDR14/40GbE HCA | |
| 00W0052 | - | Mellanox ConnectX-3 EN Dual-port SFP+ 10GbE Adapter | |
| 80Y9626 | 90Y3901 | IBM Integrated Management Module Advanced Upgrade | |
| 43V5932 | - | NVIDIA Quadro 600 | |
| 90Y6128 | - | PCIe Riser Card 1 (1 x8 FH/HL + 1 x8 LP Slots) | |
| 90Y6129 | - | PCIe Riser Card 1 (1 x16 FH/HL Slot) for Graphic card | |
| 90Y6131 | - | PCIe Riser Card 2 (1 x8 LP for Slotless RAID) | |
| 90Y6133 | - | PCIe Riser Card 2 (2 x8 LP Slots + 1 x4 LP for Slotless RAID) | |
| 90Y6134 | - | PCIe Riser Card 1 (1 x16 FH/FL Slot) | |
| 90Y6135 | - | PCIe Riser Card 2 (1 x16 LP Slot + 1 x4 LP for Slotless RAID) | |
| 90Y3505 | - | IBM QSFP+ SR Transceiver | |
| 90Y3809 | - | 1m Mellanox QSFP Passive Copper InfiniBand Cable | |
| 90Y3813 | - | 3m Mellanox QSFP Passive Copper InfiniBand Cable | |
| 90Y3817 | - | 5m Mellanox QSFP Passive Copper InfiniBand Cable | |
| 90Y3821 | - | 10m Mellanox QSFP Optical InfiniBand Cable | |
| 90Y3825 | - | 15m Mellanox QSFP Optical InfiniBand Cable | |
| 90Y3829 | - | 20m Mellanox QSFP Optical InfiniBand Cable | |
| 90Y3837 | - | 30m Mellanox QSFP Optical InfiniBand Cable | |
| 95Y3462 | - | 3m Mellanox QSFP Optical InfiniBand Cable | |
| 95Y3466 | - | 5m Mellanox QSFP Optical InfiniBand Cable | |
| Pwr Acc | |||
| 81Y6562 | 94Y6669 | 00D7088 | IBM System x 750W High Efficiency Platinum AC Power Supply |
| 81Y6563 | 94Y6668 | 00D7087 | IBM System x 550W High Efficiency Platinum AC Power Supply |
| 39Y5531 | - | 1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | |
| 39Y5547 | 39Y7938 | 2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable | |
| 39Y5646 | 39Y7931 | Line cord - 4.3M, 10A/125V, C13 to NEMA 5-15P (US) | |
| 39Y7979 | - | 4.3m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | |
| 39Y5532 | - | Rack power cable - 2.0m, 125-250V, C13 to IEC 320-C14 (WW) | |
| 39Y5533 | - | 2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | |
| 39Y7960 | - | IBM USB Conversion Option Pack | |
| 69Y2045 | - | IBM Serial Conversion Option (SCO) | |
| 69Y2046 | - | IBM Virtual Media Conversion Option Gen2 (VCO2) | |
| 42C2060 | 39R6529 | IBM 1M SAS Cable | |
| 42C2061 | 39R6531 | IBM 3M SAS Cable | |
| 39Y8072 | - | IBM Single Cable USB Conversion Option (UCO) | |
| 40K9804 | - | 1m LC-LC Fiber Cable (networking) | |
| 40K9805 | - | 5m LC-LC Fiber Cable (networking) | |
| 40K9806 | - | 25m LC-LC Fiber Cable (networking) | |
| 40K5564 | - | 1.5m Blue Cat5e Cable | |
| 40K5627 | - | 1.5m Green Cat5e Cable | |
| 40K8926 | - | 10m Blue Cat5e Cable | |
| 40K8929 | - | 25m Blue Cat5e Cable | |
| 40K8932 | - | 0.6m Yellow Cat5e Cable | |
| 40K8935 | - | 1.5m Yellow Cat5e Cable | |
| 40K8936 | - | 3m Blue Cat5e Cable | |
| 40K8939 | - | 10m Yellow Cat5e Cable | |
| 40K8941 | - | 25m Yellow Cat5e Cable | |
| 40K8949 | - | 0.6m Blue Cat5e Cable | |
| 40K8960 | - | 3m Yellow Cat5e Cable | |
| 40K8963 | - | 0.6m Green Cat5e Cable | |
| 46M2590 | - | 10A/250V C13 to NEMA 6-15P 2.8m line cord | |
| 39Y5650 | - | Line cord - 1.8M, 10A/125V, C13 to NEMA 5-15P (US) | |
| 39Y8121 | - | Line cord - 1.8m, 10A/250V, C13 to NEMA 6-15P (US) | |
| 39Y8122 | - | Line cord - 2.8m, 10A/250V, C13 to NEMA 6-15P (US) | |
| TAPES | |||
| 43W8492 | 39M5636 | 90Y4586 | IBM DDS Gen 6 USB Tape Drive |
| 49Y9880 | 46C5399 | 49Y3736 | IBM DDS Generation 5 USB Tape Drive |
| 90Y6161 | 90Y6370 | USB Tape Drive Cage assembling kit | |
| - | 44E8869 | USB Enclosure Adapter Kit | |

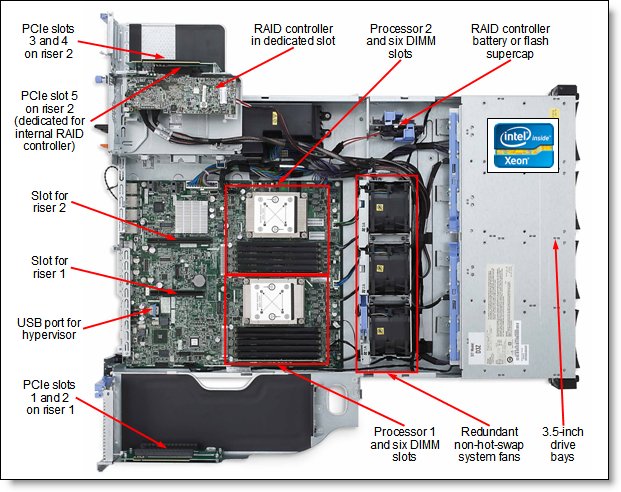

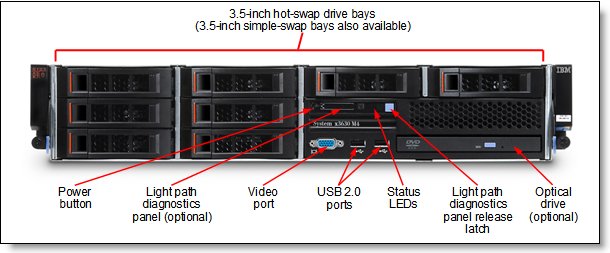

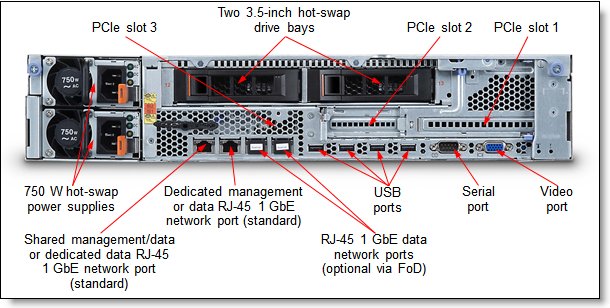

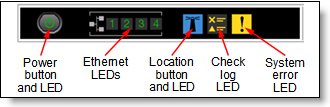

Budowa serwera
