x3755 M3
IBM/x3750-M4
Specyfikacja
| Komponenty serwera | Specyfikacja |
| Obudowa | 2U rack |
| Processor | maksymalnie cztery procesory: 16-rdzeniowe (16C) AMD Opteron 62xx (max 2.5 GHz) lub 12-rdzeniowe (12C) AMD Opteron 62xx/ 61xx (max 2.6 GHz) 8-rdzeniowe (8C) AMD Opteron 62xx / 61xx (max 3.0 GHz) z technologią QuickPath Interconnect wydajność 6.4 GT/s, max częstotliwość pamięci 1333 MHz. |
| Pamięć cache procesora | do 16 MB L3 dla procesorów (16C) AMD Opteron 62xx do 16 MB L3 dla procesorów (12C) AMD Opteron 62xx |
| Płyta główna | AMD SR5690 i SP5100. |
| Pamięć RAM | 32 slotów DDR3 DIMM (8 slotów na procesor) |
| Maksymany RAM | do 512 GB (32x 16 GB DDR3 RDIMM) |
| Ochrona pamięci RAM | ECC, ChipKill, memory mirroring, memory sparing |
| Ilość dysków twardych - (w zależności od modelu) | do 6 szt dysków 3.5" simple-swap SAS/SATA, lub do 8 szt dysków 3.5" hot-swap SAS/SATA |
| Kontrolery RAID | IBM ServeRAID BR10i obsługa poziomu RAID 0, 1, 1E lub IBM ServeRAID M1015 obsługa poziomu RAID 0, 1, 1E,10, kontroler M1015 pozwala na upgrade obsługi RAID 5 (jako opcja) lub IBM ServeRAID M5014 , cache kontrolera: 256MB, obsługa poziomu RAID 0, 1, 5, 10, 50 lub IBM ServeRAID M5015, cache kontrolera: 512MB, obsługa poziomu RAID 0, 1, 5, 10, 50 IBM ServeRAID M5025, cache kontrolera: 512MB, zewnętrzne 2 porty SAS, obsługa poziomu RAID 0, 1, 5, 10, 50 Kontrolery M5014/M5015/M5025 pozwalają na upgrade poziomu RAID 6, 60 (jako opcja – moduł IBM M5000 Advanced Feature Key). |
| Napęd optyczny | 1 slot dla napędu optycznego |
| Napęd taśmowy | Opcjonalny wewnętrzny napęd w modelu CTO z Simple Swap’owymi dyskami |
| Karta sieciowa | 4 portowa karta sieciowa Gigabit Ethernet, 4x 10/100/1000 (2 karty sieciowe). |
| Sloty PCI | 4x PCI Express 2.0 slots: (1 slot dedykowany pod ServeRAID) |
| 1x PCI Express 2.0 x16 | |
| 1x PCI Express 2.0 x8/x4 | |
| 1x PCI Express 2.0 x8 | |
| 1x PCI Express 2.0 x8 | |
| Interfejsy | 5x USB 2.0 (2 z przodu, 2 z tyłu, jeden wewnętrzny port USB dla wbudowanego hypervisora) 1x DB-15 video (VGA) 1x DB-9 (serial) szeregowy port 1xRJ-45 do zarządzania serwerem, 4x RJ-45 Gigabit Ethernet 10/100/1000 |
| Chłodzenie | IBM Calibrated Vectored Cooling™, 5 wentylatorów, nadmiarowość N+1. |
| Zasilacze | Do trzech zasilaczy nadmiarowych wymiennych podczas pracy 1100W AC hot-swap, nadmiarowość N+N lub N+1(w zależności od konfiguracji) |
| Komponenty Hot-swap | dyski twadre, zasilacze, wentylatory |
| Systemy zarządzania | Zintegrowany procesor serwisowy / BMC ( Baseboard management Controller ) / tryb tekstowy UEFI, Integrated Baseboard Management Controller (iBCM), Predictive Failure Analysis, Automatic Server Restart, IBM Systems Director, IBM ServerGuide. |
| Systemy zabezpieczeń | Power-on password, hasło administratora, Trusted Platform Module (TPM). |
| Karta Graficzna | Aspeed AST2050 8 MB pamięci, zintegrowana z IBMC. Max rozdzielczość 1024x768 |
| Wymiary | wysokość: 87 mm; szerokość: 446 mm; głębokość: 628 mm |
| Waga | od 22 kg do 33 kg (w zależności od ilości komponentów) |
Modele
| 716422G | AMD® Opteron 6128 (x2) 2.00GHz, 8C, 12MB L3 Cache, 2x4GB 1Rx4 RDIMM HDD: O/B H/S SAS/ SATA PSU : 1x1100W |
| 716432G | AMD® Opteron 6128HE (x4) 2.00GHz, 12C, 12MB L3 Cache, 4x4GB 1Rx4 RDIMM HDD: O/B H/S SAS/ SATA PSU : 2x1100W |
| 716442G | AMD® Opteron 6134 (x2) 2.30GHz, 8C, 12MB L3 Cache, 2x4GB 1Rx4 RDIMM HDD: O/B H/S SAS/ SATA PSU : 1x1100W |
| 716452G | AMD® Opteron 6136 (x4) 2.20GHz, 12C, 12MB L3 Cache, 4x4GB 1Rx4 RDIMM HDD: O/B H/S SAS/ SATA PSU : 2x1100W |
| 716462G | AMD® Opteron 6172 (x2) 2.10GHz, 12C, 12MB L3 Cache, 4x4GB 1Rx4 RDIMM HDD: O/B H/S SAS/ SATA PSU : 1x1100W |
| 716472G | AMD® Opteron 6174 (x4) 2.40GHz, 12C, 12MB L3 Cache, 4x4GB 1Rx4 RDIMM HDD: O/B H/S SAS/ SATA PSU : 2x1100W |
| 7164B2G | AMD® Opteron 6276 (x4) 2.30GHz, 16C, 16MB L3 Cache, 32GB HDD: SAS/SATA Open-bay, hot-swap: PSU : 115W |
| 7164D2G | AMD® Opteron 6272 (x4) 2.10GHz, 16C, 16MB L3 Cache, 32GB HDD: SAS/SATA Open-bay, hot-swap: PSU : 115W |
| 7164G2G | AMD® Opteron 6234 (x4) 2.40GHz, 16C, 16MB L3 Cache, 32GB HDD: SAS/SATA Open-bay, hot-swap: PSU : 115W |
| 7164J2G | AMD® Opteron 6220 (x4) 3.00GHz, 16C, 16MB L3 Cache, 32GB HDD: SAS/SATA Open-bay, hot-swap: PSU : 115W |
| 7164L2G | AMD® Opteron 6262HE (x4) 1.60GHz, 16C, 16MB L3 Cache, 32GB HDD: SAS/SATA Open-bay, hot-swap: PSU : 85W |
| 7164A2G | AMD® Opteron 6282SE (x4) 2.60GHz, 16C, 16MB L3 Cache, 32GB HDD: SAS/SATA, Open-bay, hot-swap : PSU : 140W |
Kompatybilne opcje
| PART NUMBER | OPTION NUMBER | EXPRESS PART NUMBER | OPIS |
| PROCESSORS | |||
| 69Y1410 | AMD Opteron Processor Model 6128 8C 2.0GHz 12MB Cache 115w | ||
| 69Y1413 | AMD Opteron Processor Model 6134 8C 2.3GHz 12MB Cache 115w | ||
| 69Y1415 | AMD Opteron Processor Model 6172 12C 2.1GHz 12MB Cache 115w | ||
| 69Y1422 | AMD Opteron Processor Model 6124HE 8C 1.8GHz 12MB Cache 79w | ||
| 69Y1425 | AMD Opteron Processor Model 6176SE 12C 2.3GHz 12MB Cache 137w | ||
| 69Y1411 | AMD Opteron Processor Model 6128HE 8C 2.0GHz 12MB Cache 79w | ||
| 69Y1412 | AMD Opteron Processor Model 6136 8C 2.4GHz 12MB Cache 115w | ||
| 69Y1423 | AMD Opteron Processor Model 6164HE 12C 1.7GHz 12MB Cache 79w | ||
| 69Y1424 | AMD Opteron Processor Model 6168 12C 1.9GHz 12MB Cache 115w | ||
| 69Y1436 | AMD Opteron Processor Model 6174 12C 2.2GHz 12MB Cache 115w | ||
| 81Y7575 | AMD Opteron Processor Model 6180 SE 12C 2.5GHz 12MB Cache 140w | ||
| 81Y7576 | AMD Opteron Processor Model 6176 12C 2.3GHz 12MB Cache 115w | ||
| 81Y7577 | AMD Opteron Processor Model 6140 8C 2.6GHz 12MB Cache 115w | ||
| 90Y5331 | AMD Opteron Processor Model 6282SE 16C 2.6Ghz 16MB Cache 140W | ||
| 90Y5332 | AMD Opteron Processor Model 6276 16C 2.3Ghz 16MB Cache 115W | ||
| 90Y5333 | AMD Opteron Processor Model 6274 16C 2.2Ghz 16MB Cache 115W | ||
| 90Y5334 | AMD Opteron Processor Model 6272 16C 2.1Ghz 16MB Cache 115W | ||
| 90Y5335 | AMD Opteron Processor Model 6212 8C 2.6Ghz 16MB Cache 115W | ||
| 90Y5336 | AMD Opteron Processor Model 6238 12C 2.6Ghz 16MB Cache 115W | ||
| 90Y5337 | AMD Opteron Processor Model 6234 12C 2.4Ghz 16MB Cache 115W | ||
| 90Y5338 | AMD Opteron Processor Model 6220 8C 3.0Ghz 16MB Cache 115W | ||
| 90Y5339 | AMD Opteron Processor Model 6262HE 16C 1.6Ghz 16MB Cache 85W | ||
| 49Y7343 | 49Y7338 | Addl AMD Opteron Processor Model 6124HE 8C 1.8GHz 12MB Cache 79w | |
| 49Y7346 | 49Y7341 | Addl AMD Opteron Processor Model 6176SE 12C 2.3GHz 12MB Cache 137w | |
| 69Y1416 | 49Y7332 | Addl AMD Opteron Processor Model 6128 8C 2.0GHz 12MB Cache 115w | |
| 69Y1419 | 49Y7335 | Addl AMD Opteron Processor Model 6134 8C 2.3GHz 12MB Cache 115w | |
| 69Y1421 | 49Y7336 | Addl AMD Opteron Processor Model 6172 12C 2.1GHz 12MB Cache 115w | |
| 49Y7344 | 49Y7339 | Addl AMD Opteron Processor Model 6164HE 12C 1.7GHz 12MB Cache 79w | |
| 49Y7345 | 49Y7340 | Addl AMD Opteron Processor Model 6168 12C 1.9GHz 12MB Cache 115w | |
| 69Y1417 | 49Y7333 | Addl AMD Opteron Processor Model 6128HE 8C 2.0GHz 12MB Cache 79w | |
| 69Y1418 | 49Y7334 | Addl AMD Opteron Processor Model 6136 8C 2.4GHz 12MB Cache 115w | |
| 69Y1437 | 49Y7337 | Addl AMD Opteron Processor Model 6174 12C 2.2GHz 12MB Cache 115w | |
| 81Y7578 | Addl AMD Opteron Processor Model 6180 SE 12C 2.5GHz 12MB Cache 140w | ||
| 81Y7579 | Addl AMD Opteron Processor Model 6176 12C 2.3GHz 12MB Cache 115w | ||
| 81Y7580 | Addl AMD Opteron Processor Model 6140 8C 2.6GHz 12MB Cache 115w | ||
| 90Y5341 | Addl AMD Opteron Processor Model 6282SE 16C 2.6Ghz 16MB Cache 140W | ||
| 90Y5342 | Addl AMD Opteron Processor Model 6276 16C 2.3Ghz 16MB Cache 115W | ||
| 90Y5343 | Addl AMD Opteron Processor Model 6274 16C 2.2Ghz 16MB Cache 115W | ||
| 90Y5344 | Addl AMD Opteron Processor Model 6272 16C 2.1Ghz 16MB Cache 115W | ||
| 90Y5345 | Addl AMD Opteron Processor Model 6212 8C 2.6Ghz 16MB Cache 115W | ||
| 90Y5346 | Addl AMD Opteron Processor Model 6238 12C 2.6Ghz 16MB Cache 115W | ||
| 90Y5347 | Addl AMD Opteron Processor Model 6234 12C 2.4Ghz 16MB Cache 115W | ||
| 90Y5348 | Addl AMD Opteron Processor Model 6220 8C 3.0Ghz 16MB Cache 115W | ||
| 90Y5349 | Addl AMD Opteron Processor Model 6262HE 16C 1.6Ghz 16MB Cache 85W | ||
| MEMMORY | |||
| 46C0596 | 49Y1435 | 49Y3746 | 4GB (1x4GB, 2Rx4, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 46C0597 | 49Y1436 | 49Y3747 | 8GB (1x8GB, 2Rx4, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 49Y1387 | 49Y1405 | 90Y4550 | 2GB (1x2GB, 1Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 49Y1388 | 49Y1406 | 90Y4551 | 4GB (1x4GB, 1Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 44T1587 | 44T1592 | 90Y4574 | 2GB (1x2GB, 1Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 49Y1379 | 49Y1397 | 49Y3778 | 8GB (1x8GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 49Y1382 | 49Y1400 | 00D7089 | 16GB (1x16GB, 4Rx4, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| 49Y1386 | 49Y1404 | 4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP UDIMM | |
| 44T1566 | 44T1570 | 90Y4566 | 2GB (1x2GB, 1Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP UDIMM |
| HDD | |||
| 44W2236 | 44W2234 | 49Y3727 | IBM 300GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 44W2246 | 44W2244 | 49Y3729 | IBM 600GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 44W3251 | 46M0901 | IBM UltraSlim Enhanced SATA DVD-ROM | |
| 44W2241 | 44W2239 | 49Y3728 | IBM 450GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 42D0769 | 42D0767 | 90Y4570 | IBM 2TB 7.2K 6Gbps NL SAS 3.5" HS HDD |
| 42D0779 | 42D0777 | IBM 1TB 7.2K 6Gbps NL SAS 3.5" HS HDD | |
| 81Y9760 | 81Y9758 | IBM 3TB 7.2K 6Gbps NL SAS 3.5" HS HDD | |
| 39M4526 | 43W7598 | 250GB 7200 RPM 3.5" Hot-Swap SATA II | |
| 39M4531 | 39M4530 | 41Y8226 | 500GB 7200 RPM 3.5" Hot-Swap SATA II |
| 43W7627 | 43W7626 | 41Y8236 | IBM 1TB 7200 SATA 3.5 HS HDD |
| 42D0784 | 42D0782 | 90Y4568 | IBM 2TB 7200 Nl SATA 3.5" HS HDD |
| 43W7755 | 43W7754 | IBM 250GB SATA 3.5 HS HDD | |
| 81Y9776 | 81Y9774 | IBM 3TB 7.2K 6Gbps NL SATA 3.5" HS HDD | |
| 81Y9780 | 81Y9778 | IBM 3TB 7.2K 6Gbps NL SATA 3.5" SS HDD | |
| 39M4509 | 39M4508 | 250GB 7200 RPM 3.5" Simple-Swap SATA II | |
| 39M4515 | 39M4514 | 41Y8218 | 500GB 7200 RPM 3.5" Simple-Swap SATA II |
| 43W7751 | 43W7750 | 41Y8288 | IBM 250GB SATA 3.5 SS HDD |
| 42D0789 | 42D0787 | 41Y8284 | IBM 2TB 7200 Nl SATA 3.5" SS HDD |
| 44W3253 | 46M0902 | 49Y3715 | IBM UltraSlim Enhanced SATA Multi-Burner |
| 49Y7371 | Hot swap backplane | ||
| IO | |||
| 46M0850 | 46M0829 | 49Y3719 | ServeRAID M5015 SAS/SATA Controller (Battery not included) |
| 46M0857 | 46M0917 | 90Y4557 | ServeRAID M5000 Series Battery Assembly |
| 46M0922 | 46M0916 | 49Y3720 | ServeRAID M5014 SAS/SATA Controller (Battery not included) |
| 46M0862 | 46M0831 | 90Y4556 | ServeRAID M1015 SAS/SATA Controller |
| 46M0865 | 46M0832 | 49Y3721 | ServeRAID M1000 Series Advance Feature Key |
| 46M0932 | 46M0930 | 49Y3722 | ServeRAID M5000 Series Advance Feature Key |
| 44E8837 | 68Y7396 | Remote Battery Cable | |
| 42D0486 | 42D0485 | 49Y3730 | Emulex 8Gb FC Single-port HBA for IBM System x |
| 42D0495 | 42D0494 | 49Y3731 | Emulex 8Gb FC Dual-port HBA for IBM System x |
| 42D0502 | 42D0501 | 49Y3760 | QLogic 8Gb FC Single-port HBA for IBM System x |
| 42D0511 | 42D0510 | 49Y3761 | QLogic 8Gb FC Dual-port HBA for IBM System x |
| 46M6051 | 46M6049 | 49Y3702 | Brocade 8Gb FC Single-port HBA for IBM System x |
| 46M6052 | 46M6050 | 49Y3703 | Brocade 8Gb FC Dual-port HBA for IBM System x |
| 49Y4217 | 49Y4216 | Brocade 10Gb SFP+ SR Optical Transceiver | |
| 49Y4219 | 49Y4218 | 90Y4575 | QLogic 10Gb SFP+ SR Optical Transceiver |
| 68Y7355 | 46M0907 | 90Y4579 | IBM 6Gb SAS HBA |
| 59Y3932 | ServeRAID-BR10il SAS/SATA Controller v2 with bracket | ||
| 172642X | IBM System Storage DS3400 FC Dual Controller | ||
| 172641X | IBM System Storage DS3400 FC Single Controller | ||
| 172622X | IBM System Storage DS3200 SAS Dual Controller | ||
| 172621X | IBM System Storage DS3200 SAS Single Controller | ||
| 49Y4731 | 49Y3759 | ServeRAID-BR10il SAS/SATA Controller v2 | |
| 39Y6071 | 39Y6066 | 44W3278 | NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 39Y6129 | 39Y6126 | PRO/1000 PT Dual Port Server Adapter by Intel | |
| 39Y6139 | 39Y6136 | PRO/1000 PT Quad Port Server Adapter | |
| 42C1753 | 42C1750 | PRO/1000 PF Server Adapter | |
| 42C1783 | 42C1780 | 90Y4576 | NetXtreme II 1000 Express Dual Port Ethernet Adapter |
| 42C1790 | NetXtreme II 10 GigE Express Fiber SR Adapter | ||
| 49Y4223 | 49Y4220 | 90Y4577 | NetXtreme II 1000 Express Quad Port Ethernet Adapter |
| 49Y4253 | 49Y4250 | Emulex 10GbE Virtual Fabric Adapter for IBM System x | |
| 49Y4233 | 49Y4230 | 49Y3758 | Intel Ethernet Dual Port Server Adapter I340-T2 for IBM System x |
| 49Y4243 | 49Y4240 | 90Y4578 | Intel Ethernet Quad Port Server Adapter I340-T4 for IBM System x |
| 46M2198 | Mellanox ConnectX Dual-Port 4X QDR IB x8 PCI-E 2.0 HCA | ||
| 59Y1887 | QLogic QLE7340 single-port 4X QDR IB x8 PCI-E 2.0 HCA | ||
| 81Y1530 | Mellanox ConnectX-2 VPI Single-port QSFP QDR IB/10GbE PCI-E 2.0 HCA | ||
| 81Y1534 | Mellanox ConnectX-2 VPI Dual-port QSFP QDR IB/10GbE PCI-E 2.0 HCA | ||
| 81Y1538 | Mellanox ConnectX-2 EN Dual-port SFP+ 10GbE PCI-E 2.0 Adapter | ||
| 42C1803 | 42C1800 | QLogic 10Gb CNA for IBM System x | |
| 42C1823 | 42C1820 | Brocade 10Gb CNA for IBM System x | |
| 81Y9991 | 81Y9990 | Mellanox ConnectX-2 Dual Port 10GbE Adapter for IBM System x | |
| 49Y7953 | 49Y7950 | Emulex 10GbE Virtual Fabric Adapter II for IBM System x | |
| 95Y3767 | 95Y3750 | Mellanox ConnectX-2 Dual-port QSFP QDR IB Adapter for IBM System x | |
| 49Y7913 | 49Y7910 | Broadcom NetXtreme II Dual Port 10GBaseT Adapter for IBM System x | |
| 95Y3450 | Mellanox ConnectX-3 VPI Single-port QSFP QDR/FDR10/10GbE HCA | ||
| 95Y3454 | Mellanox ConnectX-3 VPI Dual-port QSFP QDR/FDR10/10GbE HCA | ||
| 95Y3458 | Mellanox ConnectX-3 EN Dual-port QSFP+ 40GbE Adapter | ||
| 49Y7963 | 49Y7960 | Intel x520 Dual Port 10GbE SFP+ Adapter for IBM System x | |
| 90Y9370 | Broadcom NetXtreme I Dual Port GbE Adapter for IBM System x | ||
| 90Y9352 | Broadcom NetXtreme I Quad Port GbE Adapter for IBM System x | ||
| 59Y8349 | 41Y8287 | IBM USB Memory Key for VMware ESXi 4.1 | |
| 46M0859 | 2U Bracket for ServeRAID M5015 SAS/SATA Controller | ||
| 46M4990 | 41Y8296 | 41Y8305 | IBM USB Memory Key for VMware ESXi 4.1 Update 1 |
| 49Y4278 | Emulex VFA II FCoE/iSCSI License for IBM System x | ||
| 94Y9770 | 41Y8300 | IBM USB Memory Key for VMWare ESXi 5.0 | |
| 41Y8298 | IBM Blank USB Memory Key for VMWare ESXi Downloads | ||
| PWR ACC | |||
| 69Y1434 | 49Y7342 | 1100W Redundant Power Supply | |
| 39Y5531 | 39Y7937 | 1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | |
| 39Y5547 | 39Y7938 | 2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable | |
| 39Y7979 | 39Y7932 | 4.3m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | |
| 39Y5533 | 2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | ||
| 39Y8951 | DPI Universal Rack PDU with Nema L5-20P and L6-20P | ||
| 39Y8948 | IBM Enterprise C19 PDU | ||
| 39Y8941 | IBM Enterprise C13 PDU | ||
| 39Y8940 | DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd connector | ||
| 39Y8939 | DPI 30amp/250V Front-end PDU with NEMA L6-30P | ||
| 39Y8938 | DPI 30amp/125V Front-end PDU with NEMA L5-30P | ||
| 39Y8923 | IBM Enterprise C19 3 phase PDU (60a) | ||
| 39M2816 | IBM Dpi C13 PDU+ | ||
| 71763NU | IBM Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph | ||
| 71763MU | IBM Ultra Density Enterprise C19/C13 PDU+ 60A/208V/3ph | ||
| 71762NX | IBM Ultra Density Enterprise C19/C13 PDU Module | ||
| 71762MX | IBM Ultra Density Enterprise C19/C13 PDU+ Module | ||
| 46M4005 | IBM 1U 12 C13 Switched and Monitored 60A 3 Phase PDU | ||
| 46M4004 | IBM 1U 12 C13 Switched and Monitored DPI PDU | ||
| 46M4003 | IBM 1U 9 C19/3 C13 Switched and Monitored 60A 3 Phase PDU | ||
| 46M4002 | IBM 1U 9 C19/3 C13 Switched and Monitored DPI PDU | ||
| 21304RX | IBM UPS 10000Xhv | ||
| 24195KX | IBM UPS5000 HV | ||
| 53959KX | IBM 11000VA LCD 5U Rack UPS (200V/208V/230V) | ||
| 21303RX | IBM UPS 7500Xhv | ||
| 39Y7960 | 39M2895 | 49Y3709 | IBM USB Conversion Option Pack |
| 93624PX | IBM 47U 1200mm Deep Static Rack | ||
| 93624EX | IBM 47U 1200mm Deep Static Expansion Rack | ||
| 93614PX | 9361EPX | IBM 42U 1200mm Deep Static Rack | |
| 93614EX | IBM 42U 1200mm Deep Static Expansion Rack | ||
| 93604PX | IBM 42U 1200mm Deep Dynamic Rack | ||
| 93604EX | IBM 42U 1200mm Deep Dynamic Expansion Rack | ||
| 39Y7957 | 39M2894 | Virtual Media Conversion Option | |
| 39Y8072 | 43V6147 | IBM Single Cable USB Conversion Option (UCO) | |
| 69Y2046 | 46M5383 | 90Y4583 | IBM Virtual Media Conversion Option Gen2 (VCO2) |
| 39Y8070 | 1.5m KVM Conversion Cable Set | ||
| 93084PX | IBM 42U Enterprise Rack | ||
| 93084EX | IBM 42U Enterprise Expansion Rack | ||
| 14104RX | IBM 42U S2 standard rack | ||
| 17351GX | IBM Local 2x8 Console Manager (LCM2) | ||
| 17354LX | IBM 2 x 16 Console Switch | ||
| 17353LX | IBM 1 x 8 Console Switch | ||
| 17352GX | IBM Global 2x16 Console Mngr(GCM2) | ||
| 1754D2X | IBM Global 4X2X32 Console Manager | ||
| 1754D1X | IBM Global 2X2X16 Console Manager | ||
| 1754A2X | IBM Local 2X16 Console Manager | ||
| 1754A1X | 1754E1X | IBM Local 1X8 Console Manager | |
| 172319X | 1U 19in Flat Panel Console Kit | ||
| 172317X | 1723E7X | 1U 17in Flat Panel Console Kit | |
| 13N1943 | 5m LC-LC Fiber Cable | ||
| 13N1944 | 39M5698 | 25m LC-LC Fiber Cable | |
| 40K9806 | 25m LC-LC Fiber Cable (networking) | ||
| 40K5564 | 1.5m Blue Cat5e Cable | ||
| 40K5627 | 1.5m Green Cat5e Cable | ||
| 40K5791 | 3m Green Cat5e Cable | ||
| 40K5792 | 10m Green Cat5e Cable | ||
| 40K8868 | 25m Green Cat5e Cable | ||
| 40K8926 | 10m Blue Cat5e Cable | ||
| 40K8929 | 25m Blue Cat5e Cable | ||
| 40K8932 | 0.6m Yellow Cat5e Cable | ||
| 40K8935 | 1.5m Yellow Cat5e Cable | ||
| 40K8936 | 3m Blue Cat5e Cable | ||
| 40K8939 | 10m Yellow Cat5e Cable | ||
| 40K8941 | 25m Yellow Cat5e Cable | ||
| 40K8949 | 0.6m Blue Cat5e Cable | ||
| 40K8960 | 3m Yellow Cat5e Cable | ||
| 40K8963 | 0.6m Green Cat5e Cable | ||
| 39Y5646 | 39Y7931 | Line cord - 4.3M, 10A/125V, C13 to NEMA 5-15P (US) | |
| 39Y5651 | 2.8m, 10A/120V, C13 to NEMA 5-15P (US) Line Cord | ||
| 39Y5644 | Line cord - 1.8M, 10A/125V, C13 to NEMA 5-15P (US) | ||
| 39Y6554 | 1.8m, 10A/208V, C13 to NEMA L6-15P (US) Line Cord | ||
| 39Y6555 | 2.8m, 10A/208V, C13 to NEMA L6-15P (US) Line Cord | ||
| 39Y6556 | 4.3m, 10A/208V, C13 to NEMA L6-15P (US) Line Cord | ||
| 39Y8905 | DPI 100-127v PDU with Fixed Nema L5-15P line cord | ||
| TAPE | |||
| 43W8480 | IBM DDS Gen 5 SATA Tape Drive | ||
| 69Y1456 | Tape Drive enablement | ||
| 43W8478 | 49Y3697 | IBM Half High LTO Gen 3 SAS Tape Drive | |
| 39M5636 | 90Y4586 | IBM DDS Generation 6 USB Tape Drive | |
| 44E8895 | 90Y4588 | IBM Half High LTO Gen 4 SAS Tape Drive | |
| 46C5388 | IBM RDX500 Internal USB Bundle | ||
| 46C5387 | IBM RDX320 Internal USB Bundle | ||
| 46C5364 | 49Y3699 | IBM RDX160 Internal USB Bundle | |
| 362550X | IBM RDX 500 GB External USB Drive | ||
| 362532X | IBM RDX 320 GB External USB Drive | ||
| 362516X | IBM RDX 160 GB External USB Drive | ||
| 46C5399 | 49Y3736 | IBM DDS Generation 5 USB Tape Drive | |
| 3628L5X | IBM Half High LTO Gen 5 External SAS Tape Drive | ||
| 8767HHX | Half High Tape Drive Enclosure | ||
| 87651UX | 1U Tape Drive Enclosure | ||
| 8767HNX | HH Tape Enclosure, No Power Cord | ||
| 87651NX | 1U Tape Enclosure, No Power Cord | ||
| 49Y7348 | Tape Bezel for no Raid card and tape drive | ||
| 40K9805 | 5m LC-LC Fiber Cable (networking) | ||
| 41Y8280 | IBM 2TB 7.2K NL SATA 3.5" HS HDD | ||
| 90Y4556 | ServeRAID M1015 SAS/SATA Controller ( Bertram) | ||
| 90Y4557 | ServeRAID M5000 Series Battery kit ( M5000 Battery ) | ||
| 1754E1X | IBM Local 1x8 Console Manager (LCM8) | ||

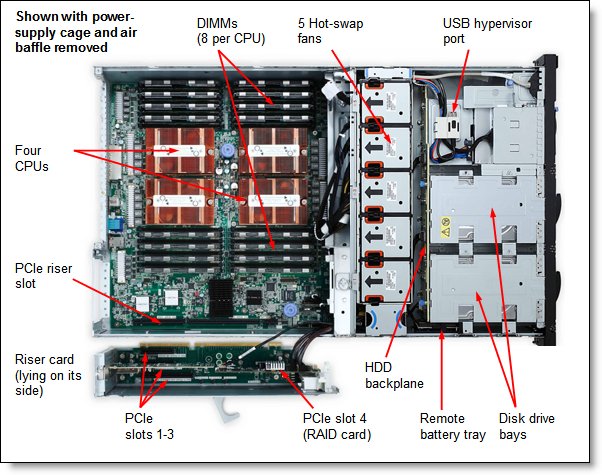

Budowa serwera
