x3850 x3950 X5
IBM/x3850_x3950-X5
Specyfikacja
| Elementy serwera | Specyfikacja |
| Obudowa | 4U rack. |
| Rozbudowa | MTM 7145xxx - 1 serwer + MAX5 (5U) / 2 serwery (bez możliwości instalowania modułu MAX5 – wymagany QPI Scalability Kit MTM 7143xxx - 1 serwer + MAX5 (5U) / 2 serwery + MAX5 (10U) - wymagany EXA Scalability Kit |
| Processor | maksymalnie cztery procesory: MTM 7143xxx - 10rdzeniowe Intel Xeon serii E7(48xx ,88xx) lub, MTM 7145xxx / 7143xxx - 8rdzeniowe Intel Xeon serii 75xx,65xx (8C) / E7 (48xxx,88xx) (8C) MTM 7145xxx / 7143xxx - 6rdzeniowe Intel Xeon serii 75xx,65xx (6C)/ E7 (48xx, 48xx ) (6C) MTM 7145xxx - 4rdzeniowe Intel Xeon serii 75xx, (4C) |
| Pamięć cache procesora | do 30 MB L3 dla procesorów serii Xeon E7 10C 48xx / 88xx |
| Pamięć RAM / Maksymany RAM | 64 sloty DDR3 DIMM (16 slotów na procesor) do 2TB GB (64x 32 GB DDR3 RDIMM) |
| 96 sloty DDR3 DIMM (24 slotów na procesor) do 3 TB GB (96x 132 GB DDR3 RDIMM) z modułem MAX5 | |
| Ochrona pamięci RAM | ECC, ChipKill, memory mirroring, memory sparing |
| Ilość dysków twardych - (w zależności od modelu) | do 8 szt dysków 2.5" hot-swap SAS/SATA/SSD, lub do 16 szt dysków 1.8" hot-swap SAS/SATA/SSD |
| Kontrolery RAID | IBM ServeRAID BR10i obsługa poziomu RAID 0, 1, 1E lub IBM ServeRAID M1015 obsługa poziomu RAID 0, 1, 1E,10, kontroler M1015 pozwala na upgrade obsługi RAID 5 (jako opcja) lub IBM ServeRAID M5014 , cache kontrolera: 256MB, obsługa poziomu RAID 0, 1, 5, 10, 50 lub IBM ServeRAID M5015, cache kontrolera: 512MB, obsługa poziomu RAID 0, 1, 5, 10, 50 IBM ServeRAID M5025, cache kontrolera: 512MB, zewnętrzne 2 porty SAS, obsługa poziomu RAID 0, 1, 5, 10, 50 IBM ServeRAID B5025 SSD, obsługa poziomu RAID 1, 5 Kontrolery M5014/M5015/M5025 pozwalają na upgrade poziomu RAID 6, 60 (jako opcja – moduł IBM M5000 Advanced Feature Key). |
| Napęd optyczny | 1 slot dla napędu optycznego |
| Napęd taśmowy | brak |
| Karta sieciowa | Zintegrowana 2 portowa karta sieciowa Gigabit Ethernet, 2x 10/100/1000 (chipset Broadcom 5709C), Dodatkowo kontroler Emulex 10Gb Virtual Fabric Adapter standardowo w większości modeli (2 porty 10Gb) |
| Sloty PCI | 8 slotów w zależności od rodzaju karty poprzecznej (1 slot dedykowany pod ServeRAID) |
| 8x PCI Express 2.0 x16 | |
| Interfejsy | 7x USB 2.0 (2 z przodu, 4 z tyłu, jeden wewnętrzny port USB dla wbudowanego hypervisora) 1x DB-15 video (VGA), 1x DB-9 (serial) szeregowy port 1xRJ-45 do zarządzania serwerem, 2x RJ-45 Gigabit Ethernet 10/100/1000 4x scalability ports |
| Chłodzenie | IBM Calibrated Vectored Cooling™, 5 wentylatorów, nadmiarowość N+1. |
| Zasilacze | do dwóch nadmiarowych zasilaczy wymiennych podczas pracy 1975W |
| Komponenty Hot-swap | dyski twadre, zasilacze, wentylatory |
| Systemy zarządzania | Zintegrowany procesor serwisowy / BMC ( Baseboard management Controller ) / tryb tekstowy UEFI, IBM Integrated Management Module (IMM), Predictive Failure Analysis, Automatic Server Restart, IBM Systems Director, IBM Systems Director Active Energy Manager, IBM ServerGuide. Opcjonalnie: Karta zdalnego zarządzania IBM Virtual Media Key (opcja, umożliwia między innymi przejęcie graficznej konsoli, klawiatury, myszy, bootowanie z lokalnych dysków) |
| Systemy zabezpieczeń | Power-on password, hasło administratora, |
| Karta Graficzna | Matrox G200eV 16 MB pamięci, zintegrowana z IMM. Max rozdzielczość 1024x768 |
| Wymiary | wysokość: 173 mm; szerokość: 440 mm; głębokość: 712 mm |
| Waga | od 35.4 kg do 49.9 kg (w zależności od ilości komponentów) |
Modele
| 7143B1G | Intel® Xeon™ E7-4807 2x 1.86GHz Cache : L3 18MB Cores : Six 95W, Std Mem : 2x4GB on 1 Card HDD : O/B SAS PSU : 1x HS 1975W OPT : Optional RAID : No |
| 7143B2G | Intel® Xeon™ E7-4820 2x 2.00GHz Cache : L3 18MB Cores : Eight 105W, Std Mem : 4x4GB on 2 Cards HDD : O/B SAS PSU : 2x HS 1975W OPT : Optional RAID : M1015 |
| 7143B3G | Intel® Xeon™ E7-4830 2x 2.13GHz Cache : L3 24MB Cores : Eight 105W, Std Mem : 4x4GB on 2 Cards HDD : O/B SAS PSU : 2x HS 1975W OPT : Optional RAID : M1015 |
| 7143B5G | Intel® Xeon™ E7-4850 2x 2.00GHz Cache : L3 24MB Cores : Ten 130W, Std Mem : 4x4GB on 2 Cards HDD : O/B SAS PSU : 2x HS 1975W OPT : Optional RAID : M1015 |
| 7143B6G | Intel® Xeon™ E7-4860 2x 2.26GHz Cache : L3 24MB Cores : Ten 130W, Std Mem : 4x4GB on 2 Cards HDD : O/B SAS PSU : 2x HS 1975W OPT : Optional RAID : M1015 |
| 7143B7G | Intel® Xeon™ E7-4870 2x 2.40GHz Cache : L3 30MB Cores : Ten 130W, Std Mem : 4x4GB on 2 Cards HDD : O/B SAS PSU : 2x HS 1975W OPT : Optional RAID : M1015 |
| 7143C1G | Intel® Xeon™ E7-8850 2x 2.00GHz Cache : L3 24MB Cores : Ten 130W, Std Mem : 4x4GB on 2 Cards HDD : O/B SAS PSU : 2x HS 1975W OPT : Optional RAID : M1015 |
| 7143C2G | Intel® Xeon™ E7-8860 2x 2.26GHz Cache : L3 24MB Cores : Ten 130W, Std Mem : 4x4GB on 2 Cards HDD : O/B SAS PSU : 2x HS 1975W OPT : Optional RAID : M1015 |
| 7143C3G | Intel® Xeon™ E7-8870 2x 2.40GHz Cache : L3 30MB Cores : Ten 130W Std Mem : 4x4GB on 2 Cards HDD : O/B SAS PSU : 2x HS 1975W OPT : Optional RAID : M5015 |
| 7143D1G | 4 x Intel® Xeon™ E7-4850 2.00GHz Cache : L3 24MB Cores : Ten 130W Std Mem : 32x4GB on 8 Cards HDD : 2x eXFlash with 16x200GB SSD PSU : 2x HS 1975W OPT : Optional RAID : 2x6Gb SSD HBA |
| 7143D2G | 4 x Intel® Xeon™ E7-4860 2.26GHz Cache : L3 24MB Cores : Ten 130W Std Mem : 32x4GB on 8 Cards HDD : 2x eXFlash with 16x200GB SSD PSU : 2x HS 1975W OPT : Optional RAID : 4xB5015 |
| 7143F1G | 4 x Intel® Xeon™ E7-4860 2.26GHz Cache : L3 24MB Cores : Ten 130W Std Mem : 64x4GB on 8 Cards HDD : VMware ESXi 4.1 Hypervisor USB key PSU : 2x HS 1975W OPT : Optional RAID : M1015 + MAX5: 32x4GB, 2x675W HS PSU |
| 7143F2G | 4 x Intel® Xeon™ E7-4860 2.26GHz Cache : L3 24MB Cores : Ten 130W Std Mem : 96x4GB HDD : SAS Open Bay PSU : 2x HS 1975W MAX5 V2: 8 memory cards ( 64x4 GB on on memory cards and 32x4 GB on MAX5 V2 ) |
| 7143H1G | Intel® Xeon™ E7-8870 2x 2.40GHz Cache : L3 30MB Cores : Ten 130W Std Mem : 16x16GB on 4 Cards HDD : 8x 600GB SAS HDD, 320 GB Fusion IO PSU : 2x HS 1975W OPT : Optional RAID : M5015 |
| 7143H2G | Intel® Xeon™ E7-8870 4x 2.40GHz Cache : L3 30MB Cores : Ten 130W Std Mem : 32x16GB on 8 Cards HDD : 8x 600GB SAS HDD, 640 GB Fusion IO PSU : 2x HS 1975W OPT : Optional RAID : M5015 |
| 7143H3G | Intel® Xeon™ E7-8870 4x 2.40GHz Cache : L3 30MB Cores : Ten 130W Std Mem : 32x16GB on 8 Cards HDD : 8x 600GB SAS HDD, 640 GB Fusion IO PSU : 2x HS 1975W OPT : Optional RAID : M5015 |
Kompatybilne opcje
| PART NUMBER | OPTION NUMBER | EXPRESS PART NUMBER | OPIS |
| PROCESSORS | |||
| 69Y1853 | - | Intel Xeon Processor E7-4870 10C (2.40GHz 30MB L3 130w 4S) | |
| 69Y1855 | - | Intel Xeon Processor E7-8837 8C (2.67GHz 24MB L3 130w 8S) | |
| 69Y1859 | - | Intel Xeon Processor E7-8830 8C (2.13GHz 24MB L3 105w 8S) | |
| 69Y1861 | - | Intel Xeon Processor E7-8867L 10C (2.13GHz 30MB L3 105w 8S) | |
| 69Y1863 | - | Intel Xeon Processor E7-8860 10C (2.26GHz 24MB L3 130w 8S) | |
| 69Y1865 | - | Intel Xeon Processor E7-8870 10C (2.40GHz 30MB L3 130w 8S) | |
| 88Y5321 | - | Intel Xeon Processor E7-4807 6C (1.86GHz 18MB L3 95w 4S) | |
| 88Y5323 | - | Intel Xeon Processor E7-4820 8C (2.00GHz 18MB L3 105w 4S) | |
| 88Y5325 | - | Intel Xeon Processor E7-4830 8C (2.13GHz 24MB L3 105w 4S) | |
| 88Y5327 | - | Intel Xeon Processor E7-4860 10C (2.26GHz 24MB L3 130w 4S) | |
| 88Y5397 | - | Intel Xeon Processor E7-4850 10C (2.00GHz 24MB L3 130w 4S) | |
| 88Y5399 | - | Intel Xeon Processor E7-8850 10C (2.00GHz 24MB L3 130w 8S) | |
| 69Y1852 | 69Y1893 | Addl Intel Xeon Processor E7-4870 10C 2.40GHz 30MB Cache 130w | |
| 69Y1854 | 69Y1894 | Addl Intel Xeon Processor E7-8837 8C 2.67GHz 24MB Cache 130w | |
| 69Y1858 | 69Y1896 | Addl Intel Xeon Processor E7-8830 8C 2.13GHz 24MB Cache 105w | |
| 69Y1860 | 69Y1897 | Addl Intel Xeon Processor E7-8867L 10C 2.13GHz 30MB Cache 105w | |
| 69Y1862 | 69Y1898 | Addl Intel Xeon Processor E7-8860 10C 2.26GHz 24MB Cache 130w | |
| 69Y1864 | 69Y1899 | Addl Intel Xeon Processor E7-8870 10C 2.40GHz 30MB Cache 130w | |
| 88Y5320 | 69Y1889 | Addl Intel Xeon Processor E7-4807 6C 1.86GHz 18MB Cache 95w | |
| 88Y5322 | 69Y1890 | Addl Intel Xeon Processor E7-4820 8C 2.00GHz 18MB Cache 105w | |
| 88Y5324 | 69Y1891 | Addl Intel Xeon Processor E7-4830 8C 2.13GHz 24MB Cache 105w | |
| 88Y5326 | 69Y1892 | Addl Intel Xeon Processor E7-4860 10C 2.26GHz 24MB Cache 130w | |
| 88Y5396 | 88Y5358 | Addl Intel Xeon Processor E7-4850 10C 2.00GHz 24MB Cache 130w | |
| 88Y5398 | 88Y5357 | Addl Intel Xeon Processor E7-8850 10C 2.00GHz 24MB Cache 130w | |
| 46M0087 | 49Y4379 | IBM x3850 X5 and x3950 X5 QPI Wrap Card | |
| MEMMORY | |||
| 88Y5361 | 69Y1888 | IBM x3850 X5 and x3950 X5 Memory Expansion Card | |
| 44T1597 | 44T1599 | 49Y3757 | 4GB (1x4GB, Dual Rankx8) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 46C7476 | 46C7482 | 8GB (1x8GB, Quad Rankx8) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM | |
| 46C7477 | 46C7483 | 16GB (1x16GB, 4Rx4, 1.5V) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM | |
| 49Y1389 | 49Y1407 | 49Y3777 | 4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 49Y1382 | 49Y1400 | 00D7089 | 16GB (1x16GB, 4Rx4, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| 44T1587 | 44T1592 | 90Y4574 | 2GB (1x2GB, 1Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 49Y1381 | 49Y1399 | 8GB (1x8GB, 4Rx8, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM | |
| 90Y3100 | 90Y3101 | 32GB (1x32GB, 4Rx4, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM | |
| 49Y1532 | - | 2GB MAX5 1x2GB 1Rx8 1.5V PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM | |
| 49Y1534 | - | 4GB MAX5 1x4GB DualRankx8 PC310600 CL9 ECC DDR3 1333MHz LP RDIMM | |
| 49Y1535 | - | 8GB MAX5 1x8GB QuadRankx8 PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM | |
| 49Y1536 | - | 16GB MAX5 1x16G QuadRankx4 PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM | |
| 90Y3171 | - | 4GB MAX5 (1x4GB, 2Gb, 2Rx8, 1.35V) PC3L-10600R-999 LP ECC RDIMM | |
| 90Y3205 | - | 32GB MAX5 (4GB, 4Rx4, 1.35V) PC3L-8500 DDR3-1066MHz LP RDIMM | |
| 90Y3172 | - | 8GB MAX5 1x8GB, 4Rx8, 1.35V PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM | |
| 90Y3173 | - | 16GB MAX5 1x16GB 4Rx4 1.35V PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM | |
| - | 46C7448 | 4GB (1x4GB, Quad Rankx8) PC3-8500 CL7 ECC DDR3-1066MHz LP RDIMM | |
| 59Y6307 | - | IBM MAX5 for System x Memory DIMM Filler | |
| HDD | |||
| - | 42D0672 | 44W2202 | IBM 73GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| - | 42D0632 | 44W2194 | IBM 146GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 42D0639 | 42D0637 | 44W2193 | IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 42D0679 | 42D0677 | 44W2201 | IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 42D0709 | 42D0707 | 49Y3726 | IBM 500GB 7200 6Gbps NL SAS 2.5" SFF Slim-HS HDD |
| 49Y2005 | 49Y2003 | 49Y2078 | IBM 600GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| - | 81Y9690 | IBM 1TB 7.2K 6Gbps NL SAS 2.5" SFF HS HDD | |
| 81Y9652 | 81Y9650 | IBM 900GB 10K 6Gbps SAS 2.5" SFF HS HDD | |
| 81Y9672 | 81Y9670 | IBM 300GB 15K 6Gbps SAS 2.5" SFF HS HDD | |
| 90Y8645 | 90Y8643 | IBM 256GB SATA 2.5" MLC HS Entry SSD | |
| 90Y8650 | 90Y8648 | IBM 128GB SATA 2.5" MLC HS Entry SSD | |
| 43W7715 | - | IBM 50GB SATA 2.5" SFF Slim-HS High IOPS SSD | |
| - | 42D0747 | IBM 160GB 7200 NL SATA 2.5" SFF Slim-HS HDD | |
| 42D0754 | 42D0752 | IBM 500GB 7200 NL SATA 2.5" SFF Slim-HS HDD | |
| - | 81Y9730 | 81Y9848 | IBM 1TB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 81Y9724 | 81Y9722 | 81Y9840 | IBM 250GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 81Y9728 | 81Y9726 | 81Y9844 | IBM 500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| 43W7719 | 43W7718 | IBM 200GB SATA 2.5" MLC HS SSd | |
| 43W7727 | 43W7726 | IBM 50GB SATA 1.8" MLC SSd | |
| 43W7747 | 43W7746 | IBM 200GB SATA 1.8" MLC SSd | |
| 43W7735 | 43W7734 | IBM 50GB SATA 1.8" NHS SSd | |
| 44W2266 | 44W2264 | IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS SED | |
| 44W2296 | 44W2294 | IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS SED | |
| 44W3251 | - | IBM UltraSlim Enhanced SATA DVD-ROM | |
| 44W3253 | 46M0902 | 49Y3715 | IBM UltraSlim Enhanced SATA Multi-Burner |
| 59Y6120 | 59Y6135 | IBM Hot Swap SAS Hard Disk Drive Backplane | |
| 59Y6236 | 59Y6213 | IBM eXFlash 8x 1.8" HS SAS SSD Backplane | |
| - | 40K1692 | IBM External USB Floppy Drive | |
| IO | |||
| 42D0486 | 42D0485 | 49Y3730 | Emulex 8Gb FC Single-port HBA for IBM System x |
| 42D0495 | 42D0494 | 49Y3731 | Emulex 8Gb FC Dual-port HBA for IBM System x |
| 42D0502 | 42D0501 | 49Y3760 | QLogic 8Gb FC Single-port HBA for IBM System x |
| 42D0511 | 42D0510 | 49Y3761 | QLogic 8Gb FC Dual-port HBA for IBM System x |
| 46M6051 | 46M6049 | 49Y3702 | Brocade 8Gb FC Single-port HBA for IBM System x |
| 46M6052 | 46M6050 | 49Y3703 | Brocade 8Gb FC Dual-port HBA for IBM System x |
| 44E8692 | - | ServeRAID-BR10i SAS/SATA Controller | |
| 44E8702 | - | IBM 3Gb SAS HBA Controller v2 | |
| 42C2179 | 39R6525 | 43W8353 | QLogic 4Gb FC Single-Port PCIe HBA for IBM System x |
| 42C2182 | 39R6527 | QLogic 4Gb FC Dual-Port PCIe HBA for IBM System x | |
| 43W7491 | 42C2069 | 43W8352 | Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 43W7492 | 42C2071 | Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x | |
| 49Y4217 | 49Y4216 | Brocade 10Gb SFP+ SR Optical Transceiver | |
| 49Y4219 | 49Y4218 | 90Y4575 | QLogic 10Gb SFP+ SR Optical Transceiver |
| 46M0888 | 46M0877 | IBM 160GB High IOPS SS Class SSD PCIe Adapter | |
| 46M0900 | 46M0898 | IBM 320GB High IOPS MS Class SSD PCIe Adapter | |
| 46M0850 | 46M0829 | 49Y3719 | ServeRAID M5015 SAS/SATA Controller (Battery not included) |
| 46M0857 | 46M0917 | 90Y4557 | ServeRAID M5000 Series Battery Assembly |
| 46M0922 | 46M0916 | 49Y3720 | ServeRAID M5014 SAS/SATA Controller (Battery not included) |
| 59Y1988 | 59Y1987 | Brocade 4Gb FC Single-port HBA for IBM System x | |
| 59Y1994 | 59Y1993 | Brocade 4Gb FC Dual-port HBA for IBM System x | |
| 46M0862 | 46M0831 | 90Y4556 | ServeRAID M1015 SAS/SATA Controller |
| 46M0865 | 46M0832 | 49Y3721 | ServeRAID M1000 Series Advance Feature Key |
| 46M0932 | 46M0930 | 49Y3722 | ServeRAID M5000 Series Advance Feature Key |
| 46M0889 | 46M0878 | IBM 320GB High IOPS SD Class SSD PCIe Adapter | |
| 46M0971 | 46M0969 | ServeRAID B5015 SSD Controller | |
| 68Y7355 | 46M0907 | 90Y4579 | IBM 6Gb SAS HBA |
| 46M0853 | 46M0830 | ServeRAID M5025 SAS/SATA Controller | |
| 68Y7383 | 81Y4519 | 640GB High IOPS MLC Duo Adapter for IBM System x | |
| 81Y4533 | 81Y4531 | 640GB High IOPS MLC Adapter For IBM System X | |
| 81Y4537 | 81Y4535 | 320GB High IOPS Slc Adapter For IBM System X | |
| 81Y4541 | 81Y4539 | 640GB High IOPS Slc Duo Adapter For IBM System X | |
| 46M0914 | 46M0912 | IBM 6Gb Performance Optimized HBA | |
| 81Y4428 | 81Y4426 | ServeRAID M5000 Series Performance Accelerator Key | |
| 81Y4529 | 81Y4527 | 1.28TB High IOPS MLC Duo Adapter For IBM System X | |
| - | 172701X | IBM System Storage EXP3000 | |
| - | 1746A4S | IBM System Storage DS3524 Express Single Controller Storage System | |
| - | 1746A4D | IBM System Storage DS3524 Express Dual Controller Storage System | |
| - | 1746A2S | IBM System Storage DS3512 Express Single Controller Storage System | |
| - | 1746A2D | IBM System Storage DS3512 Express Dual Controller Storage System | |
| - | 174724X | IBM System Storage EXP2524 Express Storage Enclosure | |
| - | 174712X | IBM System Storage EXP2512 Express Storage Enclosure | |
| 39Y6071 | 39Y6066 | 44W3278 | NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 42C1753 | 42C1750 | PRO/1000 PF Server Adapter | |
| 42C1783 | 42C1780 | 90Y4576 | NetXtreme II 1000 Express Dual Port Ethernet Adapter |
| 42C1803 | 42C1800 | QLogic 10Gb CNA for IBM System x | |
| 42C1823 | 42C1820 | Brocade 10Gb CNA for IBM System x | |
| 49Y4233 | 49Y4230 | 49Y3758 | Intel Ethernet Dual Port Server Adapter I340-T2 for IBM System x |
| 49Y4243 | 49Y4240 | 90Y4578 | Intel Ethernet Quad Port Server Adapter I340-T4 for IBM System x |
| 49Y7940 | - | Emulex 10GbE Integrated Virtual Fabric Adapter II for IBM System x | |
| 59Y1887 | - | QLogic QLE7340 single-port 4X QDR IB x8 PCI-E 2.0 HCA | |
| 49Y4253 | 49Y4250 | Emulex 10GbE Virtual Fabric Adapter for IBM System x | |
| 81Y1530 | - | Mellanox ConnectX-2 VPI Single-port QSFP QDR IB/10GbE PCI-E 2.0 HCA | |
| 81Y1534 | - | Mellanox ConnectX-2 VPI Dual-port QSFP QDR IB/10GbE PCI-E 2.0 HCA | |
| 81Y9991 | 81Y9990 | Mellanox ConnectX-2 Dual Port 10GbE Adapter for IBM System x | |
| 49Y7953 | 49Y7950 | Emulex 10GbE Virtual Fabric Adapter II for IBM System x | |
| 95Y3767 | 95Y3750 | Mellanox ConnectX-2 Dual-port QSFP QDR IB Adapter for IBM System x | |
| 49Y7913 | 49Y7910 | Broadcom NetXtreme II Dual Port 10GBaseT Adapter for IBM System x | |
| 95Y3450 | - | Mellanox ConnectX-3 VPI Single-port QSFP QDR/FDR10/10GbE HCA | |
| 95Y3454 | - | Mellanox ConnectX-3 VPI Dual-port QSFP QDR/FDR10/10GbE HCA | |
| 95Y3458 | - | Mellanox ConnectX-3 EN Dual-port QSFP+ 40GbE Adapter | |
| 49Y7963 | 49Y7960 | Intel x520 Dual Port 10GbE SFP+ Adapter for IBM System x | |
| 90Y9353 | 90Y9352 | Broadcom NetXtreme I Quad Port GbE Adapter for IBM System x | |
| 90Y9371 | 90Y9370 | Broadcom NetXtreme I Dual Port GbE Adapter for IBM System x | |
| 46D0161 | - | 1m Mellanox Copper Cable for 4X IB and 10GbE | |
| 46D0165 | - | 3m Mellanox Copper Cable for 4X IB and 10GbE | |
| 46D0169 | - | 5m Mellanox Copper Cable for 4X IB and 10GbE | |
| 46D0173 | - | 8m Mellanox Copper Cable for 4X IB and 10GbE | |
| 46M4990 | 41Y8296 | 41Y8305 | IBM USB Memory Key for VMware ESXi 4.1 Update 1 |
| 90Y3809 | - | 1m Mellanox QSFP Passive Copper InfiniBand Cable | |
| 90Y3813 | - | 3m Mellanox QSFP Passive Copper InfiniBand Cable | |
| 90Y3817 | - | 5m Mellanox QSFP Passive Copper InfiniBand Cable | |
| 90Y3821 | - | 10m Mellanox QSFP Optical InfiniBand Cable | |
| 90Y3825 | - | 15m Mellanox QSFP Optical InfiniBand Cable | |
| 90Y3829 | - | 20m Mellanox QSFP Optical InfiniBand Cable | |
| 90Y3837 | - | 30m Mellanox QSFP Optical InfiniBand Cable | |
| 95Y3462 | - | 3m Mellanox QSFP Optical InfiniBand Cable | |
| 95Y3466 | - | 5m Mellanox QSFP Optical InfiniBand Cable | |
| 49Y4278 | - | Emulex VFA II FCoE/iSCSI License for IBM System x | |
| 94Y9770 | 41Y8300 | IBM USB Memory Key for VMWare ESXi 5.0 | |
| - | 39R6475 | 4-Gbps SW SFP Transceiver | |
| - | 41Y8298 | IBM Blank USB Memory Key for VMWare ESXi Downloads | |
| PWR ACC | |||
| 46M0089 | 59Y6139 | IBM 1975W Power Supply | |
| 44X0080 | - | Power Supply Blank Filler | |
| 60Y0310 | - | IBM 675W HE Redundant Power Supply | |
| 39Y5531 | 39Y7937 | 1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | |
| 39Y5547 | 39Y7938 | 2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable | |
| 39Y7979 | 39Y7932 | 4.3m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | |
| 39Y5533 | - | 2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable | |
| - | 39Y8951 | DPI Universal Rack PDU with Nema L5-20P and L6-20P | |
| - | 39Y8948 | IBM Enterprise C19 PDU | |
| - | 39Y8941 | IBM Enterprise C13 PDU | |
| - | 39Y8940 | DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd connector | |
| - | 39Y8939 | DPI 30amp/250V Front-end PDU with NEMA L6-30P | |
| - | 39Y8938 | DPI 30amp/125V Front-end PDU with NEMA L5-30P | |
| - | 39Y8923 | IBM Enterprise C19 3 phase PDU (60a) | |
| - | 39M2816 | IBM Dpi C13 PDU+ | |
| - | 71763NU | IBM Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph | |
| - | 71763MU | IBM Ultra Density Enterprise C19/C13 PDU+ 60A/208V/3ph | |
| - | 71762NX | IBM Ultra Density Enterprise C19/C13 PDU Module | |
| - | 71762MX | IBM Ultra Density Enterprise C19/C13 PDU+ Module | |
| - | 46M4005 | IBM 1U 12 C13 Switched and Monitored 60A 3 Phase PDU | |
| - | 46M4004 | IBM 1U 12 C13 Switched and Monitored DPI PDU | |
| - | 46M4003 | IBM 1U 9 C19/3 C13 Switched and Monitored 60A 3 Phase PDU | |
| - | 46M4002 | IBM 1U 9 C19/3 C13 Switched and Monitored DPI PDU | |
| - | 46M4140 | IBM 0U 12 C19/12 C13 50A 3 Phase PDU | |
| - | 46M4128 | IBM 0U 24 C13 30A PDU | |
| - | 46M4125 | IBM 0U 24 C13 30A 3 Phase PDU | |
| - | 46M4167 | 1U Switch. and Monit. PDU 9 C19 / 3 C13 3ph 30A fixed 4.3m L21-30P. | |
| - | 46M4134 | IBM 0U 12 C19/12 C13 Switched and Monitored 50A 3 Phase PDU | |
| - | 46M4116 | IBM 0U 24 C13 Switched and Monitored 30A PDU | |
| - | 43V6109 | IBM 0U 24 C13 Switched and Monitored 30A 3 Phase PDU | |
| - | 21304RX | IBM UPS 10000Xhv | |
| - | 21302RX | IBM UPS3000 HV | |
| - | 24195KX | IBM UPS5000 HV | |
| - | 53953JX | IBM 3000VA LCD 3U Rack UPS (200V/208V) | |
| - | 53953AX | IBM 3000VA LCD 3U Rack UPS (100V/120V) | |
| - | 46M4110 | 90Y4585 | IBM LCD UPS Network Management Card |
| - | 53956KX | IBM 6000VA LCD 4U Rack UPS (230V) | |
| - | 53956AX | IBM 6000VA LCD 4U Rack UPS (200V/208V) | |
| - | 53959KX | IBM 11000VA LCD 5U Rack UPS (200V/208V/230V) | |
| - | 21303RX | IBM UPS 7500Xhv | |
| - | 53952xx | IBM 2200VA LCD 2U Rack UPS (100V/120V) | |
| - | 93074XX | IBM 42U S2 expansion rack | |
| - | 93074RX | 9307SRX | NetBAY S2 42U Standard Rack Cabinet |
| - | 93072RX | IBM 25U S2 standard rack | |
| - | 93084PX | IBM 42U Enterprise Rack | |
| - | 93084EX | IBM 42U Enterprise Expansion Rack | |
| - | 14104RX | IBM 42U S2 standard rack | |
| - | 14102RX | IBM 25RU standard rack | |
| - | 99564XX | IBM S2 42U Dynamic Expansion Rack Cabinet | |
| - | 99564RX | IBM S2 42U Dynamic Standard Rack Cabinet | |
| - | 93072PX | IBM S2 25U Static Base Cabinet | |
| - | 93624PX | IBM 47U 1200mm Deep Static Rack | |
| - | 93624EX | IBM 47U 1200mm Deep Static Expansion Rack | |
| - | 93614PX | 9361EPX | IBM 42U 1200mm Deep Static Rack |
| - | 93614EX | IBM 42U 1200mm Deep Static Expansion Rack | |
| - | 93604PX | IBM 42U 1200mm Deep Dynamic Rack | |
| - | 93604EX | IBM 42U 1200mm Deep Dynamic Expansion Rack | |
| 39Y8072 | 43V6147 | IBM Single Cable USB Conversion Option (UCO) | |
| 69Y2045 | 46M5382 | IBM Serial Conversion Option (SCO) | |
| 69Y2046 | 46M5383 | 90Y4583 | IBM Virtual Media Conversion Option Gen2 (VCO2) |
| 39Y7953 | 31R3132 | 3m Console Switch Cable (USB) | |
| - | 17351GX | IBM Local 2x8 Console Manager (LCM2) | |
| - | 17354LX | IBM 2 x 16 Console Switch | |
| - | 17353LX | IBM 1 x 8 Console Switch | |
| - | 17352GX | IBM Global 2x16 Console Mngr(GCM2) | |
| - | 1754D2X | IBM Global 4X2X32 Console Manager | |
| - | 1754D1X | IBM Global 2X2X16 Console Manager | |
| - | 1754A2X | IBM Local 2X16 Console Manager | |
| - | 1754A1X | 1754E1X | IBM Local 1X8 Console Manager |
| - | 172319X | 1U 19in Flat Panel Console Kit | |
| - | 172317X | 1723E7X | 1U 17in Flat Panel Console Kit |
| - | 40K9584 | IBM Preferred Pro Keyboard USB - US English 103P | |
| - | 40K9200 | IBM Optical Wheel Mouse - USB RoHS | |
| - | 40K5372 | IBM Keyboard w/ Integrated Pointing Device USB - US English 103P | |
| 40K9805 | - | 5m LC-LC Fiber Cable (networking) | |
| 40K9806 | - | 25m LC-LC Fiber Cable (networking) | |
| 39Y7957 | 39M2894 | Virtual Media Conversion Option | |
| 39Y7960 | 39M2895 | 49Y3709 | IBM USB Conversion Option Pack |
| - | 39M5698 | 25M Fiber Optic Cable LC-LC | |
| - | 39M5697 | 5M Fiber Optic Cable LC-LC | |
| - | 39R6531 | IBM 3m SAS Cable | |
| - | 39R6529 | IBM 1m SAS Cable | |
| - | 2018 | IBM 11U Office Enablement Kit | |
| 40K5564 | - | 1.5m Blue Cat5e Cable | |
| 40K5627 | - | 1.5m Green Cat5e Cable | |
| 40K5791 | - | 3m Green Cat5e Cable | |
| 40K5792 | - | 10m Green Cat5e Cable | |
| 40K8868 | - | 25m Green Cat5e Cable | |
| 40K8926 | - | 10m Blue Cat5e Cable | |
| 40K8929 | - | 25m Blue Cat5e Cable | |
| 40K8932 | - | 0.6m Yellow Cat5e Cable | |
| 40K8935 | - | 1.5m Yellow Cat5e Cable | |
| 40K8936 | - | 3m Blue Cat5e Cable | |
| 40K8939 | - | 10m Yellow Cat5e Cable | |
| 40K8941 | - | 25m Yellow Cat5e Cable | |
| 40K8949 | - | 0.6m Blue Cat5e Cable | |
| 40K8960 | - | 3m Yellow Cat5e Cable | |
| 40K8963 | - | 0.6m Green Cat5e Cable | |
| 39Y8122 | - | Line cord - 2.8m, 10A/250V, C13 to NEMA 6-15P (US) | |
| 39Y5646 | 39Y7931 | Line cord - 4.3M, 10A/125V, C13 to NEMA 5-15P (US) | |
| 46M2590 | - | 10A/250V C13 to NEMA 6-15P 2.8m line cord | |
| - | 39Y8905 | DPI 100-127v PDU with Fixed Nema L5-15P line cord | |
| TAPE | |||
| - | 43W8478 | 49Y3697 | IBM Half High LTO Gen 3 SAS Tape Drive |
| - | 39M5636 | 90Y4586 | IBM DDS Generation 6 USB Tape Drive |
| - | 44E8895 | 90Y4588 | IBM Half High LTO Gen 4 SAS Tape Drive |
| - | 362550X | IBM RDX 500 GB External USB Drive | |
| - | 362532X | IBM RDX 320 GB External USB Drive | |
| - | 362516X | IBM RDX 160 GB External USB Drive | |
| - | 49Y9898 | IBM Half High LTO Gen 5 Internal SAS Tape Drive | |
| - | 3628L5X | IBM Half High LTO Gen 5 External SAS Tape Drive | |
| - | 3628L4X | IBM Half High LTO Gen 4 External SAS Tape Drive | |
| - | 3628L3X | IBM Half High LTO Gen 3 External SAS Tape Drive | |
| - | 3580-S53 | IBM System Storage TS2350 Tape Drive Model S53 | |
| - | 3580-H5S | IBM System Storage TS2250 Tape Drive Model H5S | |
| - | 3580-H4x | IBM System Storage TS2240 Tape Drive Model | |
| - | 3580-H3x | IBM System Storage TS2230 Tape Drive Express Model | |
| - | 3572-Sxx | IBM System Storage TS2900 Tape Autoloader | |
| - | 8767HHX | Half High Tape Drive Enclosure | |
| - | 87651UX | 1U Tape Drive Enclosure | |
| - | 3584-xxx | IBM System Storage TS3500 Tape Library (all models) | |
| - | 3576-xxx | IBM System Storage TS3310 Modular Tape Library (all models) | |
| - | 3573-xxx | IBM System Storage TS3100/TS3200 Tape Library (all models) | |
| - | 2812-A14 | IBM XIV Storage System (Machine Type 2812) Model A14 | |
| - | 2145 v6.1.x | IBM SAN Volume Controller version 6.1.x | |
| - | 2076-xxx | IBM Storwize V7000 | |
| SCALABILITY KITS | |||
| 46M0086 | 46M0072 | IBM x3850 X5 QPI Scalability Kit | |
| 59Y6268 | 59Y6267 | IBM MAX5 to x3850 X5 Cable Kit | |
| 59Y6272 | 59Y6271 | IBM eX5 MAX5 2-Node EXA Scalability Kit | |

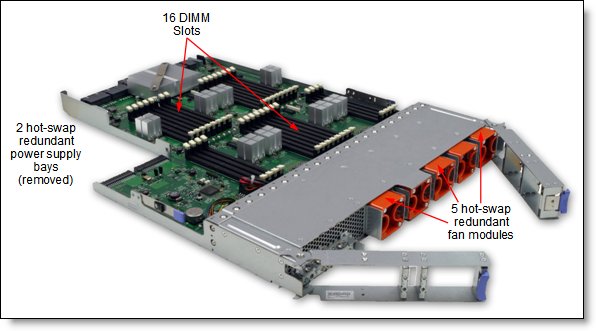

| 88Y6530 | 88Y6529 | IBM MAX5 V2 for System x | |
| 40K9804 | - | 1m LC-LC Fiber Cable (networking) | |
| 59Y6284 | 59Y6265 | IBM MAX5 for System x | |
Budowa serwera
